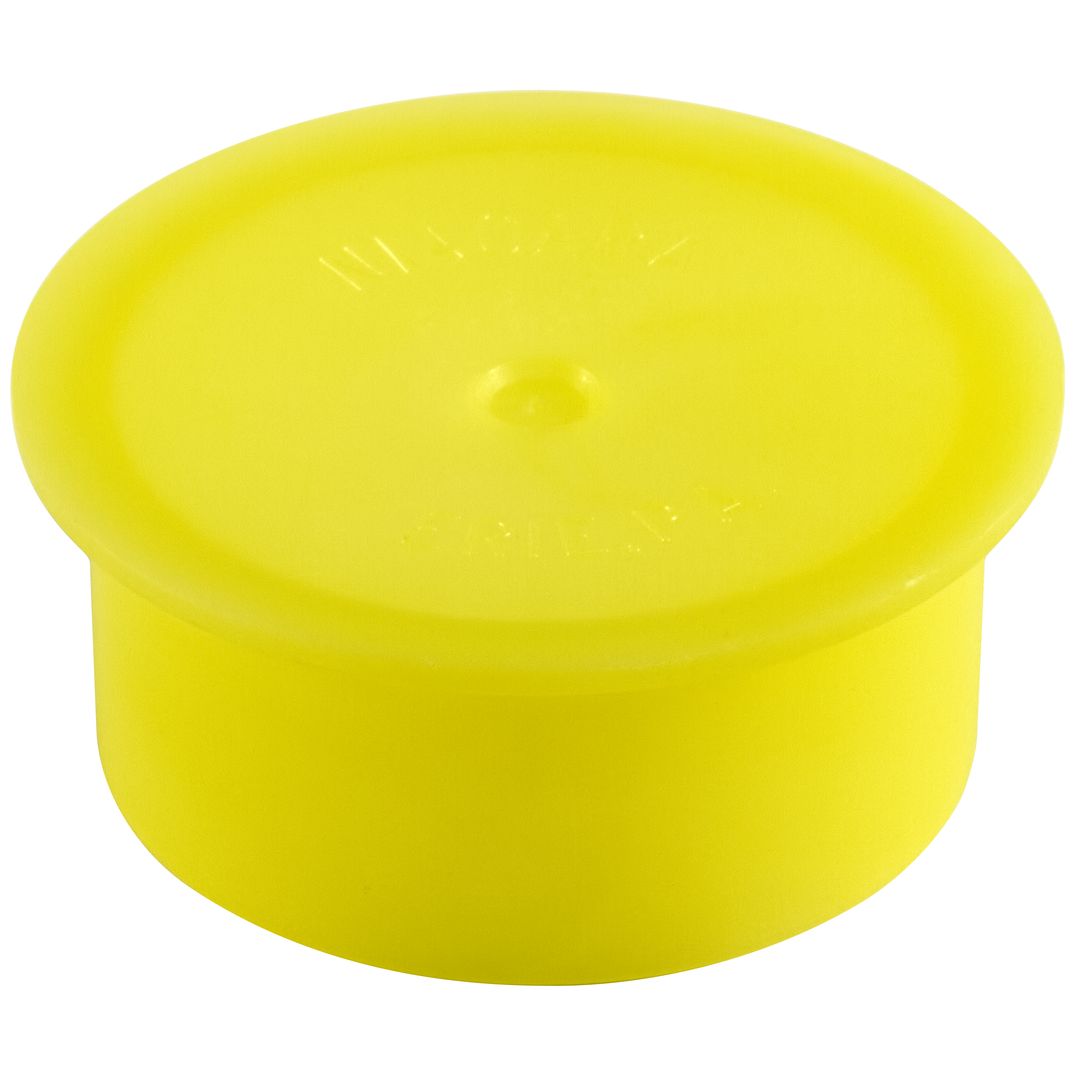

PM Series
Push-On Metric Caps
PM Series caps are designed to protect and cap metric fittings. These durable caps also feature a flange for ease of installation and removal.
- Fits common metric thread sizes
- Easy to use
- Versatile design
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-Density Polyethylene |
|---|---|
| Standard Colour | Yellow Tint |
| Service Temperature | -94 – 175° F (-70 – 79° C) |
| Optional Colour | Natural |
Part Sizes
Item Number | To Cap Metric Thread Size | Dim A (In) | Dim C (In) | Dim D (In) |
PM-10 | M10 | 0.384 | 0.323 | 0.689 |
PM-12 | M12 | 0.463 | 0.47 | 0.768 |
PM-14 | M14 | 0.54 | 0.47 | 0.846 |
PM-16 | M16 | 0.617 | 0.47 | 0.925 |
PM-18 | M18 | 0.696 | 0.47 | 1.004 |
PM-20 | M20 | 0.774 | 0.553 | 1.083 |
PM-22 | M22 | 0.855 | 0.553 | 1.161 |
PM-33 | M33 | 1.285 | 0.689 | 1.594 |
PM-38 | M38 | 1.481 | 0.689 | 1.791 |
PM-42 | M42 | 1.641 | 0.689 | 1.949 |
