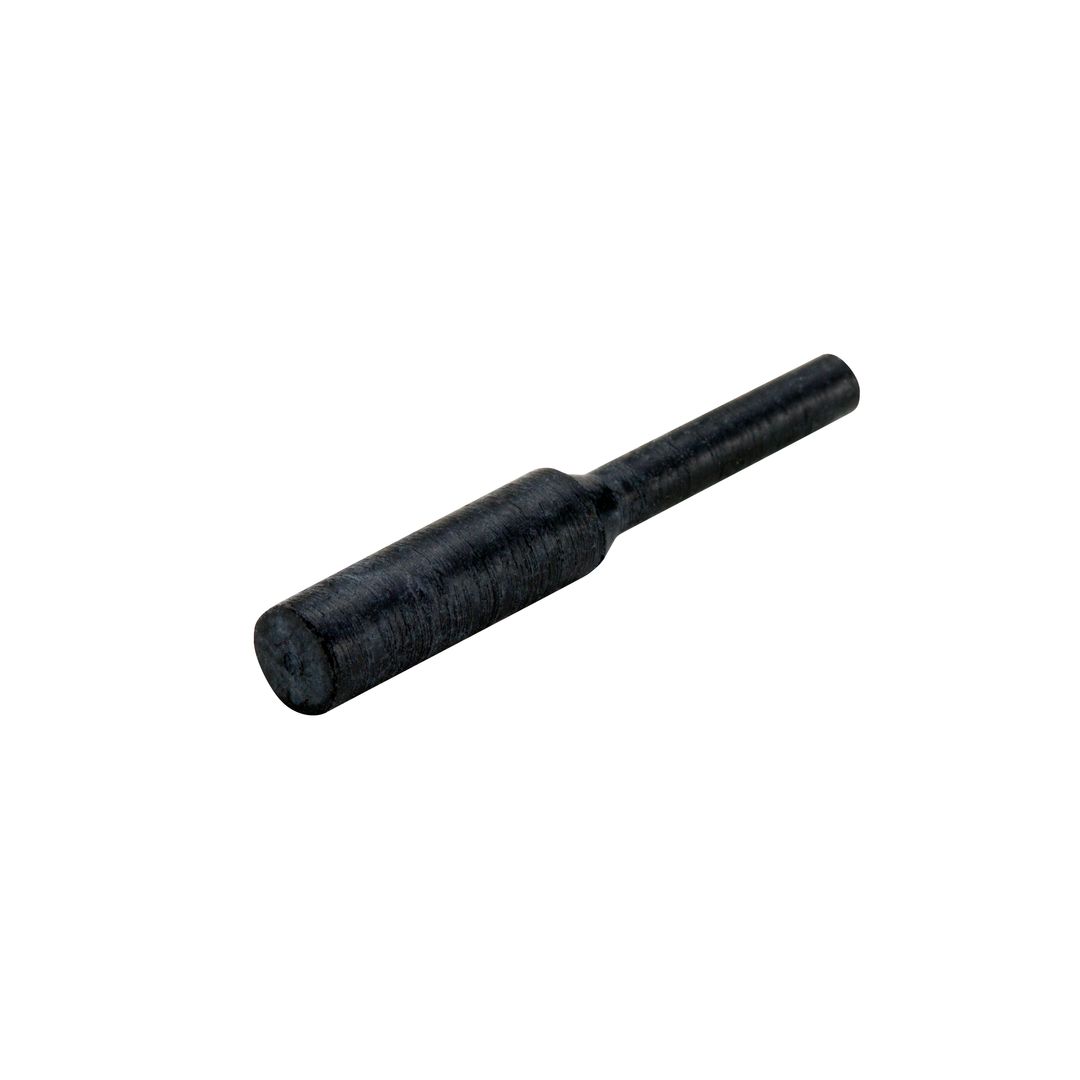

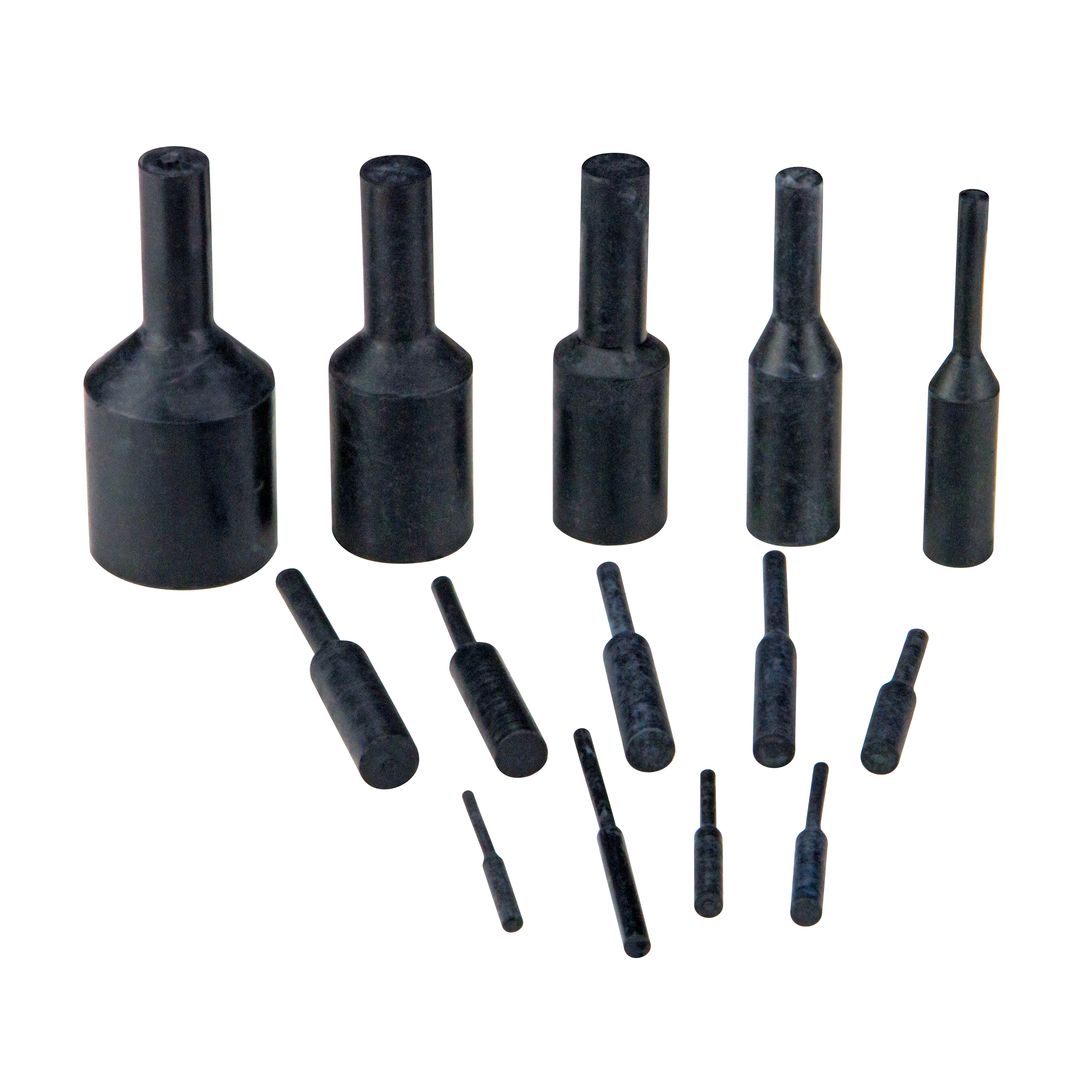

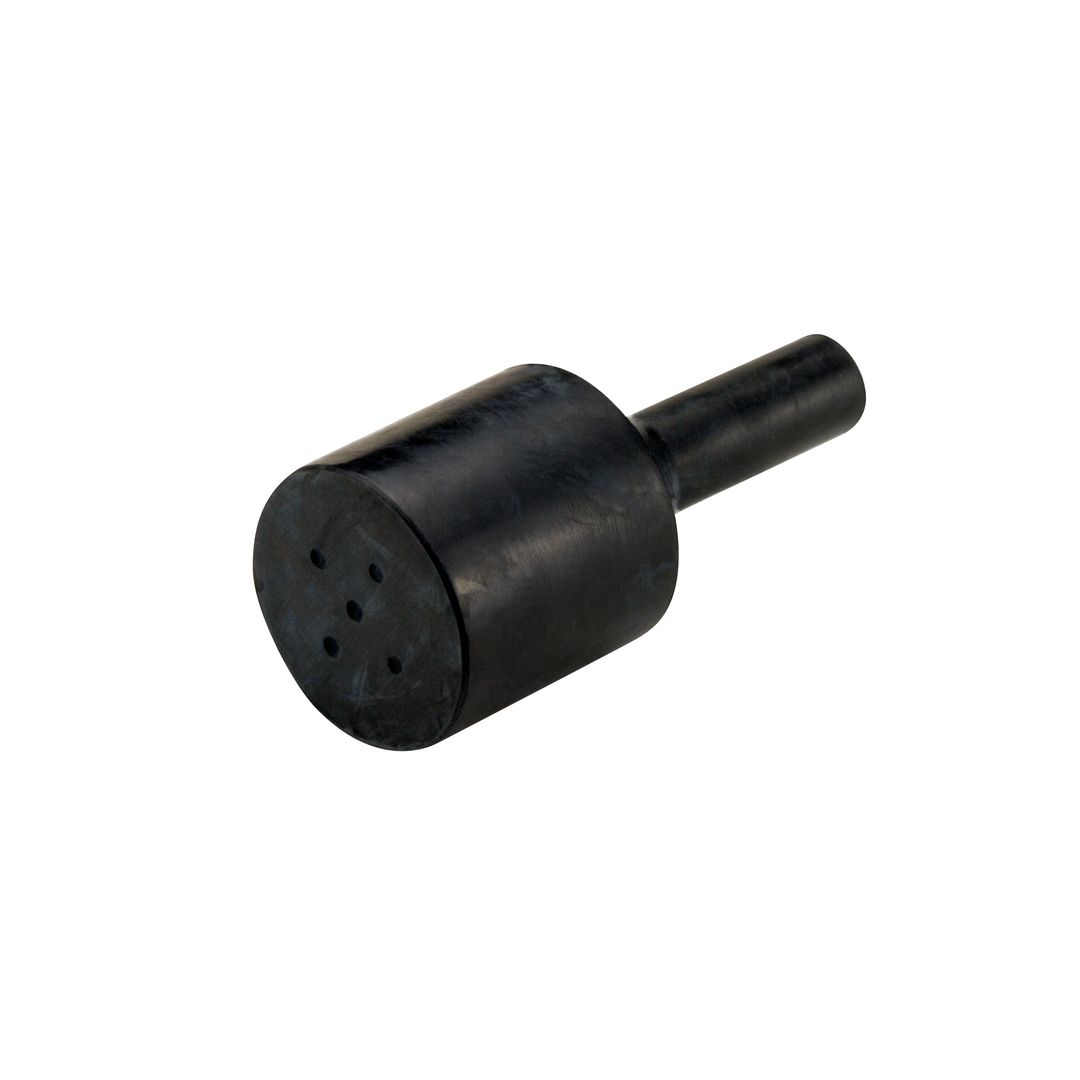

PP-SH Series

EPDM Pull Plugs

Our PP-SH Series EPDM pull plugs are designed to fit both threaded and non-threaded through holes of various sizes.

  • Ideal for plating, painting and anodising
  • Tolerates temperatures up to 350°F (177°C)

Reusable

Additional information

Material

EPDM
Standard Colour

Black
Optional Colours

Clear, White

Part Sizes

Item Number

To Fit Hole Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Color

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

PP06
1/20
0.062
0.046
0.315
0.375
Black
1.57
1.17
8.00
9.53
PP17
1/8
0.142
0.085
0.540
0.625
Black
3.61
2.16
13.72
15.88
PP22
5/32
0.162
0.096
0.560
0.625
Black
4.11
2.44
14.22
15.88
PP18
9/64
0.154
0.083
0.560
0.632
Black
3.91
2.11
14.22
16.05
PP08
1/16
0.073
0.046
0.570
0.612
Black
1.85
1.17
14.48
15.54
PP23
11/64
0.195
0.110
0.580
0.625
Black
4.95
2.79
14.73
15.88
PP07
1/16
0.067
0.047
0.590
0.625
Black
1.70
1.19
14.99
15.88
PP11
3/32
0.104
0.062
0.617
0.525
Black
2.64
1.57
15.67
13.34
PP11A
7/64
0.125
0.062
0.620
0.625
Black
3.18
1.57
15.75
15.88
PP20
9/64
0.156
0.083
0.625
0.625
Black
3.96
2.11
15.88
15.88
PP09
5/64
0.091
0.052
0.640
0.625
Black
2.31
1.32
16.26
15.88
PP10
5/64
0.093
0.050
0.680
0.700
Black
2.36
1.27
17.27
17.78
PP15
1/8
0.130
0.093
0.700
0.650
Black
3.30
2.36
17.02
16.51
PP77
1/2
0.510
0.256
0.790
1.000
Black
12.95
6.50
20.07
25.40
PP50
11/32
0.350
0.193
0.810
0.881
Black
8.89
4.90
20.57
22.38
PP42
19/64
0.316
0.152
0.860
1.000
Black
8.03
3.86
21.84
25.40
PP40
17/64
0.275
0.125
0.870
0.937
Black
6.99
3.18
22.10
23.80
PP73
15/32
0.496
0.250
0.910
1.000
Black
12.60
6.35
23.11
25.40
PP55
3/8
0.384
0.154
0.910
1.000
Black
9.75
3.91
23.11
25.40
PP30
3/16
0.218
0.130
0.915
0.970
Black
5.54
3.30
23.24
24.64
PP33
7/32
0.225
0.125
0.930
1.000
Black
5.72
3.18
23.62
25.40
PP100
3/4
0.770
0.375
0.947
1.000
Black
19.56
9.53
24.05
25.40
PP120
1
1.020
0.375
0.950
1.000
Black
25.91
9.53
24.13
25.40
PP89
19/32
0.612
0.250
0.970
1.000
Black
15.54
6.35
24.64
25.40
PP37
1/4
0.257
0.130
0.975
1.000
Black
6.53
3.30
24.77
25.40
PP14
1/8
0.130
0.093
0.980
1.000
Black
3.30
2.36
24.89
25.40
PP90
5/8
0.640
0.375
0.980
1.000
Black
16.26
9.53
24.89
25.40
PP85
37/64
0.571
0.303
0.990
1.000
Black
14.50
7.70
25.15
25.40
PP67
7/16
0.445
0.255
0.990
1.000
Black
11.30
6.48
25.15
25.40
PP66
7/16
0.444
0.255
0.990
1.000
Black
11.28
6.48
25.15
25.40
PP60
13/32
0.408
0.191
0.990
1.009
Black
10.36
4.85
25.15
25.63
PP110
7/8
0.888
0.372
0.990
1.000
Black
22.56
9.45
25.15
25.40
PP80
33/64
0.530
0.250
0.990
1.000
Black
13.46
6.35
25.15
25.40
PP70
29/64
0.472
0.243
1.000
1.000
Black
11.99
6.17
25.40
25.40
PP43
5/16
0.335
0.153
1.000
1.000
Black
8.51
3.89
25.40
25.40
PP130
-
1.145
0.375
1.000
1.000
Black
29.08
9.53
25.4
24.4
PP42A
5/16
0.333
0.251
1.080
0.757
Black
8.46
6.38
27.43
19.23
PP97
23/32
0.728
0.375
1.100
1.125
Black
18.49
9.53
27.94
28.58
PP105
25/32
0.807
0.428
1.235
1.250
Black
20.50
10.87
31.37
31.75
PP95
13/16
0.707
0.375
1.280
1.250
Black
17.96
9.53
32.51
31.75
PP140
1-3/8
1.380
0.732
1.500
1.500
Black
35.05
18.59
38.10
38.10
PP40LS
17/64
0.275
0.146
1.960
2.000
Black
6.99
3.71
49.78
50.80
PP89LS
19/32
0.612
0.325
2.000
2.000
Black
15.54
8.26
50.80
50.80
PP95LS
13/16
0.707
0.375
2.000
2.000
Black
17.96
9.53
50.80
50.80
PP73LS
15/32
0.496
0.263
2.000
2.000
Black
12.60
6.68
50.80
50.80
PP90LS
5/8
0.640
0.380
2.000
2.000
Black
16.26
9.65
50.80
50.80
PP55LS
3/8
0.384
0.204
2.030
2.000
Black
9.75
5.18
51.56
50.80
PP100LS
3/4
0.770
0.408
2.100
2.000
Black
19.56
10.36
53.34
50.80
PP67LS
