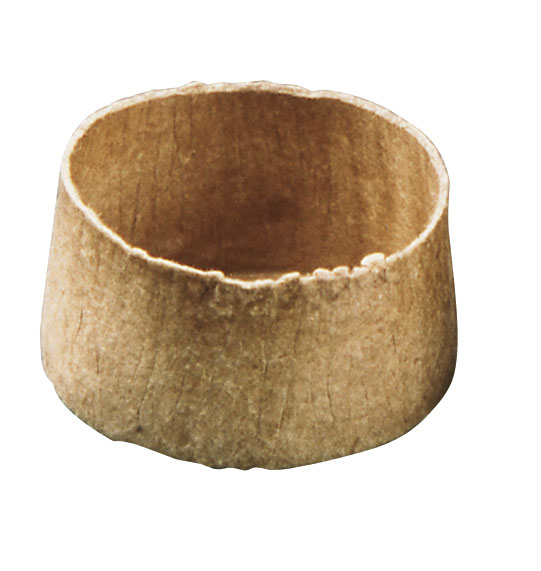

PSC Series
PSC Series paper straight caps are manufactured from natural paper, offering a recyclable option for applications where environmentally conscious components are preferred. Made from a blend of virgin and recycled paper, these caps provide a practical alternative to conventional materials.
- Manufactured from 90% virgin pulp and 10% post-consumer recycled paper
- Made from 100% recyclable materials
- Withstands intermittent temperatures up to 204°C
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | 90 lb. Paperboard |
|---|---|
| Standard Colour | Brown |
Part Sizes
Item Number | Flared Tube Fitting (In) | To Fit Tube Size OD (In) | Dim A (In) | Dim B (In) |
PSC-S-11-3 | 1/8 | 5/16 | 0.24 | 0.46 |
PSC-S-26-3 | 3/16 | 3/8 | 0.35 | 0.38 |
PSC-S-29-3 | 1/4 | 7/16 | 0.42 | 0.45 |
PSC-S-41-3 | 5/16 | 1/2 | 0.47 | 0.51 |
PSC-S-34-3 | 3/8 | 5/8 | 0.6 | 0.53 |
PSC-S-47-3 | 5/8 | 7/8 | 0.81 | 0.82 |
PSC-S-35-3 | 3/4 | 1 | 0.96 | 0.86 |
PSC-S-5-3X | 1 | 1–1/4 | 1.21 | 1 |
PSC-S-98-3X | 1–1/2 | 1–7/8 | 1.83 | 0.91 |
