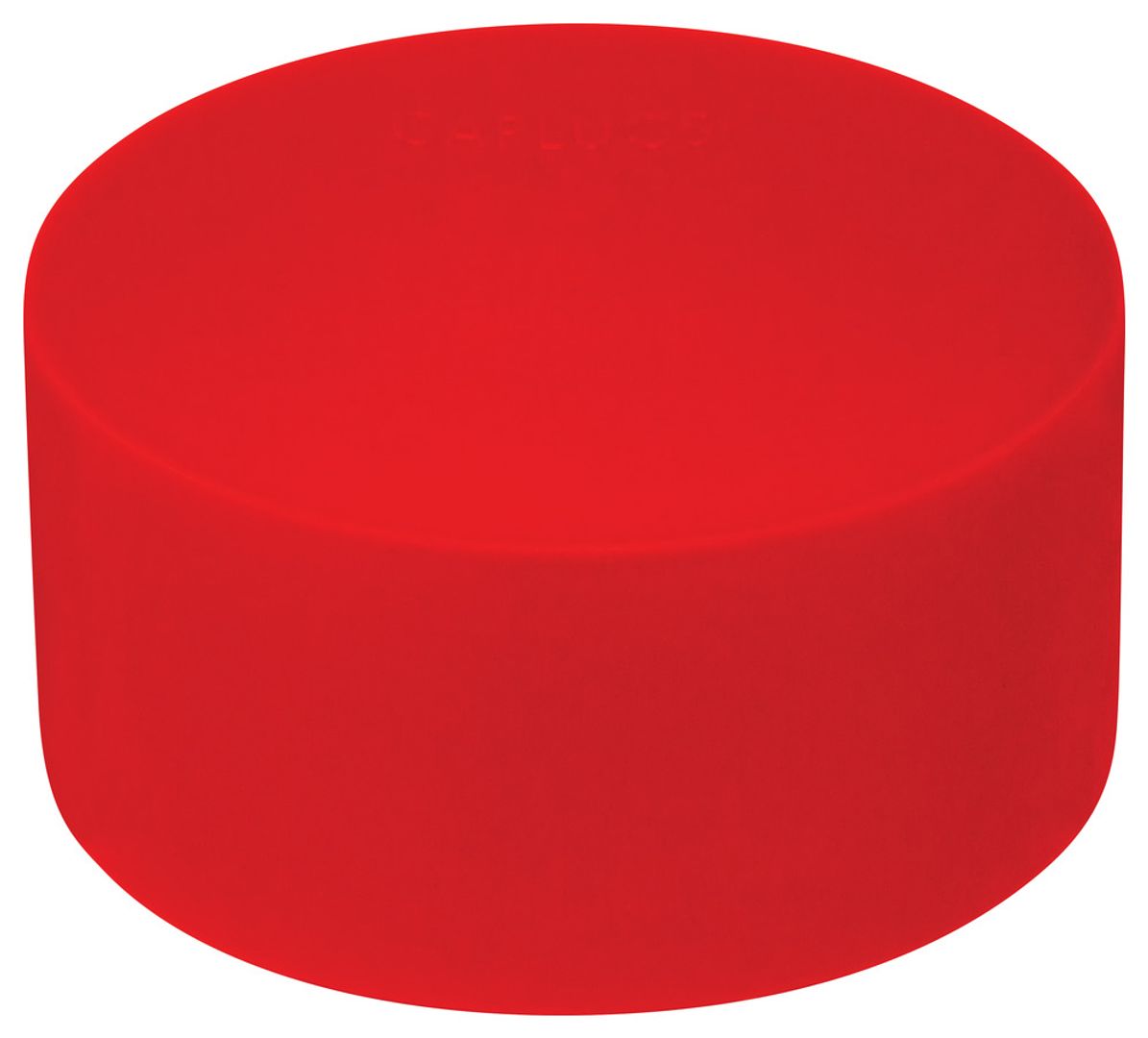

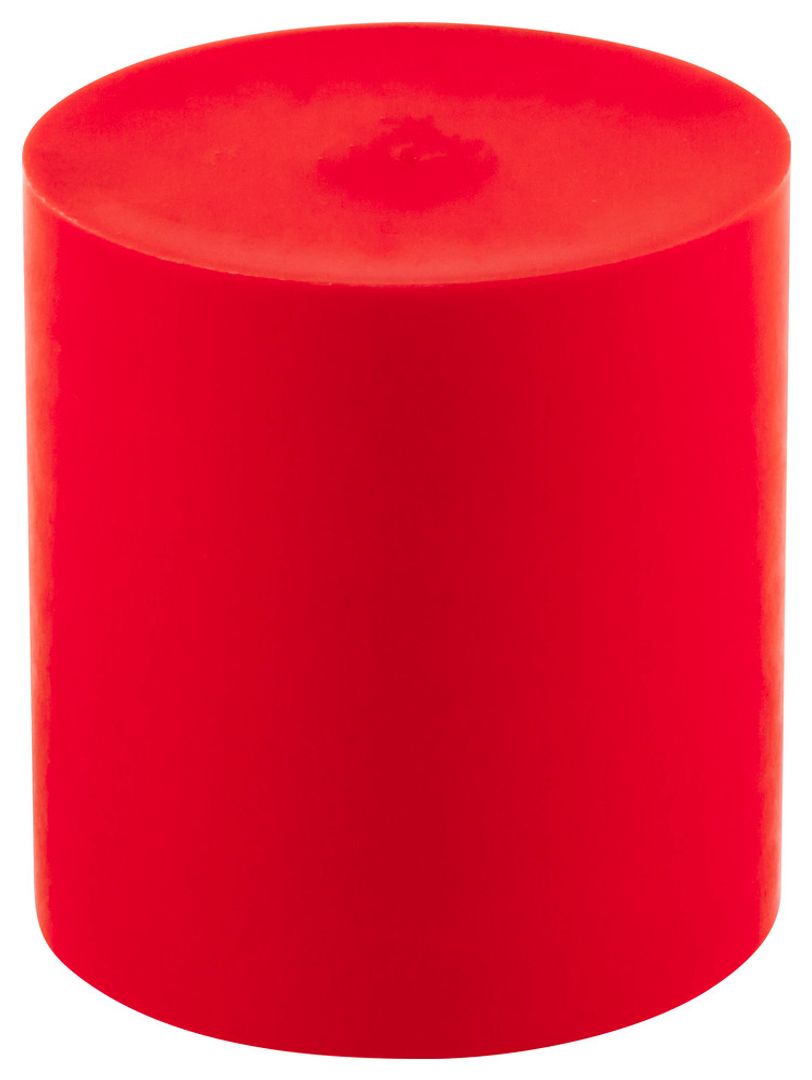

SC Series

Sleeve Caps for Tube Ends

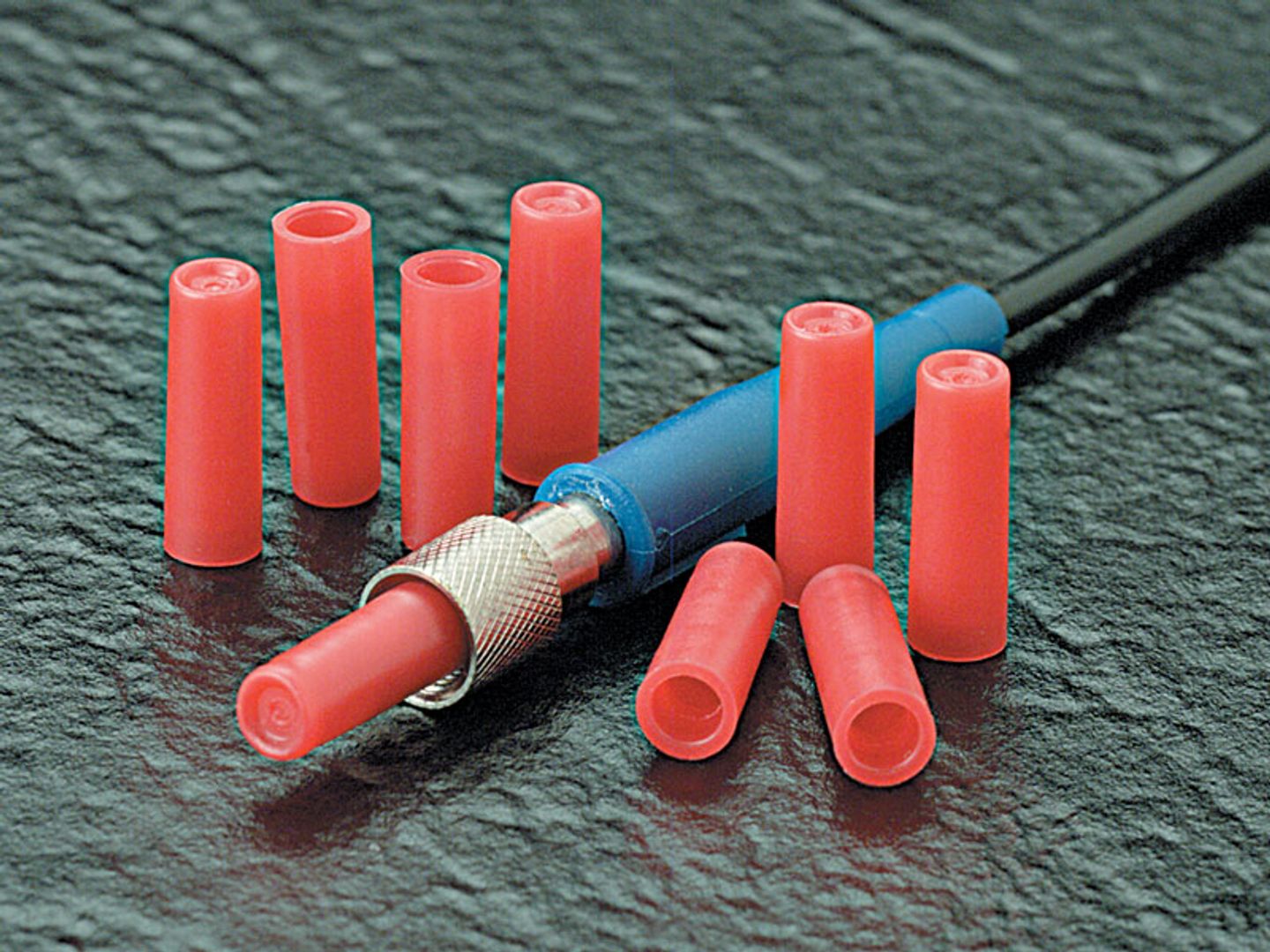

SC Series sleeve caps are designed to fit the outside diameters of tubing with a snug friction grip. Ideal for capping and protecting both threaded and non-threaded tubing as well as rod ends, they can also be used as excellent masks for painting, plating or grit-blasting operations.

  • Made in over 130 different outer diameters (ODs) and lengths

Additional information

Material

Low-density polyethylene (SC-5/64 is polyolefin elastomer)
Service Temperature

-94 – 175° F (-70 – 79° C)
Standard Colour

Red
Applicable Specs

NAS 844

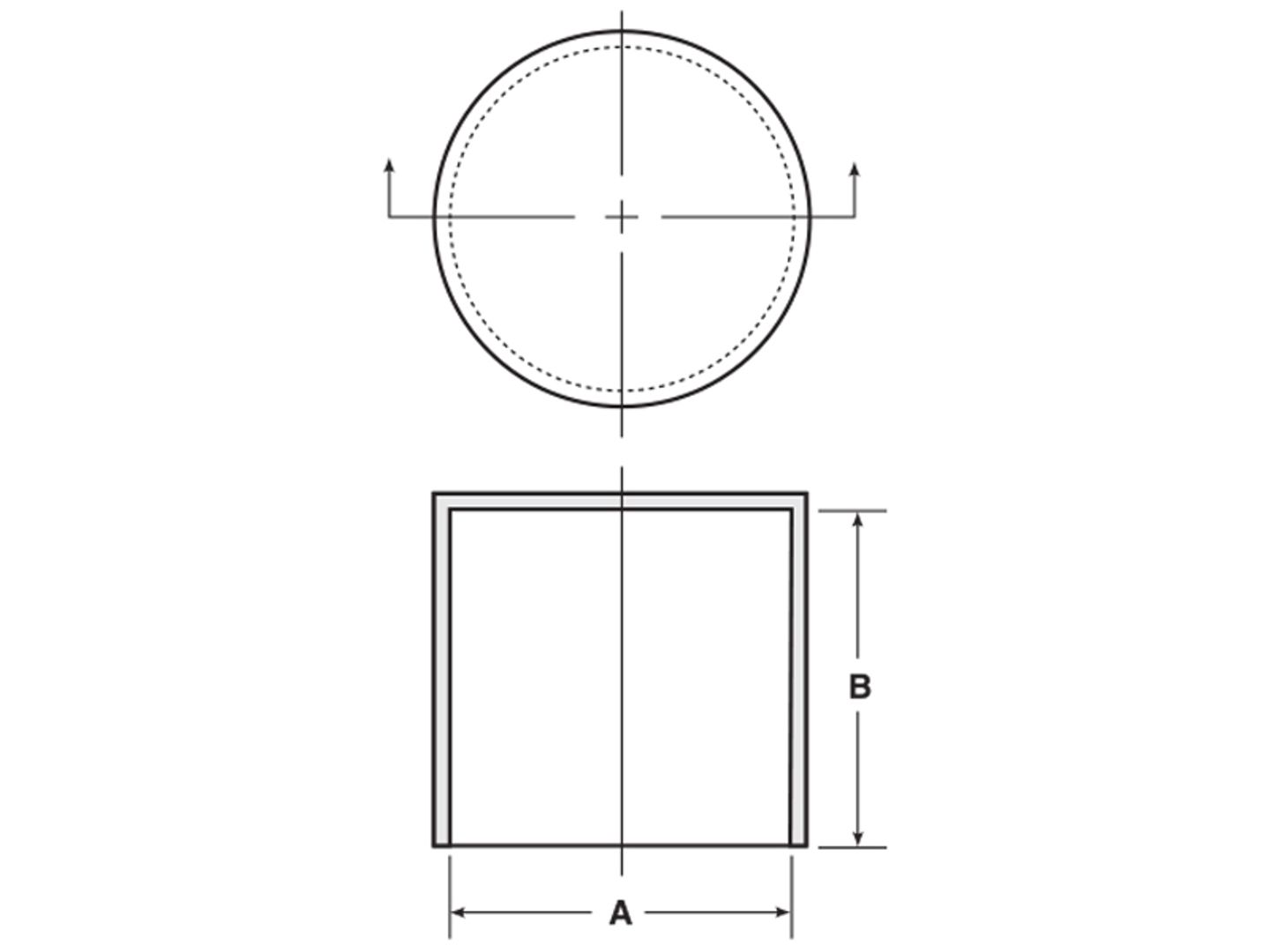

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim A (mm)

Dim B (mm)

SC-5/64
0.078
0.50
1.98
12.70
SC-3/32
0.094
0.59
2.39
14.99
SC-1/8
0.125
0.59
3.17
14.99
SC-211-L
0.125
0.75
3.17
19.05
SC-5/32
0.156
0.56
3.96
14.22
SC-212-S
0.172
0.62
4.37
15.75
SC-213-S
0.188
0.47
4.78
11.94
SC-3/16-10
0.188
0.59
4.78
14.99
SC-3/16-16
0.188
1.00
4.78
25.40
SC-3/16-5
0.188
0.35
4.78
8.89
SC-213-R
0.203
0.62
5.16
15.75
SC-7/32
0.219
0.75
5.56
19.05
SC-1/4-14
0.250
0.88
6.35
22.35
SC-1/4-16
0.250
1.00
6.35
25.40
SC-1/4-4
0.250
0.22
6.35
5.59
SC-1/4-7
0.250
0.44
6.35
11.18
SC-214-S
0.250
0.50
6.35
12.70
SC-274-G
0.266
0.75
6.76
19.05
SC-9/32
0.281
0.75
7.14
19.05
SC-1805
0.313
0.38
7.95
9.65
SC-5/16
0.313
0.88
7.95
22.35
SC-155
0.375
0.75
9.52
19.05
SC-216-L
0.375
1.12
9.52
28.45
SC-216-T
0.375
0.46
9.52
11.68
SC-3/8
0.375
0.88
9.52
22.35
SC-1030
0.422
1.25
10.72
31.75
SC-773
0.428
0.22
10.84
5.59
SC-159
0.438
0.62
11.13
15.75
SC-217-L
0.438
1.50
11.13
38.10
SC-7/16-14
0.438
0.88
11.13
22.35
SC-7/16-16
0.438
1.00
11.13
25.40
SC-7/16-8
0.438
0.50
11.13
12.70
SC-157
0.469
0.75
11.91
19.05
SC-1/2-14
0.500
0.88
12.70
22.35
SC-1/2-24
0.500
1.50
12.70
38.10
SC-1/2-8
0.500
0.50
12.70
12.70
SC-161
0.500
0.44
12.70
11.18
SC-176
0.563
0.42
14.30
10.67
SC-219-S
0.563
0.62
14.30
15.75
SC-9/16-14
0.563
0.88
14.30
22.35
SC-9/16-9
0.563
0.56
14.30
14.22
SC-1834
0.625
2.50
15.88
63.50
SC-1868
0.625
0.64
15.88
16.26
SC-220-H
0.625
0.94
15.88
23.88
SC-220-U
0.625
1.50
15.88
38.10
SC-5/8
0.625
0.88
15.88
22.35
SC-981
0.625
0.88
15.88
22.35
SC-11/16
0.688
0.88
17.48
22.35
SC-221-S
0.688
0.75
17.48
19.05
SC-1775
0.740
0.88
18.80
22.35
SC-222-H
0.750
0.94
19.05
23.88
SC-222-L
0.750
2.47
19.05
62.74
SC-222-S
0.750
0.38
19.05
9.65
SC-3/4
0.750
0.88
19.05
22.35
SC-3/4-16
0.75
1.00
19.05
25.40
SC-25/32
0.781
1.00
19.84
25.40
SC-13/16
0.813
0.88
20.65
22.35
SC-835
0.813
0.69
20.65
17.53
SC-201-M
0.875
1.75
22.22
44.45
SC-201-S
0.875
0.62
22.22
15.75
SC-201-T
0.875
0.62
22.22
15.75
SC-7/8
0.875
0.88
22.22
22.35
SC-748
0.906
0.75
23.01
19.05
SC-1202
0.938
0.88
23.83
22.35
SC-15/16
0.938
1.00
23.83
25.40
SC-15/16-23
0.940
1.45
23.88
36.83
SC-1
1.000
1.00
25.40
25.40
SC-1364
1.000
0.62
25.40
15.75
SC-138
1.000
0.75
25.40
19.05
SC-138-L
1.000
1.75
25.40
44.45
SC-1784
1.000
0.50
25.40
12.70
SC-2003
1.000
0.50
25.40
12.70
SC-1 1/16
1.063
1.00
27.00
25.40
SC-1 1/8
1.125
1.00
28.57
25.40
SC-1 1/8-21
1.125
1.31
28.57
33.27
SC-224
1.125
0.88
28.57
22.35
SC-1 3/16
1.188
1.00
30.18
25.40
SC-1 1/4
1.250
1.00
31.75
25.40
SC-1831
1.250
0.87
31.75
22.10
SC-289-L
1.250
1.75
31.75
44.45
SC-289-M
1.250
1.50
31.75
38.10
SC-289-S
1.250
0.50
31.75
12.70
SC-1 5/16
1.313
1.00
33.35
25.40
SC-1 5/16-12
1.313
0.75
33.35
19.05
SC-1 3/8
1.375
1.00
34.93
25.40
SC-428
1.375
1.50
34.93
38.10
SC-428-2
1.375
1.59
34.93
40.39
SC-760
1.375
0.62
34.92
15.75
SC-1 1/2
1.500
1.00
38.10
25.40
SC-1975
1.500
0.87
38.10
22.10
SC-290-L
1.500
1.75
38.10
44.45
SC-1 5/8
1.625
1.00
41.27
25.40
SC-291-L
1.625
1.25
41.27
31.75
SC-291-2
1.719
1.00
43.66
25.40
SC-1 3/4
1.750
1.00
44.45
25.40
SC-1008
1.750
0.88
44.45
22.35
SC-291-3
1.844
1.21
46.84
30.73
SC-1 7/8
1.875
1.00
47.63
25.40
SC-1 29/32
1.906
1.00
48.41
25.40
SC-2
2.000
0.88
50.80
22.35
SC-226
2.000
1.00
50.80
25.40
SC-226-L
2.000
1.53
50.80
38.86
SC-1025
2.125
0.50
53.97
12.70
SC-2 1/8
2.125
1.00
53.97
25.40
SC-1365
2.250
1.00
57.15
25.40
SC-2 1/4
2.250
0.88
57.15
22.35
SC-2 3/8
2.375
0.88
60.32
22.35
SC-2 1/2
2.500
0.88
63.50
22.35
SC-2 9/16
2.563
1.00
65.10
25.40
SC-372
2.609
1.00
66.27
25.40
SC-2 5/8
2.625
1.00
66.67
25.40
SC-2 3/4
2.750
1.00
69.85
25.40
SC-3
3.000
1.00
76.20
25.40
SC-3 1/16
3.062
2.00
77.77
50.80
SC-3 1/8
3.125
1.38
79.38
35.05
SC-1528
3.250
1.00
82.55
25.40
SC-3 5/16
3.313
1.00
84.15
25.40
SC-1563
3.438
1.00
87.33
25.40
SC-1521
3.500
1.00
88.90
25.40
SC-3 1/2
3.500
1.38
88.90
35.05
SC-2215
3.531
2.00
89.69
50.80
SC-3 5/8
3.625
1.38
92.07
35.05
SC-3 3/4
3.750
1.38
95.25
35.05
SC-1540
4.000
1.13
101.60
28.70
SC-4
4.000
1.38
101.60
35.05
SC-4 1/8
4.125
1.50
104.77
38.10
SC-4 1/2
4.500
1.44
114.30
36.58
SC-1400
4.813
0.64
122.25
16.26
SC-1363
4.875
0.92
123.82
23.37
SC-5 1/8
5.125
1.63
130.17
41.40
SC-5 1/4
5.250
1.80
133.35
45.72
SC-324-3
8.000
2.30
203.20
58.42
SC-128-3
