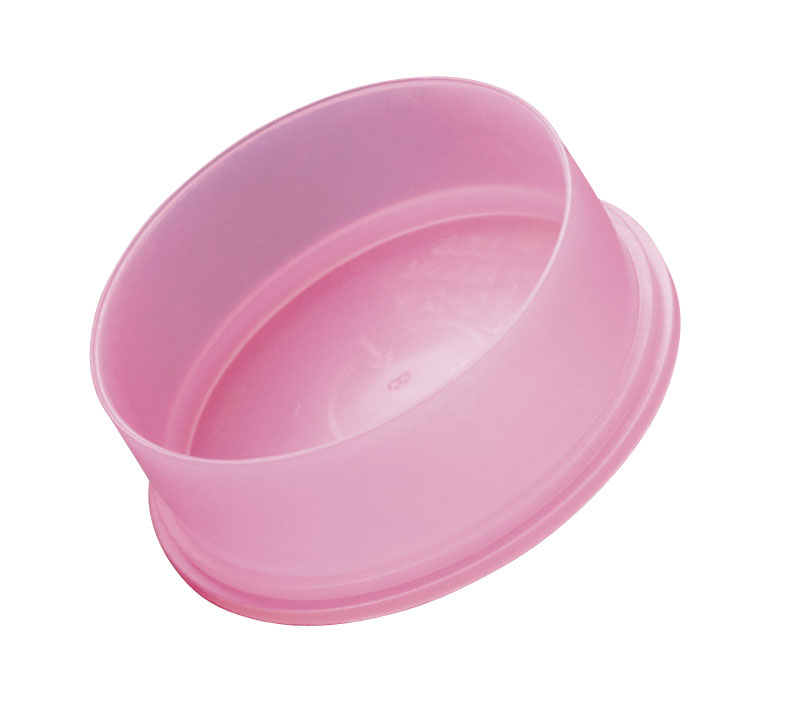

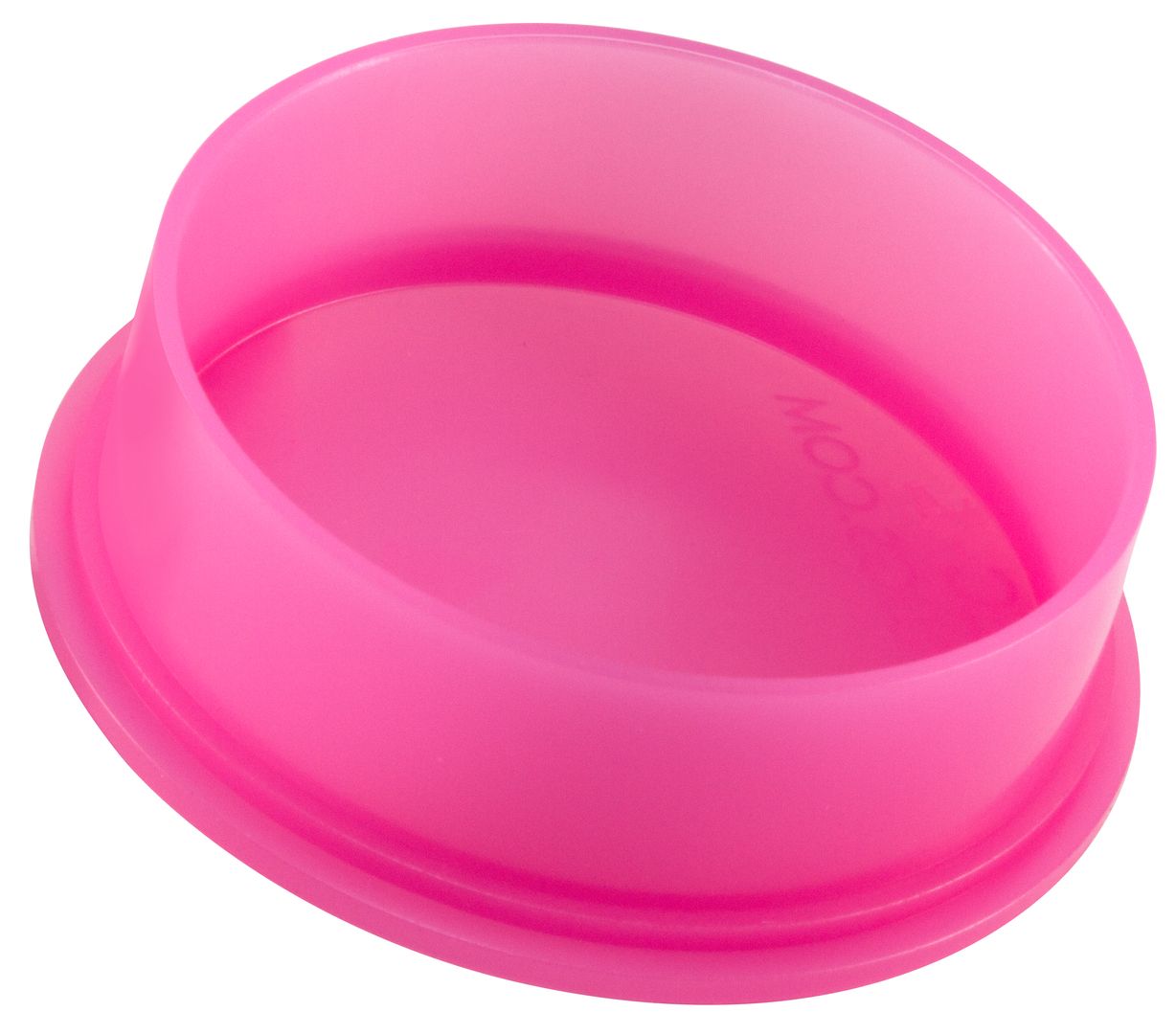

SEC Series

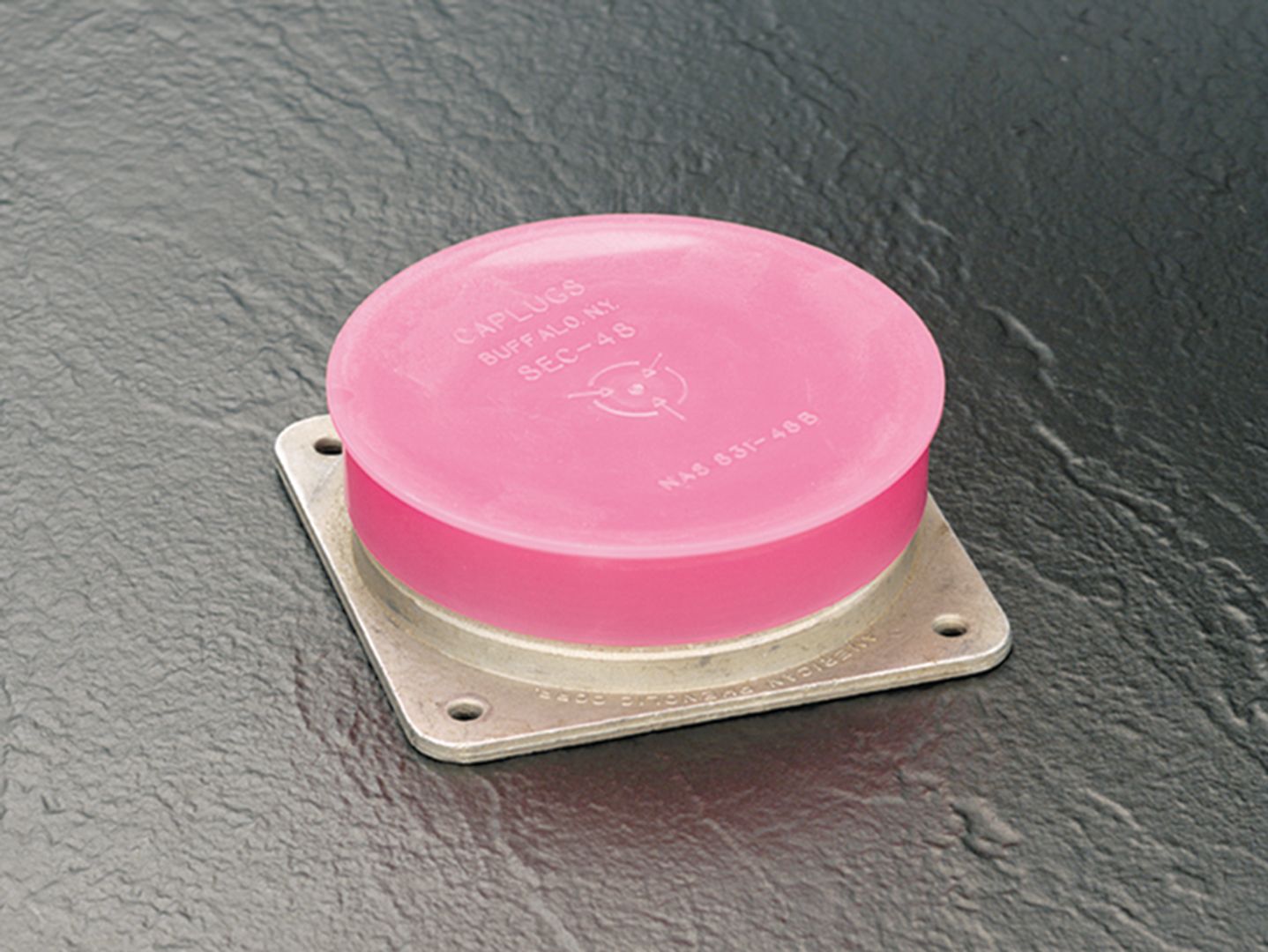

SEC Series static dissipative caps are designed to protect electronic components and connectors from electrostatic discharge (ESD). Made from a static-dissipative material, these caps ensure safe storage and transport of sensitive electronic parts, providing reliable protection against static-related damage.

  • Designed to protect electronic components from electrostatic discharge (ESD)
  • Made from static-dissipative material
  • Provides a secure and reliable fit
  • Protects connectors and pins from contamination
  • Available in various sizes to fit a range of connector types
  • Suitable for use in sensitive environments requiring ESD protection

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

Static-dissipative material
Standard Colour

Pink
Service Temperature

-70 to 79 °C

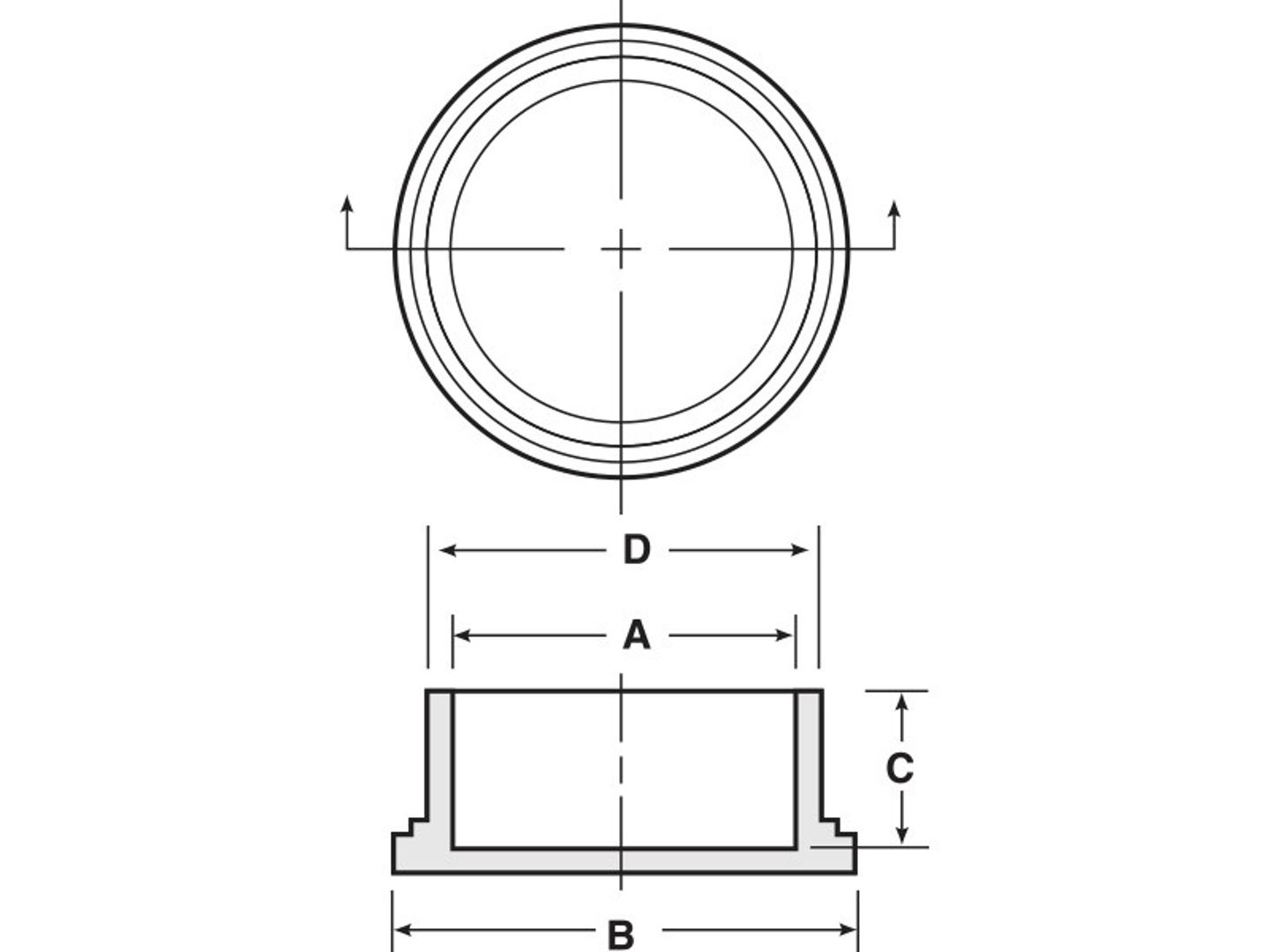

Part Sizes

Item Number

To Cap Nominal Thread Size

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

SEC-04
1/4
0.245
0.48
0.5
0.305
SEC-05
5/16
0.3
0.55
0.56
0.375
SEC-06
3/8
0.36
0.62
0.5
0.425
SEC-08
1/2
0.48
0.72
0.5
0.55
SEC-09
9/16
0.55
0.78
0.44
0.615
SEC-10
5/8
0.6
0.84
0.5
0.66
SEC-12
3/4
0.72
0.97
0.5
0.775
SEC-14
7/8
0.85
1.12
0.5
0.905
SEC-16
1
0.973
1.22
0.5
1.035
SEC-18
1-1/8
1.093
1.33
0.56
1.155
SEC-19
1-3/16
1.178
1.4
0.56
1.238
SEC-20
1-1/4
1.231
1.46
0.56
1.301
SEC-22
1-3/8
1.34
1.59
0.56
1.41
SEC-23
1-7/16
1.44
1.7
0.56
1.466
SEC-24
1-1/2
1.463
1.7
0.56
1.533
SEC-25
1-9/16
1.715
1.73
0.48
1.79
SEC-26
1-5/8
1.605
1.91
0.55
2.04
SEC-28
1-3/4
1.715
1.95
0.56
1.79
SEC-32
2
1.965
2.2
0.56
2.04
SEC-36
2-1/4
2.215
2.43
0.6
2.29
SEC-40
2-1/2
2.44
2.68
0.62
2.53
SEC-44
2-3/4
2.72
2.96
0.6
2.812
SEC-48
3
2.96
3.22
0.6
3.05
