W Series

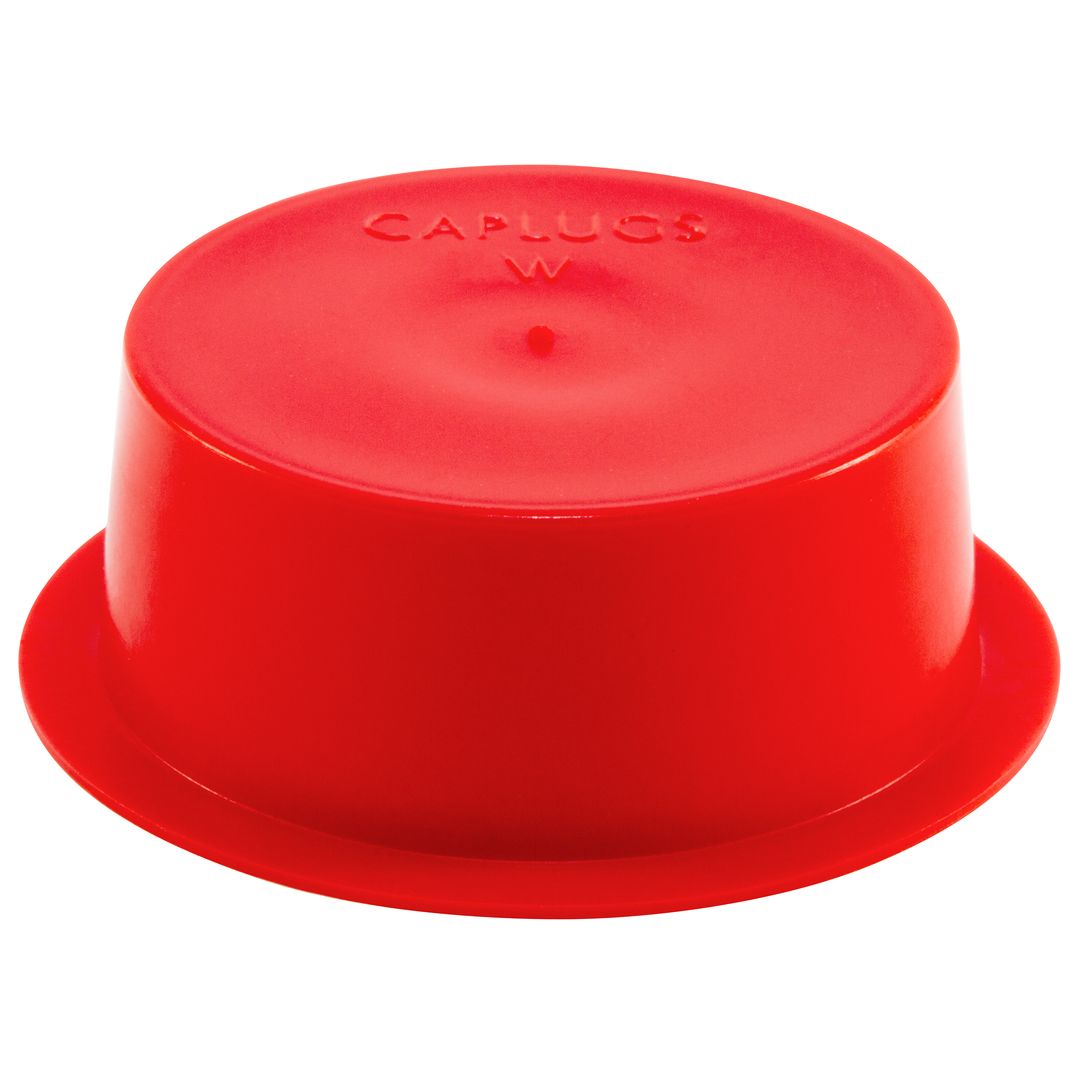

Tapered Caps & Plugs with Wide Flanges

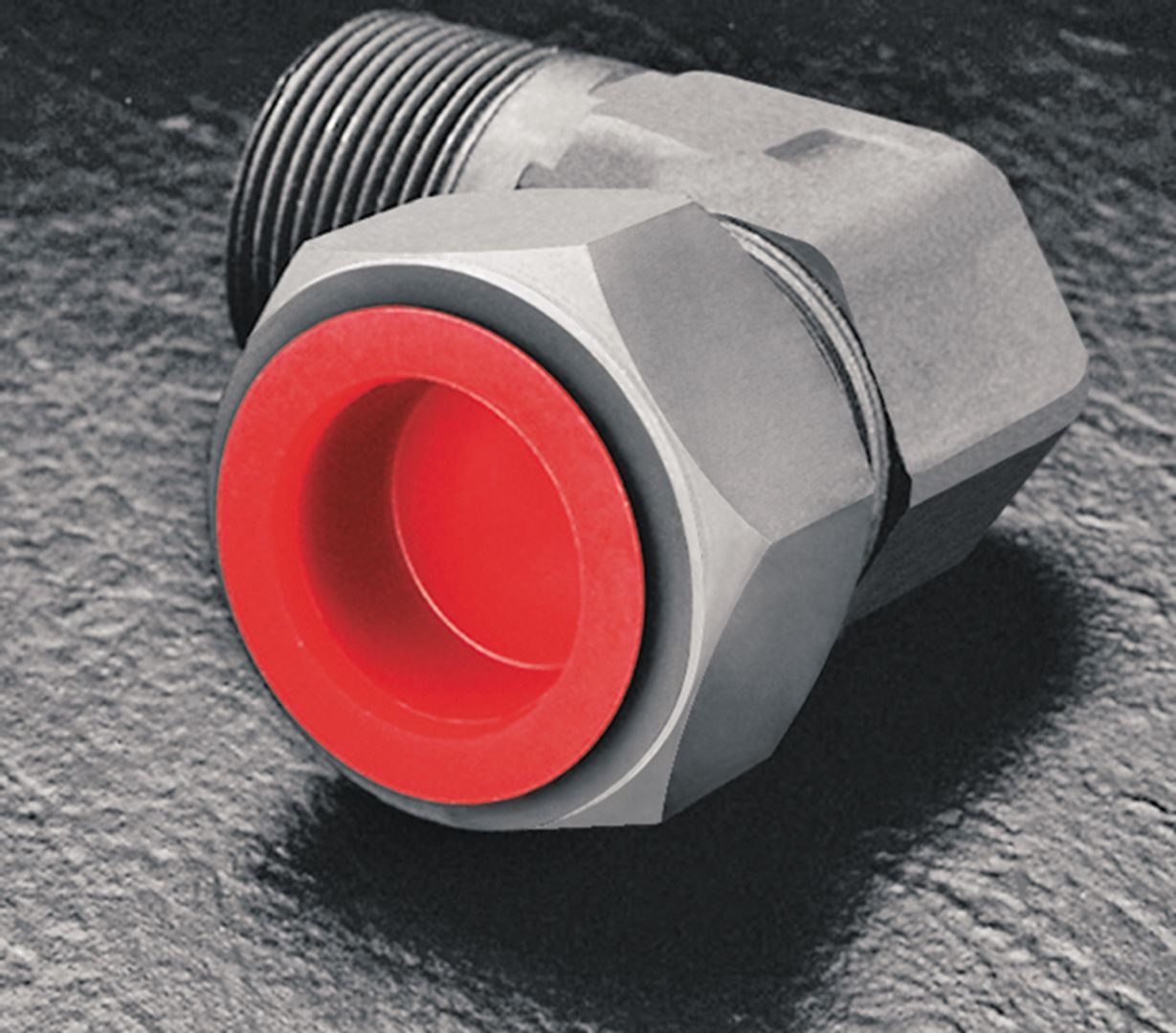

The W Series of tapered caps and plugs with wide flanges provide added protection and prevent accidental force into or through an opening when used as a plug.

  • Covers a vast range of cap or plug applications
  • Easy installation and removal
  • Provides added protection for bearing surfaces

Additional information

Material

Low-Density Polyethylene
Service Temperature

-94 – 175° F (-70 – 79° C)
Standard Colour

Red

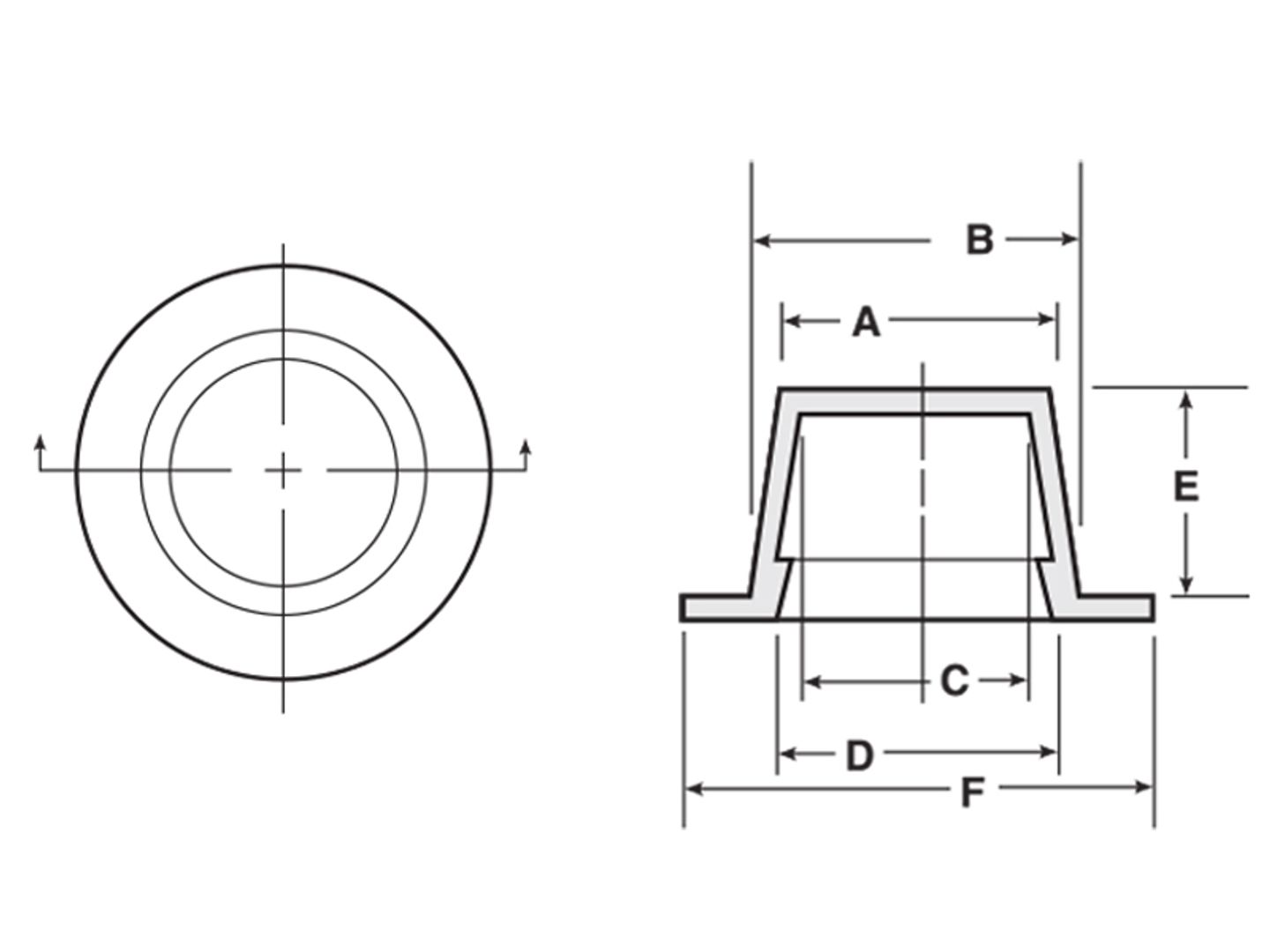

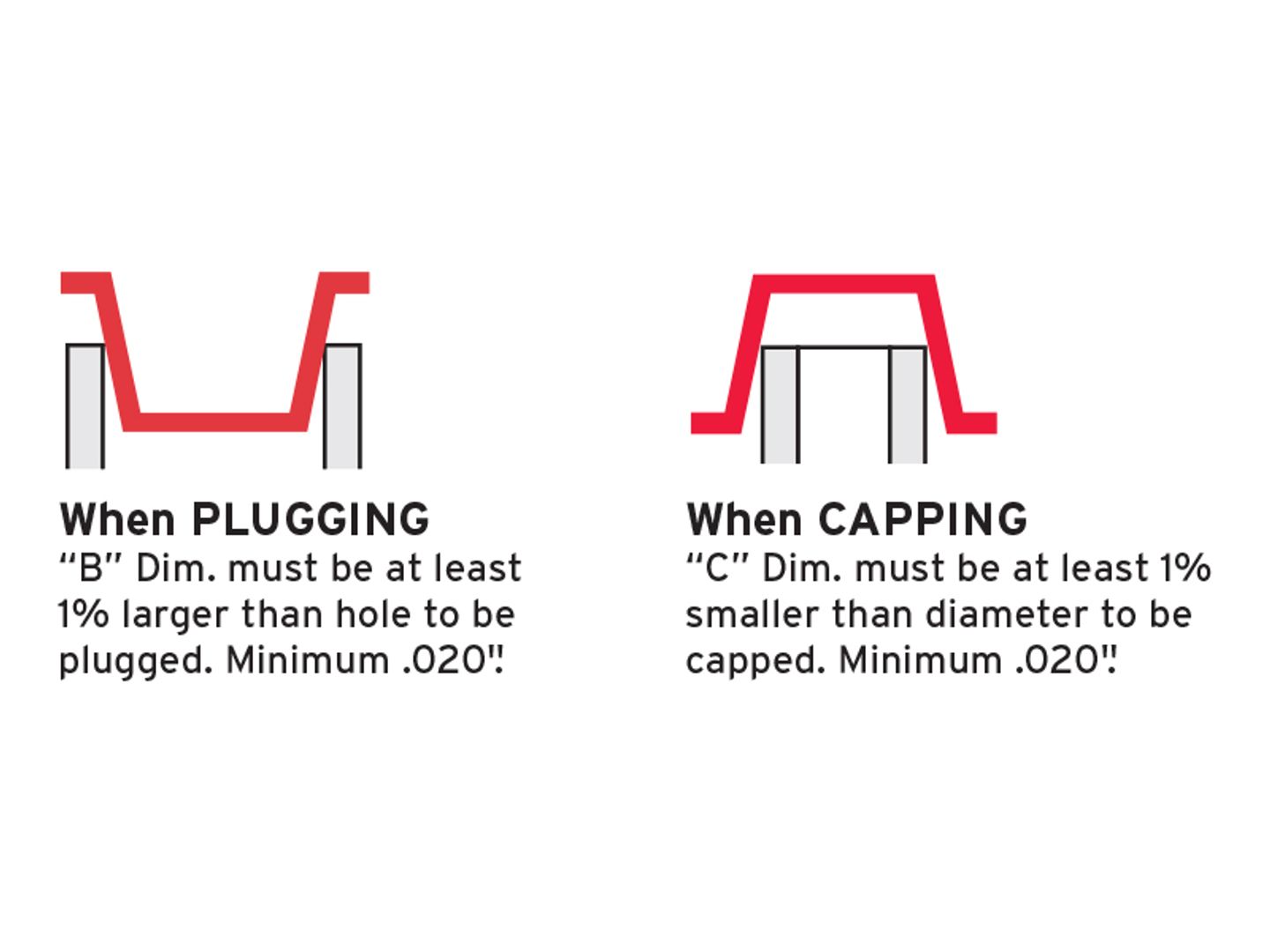

Part Sizes

Item Number

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

Dim E (mm)

Dim F (mm)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Dim E (In)

Dim F (In)

W-0
4.39
6.10
2.82
4.50
9.65
14.22
0.173
0.240
0.111
0.177
0.38
0.56
W-1
6.10
8.00
4.65
6.22
9.14
15.75
0.240
0.315
0.183
0.245
0.36
0.62
W-2
7.67
9.53
6.10
7.70
9.65
17.53
0.302
0.375
0.240
0.303
0.38
0.69
W-3
9.14
10.80
7.57
9.22
9.65
19.05
0.360
0.425
0.298
0.363
0.38
0.75
W-4
10.80
12.19
9.22
10.62
9.65
20.57
0.425
0.480
0.363
0.418
0.38
0.81
W-5
11.99
13.72
10.41
12.14
11.18
22.35
0.472
0.540
0.410
0.478
0.44
0.88
W-6
13.61
15.62
12.04
14.05
11.18
23.88
0.536
0.615
0.474
0.553
0.44
0.94
W-7
14.99
17.02
13.41
15.44
12.70
25.40
0.590
0.670
0.528
0.608
0.50
1.00
W-8
16.33
18.44
14.76
16.82
12.70
26.16
0.643
0.726
0.581
0.662
0.50
1.03
W-9
17.35
19.94
15.77
18.36
13.46
28.70
0.683
0.785
0.621
0.723
0.53
1.13
W-10
19.43
21.97
17.86
20.40
14.22
30.23
0.765
0.865
0.703
0.803
0.56
1.19
W-11
20.83
23.62
19.25
22.05
14.99
31.75
0.820
0.930
0.758
0.868
0.59
1.25
W-12
22.15
24.82
20.57
23.27
14.99
33.28
0.872
0.977
0.810
0.916
0.59
1.31
W-13
24.77
28.04
23.19
26.47
18.29
36.58
0.975
1.104
0.913
1.042
0.72
1.44
W-14
29.41
32.39
27.84
30.81
18.29
39.63
1.158
1.275
1.096
1.213
0.72
1.56
W-14X
29.85
32.61
28.45
31.22
16.00
42.42
1.175
1.284
1.120
1.229
0.63
1.67
W-15
31.57
34.93
30.00
33.35
18.29
42.93
1.243
1.375
1.181
1.313
0.72
1.69
W-16
33.33
37.47
31.75
35.89
22.35
45.98
1.312
1.475
1.250
1.413
0.88
1.81
W-17
36.96
41.02
35.38
39.45
18.29
49.28
1.455
1.615
1.393
1.553
0.72
1.94
W-16X
38.53
40.64
36.37
38.46
12.34
57.30
1.517
1.600
1.432
1.514
0.49
2.26
W-18
40.01
42.80
38.43
41.23
17.53
50.80
1.575
1.685
1.513
1.623
0.69
2.00
W-19
44.07
48.26
42.50
46.69
18.29
56.39
1.735
1.900
1.673
1.838
0.72
2.22
W-20
45.98
49.53
44.40
47.96
17.53
58.68
1.810
1.950
1.748
1.888
0.69
2.31
W-21
49.40
53.34
47.83
51.77
17.53
61.98
1.945
2.100
1.883
2.038
0.69
2.44
