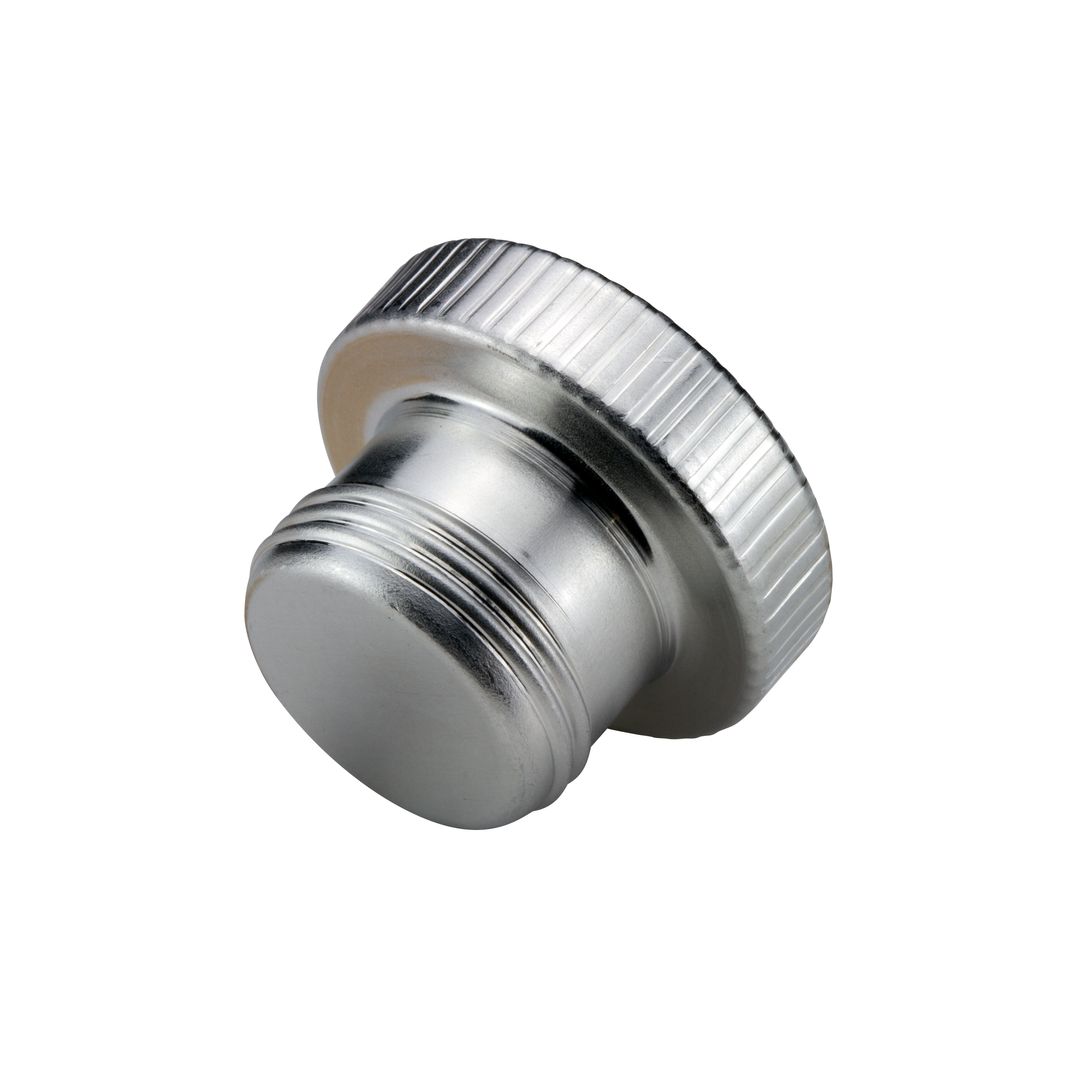

AFO Series

AFO Series threaded aluminium plugs are designed for positive, metal-to-metal threaded protection.

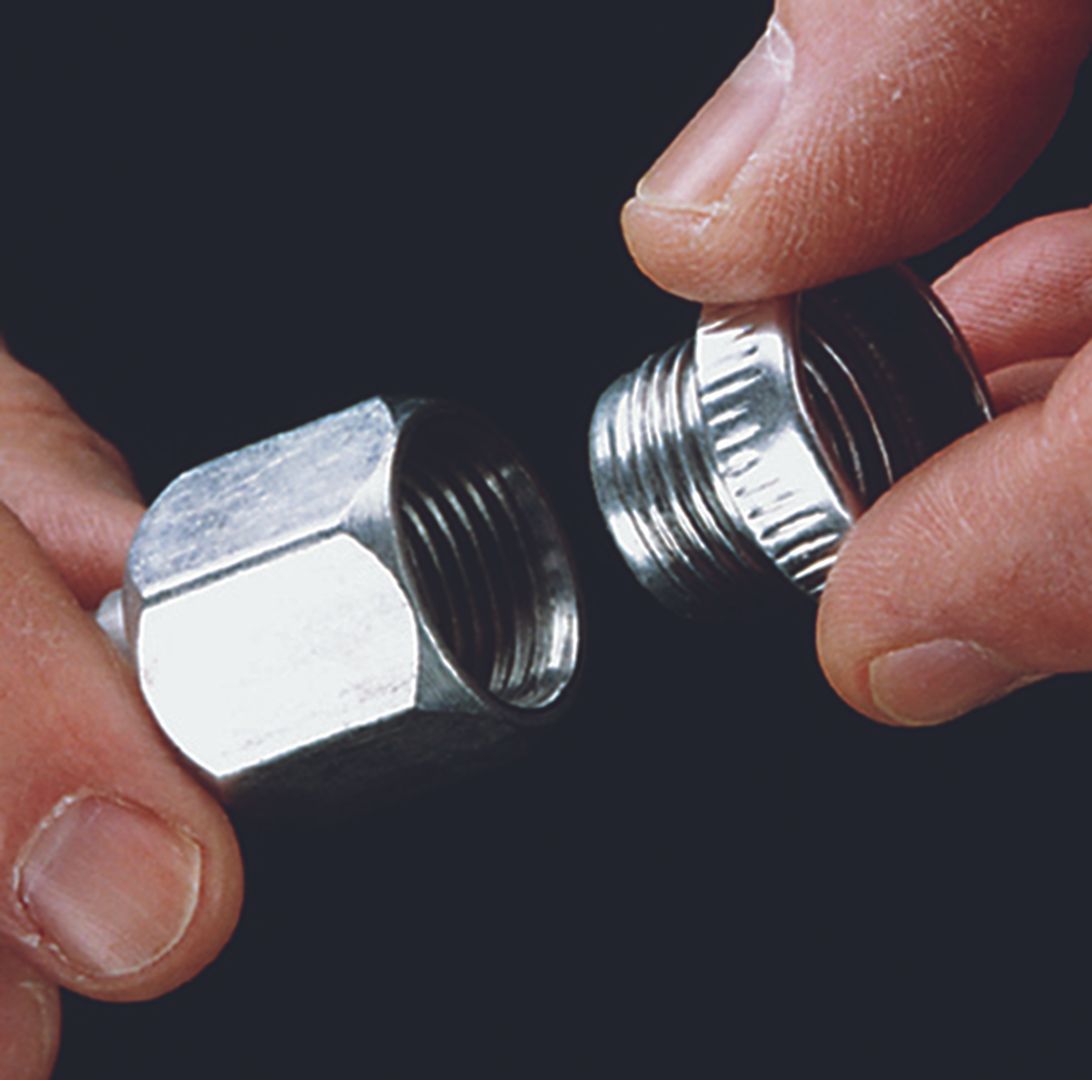

  • Perfect for flat-faced O-ring hydraulic fittings
  • Optional Gaskets: Neoprene, Butyl, Buna-N Rubber

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

3003-0 Aluminium Alloy
Standard Colour

Silver

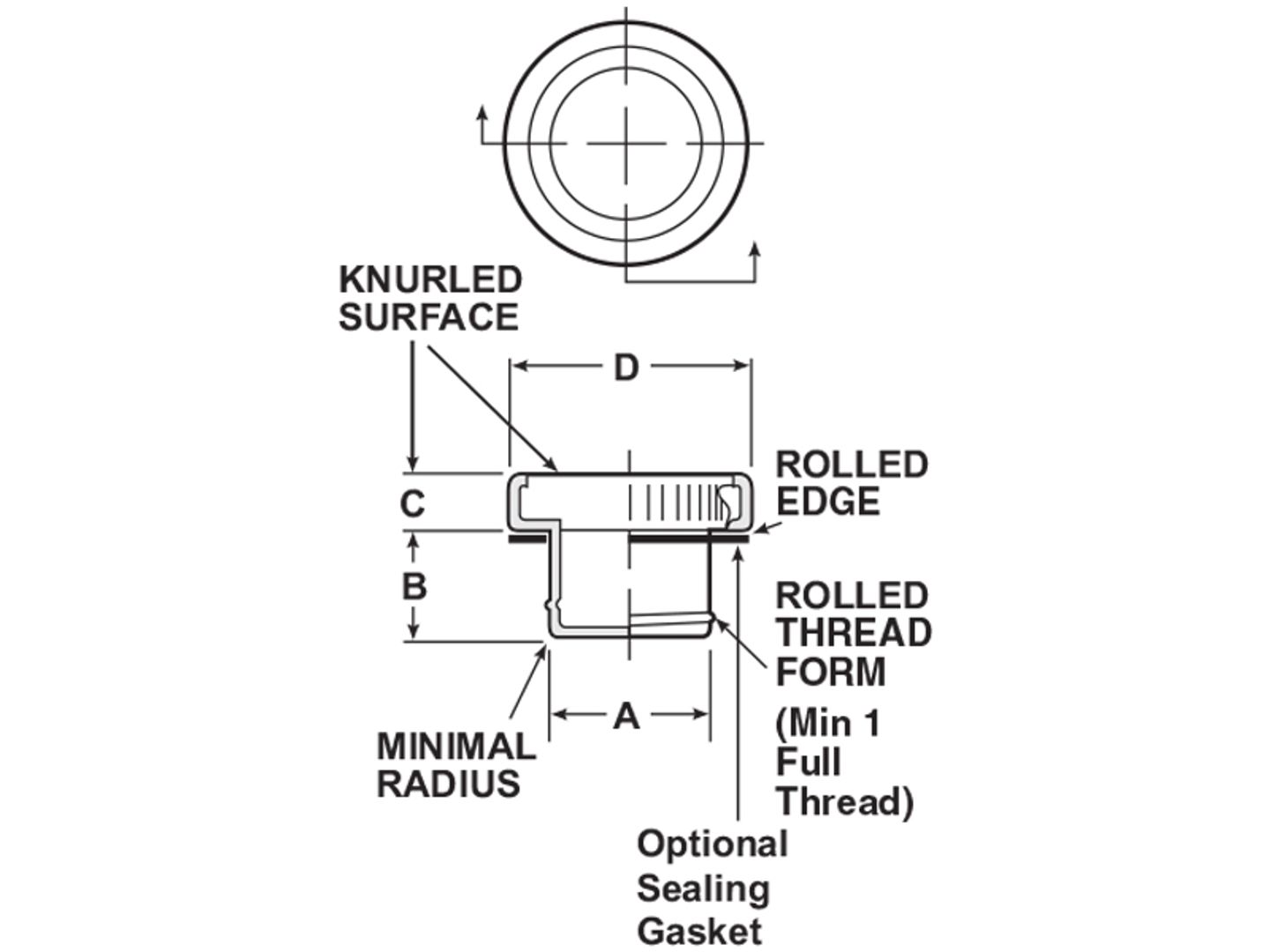

Part Sizes

Item Number

To Fit Thread Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

AFO-60
11/16 – 16
0.607
0.48
0.29
0.94
AFO-80
13/16 – 16
0.73
0.53
0.29
1.11
AFO-100
1 – 14
0.907
0.63
0.31
1.38
AFO-120
1-3/16 – 12
1.08
0.7
0.31
1.38
AFO-160
1-7/16 – 12
1.33
0.7
0.43
2
AFO-180
1-11/16 – 12
1.582
0.89
0.35
2.31
