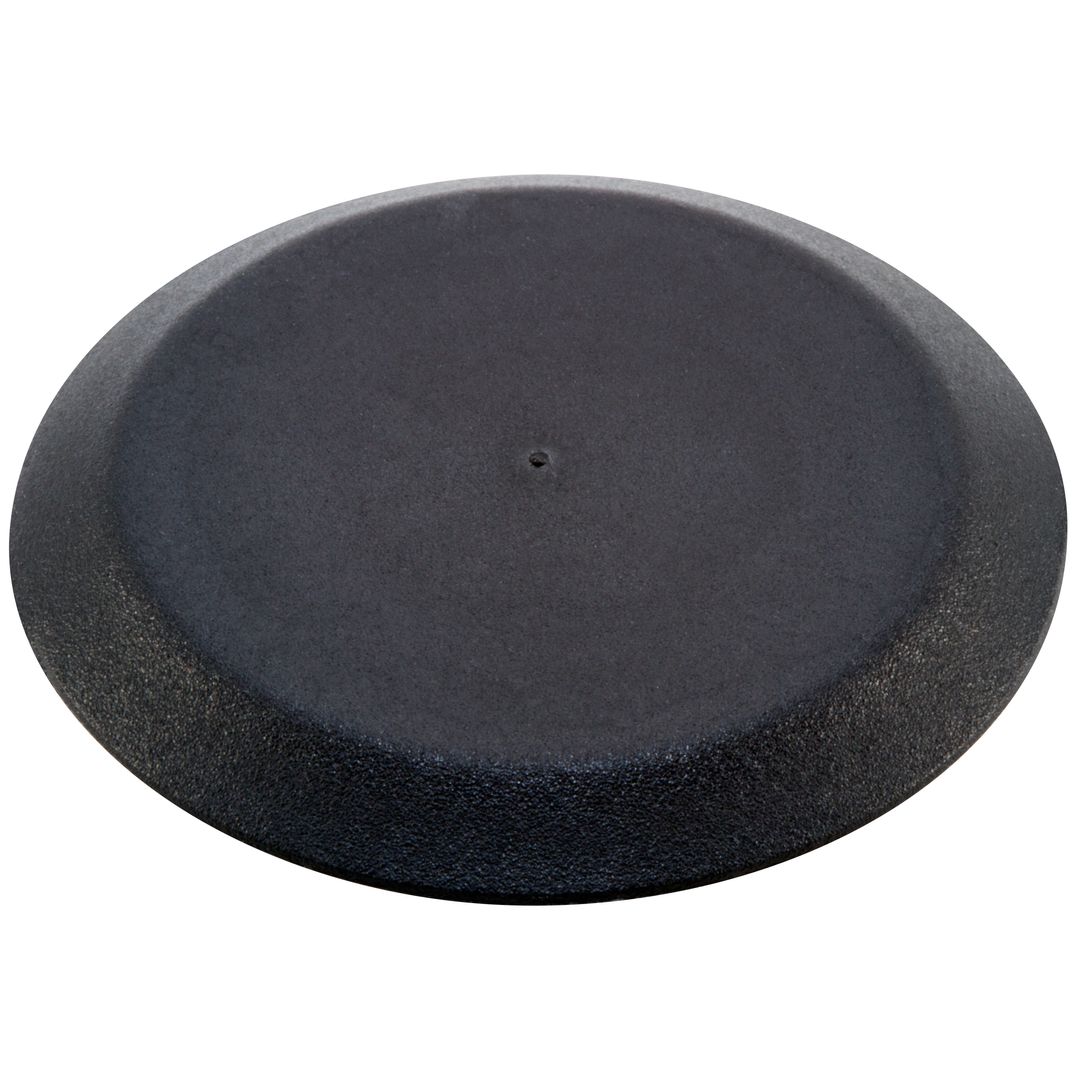

BPF Series

Button Plugs with Flush-Type Heads

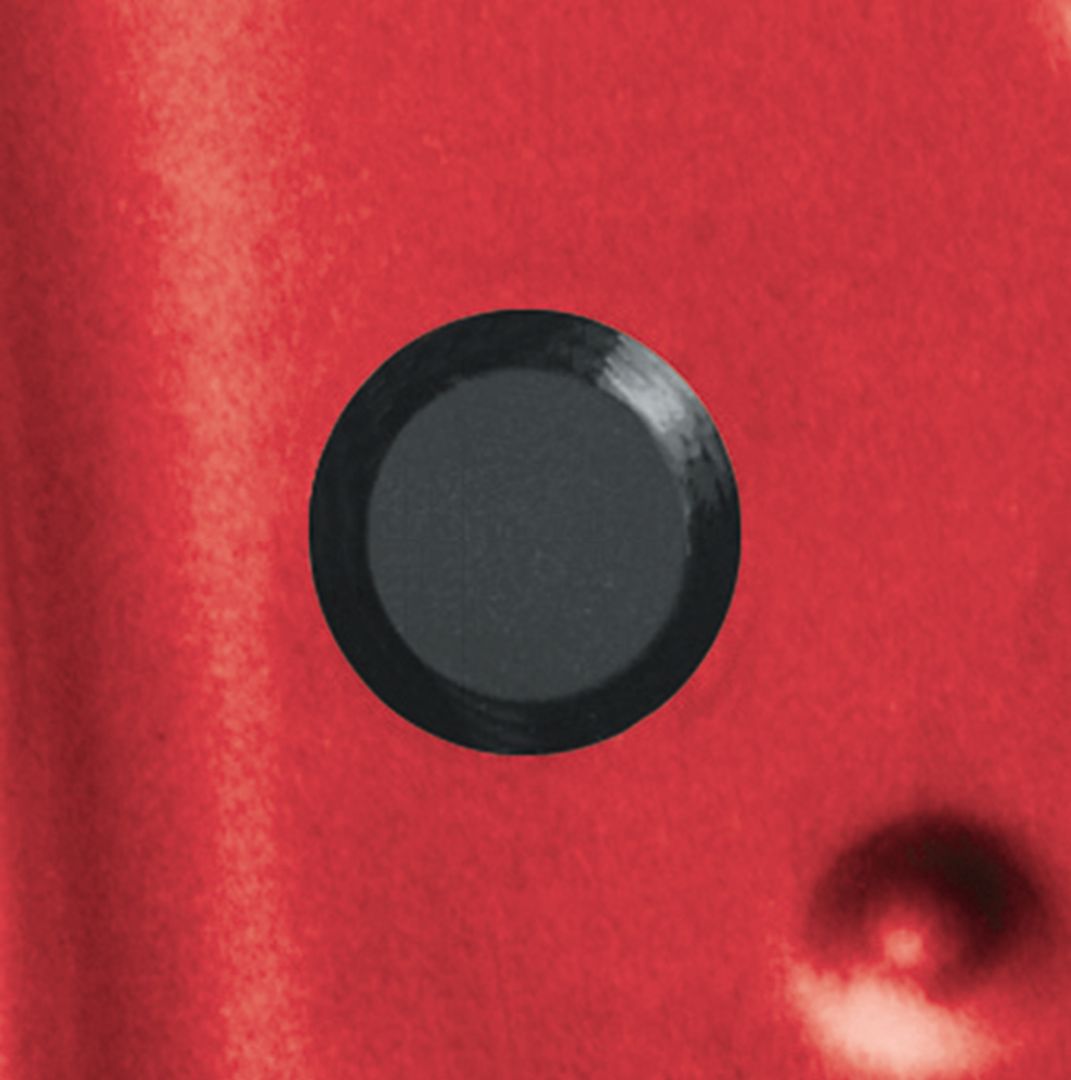

BPF Series button plugs with flush-type heads can be used for plugging holes in equipment made of sheet metal, such as automobile bodies, tanks, refrigeration units, etc.

  • Can be snapped into holes easily
  • Held in place by a bead until deliberately removed

For more information, or to order this part, contact us at: +61 7 3277 2300.

Additional information

Material

Low-density polyethylene (BPF-5mm, BPF-6mm, BPF-1/4-4 and BPF-11/32 is EVA material)
Service Temperature

LDPE: -94 – 175° F (-70 – 79° C) | EVA: -90 – 140° F (-68 – 60° C)
Standard Colour

Black

Part Sizes

Item Number

Hole Size (In)

Metal Thickness (In)

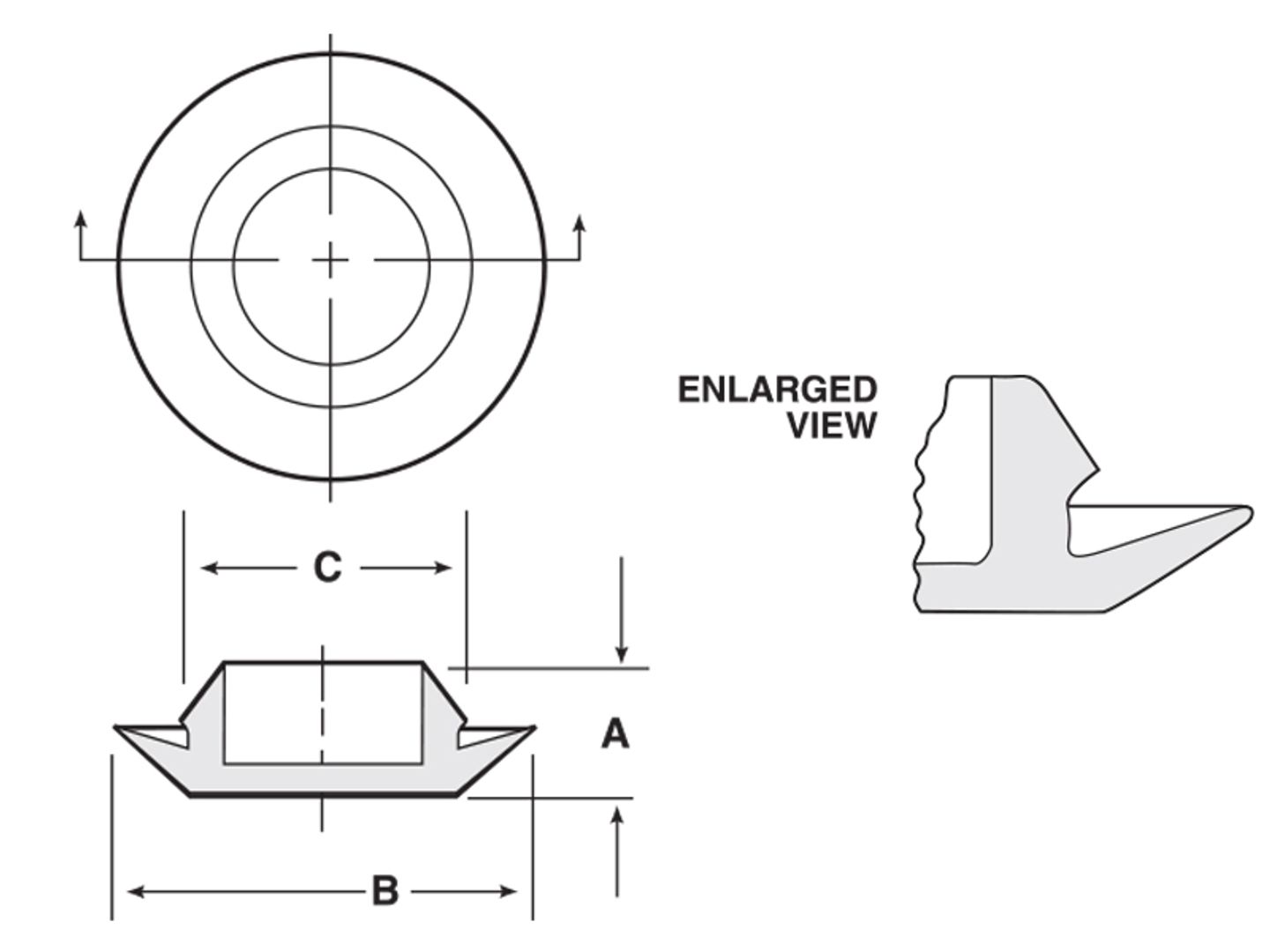

Dim A (In)

Dim B (In)

Dim C (In)

BPF-5MM
.18 – .19
.02 – .04
0.21
0.39
0.21
BPF-6MM
.23 – .24
.02 – .06
0.45
0.5
0.29
BPF-1/4
.24 – .25
0.02 - 0.07
0.21
0.5
0.28
BPF-1/4-4
.24 – .25
0.07 - 0.13
0.3
0.5
0.28
BPF-11/32
.34 – .35
0.04 - 0.06
0.23
0.55
0.37
BPF-3/8
.37 – .38
0.02 - 0.05
0.19
0.75
0.41
BPF-3/8-3
.37 – .38
0.06 - 0.11
0.24
0.75
0.41
BPF-7/16
.43 – .45
0.03 - 0.06
0.22
0.69
0.47
BPF-1/2
.49 – .51
0.03 - 0.08
0.25
0.86
0.54
BPF-9/16
.55 – .56
0.03 - 0.08
0.25
0.86
0.59
BPF-5/8
.61 – .63
0.06 - 0.08
0.26
0.81
0.67
BPF-SI-430
0.62
0.06 - 0.08
0.25
1.06
0.68
BPF-11/16
.68 – .70
0.03 - 0.08
0.25
1.01
0.73
BPF-3/4
.73 – .76
0.05 - 0.11
0.29
1.01
0.79
BPF-13/16-6
.80 – .83
0.16 - 0.19
0.37
1.11
0.85
BPF-SI-402
0.81
.03 - .08
0.37
1.11
0.85
BPF-7/8
.86 – .88
0.03 - 0.08
0.25
1.16
0.91
BPF-7/8-6
.86 – .88
0.13 - 0.18
0.36
1.16
0.91
BPF-15/16
.92 – .95
0.03 - 0.08
0.25
1.31
0.98
BPF-SI-413
1
0.03 - 0.08
0.25
1.38
1.04
BPF-SI-465
1.09
0.03 - 0.08
0.25
1.31
1.15
BPF-1-5
.98 – 1.01
0.08 - 0.20
0.4
1.35
1.04
BPF-SI-404
1.13
0.03 - 0.08
0.43
1.53
1.18
BPF-1 1/8-6
1.10 – 1.15
.02 – .18
0.43
1.53
1.18
BPF-1 3/16
-
-
-
-
-
BPF-SI-414
1.25
0.03 - 0.08
0.25
1.62
1.29
BPF-1 5/16
1.29 – 1.33
.03 – .08
0.25
1.68
1.36
BPF-SI-415
1.5
0.03 - 0.08
0.25
1.88
1.54
BPF-SI-416
1.75
0.03 - 0.08
0.25
2.12
1.79
BPF-2
1.98 – 2.01
0.03 - 0.08
0.29
2.36
2.04
BPF-2 1/8
2.10 – 2.14
.03 – .08
0.25
2.49
2.17
BPF-SI-419
2.5
0.03 - 0.08
0.25
3
2.56
BPF-SI-472
2.62
0.03 - 0.08
0.25
3.12
2.68
BPF-3
2.97 – 3.02
0.03 - 0.08
0.25
3.36
3.06
BPF-SI-407
3.12
0.03 - 0.08
0.25
3.52
3.18
BPF-3 3/8
3.35 – 3.40
.03 – .08
0.28
3.75
3.43
BPF-3 1/2
3.47 – 3.52
.03 – .11
0.35
3.86
3.56
BPF-4
3.97 – 4.02
.05 – .10
0.28
4.37
4.13
BPF-SI-425
4
0.05 - 0.10
0.29
4.5
4.06
BPF-SI-425-S
4
.05 – .10
0.5
4.5
4.1
BPF-4 3/4
4.75
.05 - .10
0.31
5.17
4.81
