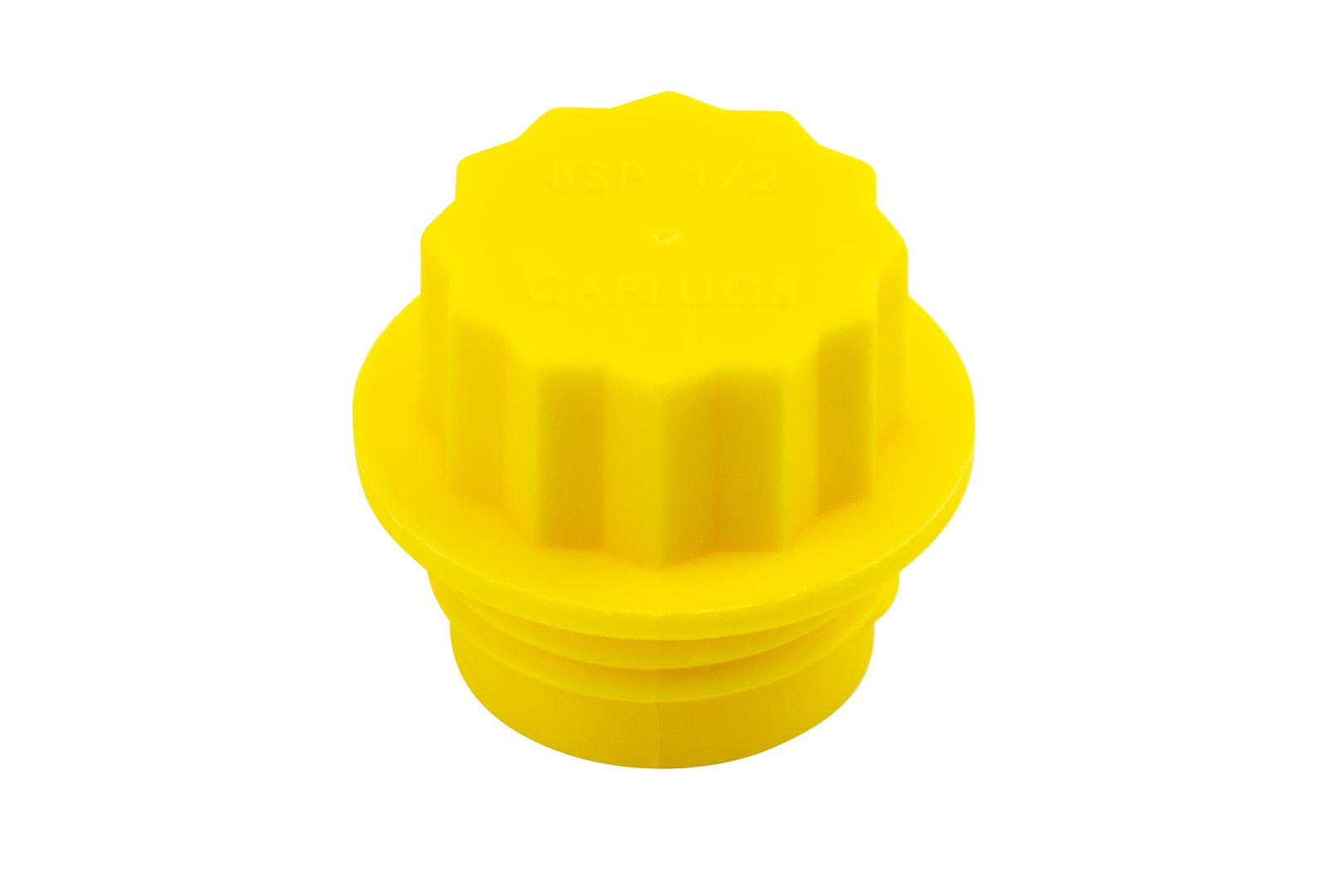

BSP Series
Threaded Plugs for British Standard Pipe Fittings
BSP Series threaded plugs provide positive protective sealing on ports threaded for British Standard Pipe fittings. This series has a unique flange compression seal which prevents leakage of residual fluid.
- Designed for easy finger installation
- 12-point head enables socket or wrench tightening
Additional information
| Material | Polypropylene |
|---|---|
| Standard Colour | Yellow |
Part Sizes

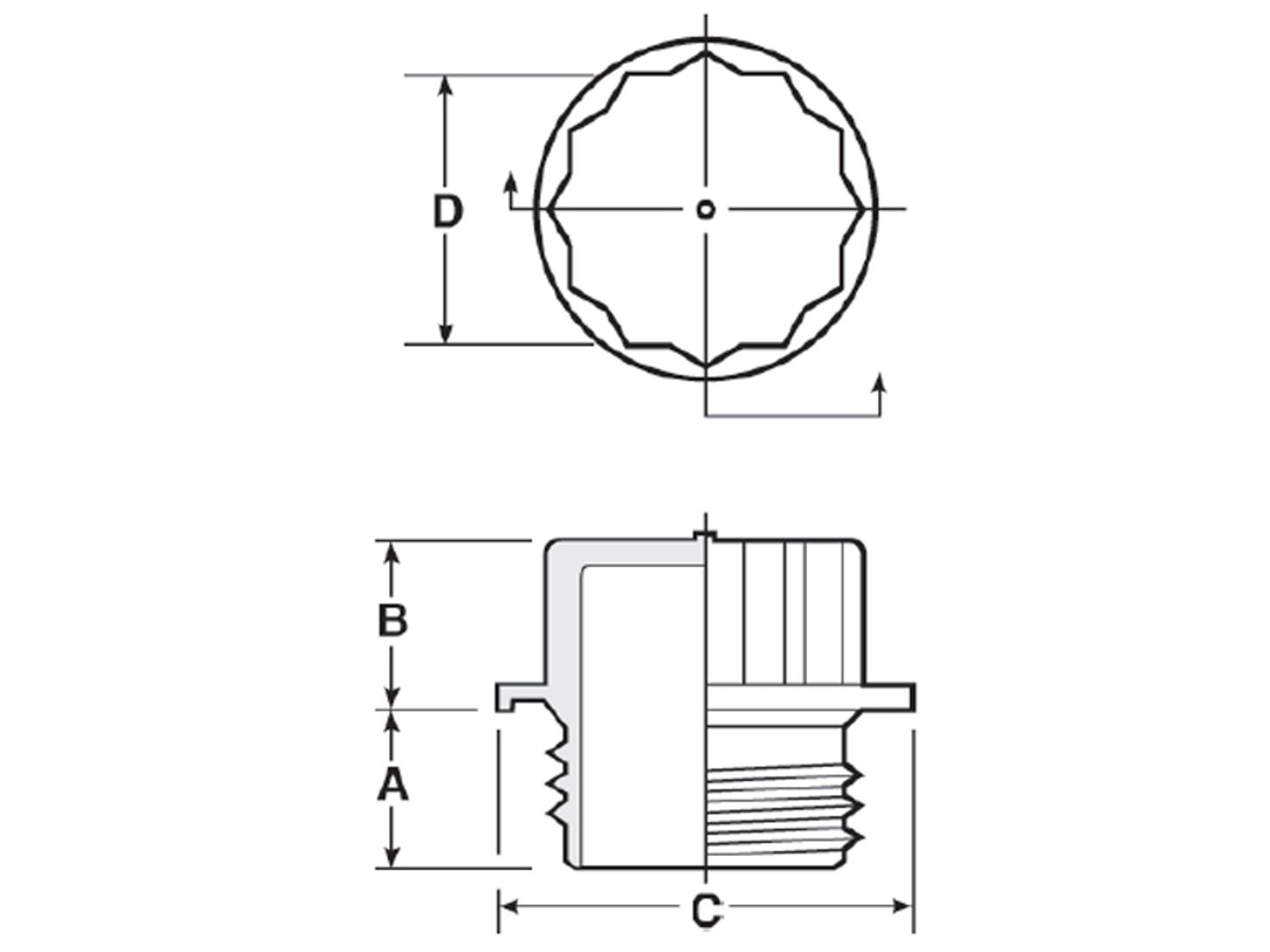

| Item Number | To Fit Thread Size (In) | Dim A (In) | Dim B (In) | Dim C (In) | 12-Point Socket Size | Dim A (mm) | Dim B (mm) | Dim C (mm) |
|---|---|---|---|---|---|---|---|---|
| BSP-1/4 | G 1/4 | 0.36 | 0.33 | 0.728 | 11 | 9.14 | 8.38 | 18.49 |
| BSP-3/8 | G 3/8 | 0.36 | 0.33 | 0.886 | 14 | 9.14 | 8.38 | 22.51 |
| BSP-1/2 | G 1/2 | 0.43 | 0.44 | 1.043 | 18 | 10.92 | 11.18 | 26.49 |
| BSP-3/4 | G 3/4 | 0.43 | 0.44 | 1.339 | 24 | 10.92 | 11.18 | 33.78 |
