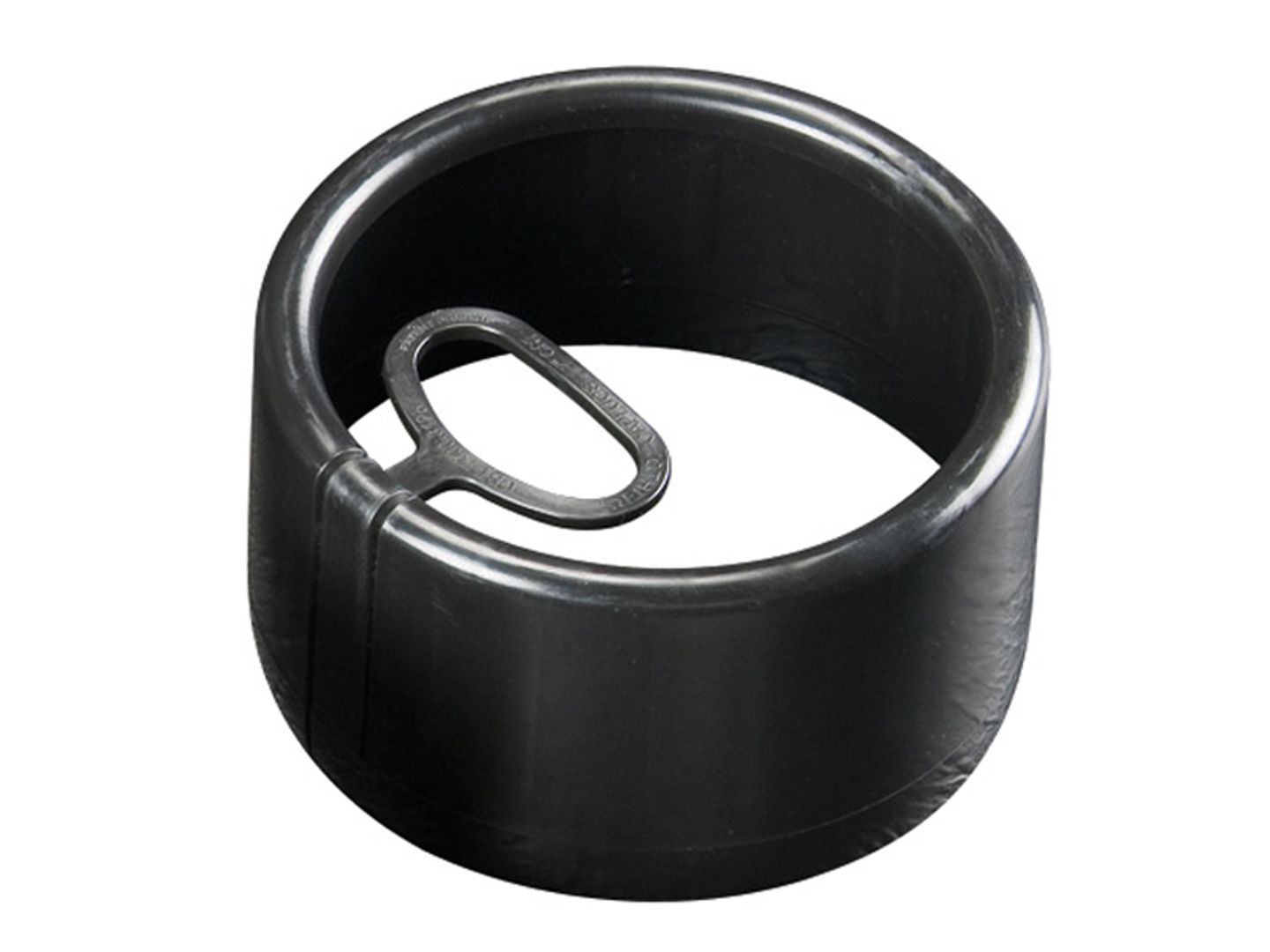

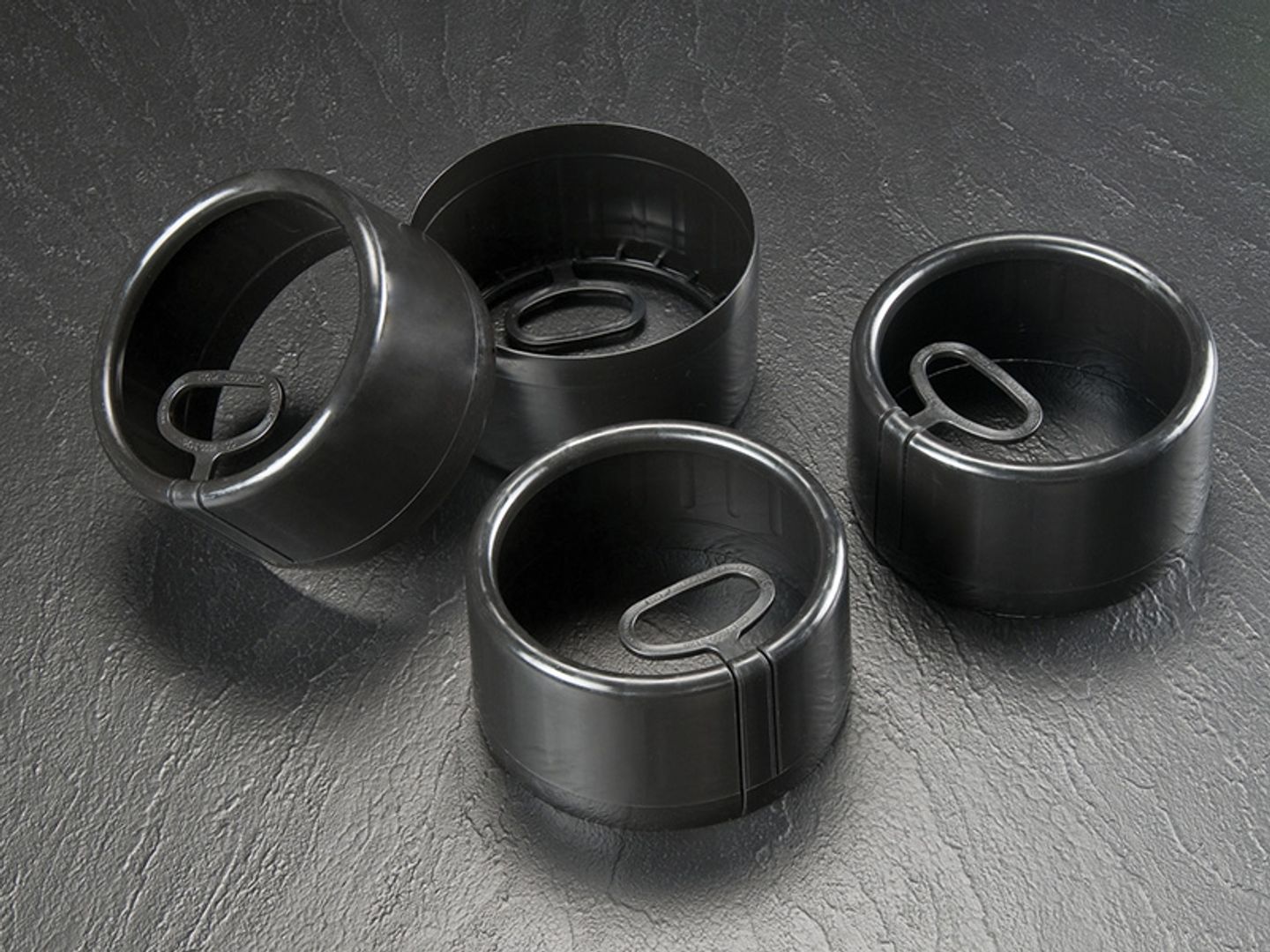

BUT Series

BUT Series standard duty well casing thread protectors are designed to protect exposed well casing pin ends during transit and storage. The patent-pending push-on design installs without threading and includes a tear ring and rail removal feature for faster removal at the drill site.

  • Protects exposed well casing pin ends during transit and storage
  • Push-on installation does not require threading
  • Can be seated using a rubber mallet
  • Tear ring allows tool-free removal at the drill site
  • Tapered end helps casing slide over other casing during loading or unloading
  • Tested for impact resistance, temperature extremes, salt spray corrosion and vibration

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Colour

Black
Material

Recyclable polyethylene

Part Sizes

Item Number

To Fit

Description

BUT-4500-3637
4-1/2” Buttress Thread Standard Duty
Open Pin End
BUT-5500-3825
5-1/2” Buttress Thread Standard Duty
Open Pin End
BUT-7000-4200
7” Buttress Thread Standard Duty
Open Pin End
BUT-9625-4512
9-5/8” Buttress Thread Standard Duty
Open Pin End
BUT-11750-4512
11-3/4” Buttress Thread Standard Duty
Open Pin End
BUT-13375-4512
13-3/8” Buttress Thread Standard Duty
Open Pin End
