CP Series

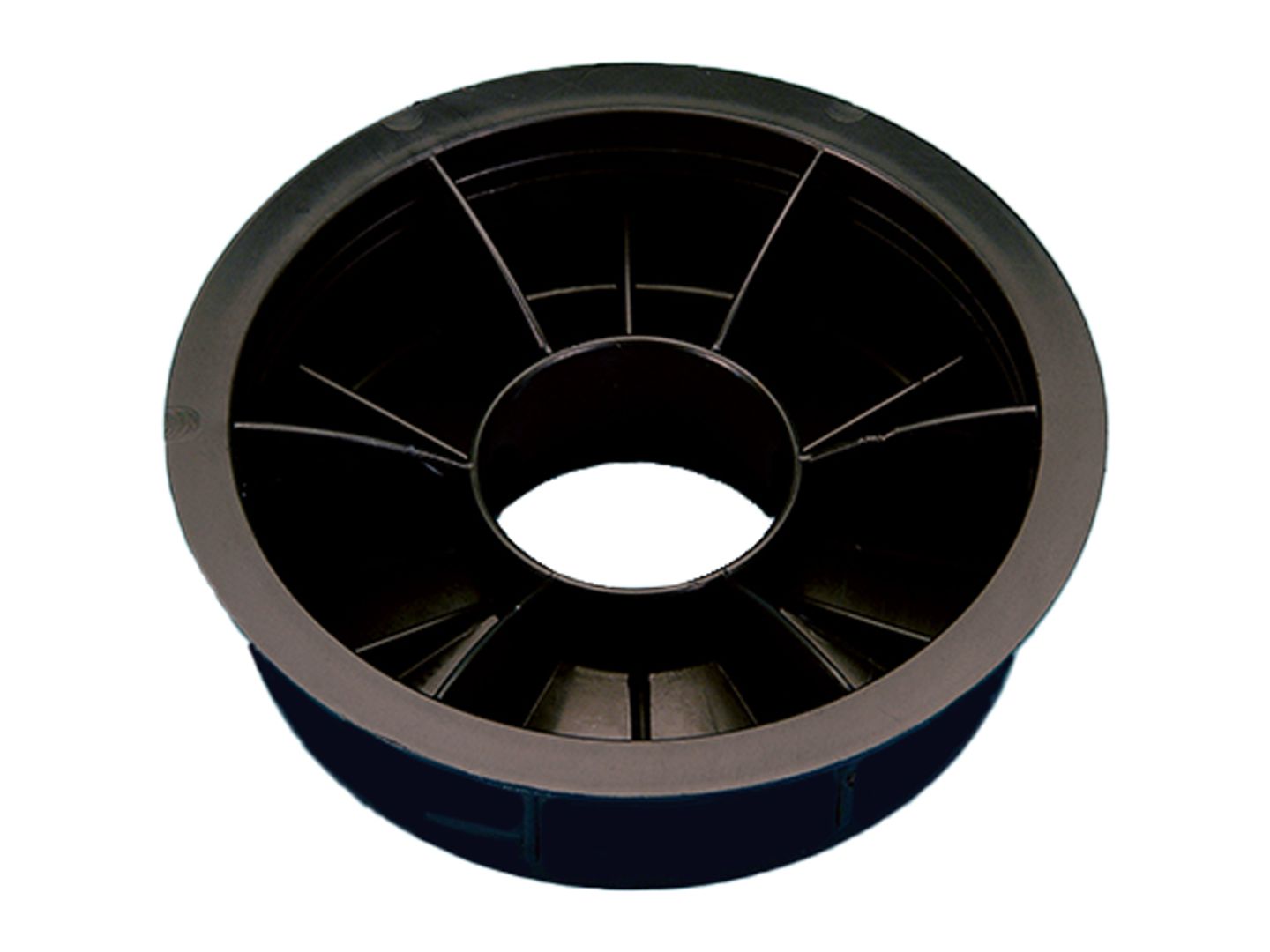

CP Series core plugs use a PolyGuard design with 12 supporting ribs to fit and protect a wide range of rolls.
- High-impact thermoplastic resin provides strong, durable protection
- Circumference lugs help compensate for variations in core ID
- Dish-shaped bottom increases overall plug strength compared with flat-bottom styles

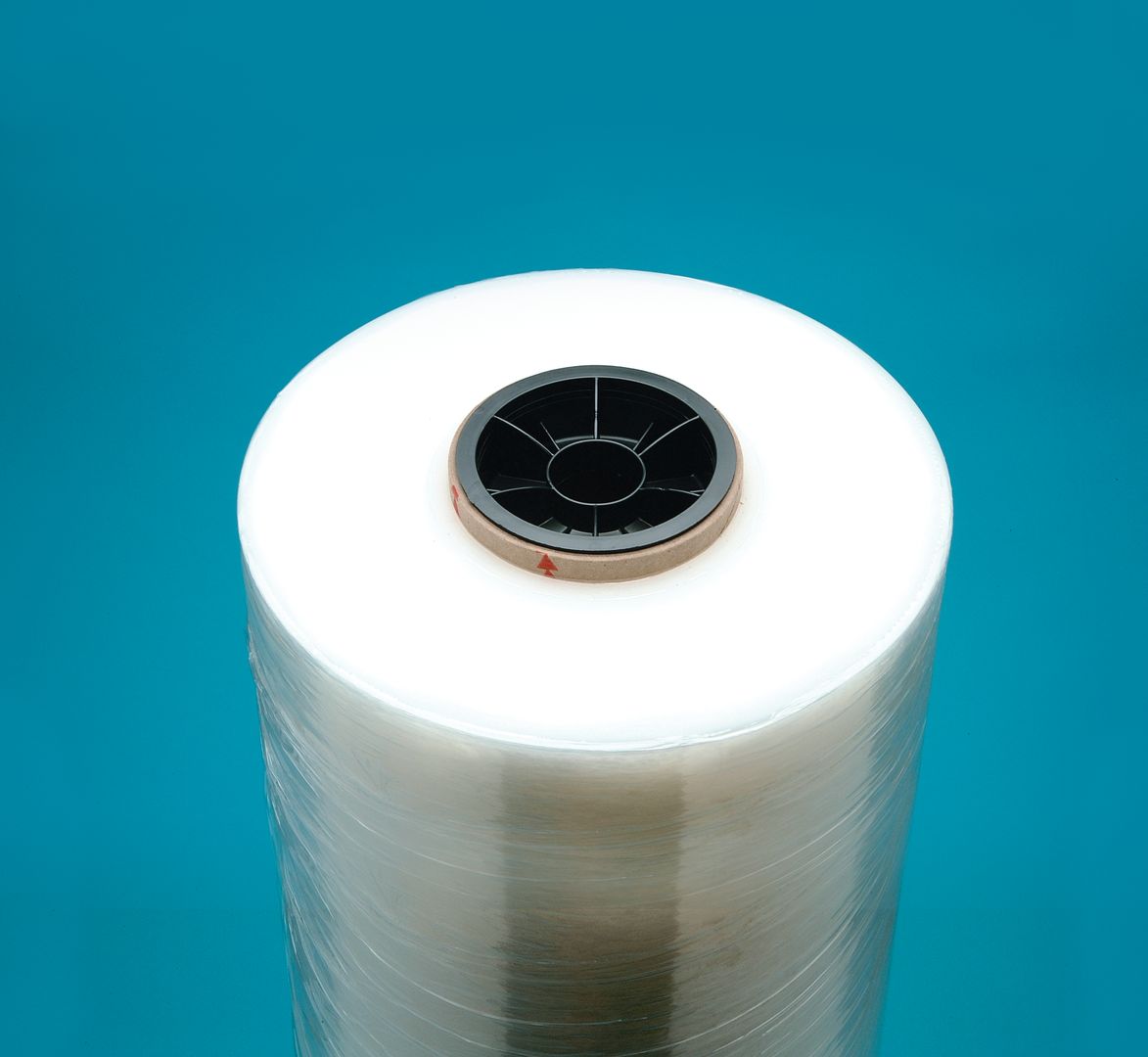

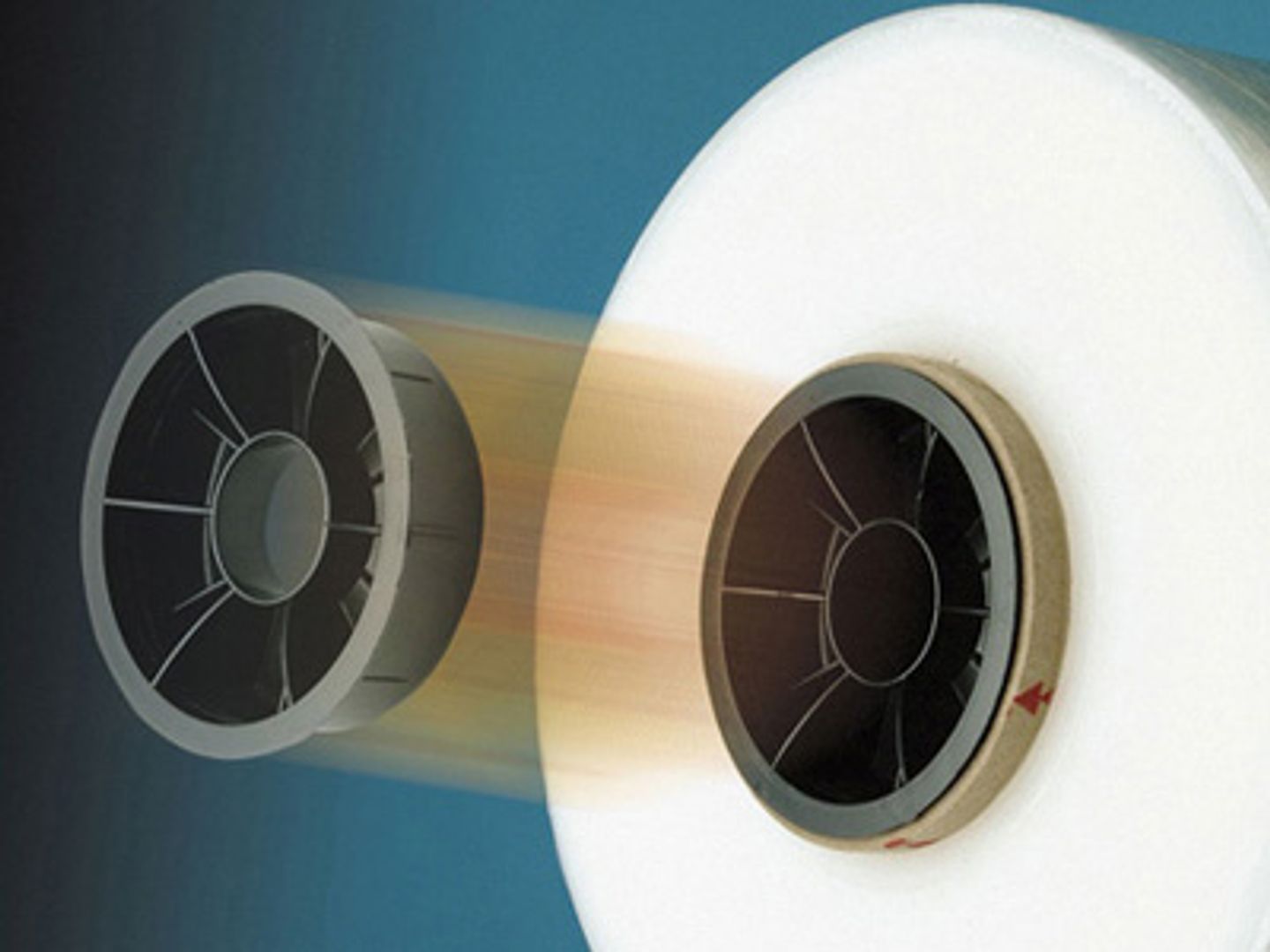

- Versatile design suits many roll protection applications
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | See Chart |
|---|---|
| Standard Colour | Black |
Part Sizes
Item Number | Size (In) | Description | Material |
CP-1501 | 1.5 | Standard fit | High Impact Polystyrene |
CP-201 | 2 | Standard fit | High Density Polyethylene |
CP-7510-1 | 3 | Used with oversize cores | High Density Polyethylene |
CP-5000-N | 3 | Standard fit | Polypropylene |
CP-3000 | 3 | Smaller diameter flange, used on automated machines | Polypropylene |
CP-2970 | 3 | Used with undersize cores | High Density Polyethylene |
CP-503 | 5 | Standard fit | Polypropylene |
CP-603 | 6 | Standard fit | Polypropylene |
CP-6015 | 6 | Light duty | High Density Polyethylene |
