CXT Series

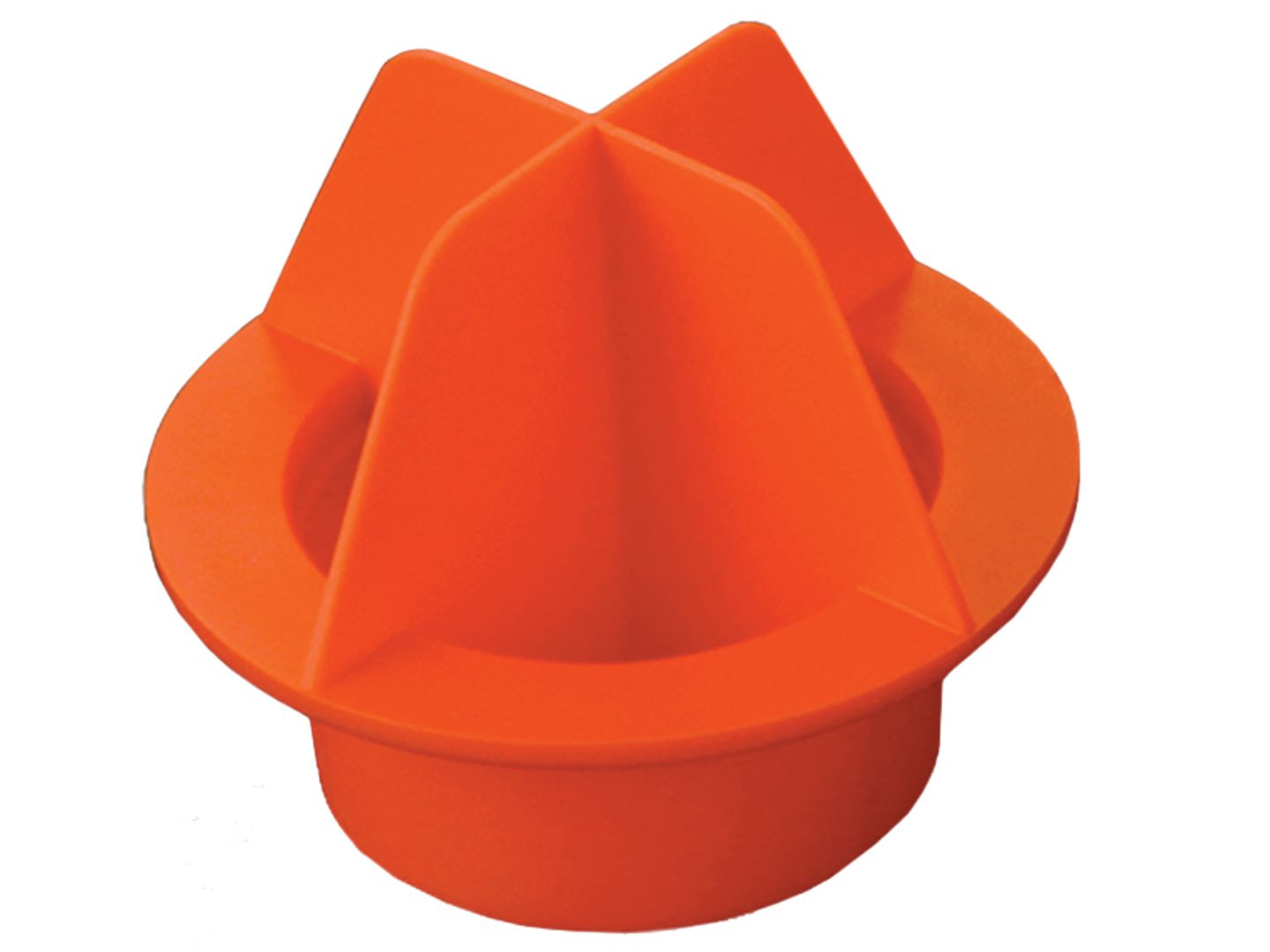

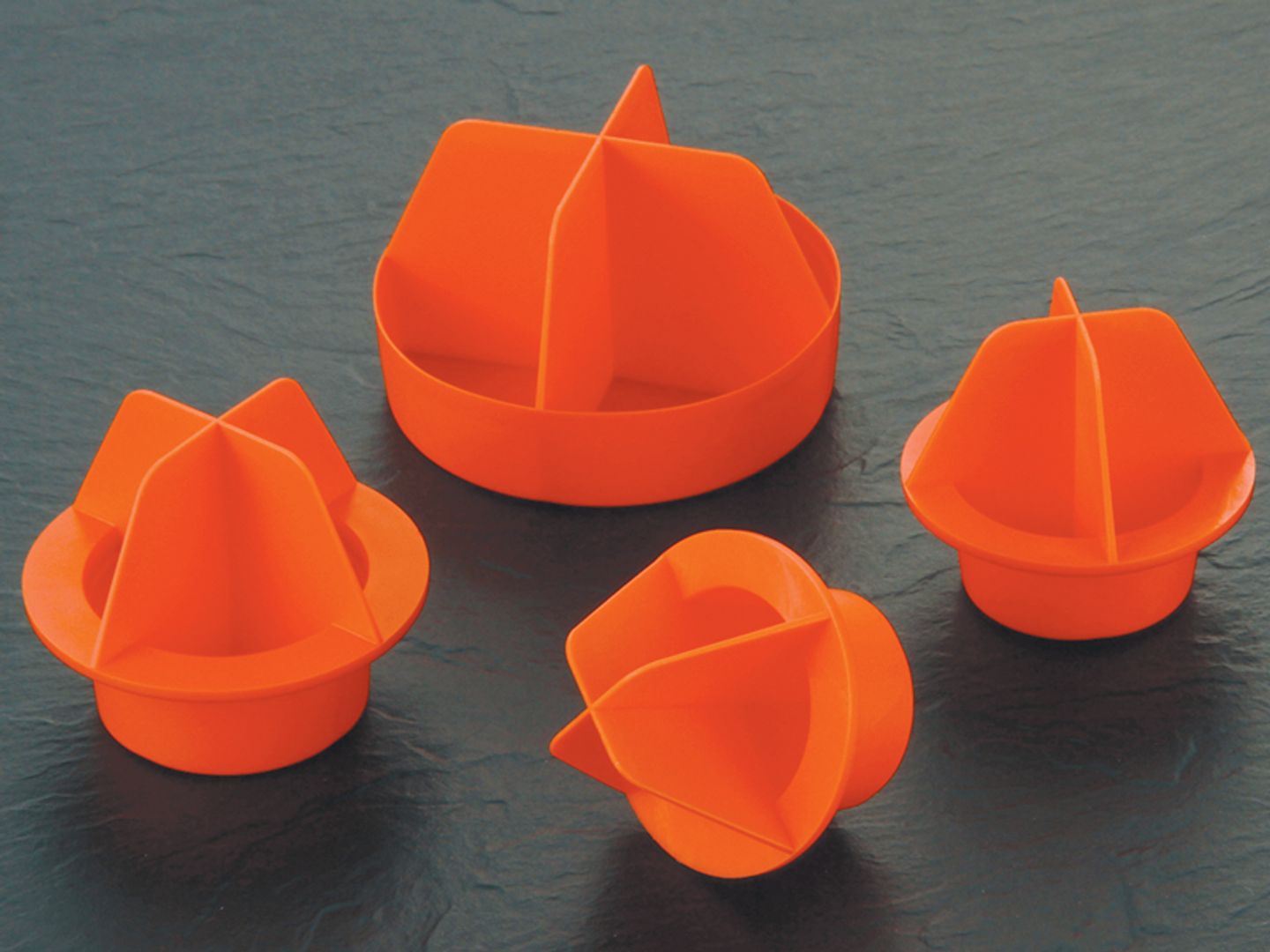

CXT Series tapered plugs match the configuration and dimensions of standard tapered plugs, with an integral cross-design pull tab for easier insertion and removal.
- Cross tab extends above the plug body for easy gripping
- Tab is moulded into the end and side walls to help prevent breakage during removal
- Wide flange and cross-tab design help prevent final connections being made before the plug is removed
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-density polyethylene |
|---|---|
| Service Temperature | -70 – 79° C |
| Colour | Orange |
Part Sizes

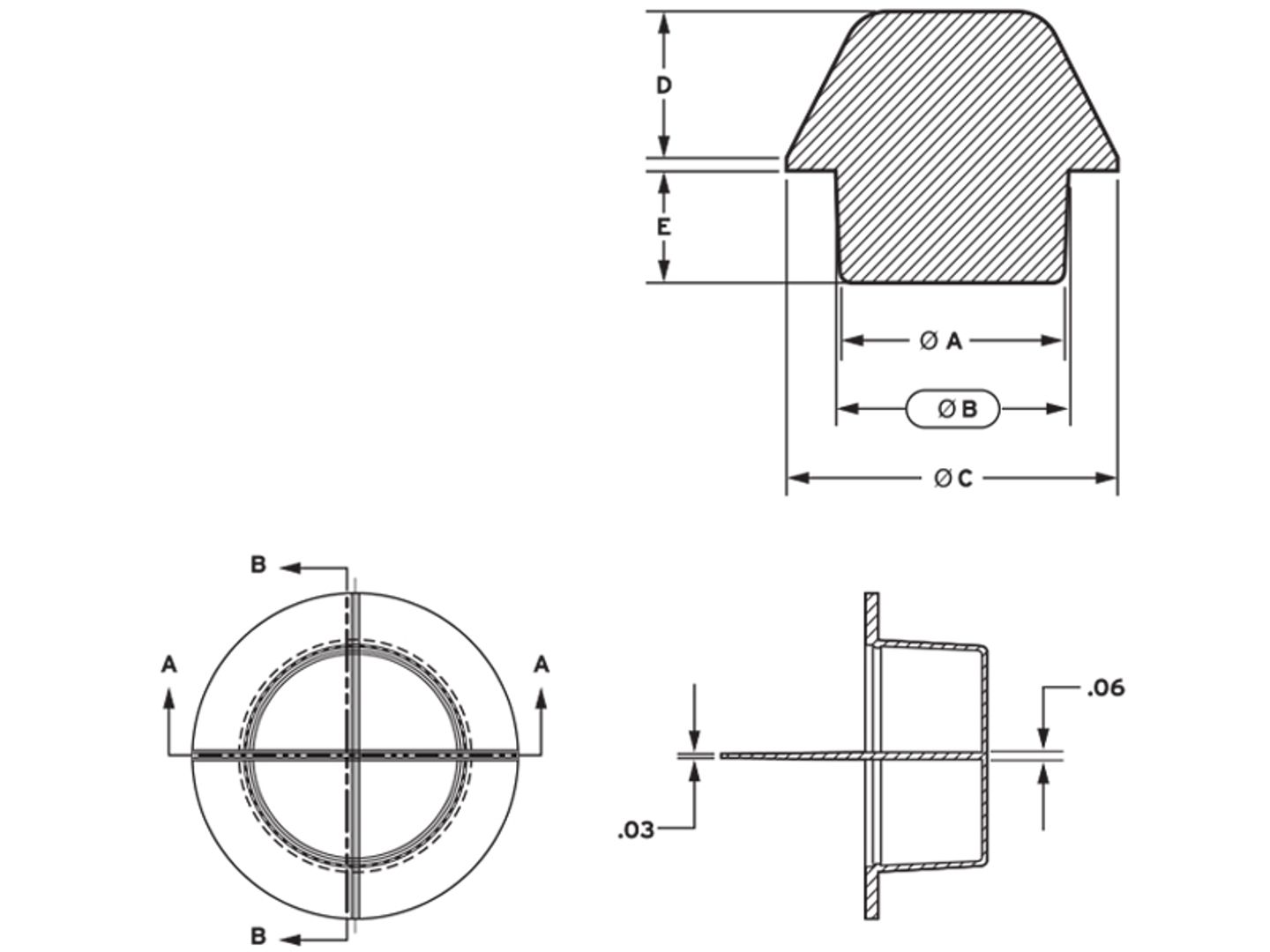

Item Number | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Dim E (In) |
CXT-21 | 1.202 | 1.297 | 1.88 | 1 | 0.75 |
CXT-23 | 1.312 | 1.465 | 2 | 1 | 0.66 |
CXT-26 | 1.519 | 1.602 | 2.25 | 1 | 0.75 |
CXT-44F | 2.638 | 2.759 | 3.12 | 1 | 0.69 |
