DC Series

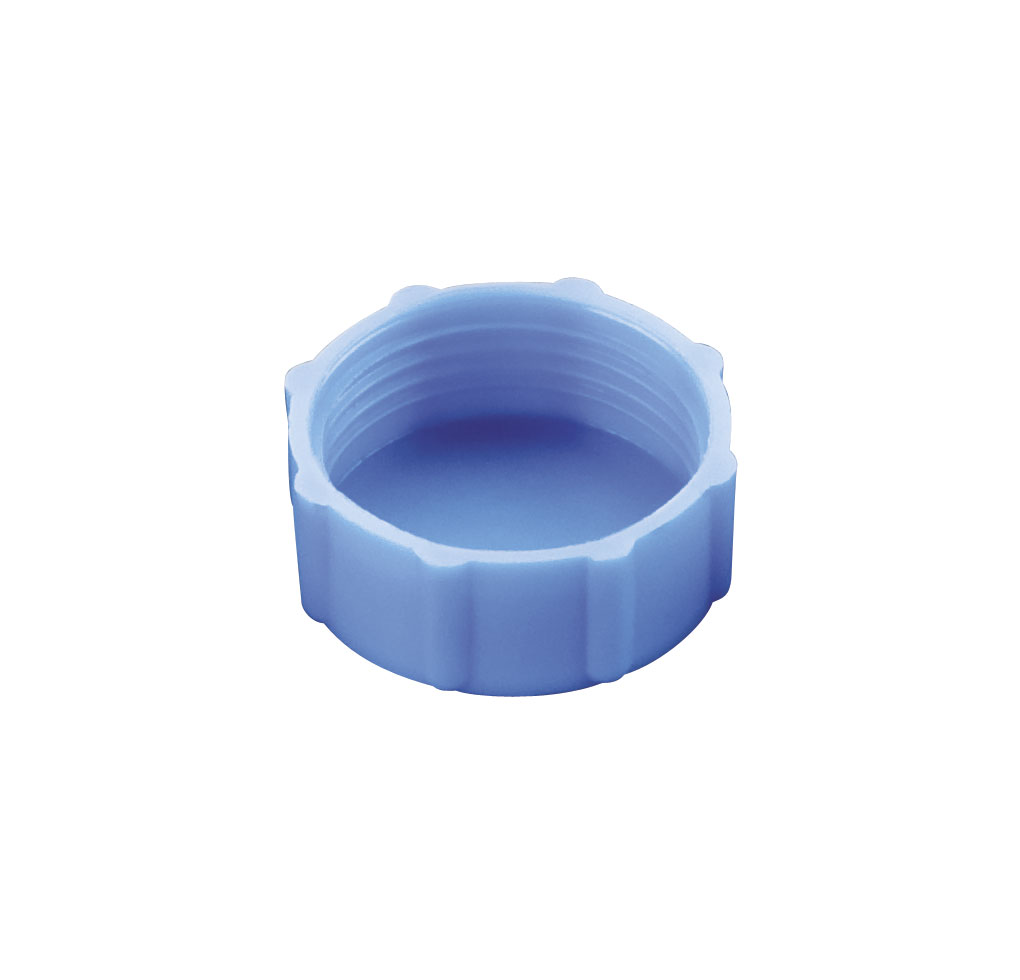

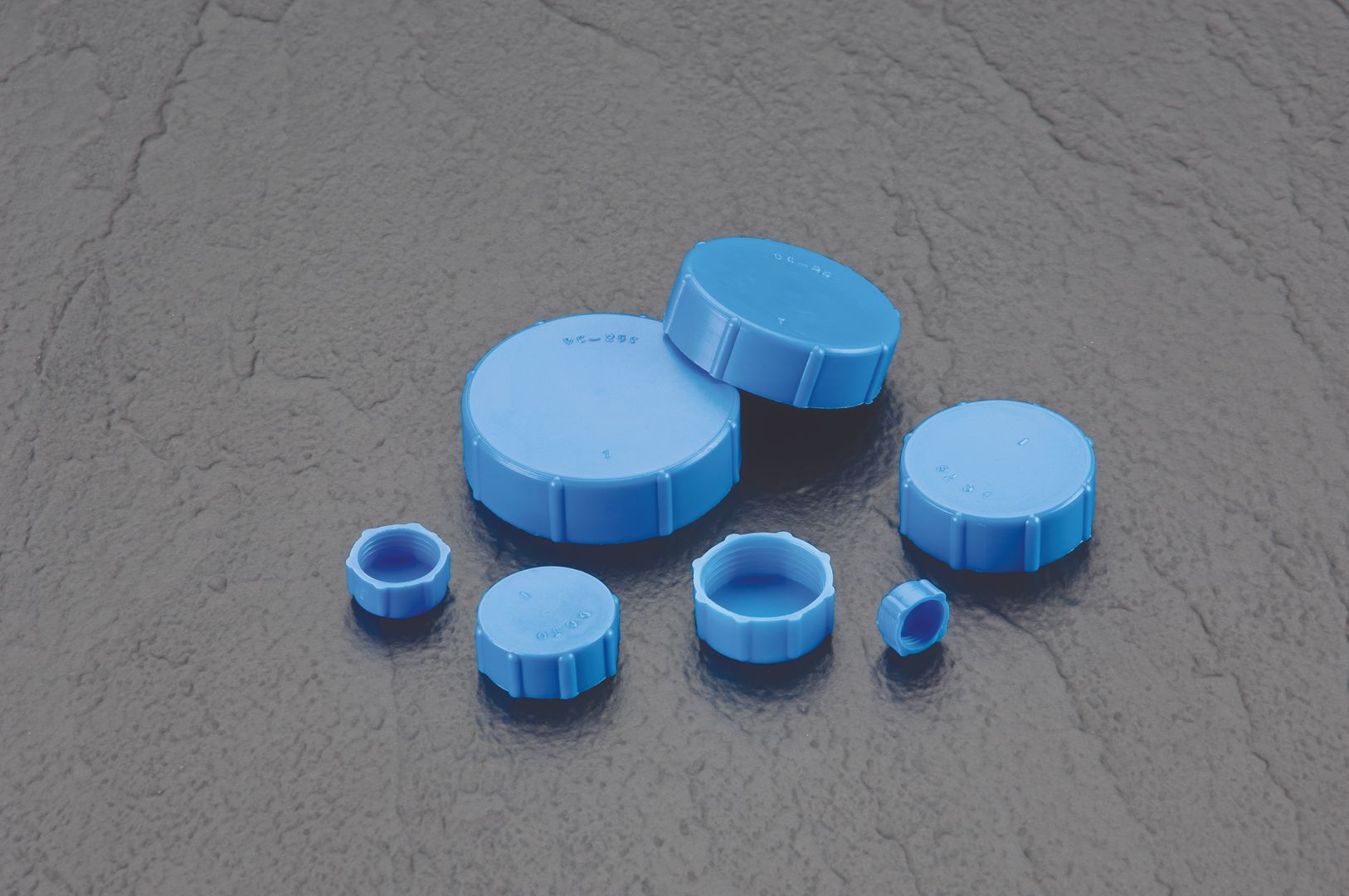

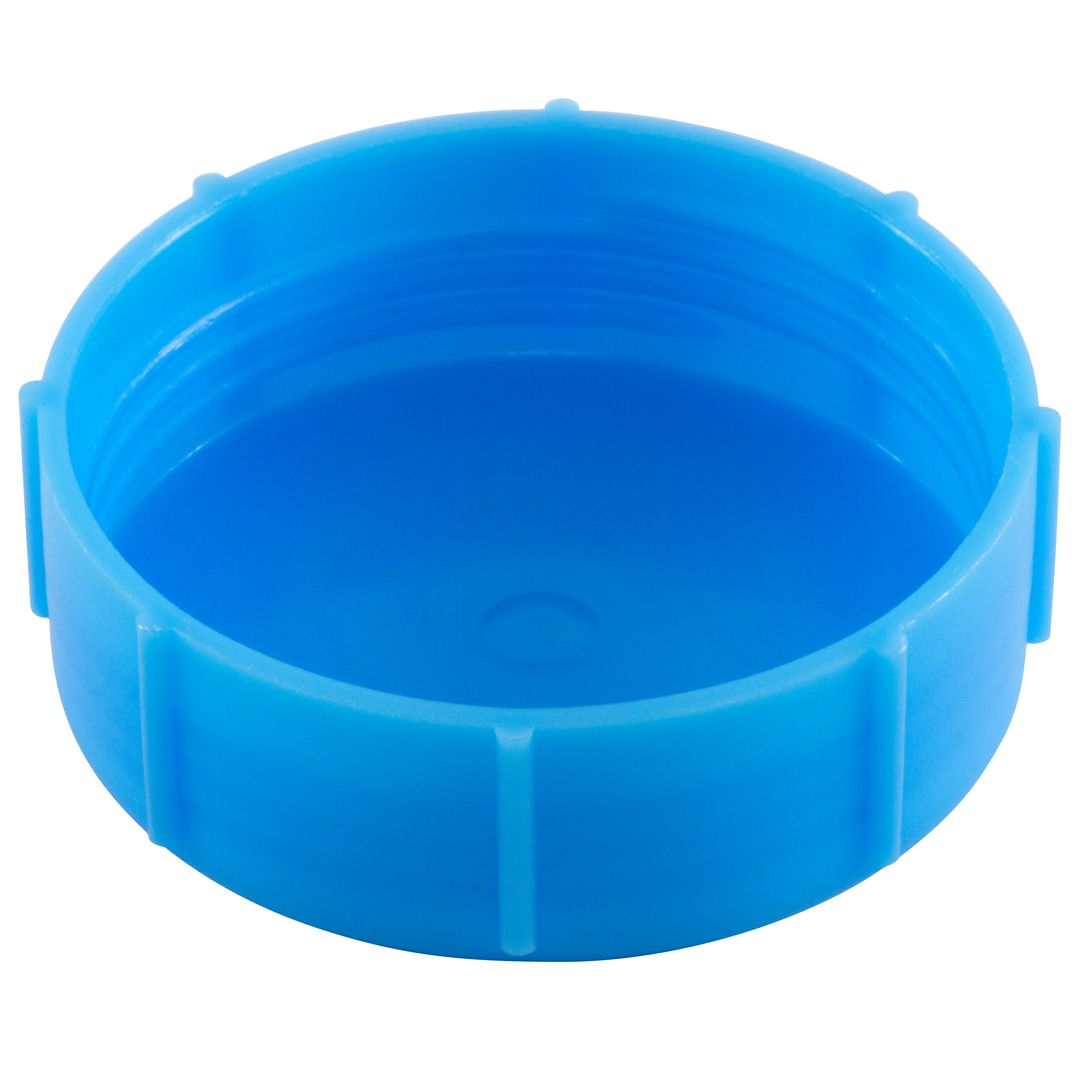

DC Series UN/UNS caps help seal out contaminants while protecting threads on fittings or connectors.
- Rolled threads allow the cap to be pushed on or threaded on
- Helps protect threads from damage and contamination
- Threads meet UN and UNS specifications
For more information or to order this part, contact us at +61 7 3277 2300
Note: Micropack sizes have a minimum 3 day lead time.
Additional information
| Material | High-density polyethylene |
|---|---|
| Service Temperature | -18 – 102° C |
| Standard Colour | Blue |
Part Sizes

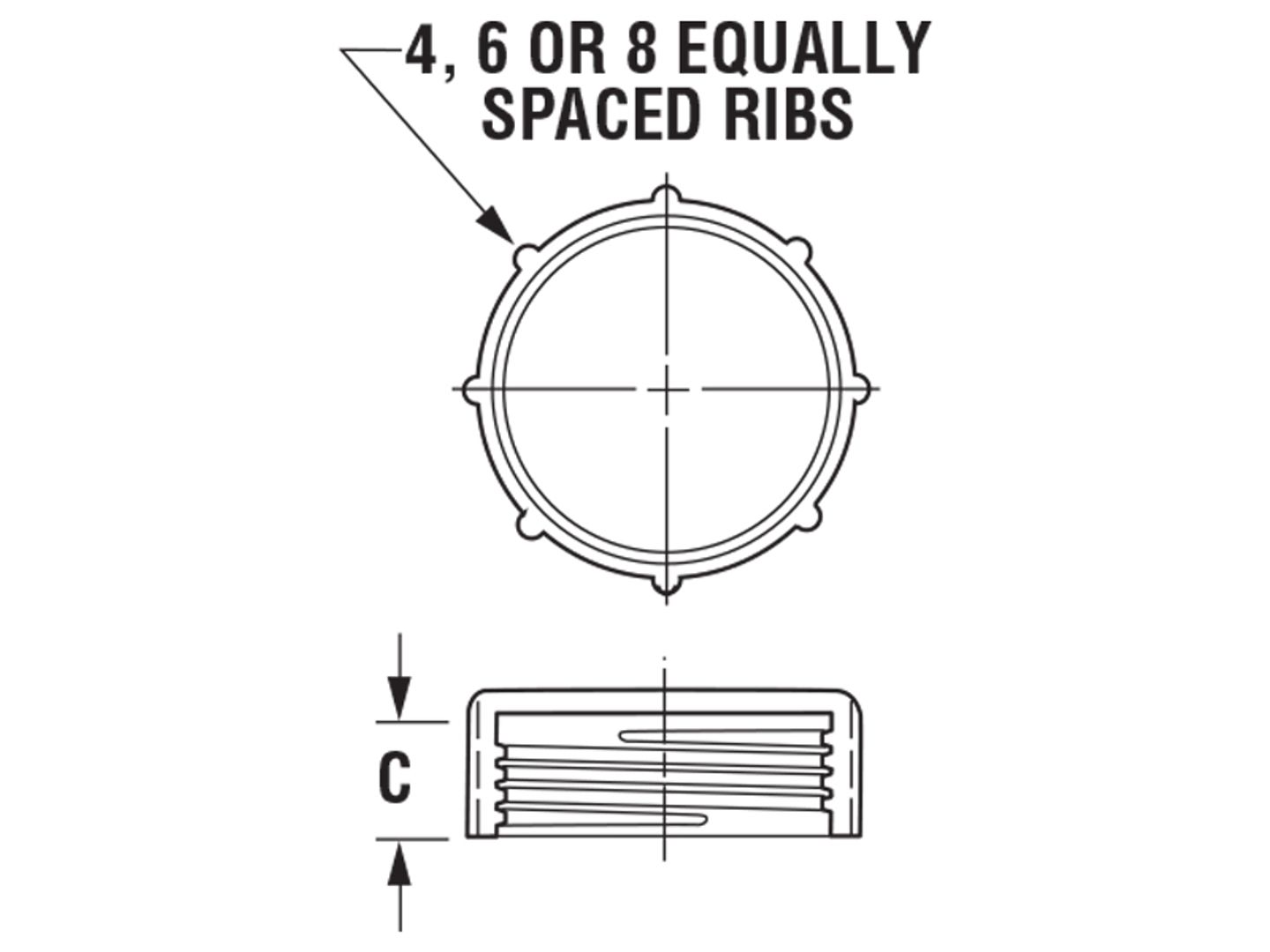

Item Number | To Fit Tube Size (In) | To Fit Thread Size (In) | Dim C (In) |
DC-3 | 3/16 | 3/8 – 28 | 0.2 |
DC-4 | 1/4 | 7/16 – 24 | 0.24 |
DC-5 | 5/16 | 1/2 – 24 | 0.24 |
DC-6 | 3/8 | 9/16 – 20 | 0.26 |
DC-8 | 1/2 | 23/32 – 20 | 0.27 |
DC-10 | 5/8 | 27/32 – 18 | 0.34 |
DC-12 | 3/4 | 1 – 16 | 0.38 |
DC-14 | 7/8 | 1-1/8 – 16 | 0.4 |
DC-16 | 1 | 1-1/4 – 14 | 0.43 |
DC-20 | 1-1/4 | 1-33/64 – 14 | 0.43 |
DC-21S | 1-1/4 | 1-37/64 – 14 | 0.43 |
DC-22 | 1-1/4 | 1-9/16 – 12 | 0.5 |
DC-24 | 1-1/2 | 1-25/32 – 14 | 0.5 |
DC-25S | 1-1/2 | 1-27/32 – 14 | 0.5 |
