DCF Series

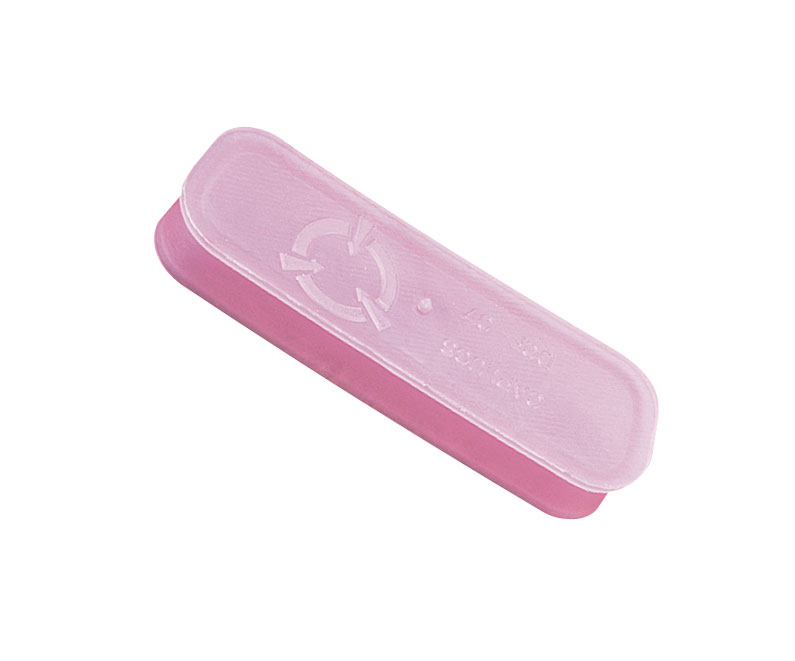

DCF Series caps protect electrical connectors from dust and impact damage, with material options for conductive or static dissipative protection.
- Now available in Easypack quantities
- Available in black conductive polyethylene copolymer or pink static dissipative EVA
- DCF-06 and DCF-08 fit D-subminiature connectors with flared shells
- DCF-07 fits D-subminiature power connectors with flared shells
- Surface resistivity of less than 1 x 10⁵ ohms/square, in accordance with ASTM D-257-78
- Meets static decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046
For more information or to order this part, contact us at +61 7 3277 2300
NOTE:
- Part numbers with "C" = Black, conductive polyethylene copolymer
- Part numbers with "SD" = Pink, static dissipative ethylene vinyl acetate (EVA)
- Easypacks have a minimum 3-day lead time.
Additional information
| Material | Static dissipative ethylene vinyl acetate (EVA) or conductive polyethylene copolymer |
|---|---|
| Standard Colours | Pink, Black |
Part Sizes
Item Number | Contact Type | Material | Standard No. of Contacts |
DCF-06C | Pin | Conductive | 26 |
DCF-06SD | Pin | Static Dissipative | 26 |
DCF-07C | Power Contact Pin | Conductive | 5 |
DCF-07SD | Power Contact Pin | Static Dissipative | 5 |
DCF-08C | Pin | Conductive | 62 & 64 |
DCF-08SD | Pin | Static Dissipative | 62 & 64 |
DCF-11C | Pin | Conductive | 9 |
DCF-11SD | Pin | Static Dissipative | 9 |
