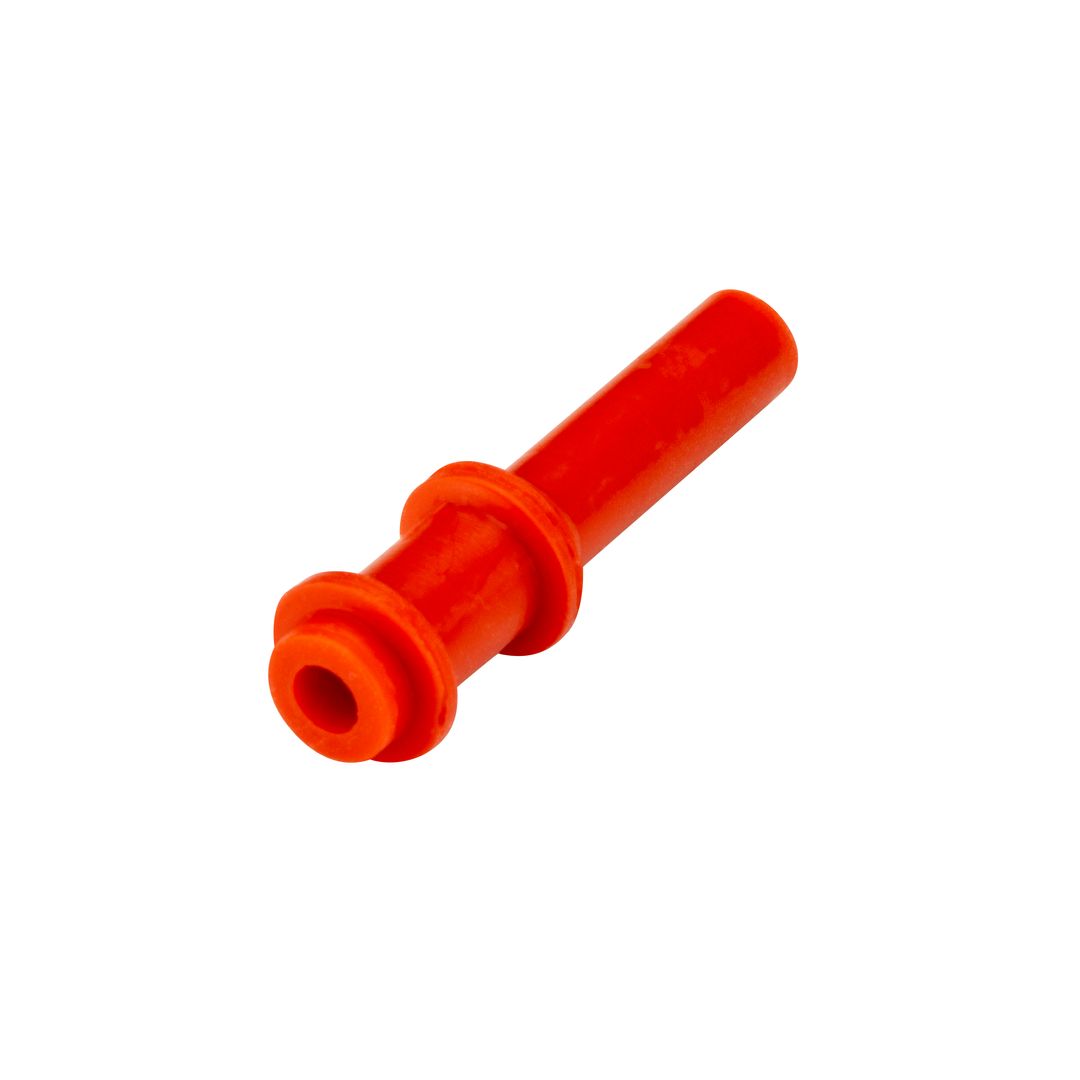

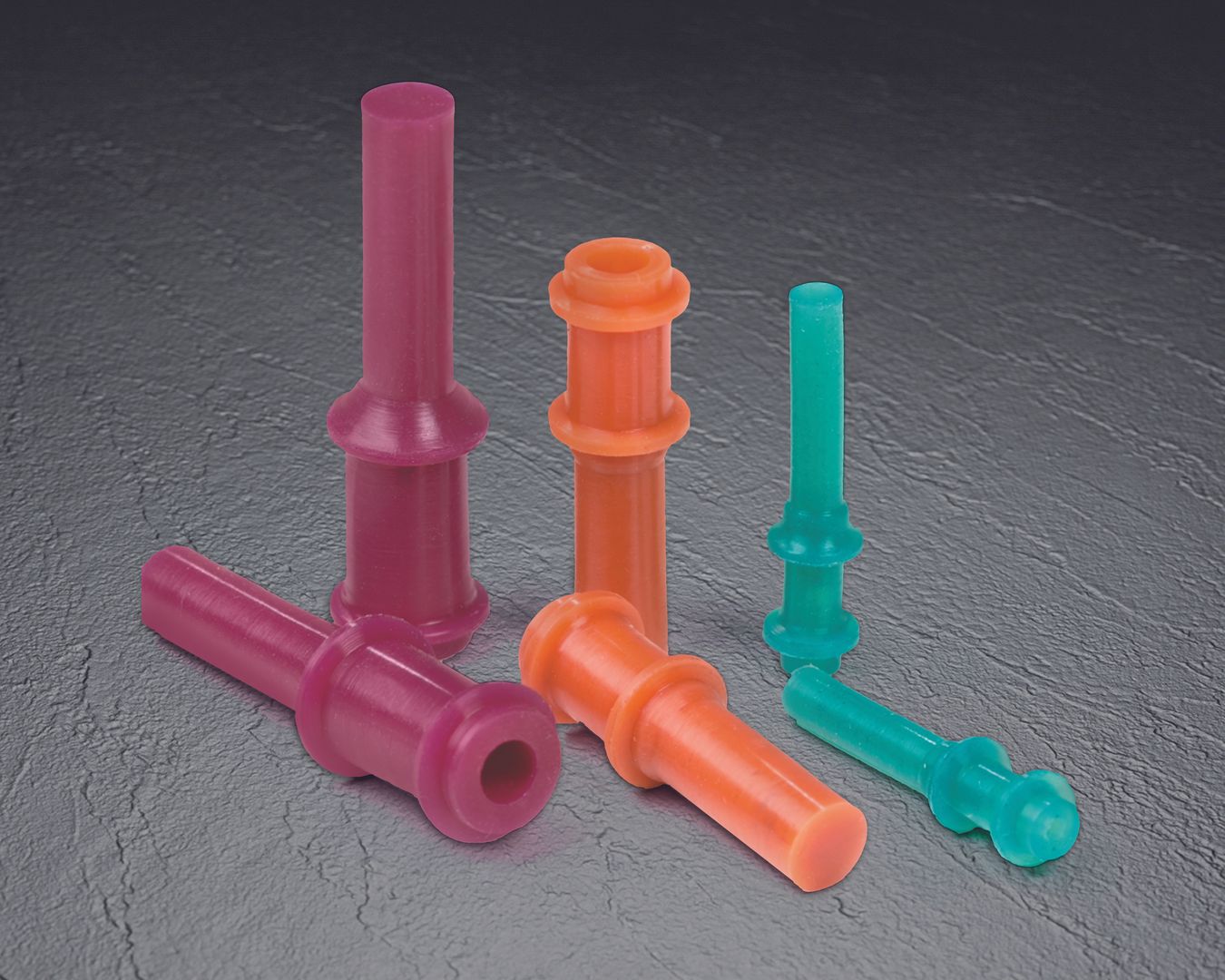

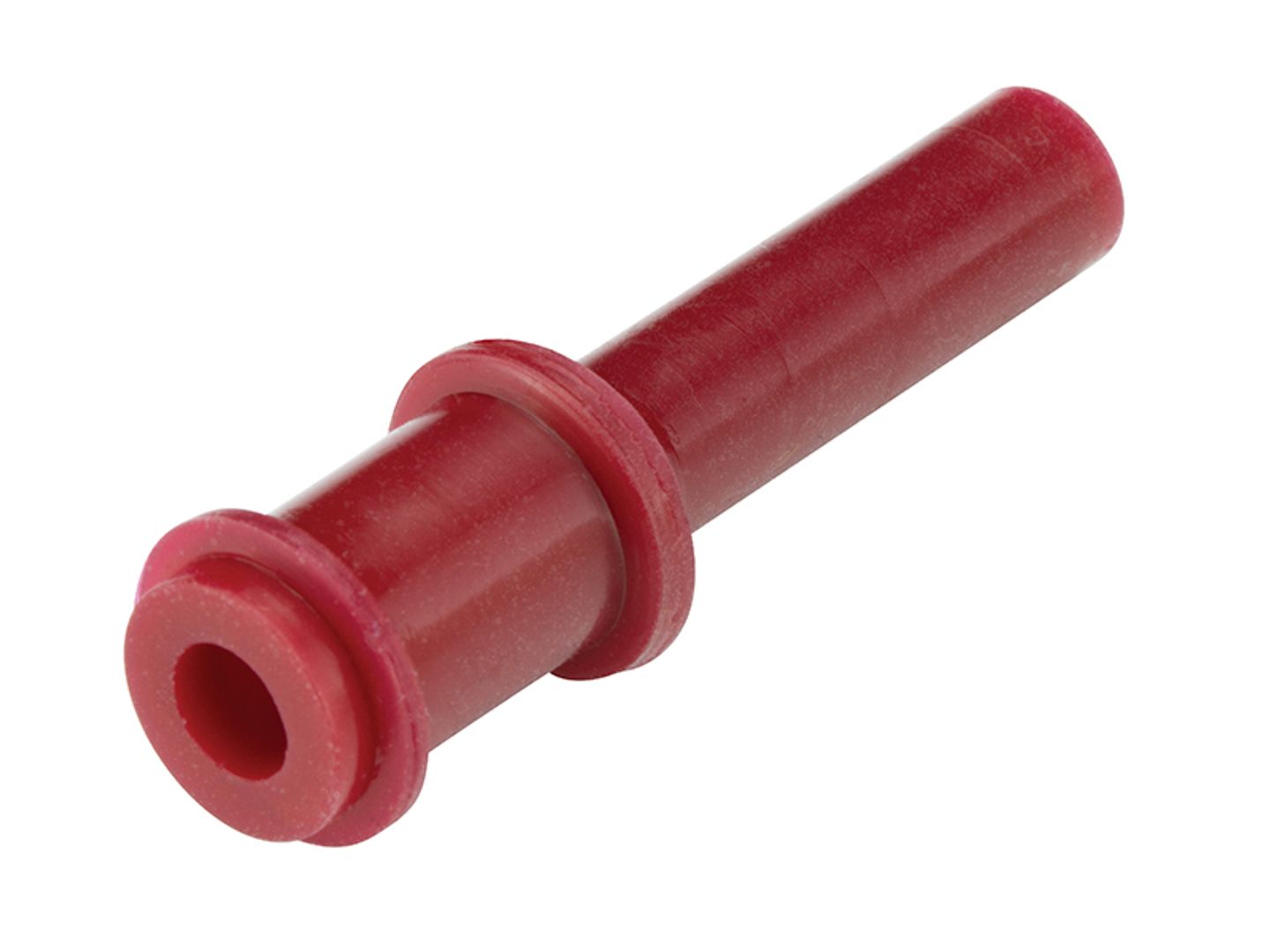

DFPP-SH Series
DFPP-SH Ultrabake™ silicone dual-flanged pull plugs are designed to mask weld nuts with varying thread sizes during high-temperature finishing processes.
- Suitable for temperatures up to 315°C
- Recommended for powder coating, e-coating, plating and anodising
- Masks the chamfer, first thread and last thread
- Designed not to blow out due to air pressure
- Reusable for multiple applications
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Silicone |
|---|---|
| Standard Colour | Various (colour coded for sizing) |
| Optional Colours | Clear; White |

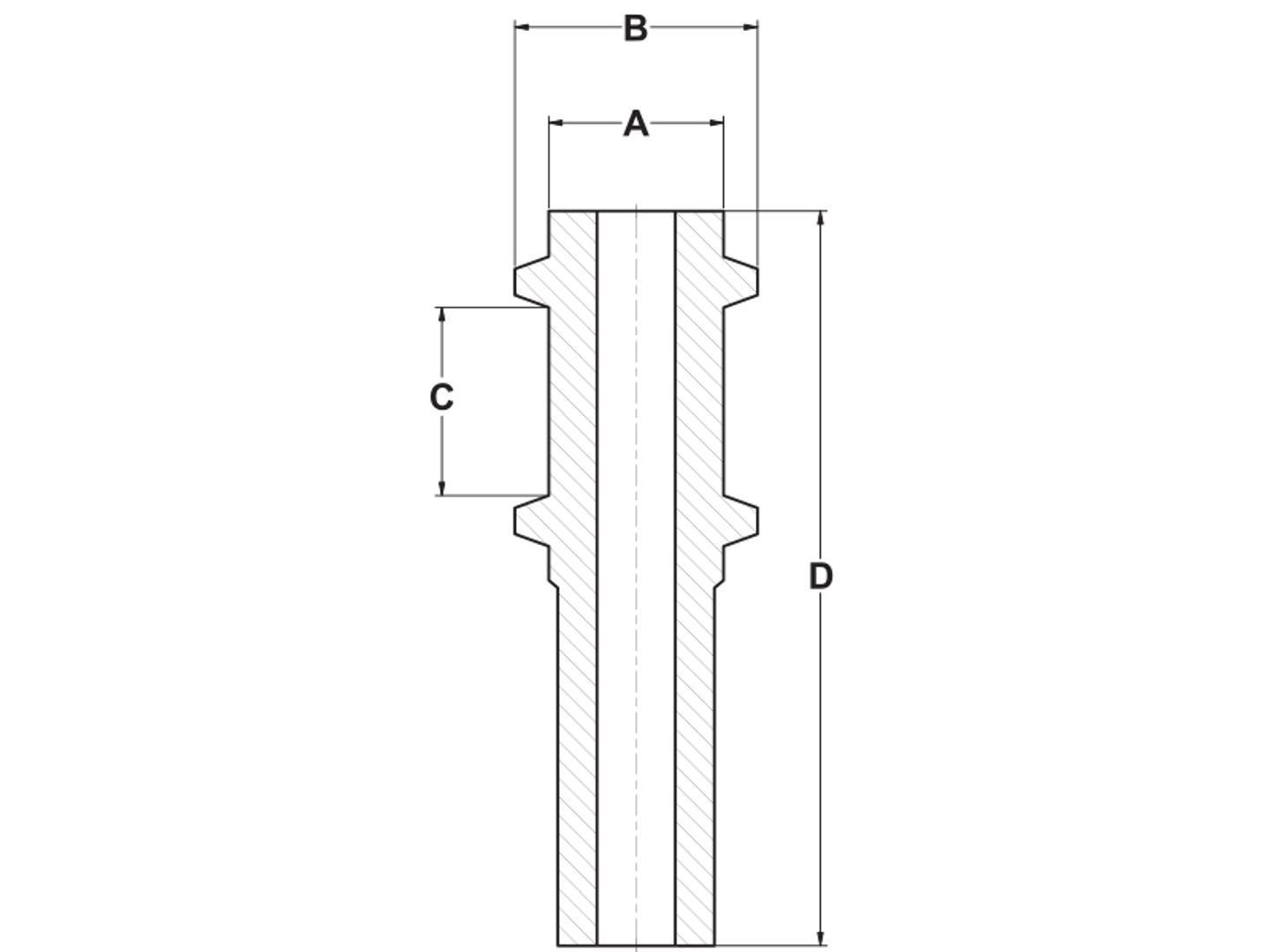

Part Sizes
Item Number | To Fit Thread Size | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Colour | Quantity Per Bag | Quantity Per Minipack |
DFPP-M6 | M6 | 0.197 | 0.307 | 0.268 | 1.299 | Dark Green | 1000 | - |
DFPP-M8 | M8 | 0.264 | 0.374 | 0.311 | 1.339 | Rusty Red | 1000 | - |
DFPP-M10 | M10 | 0.335 | 0.445 | 0.354 | 1.378 | Dark Green | 500 | - |
DFPP-M12 | M12 | 0.406 | 0.512 | 0.457 | 1.772 | Purple | 250 | - |
DFPP-M16 | M16 | 0.531 | 0.669 | 0.551 | 1.969 | White | 250 | - |
DFPP-M20 | M20 | 0.669 | 0.827 | 0.709 | 2.283 | Dark Blue | 100 | - |
