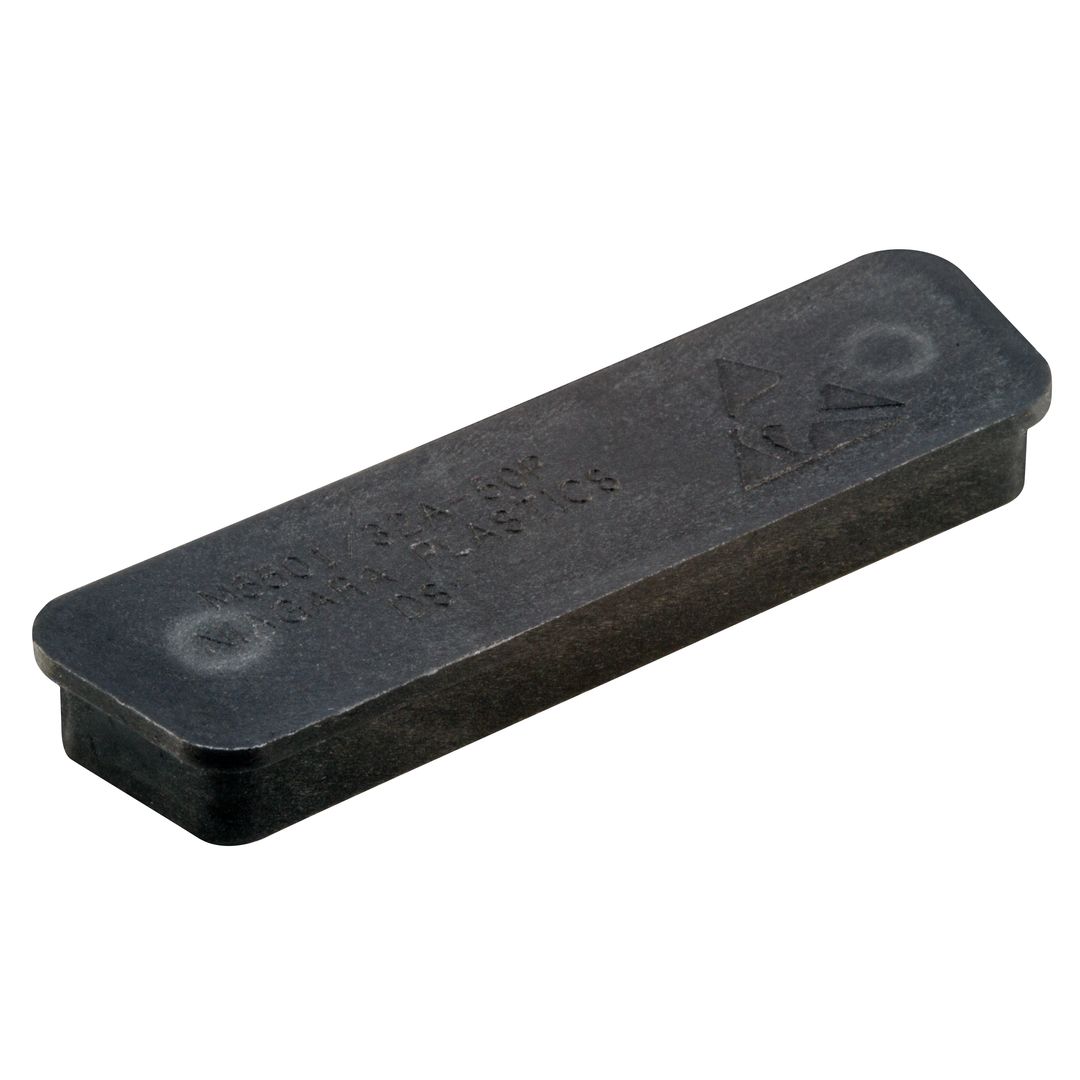

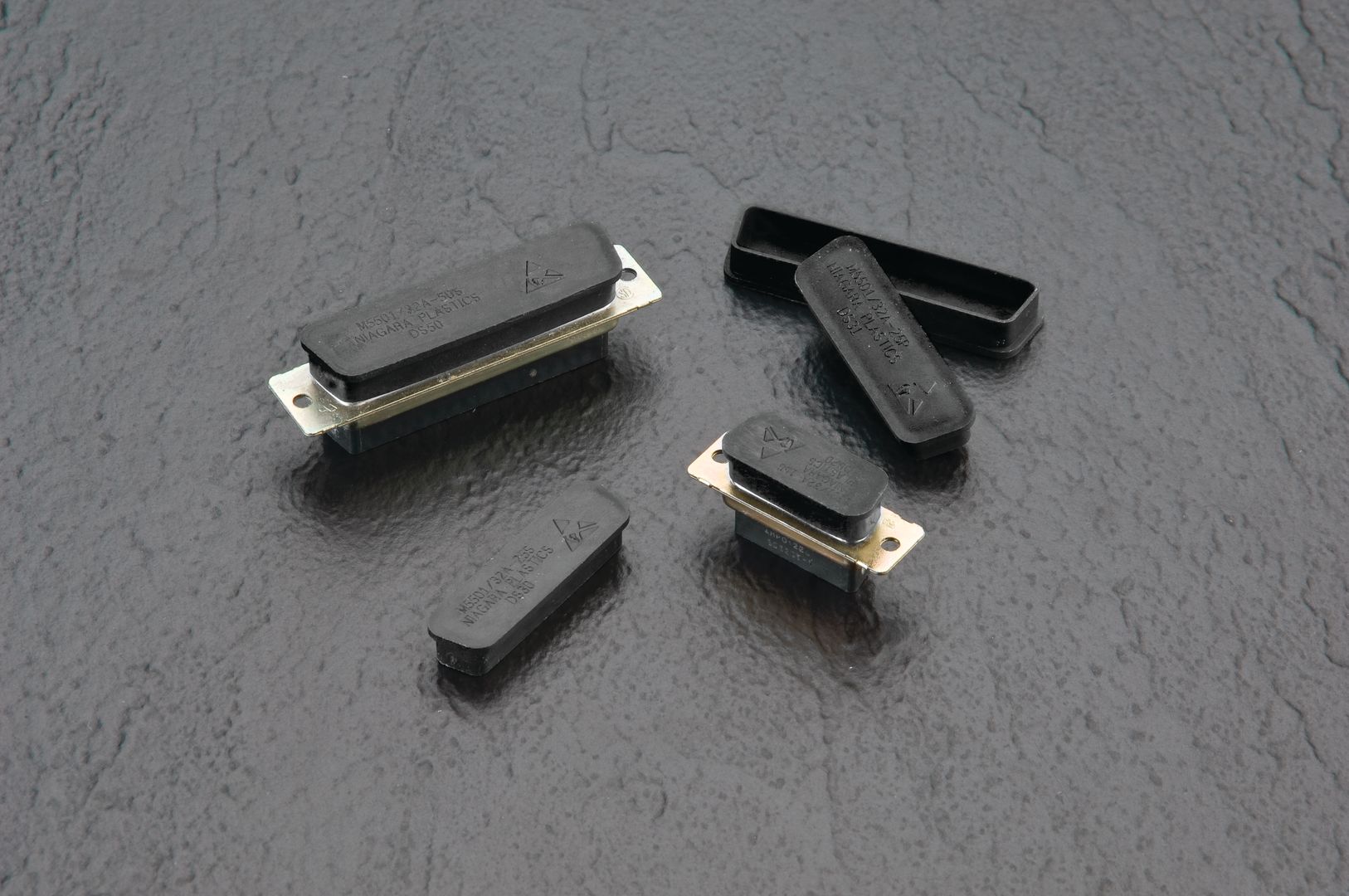

DS Series
DS Series non-sloughing caps are designed to meet the stringent requirements of M 5501/32.
- Now available in Easypack quantities
- Made from conductive material for ESD protection
- Surface resistivity of less than 1 x 10⁵ ohms/square, in accordance with ASTM D-257-78
- Meets Static Decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046
For more information or to order this part, contact us at +61 7 3277 2300
Note: Easypacks have a minimum 3-day lead time.
Additional information
| Material | ICP Compound |
|---|---|
| Standard Colour | Black |
Part Sizes
Item Number | Contact Type | M 5501/32 | Standard No. of Contacts |
DS-10Q4 | Socket | 9S | 9 |
DS-11Q4 | Pin | 9P | 9 |
DS-20Q4 | Socket | 15S | 15 |
DS-21Q4 | Pin | 15P | 15 |
DS-30Q4 | Socket | 25S | 25 |
DS-31Q4 | Pin | 25P | 25 |
DS-40Q4 | Socket | 37S | 37 |
DS-41Q4 | Pin | 37P | 37 |
DS-50Q4 | Socket | 50S | 50 |
DS-51Q4 | Pin | 50P | 50 |
