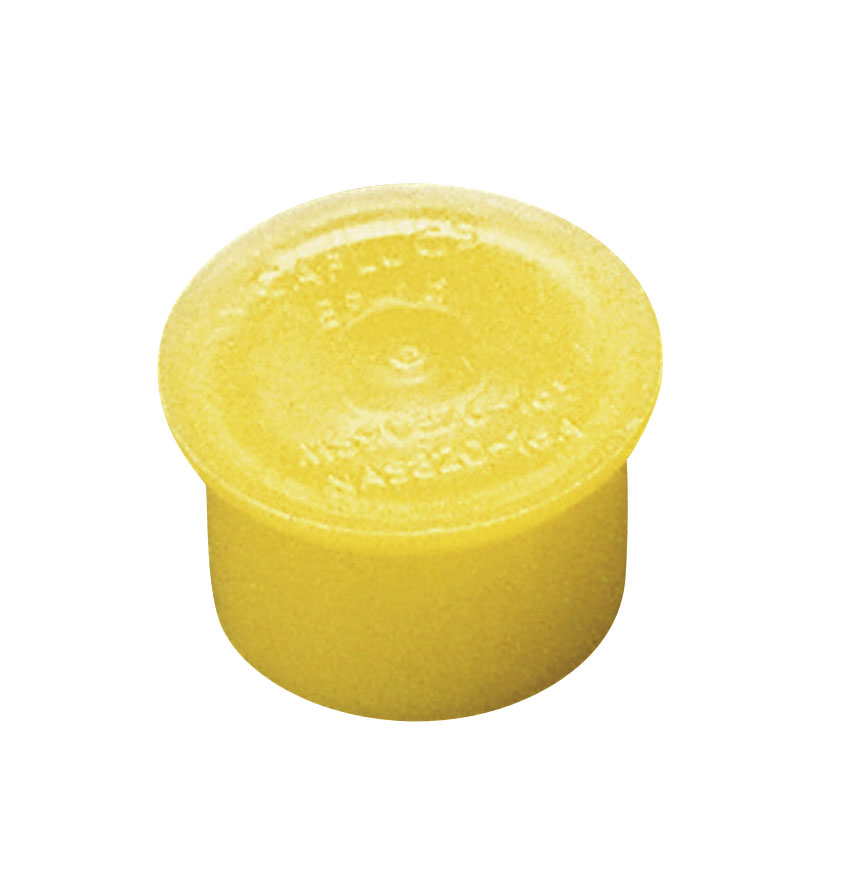

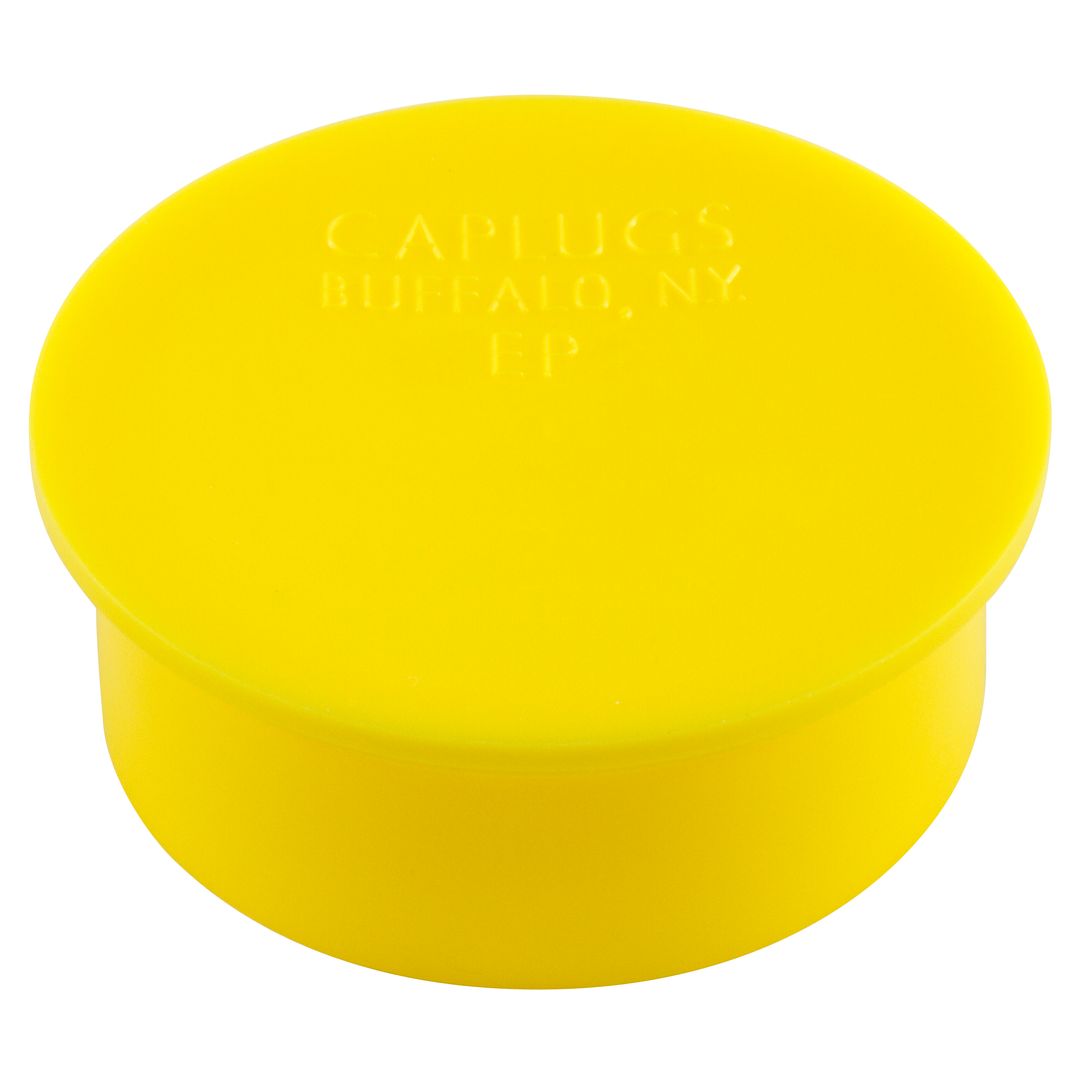

EP Series

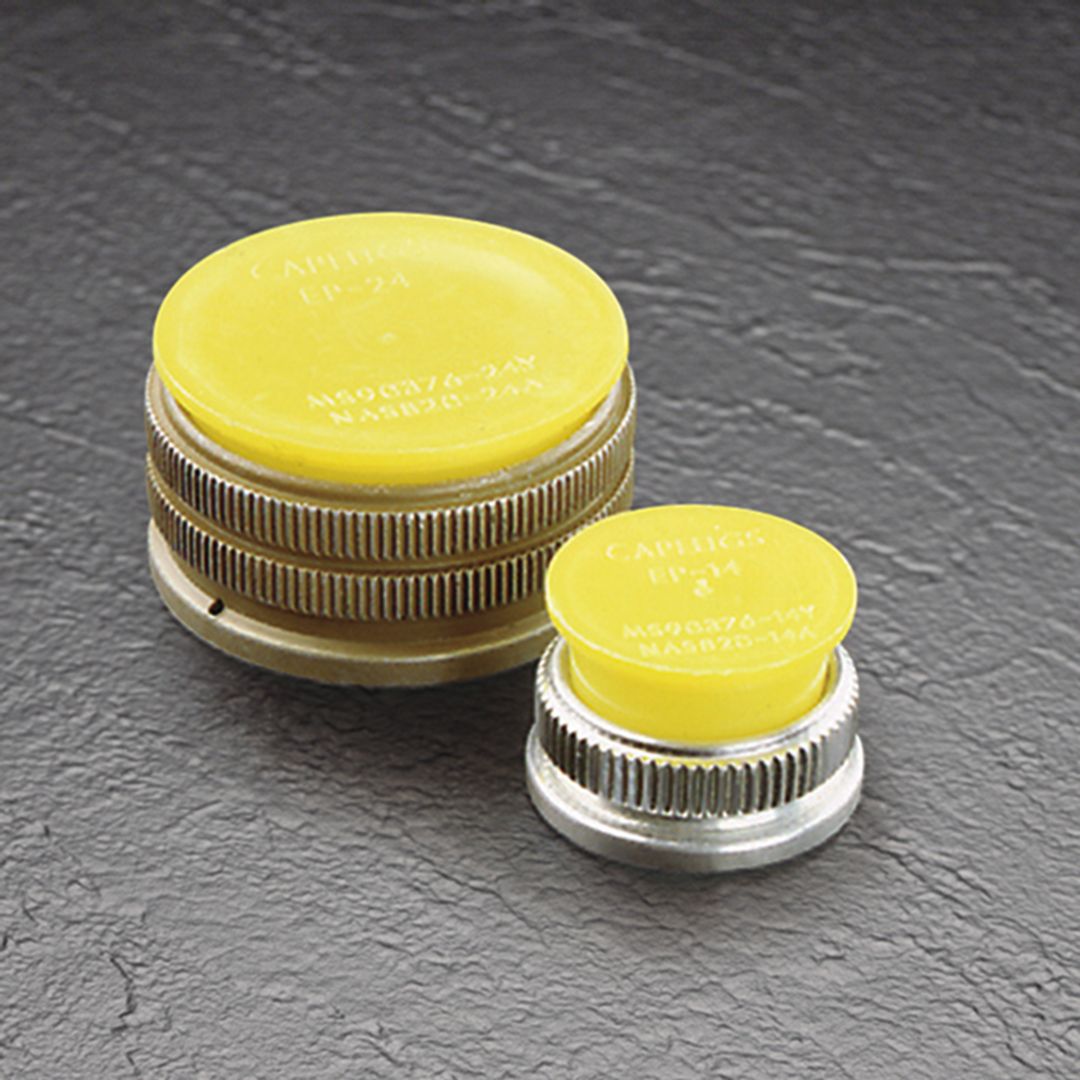

The EP Series plugs for threaded connectors are designed for effortless application and removal, even in hard-to-reach areas.

  • Shields connections from dust and physical impact
  • Fits both threaded and smooth cylindrical surfaces for versatile use

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Yellow
Applicable Specs

NAS 837

Part Sizes

Item Number

To Plug Nominal Thread Size

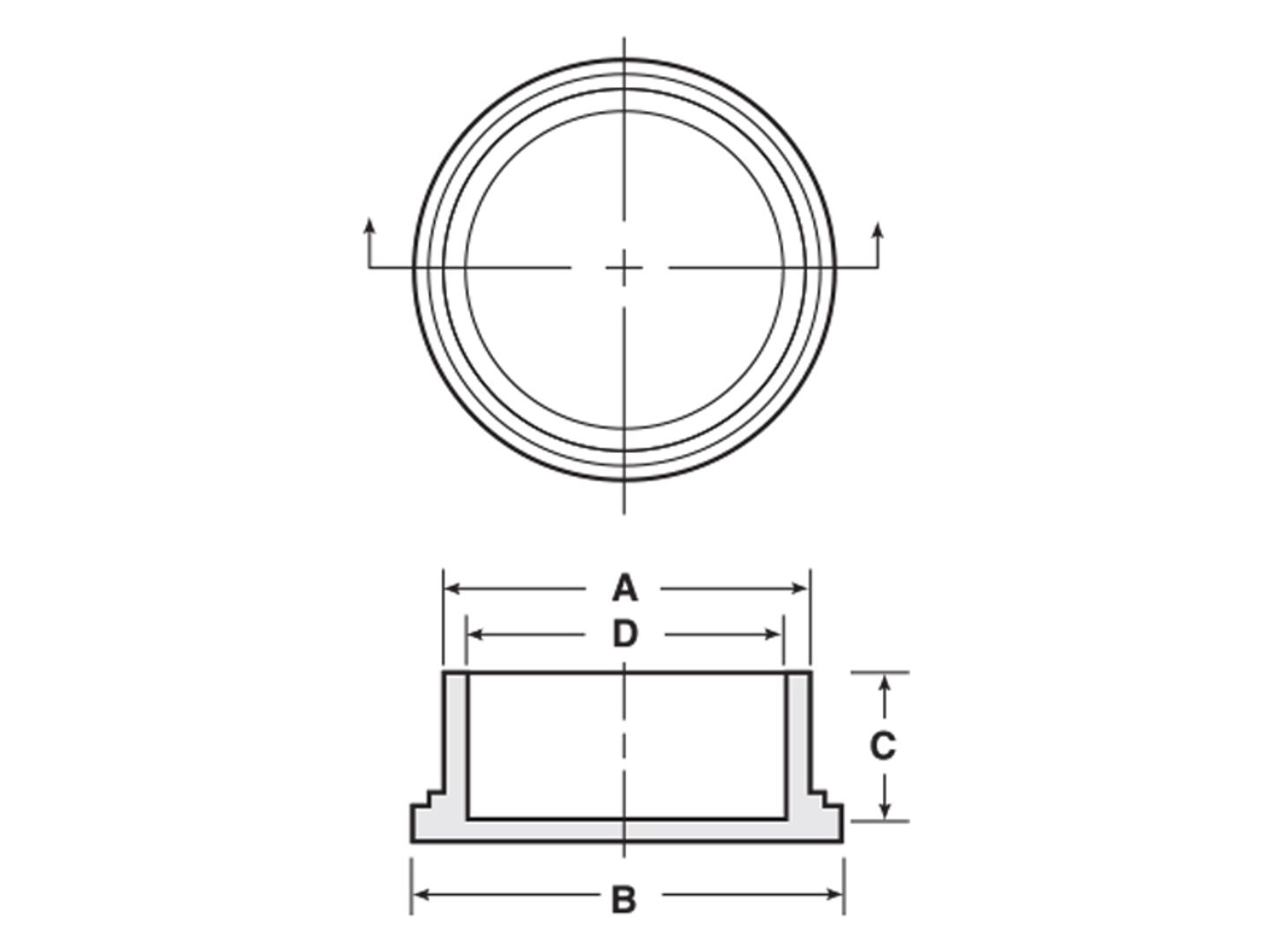

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

EP-48
3 – 16
2.95
3.12
0.63
2.88
EP-8
1/2 – 28
0.483
0.67
0.63
0.41
EP-10
5/8 – 24
0.595
0.75
0.63
0.53
EP-12
3/4 – 20
0.715
0.86
0.63
0.66
EP-14
7/8 – 20
0.845
1.03
0.63
0.79
EP-16
1 – 20
0.963
1.12
0.63
0.89
EP-18
1-1/8 – 18
1.088
1.25
0.63
1.03
EP-20
1-1/4 – 18
1.215
1.4
0.63
1.15
EP-22
1-3/8 – 18
1.34
1.5
0.63
1.27
EP-24
1-1/2 – 18
1.46
1.64
0.63
1.39
EP-25
1-5/8 – 16
1.58
1.81
0.63
1.54
EP-28
1-3/4 – 18
1.718
1.87
0.63
1.64
EP-32
2 – 18
1.97
2.13
0.63
1.89
EP-36
2-1/4 – 16
2.21
2.34
0.63
2.14
EP-40
2-1/2 – 16
2.45
2.6
0.63
2.38
EP-44
2-3/4 – 16
2.7
2.88
0.63
2.63
