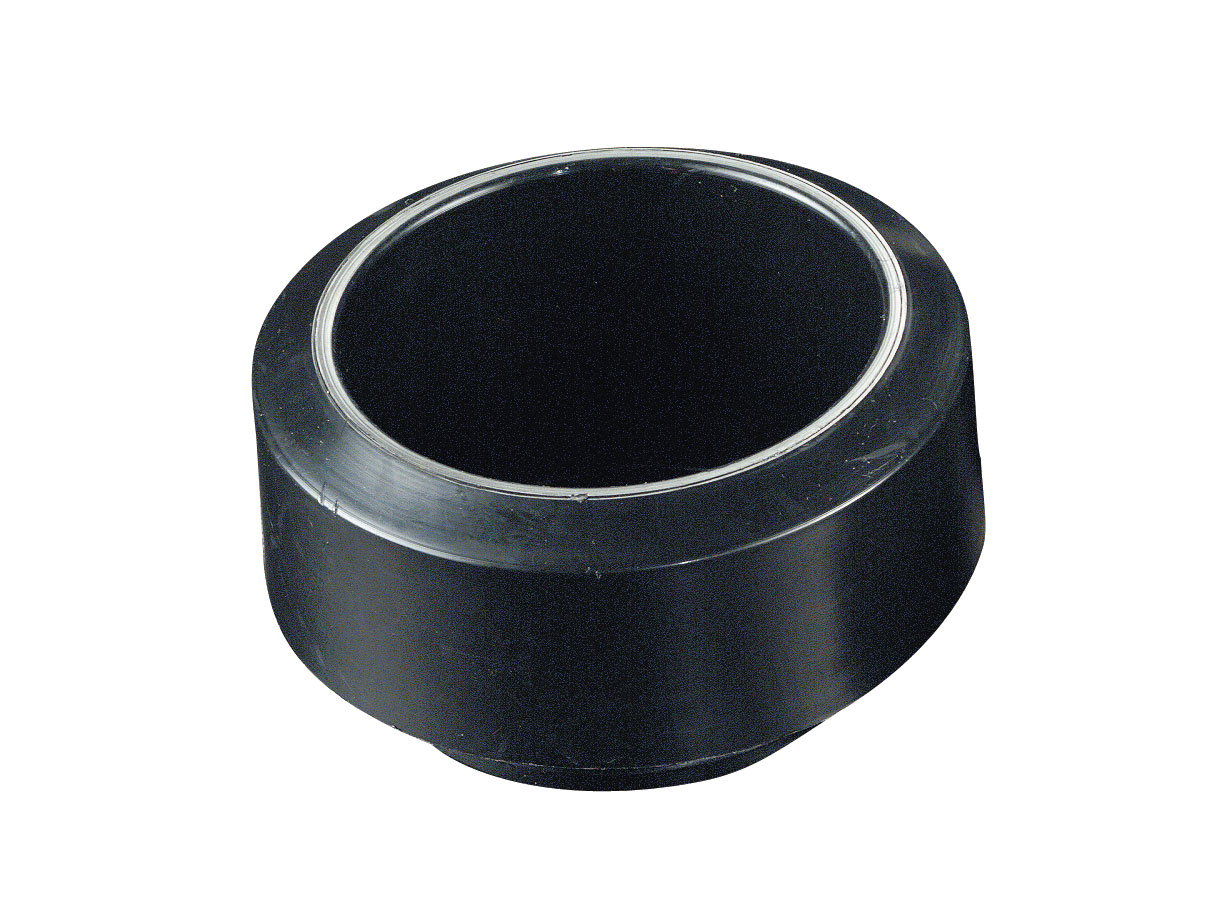

EPN-240 Series

EPN-240 Series closed-end pipe caps are recessed to accommodate crane hooks, helping make pipe mobility, loading and unloading easier. The closed-end design seals the pipe, while the recessed profile supports handling where crane hook access is required.

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Linear low-density polyethylene
Service Temperature

-70 – 90° C
Standard Colour

Black

Part Sizes

Item Number

Nominal Pipe Size (In)

Max. Wall Thickness (In)

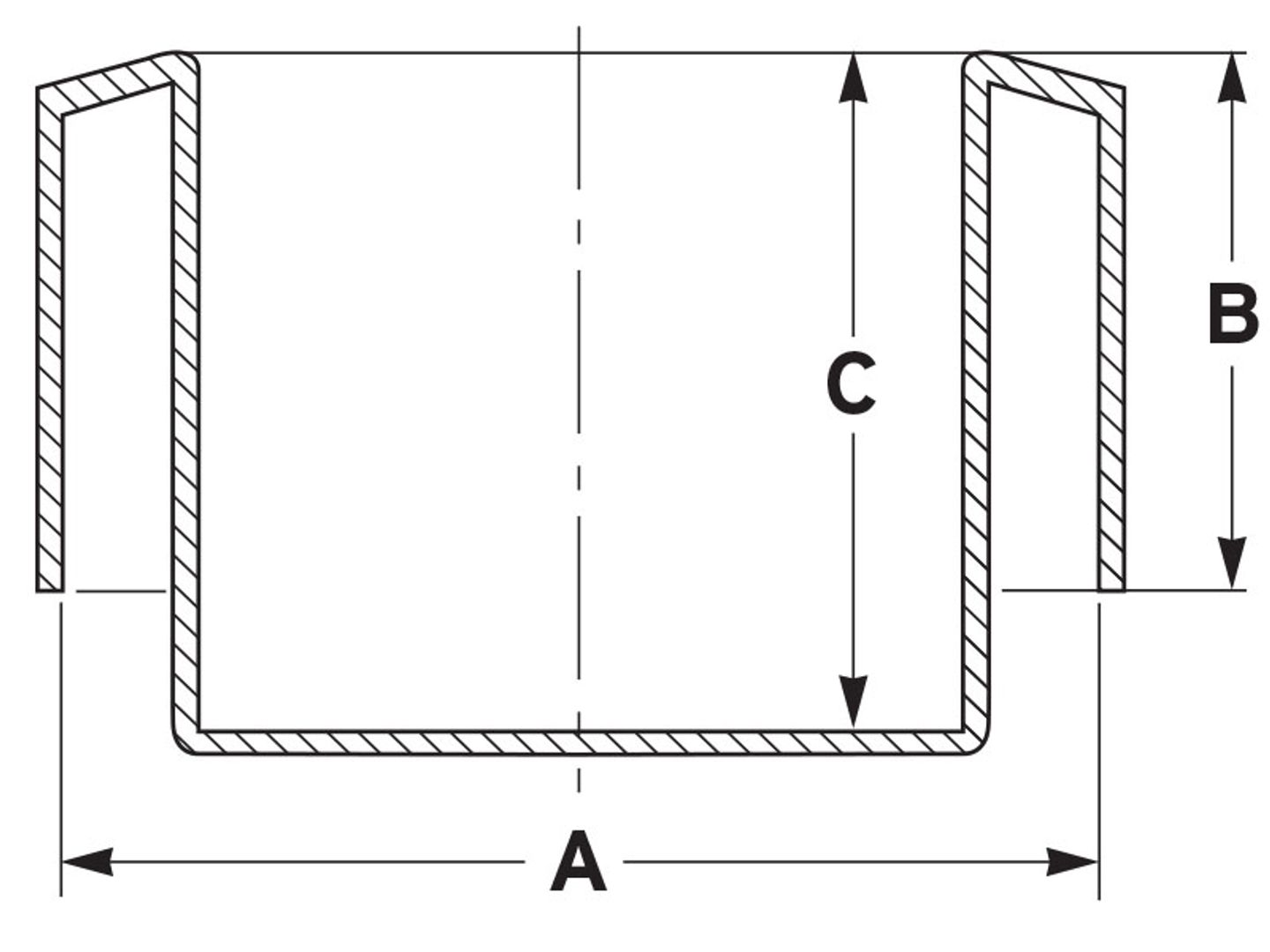

Dim A (In)

Dim B (In)

Dim C (In)

EPN-240-4
4
0.551
4.5
3.54
2.36
EPN-240-6
6
0.63
6.625
3.54
2.56
EPN-240-8
8
0.551
8.625
3.54
2.36
EPN-240-10
10
0.591
10.75
3.54
3.62
EPN-240-10A
10
0.906
10.75
3.54
3.62
EPN-240-12
12
0.591
12.75
3.54
3.62
EPN-240-14
14
0.591
14
3.54
3.62
EPN-240-16
16
0.63
16
3.54
3.62
EPN-240-18
18
0.63
18
3.62
3.74
EPN-240-20
20
0.63
20
3.62
3.74
EPN-240-24
24
0.866
24
4.49
4.61
EPN-240-28
28
0.866
28
4.72
5.12
EPN-240-30
30
0.866
30
4.72
5.12
EPN-240-32
32
0.906
32
4.72
5.12
EPN-240-36
36
0.906
36
4.72
5.12
EPN-240-40
40
1.063
40
4.72
5.12
