FBH Series

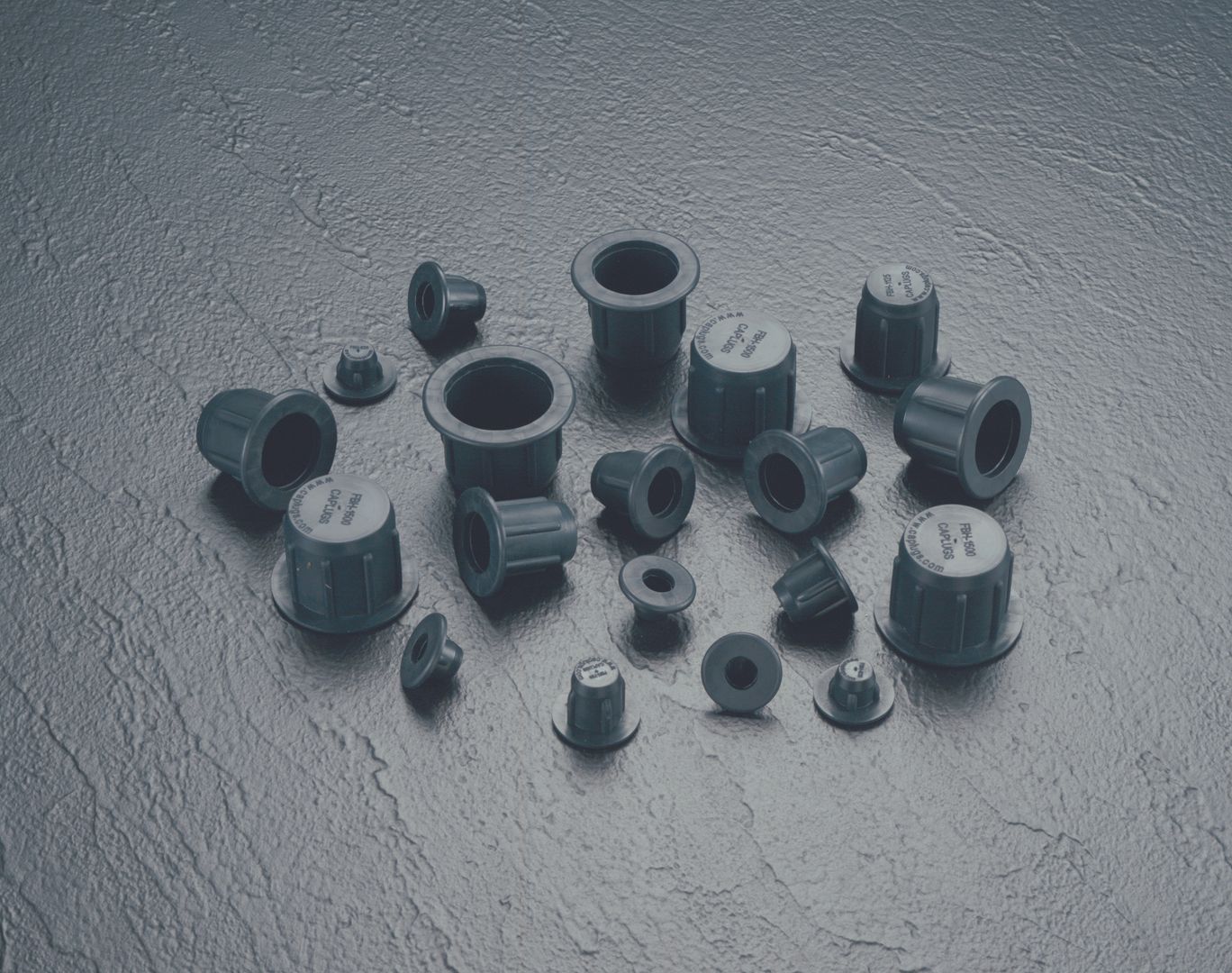

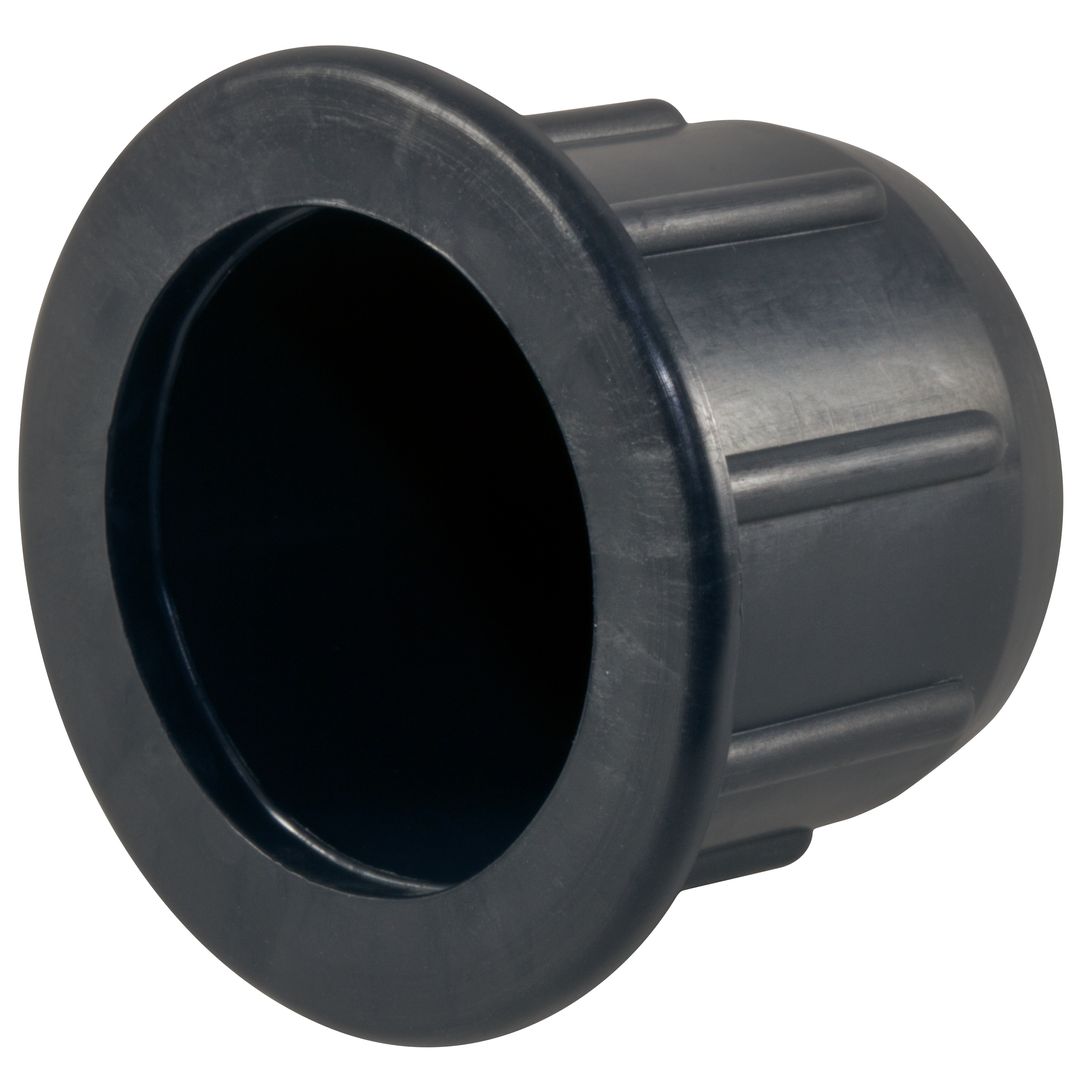

FBH Series plugs securely fasten FAN Series covers to a flange. Outer ribs accommodate varying hole diameter tolerances, while the thick flange allows for easy removal.

  • FAN selector guide for size reference
  • Durable HDPE material
  • Covers a wide range of bolt hole sizes

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

High-density polyethylene
Service Temperature

-18 – 102° C
Standard Colour

Black

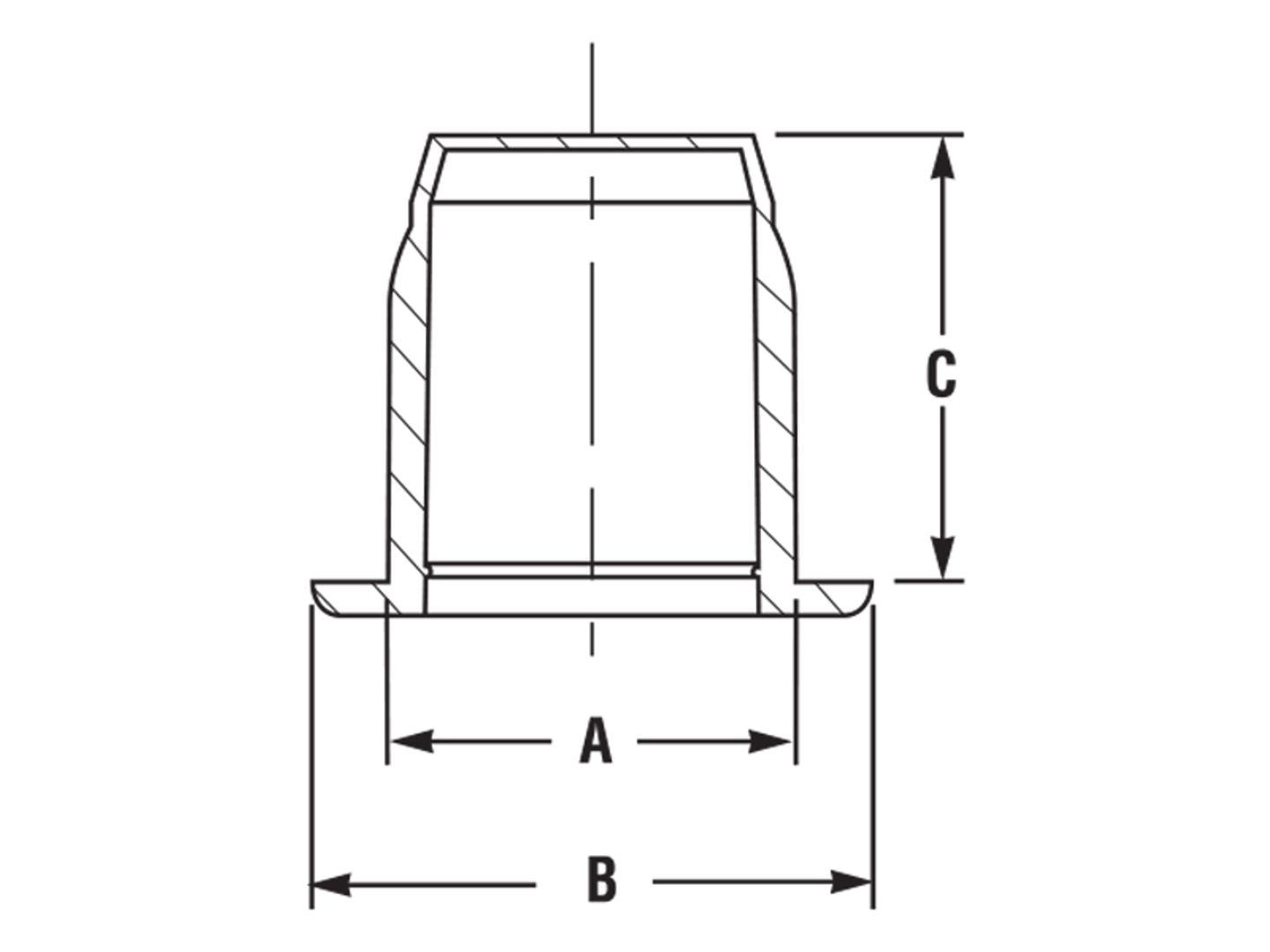

Part Sizes

Item Number

Bolt Hole Size

Dim A (In)

Dim B (In)

Dim C (In)

FBH-625
5/8
0.635
1.03
0.44
FBH-750
3/4
0.761
1.12
0.75
FBH-875
7/8
0.888
1.28
0.94
FBH-1000
1
1.02
1.43
1.19
FBH-1125
1-1/8
1.142
1.56
1.25
FBH-1250
1-1/4
1.269
1.68
1.25
FBH-1375
1-3/8
1.396
1.78
1.25
FBH-1500
1-1/2
1.53
1.93
1.25
FBH-1625
1-5/8
1.65
2.03
1.25
FBH-1750
1-3/4
1.775
2.18
1.25
FBH-1875
1-7/8
1.902
2.31
1.25
FBH-2000
2
2.04
2.43
1.25
FBH-2125
2-1/8
2.156
2.56
1.62
FBH-2375
2-3/8
2.41
2.81
1.62
FBH-2625
2-5/8
2.664
3.09
1.62
FBH-2875
2-7/8
2.918
3.31
1.62
