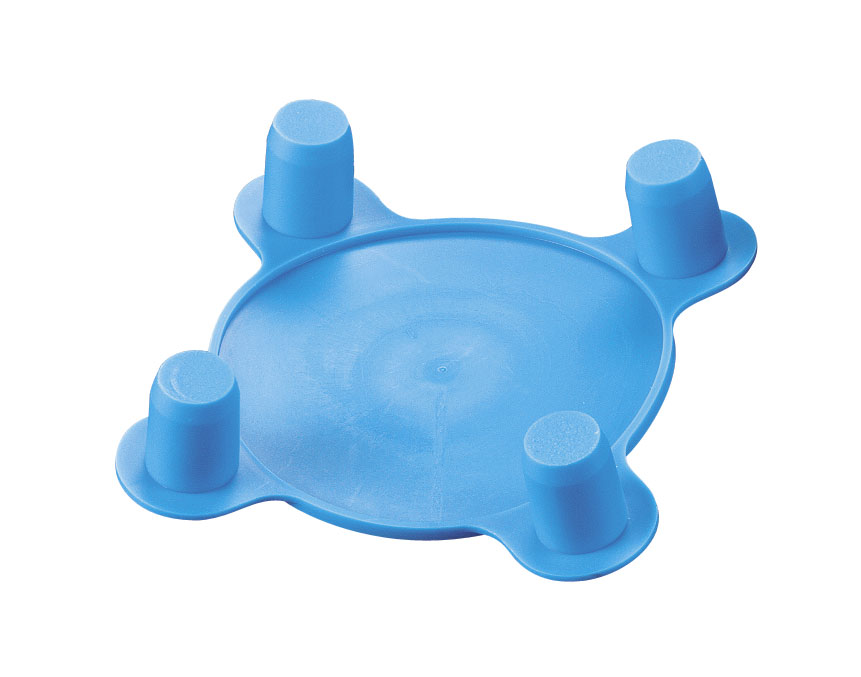

FC Series
FC Series flange protectors feature integrated plugs that snap into flange bolt holes with minimal pressure, eliminating the need for additional fastening devices.
- Resistant to petroleum residue
- Locks into four bolt holes
- Protects the raised face

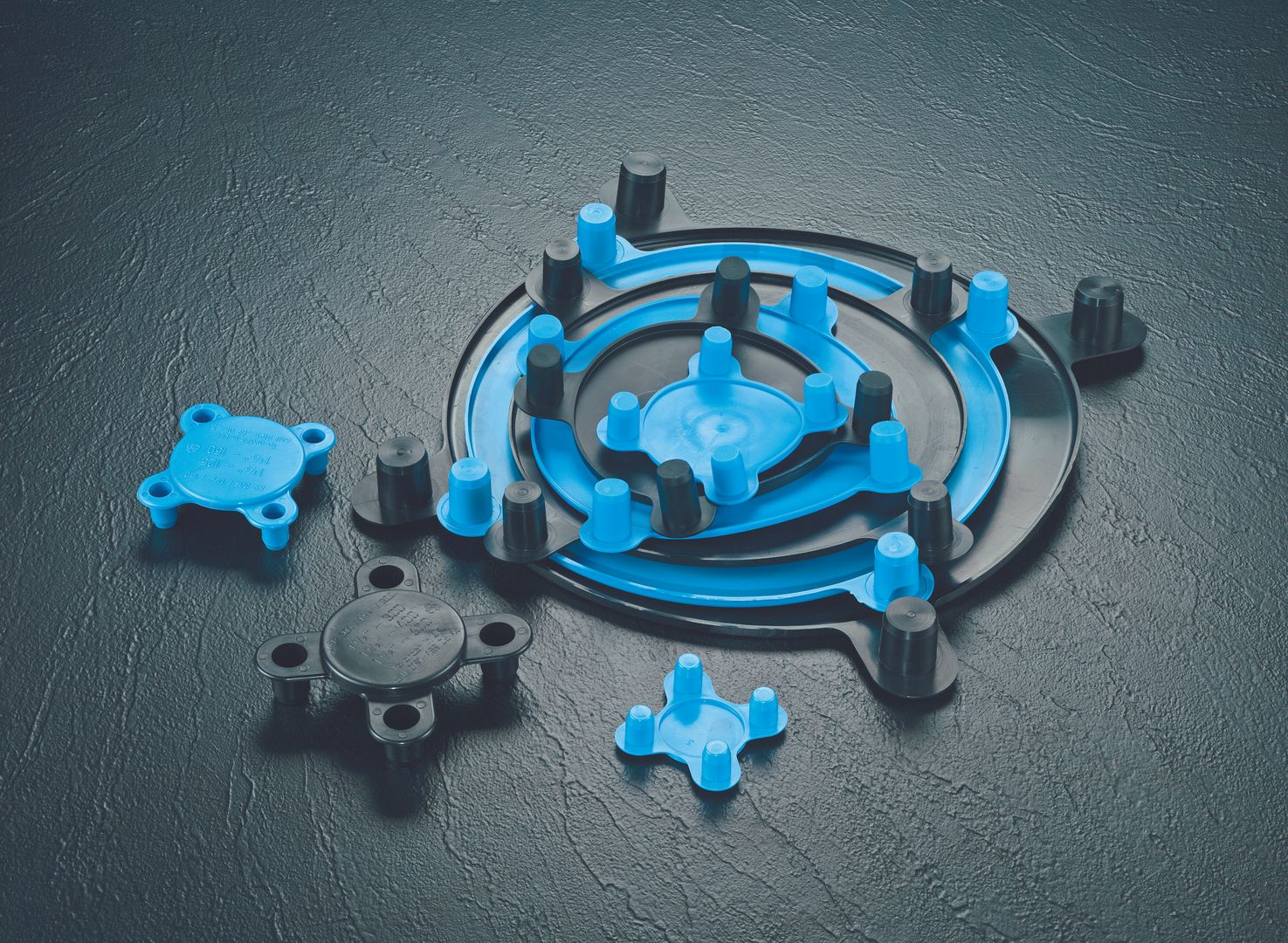

- Color-coded by pressure class
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-density polyethylene |
|---|---|
| Service Temperature | -70 – 66° C |

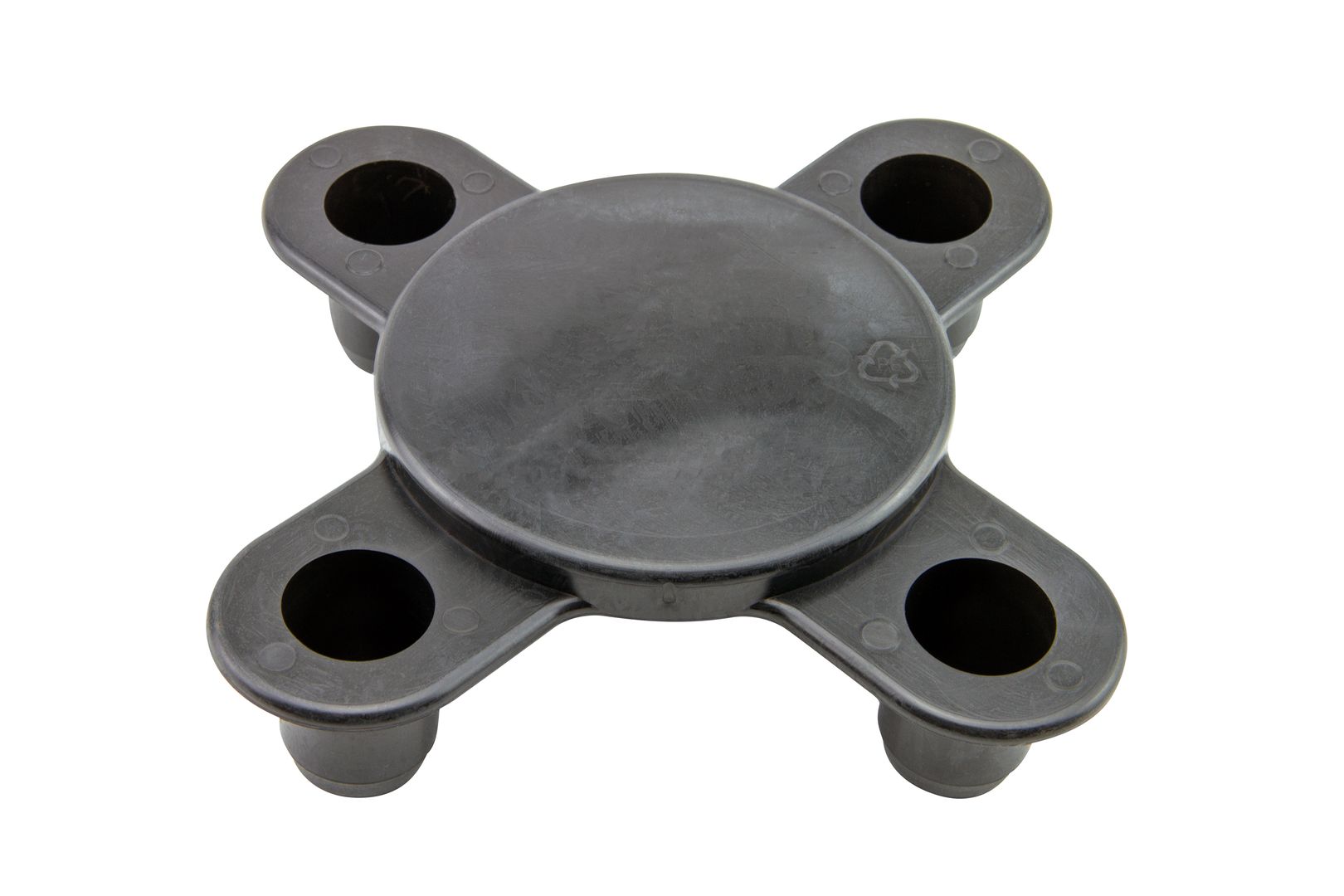

| Standard Colour | 150 lb. Series – Blue; 300 lb. Series – Black |
Part Sizes
Item Number | Pipe Size | Pressure Class |
FC-150-0500 | 1/2 | 125 / 150 |
FC-150-0750 | 3/4 | 125 / 150 |
FC-150-1 | 1 | 125 / 150 |
FC-150-1500 | 1-1/2 | 125 / 150 |
FC-150-2 | 2 | 125 / 150 |
FC-150-3 | 3 | 125 / 150 |
FC-150-4 | 4 | 125 / 150 |
FC-150-6 | 6 | 125 / 150 |
FC-150-8 | 8 | 125 / 150 |
FC-150-10 | 10 | 125 / 150 |
FC-150-12 | 12 | 125 / 150 |
FC-300-0500 | 1/2 | 300 / 400 / 600 |
FC-300-0750 | 3/4 | 300 / 400 / 600 |
FC-300-1 | 1 | 300 / 400 / 600 |
FC-300-1500 | 1-1/2 | 300 / 400 / 600 |
FC-300-2 | 2 | 300 / 400 / 600 |
FC-300-3 | 3 | 300 / 400 / 600 |
FC-300-4 | 4 | 300 |
FC-300-6 | 6 | 300 |
FC-300-8 | 8 | 300 |
FC-300-10 | 10 | 300 |
FC-300-12 | 12 | 300 |
