FCO Series

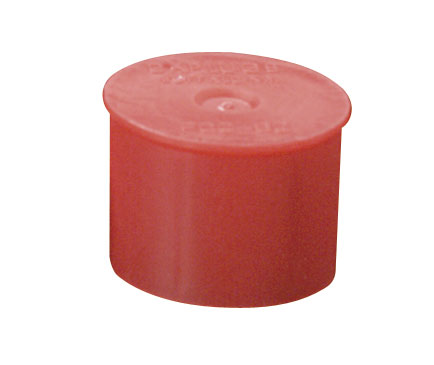

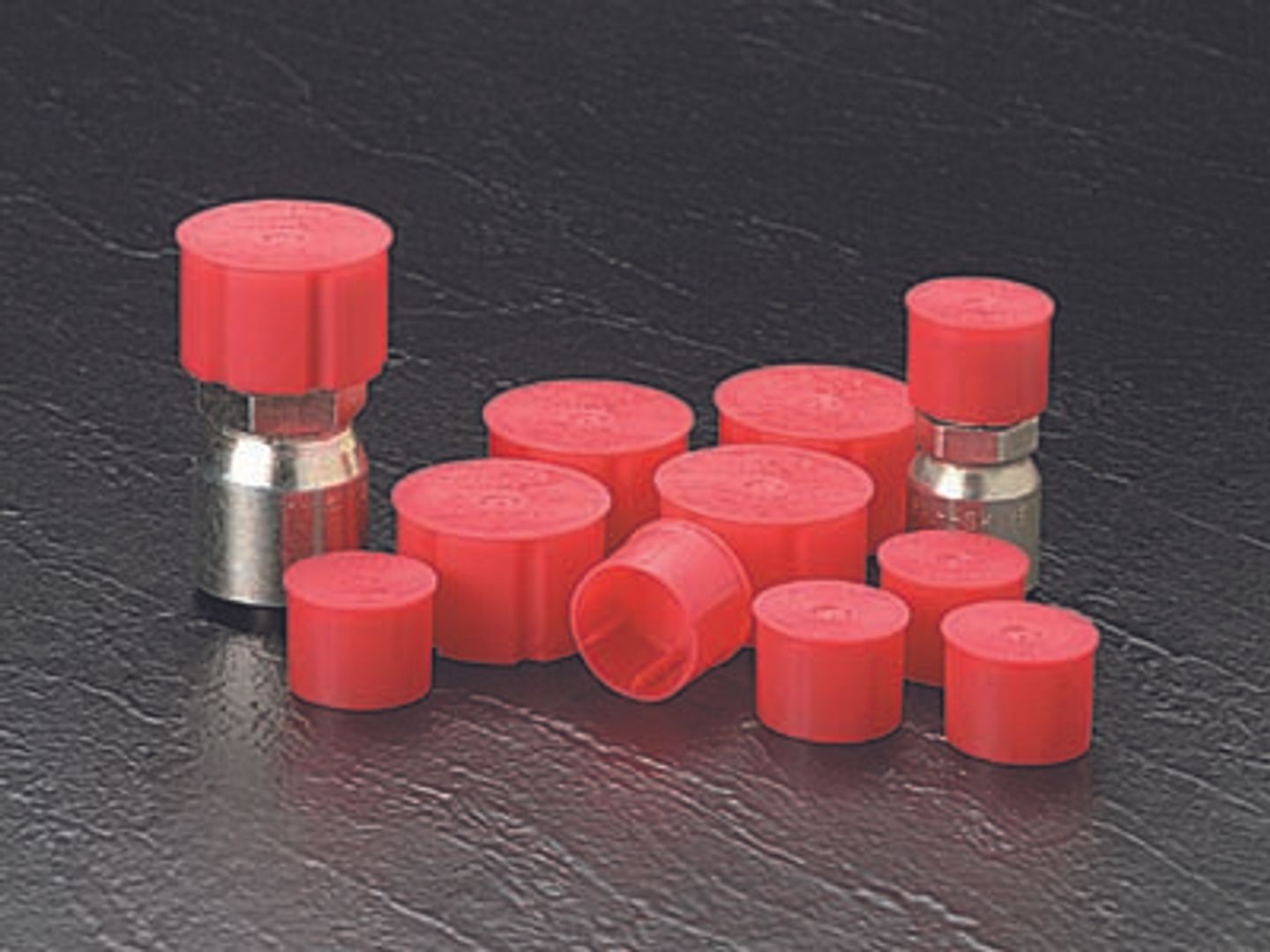

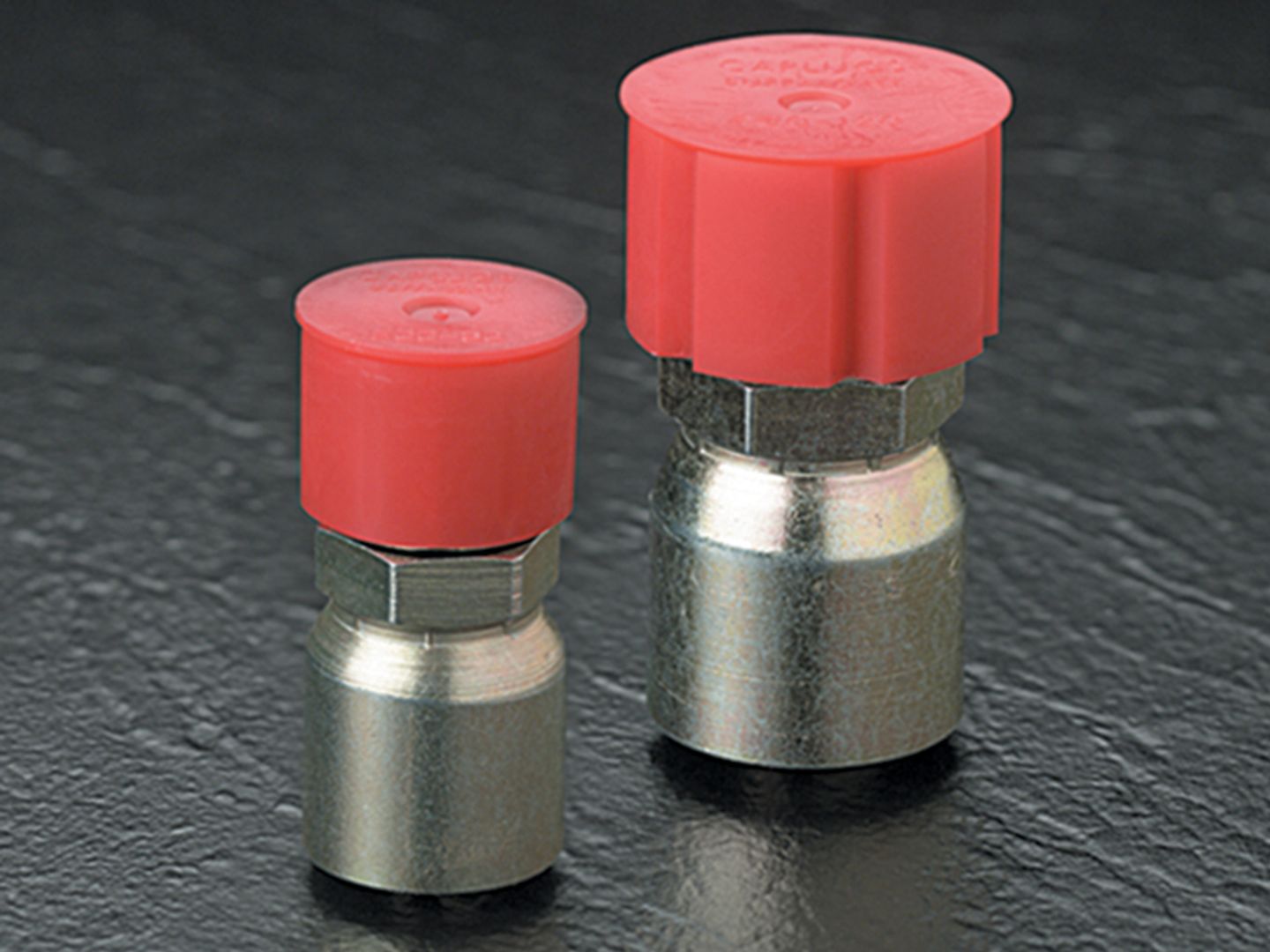

FCO Series flat-faced O-ring caps are designed to protect the outside of hex nuts. Featuring a chamfered flange for easy hand removal, these caps fit securely to help minimise the risk of falling off during transit. FCO Series caps are ideal for fluid power valves, hose fittings and pipe fittings.

  • Flanged for easy installation and removal
  • Internal ribs securely hold caps in place

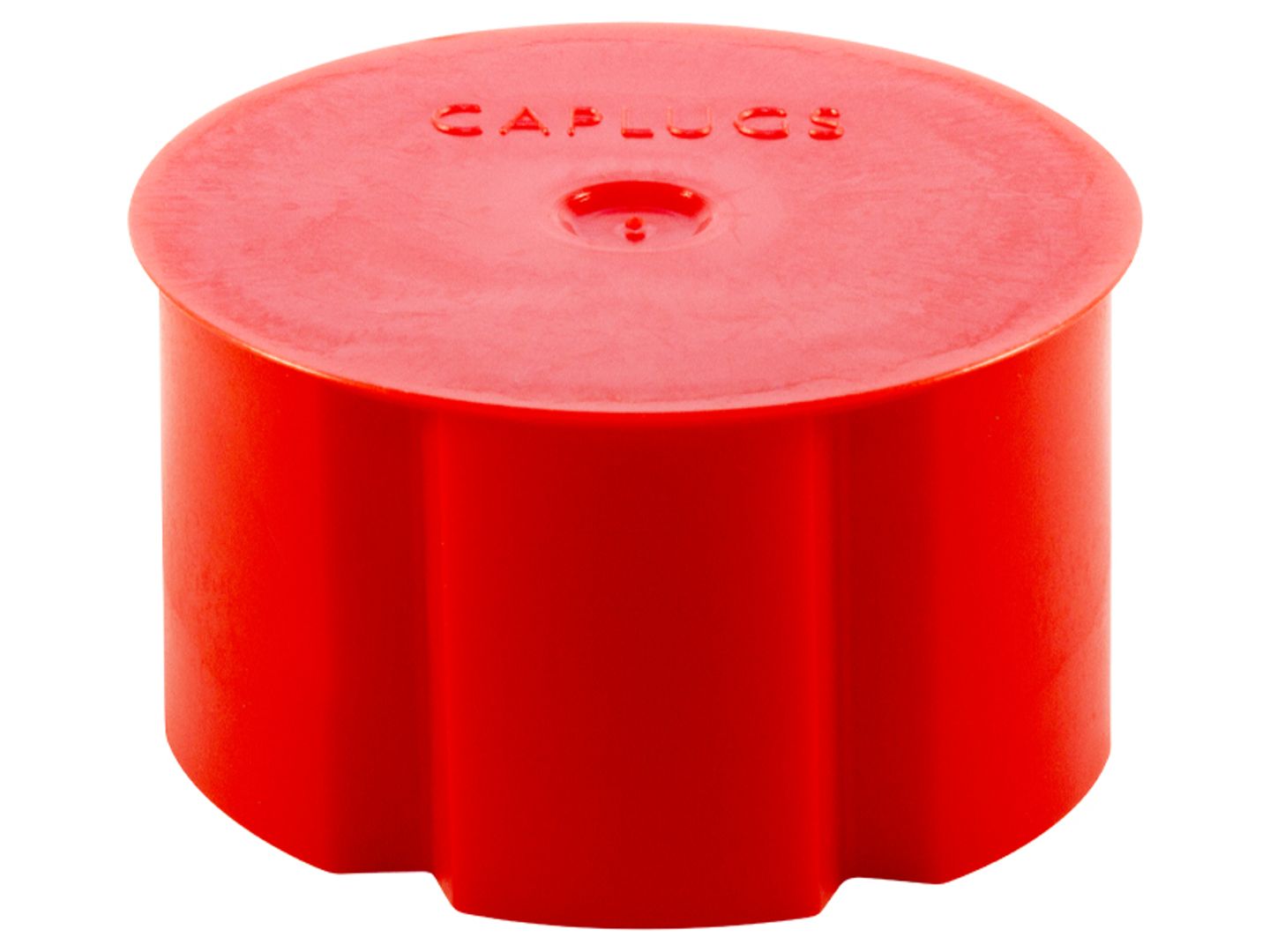

  • Due to their larger size, FCO-120 through to FCO-200 have external ribs

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-Density Polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Red

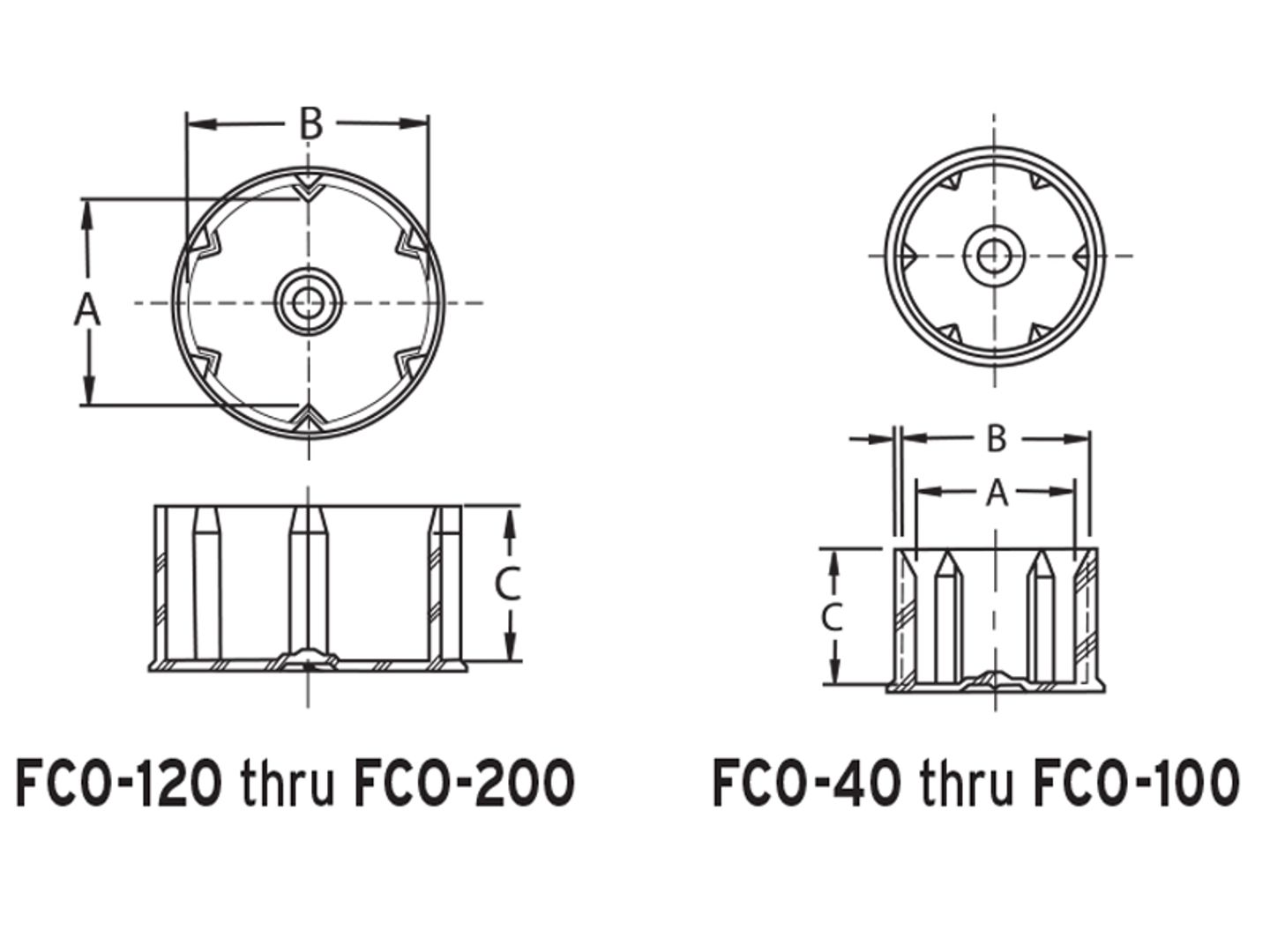

Part Sizes

Item Number

To Cap Thread Size

To Fit Hex Size

Dim A (In)

Dim B (In)

Dim C (In)

FCO-40
9/16 – 18
11/16
0.671
0.786
0.59
FCO-60
11/16 – 16
13/16
0.792
0.928
0.68
FCO-80
13/16 – 16
15/16
0.916
1.074
0.84
FCO-100
1 – 14
1-1/8
1.098
1.287
0.94
FCO-120
1-3/16 – 12
1-3/8
1.355
1.576
1.03
FCO-160
1-7/16 – 12
1-5/8
1.586
1.859
1.11
FCO-200
1-11/16 – 12
1-7/8
1.832
2.148
1.11
