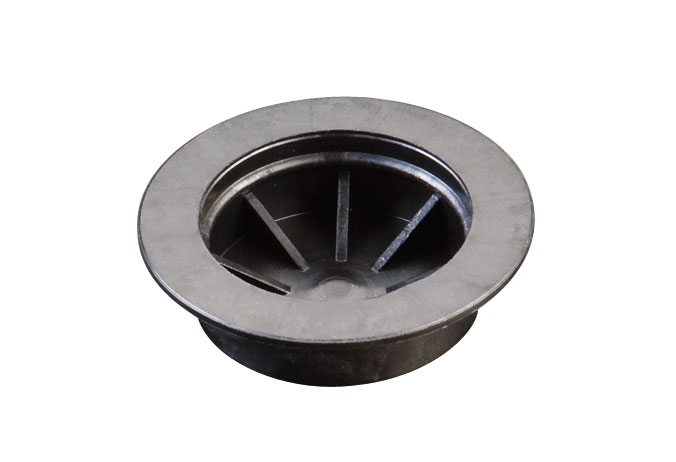

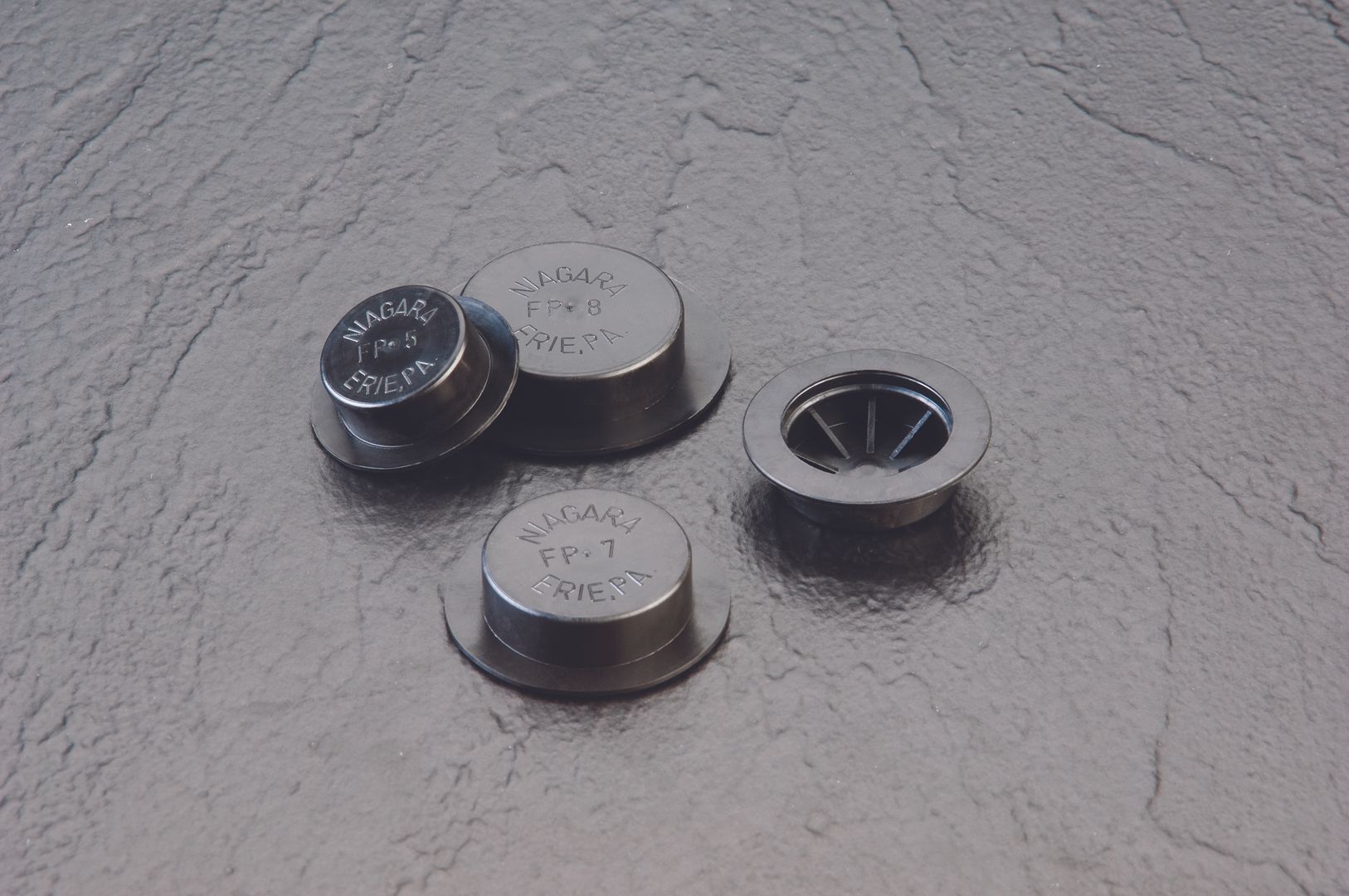

FPN Series
FPN Series plugs are designed to protect sucker-rod threaded couplings from dirt, debris and thread damage.
- Prevents dirt and debris from entering the coupling
- Helps protect threads from damage caused by foreign objects
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-density polyethylene |
|---|---|
| Service Temperature | -70 – 79° C |
| Standard Colour | Black |
Part Sizes

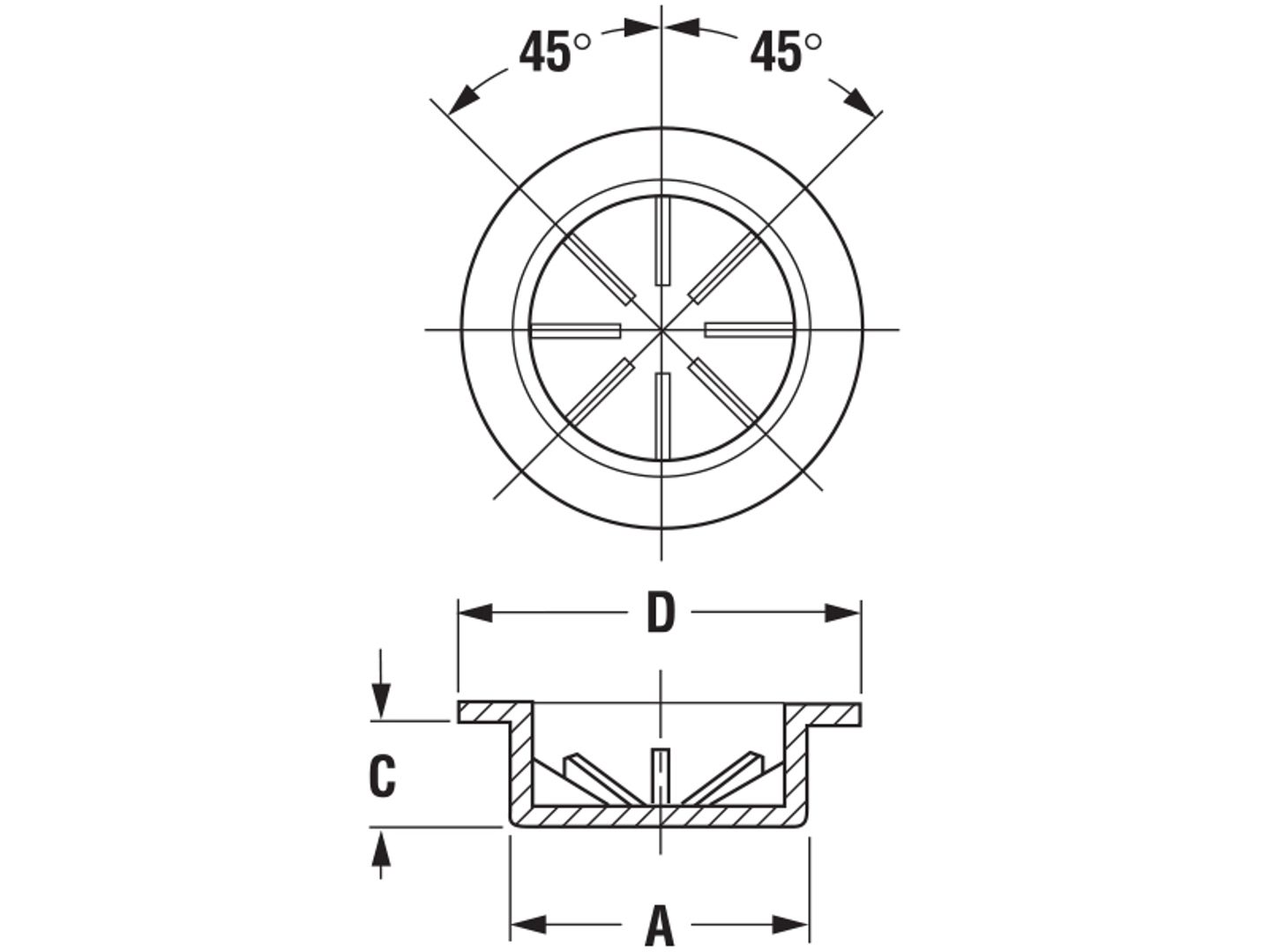

Item Number | To Plug Rod Size (In) | Dim A (In) | Dim C (In) | Dim D (In) |
FPN-5 | 5/8 | 0.975 | 0.38 | 1.38 |
FPN-6 | 3/4 | 1.1 | 0.38 | 1.5 |
FPN-7 | 7/8 | 1.225 | 0.38 | 1.69 |
FPN-8 | 1 | 1.415 | 0.38 | 2 |
