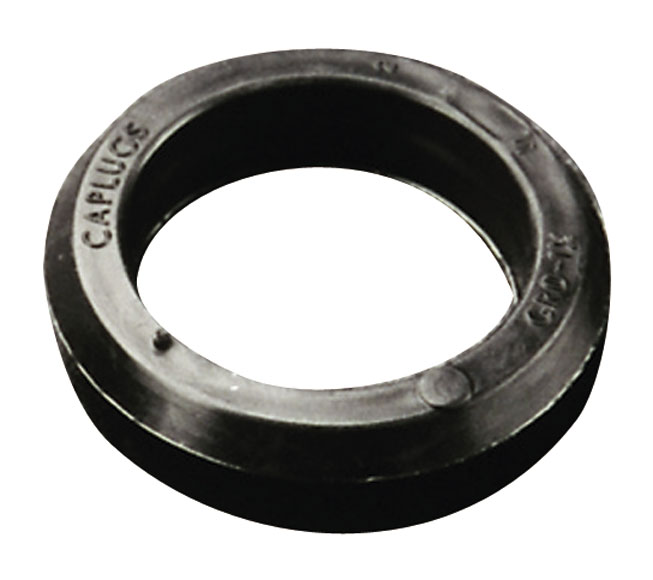

GRO Series

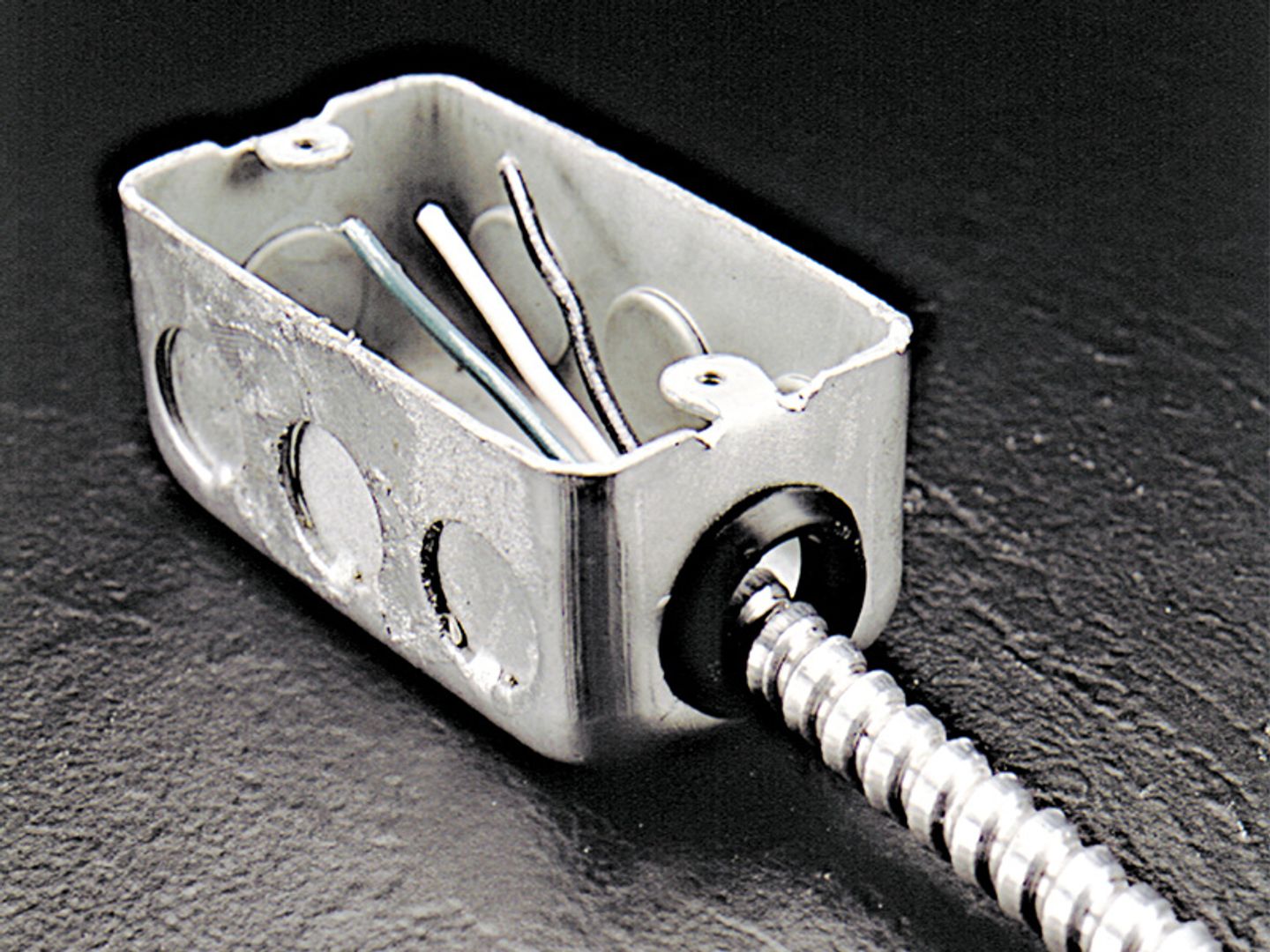

GRO Series grommets provide mechanical protection for hoses, tubing, shafts, rods and cables as they pass through holes in sheet metal.

  • Snaps easily into place
  • Moulded-in bead holds the grommet securely until deliberate removal
  • UL approved for applications up to 105°C

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

FlexTemp (thermoplastic rubber)
Standard Colour

Black

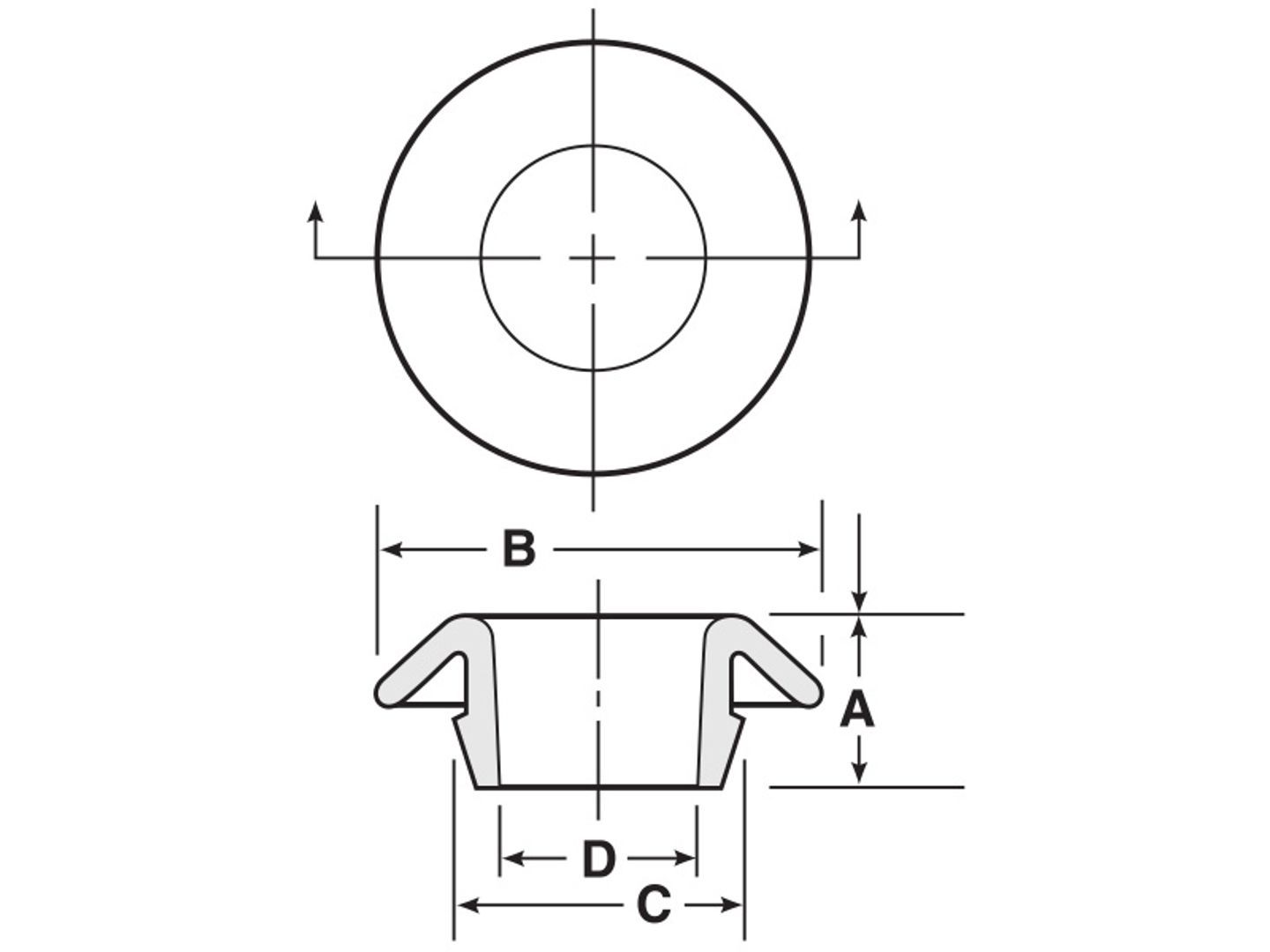

Part Sizes

Item Number

Hole Size (In)

Metal Thickness (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

GRO-1/2-UL
0.5
.03 - .08
0.28
0.81
0.54
0.41
GRO-5/8-UL
0.62
.03 - .08
0.31
0.93
0.66
0.52
GRO-3/4-UL
0.75
.03 - .08
0.35
1.06
0.79
0.65
GRO-7/8-UL
0.87
.03 - .08
0.35
1.19
0.91
0.77
GRO-1-UL
1
.03 - .08
0.35
1.32
1.04
0.89
GRO-1 1/4-UL
1.25
.03 - .08
0.35
1.6
1.29
1.12
