HB Series
Hose-Bend Restrictors
The HB Series hose-bend restrictors minimise bending stress at the hose-coupling junction.
- Provides extra protection to prevent hose damage and extend its life cycle
- Upper lip attaches securely to the coupling, holding the restrictor in place without the need for expensive adhesives or clamps
- Tapered for easy installation
- Compatible with various hydraulic and pressure wash hoses
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -26 – 350° F (-32 – 176° C) |
| Standard Colour | Black |

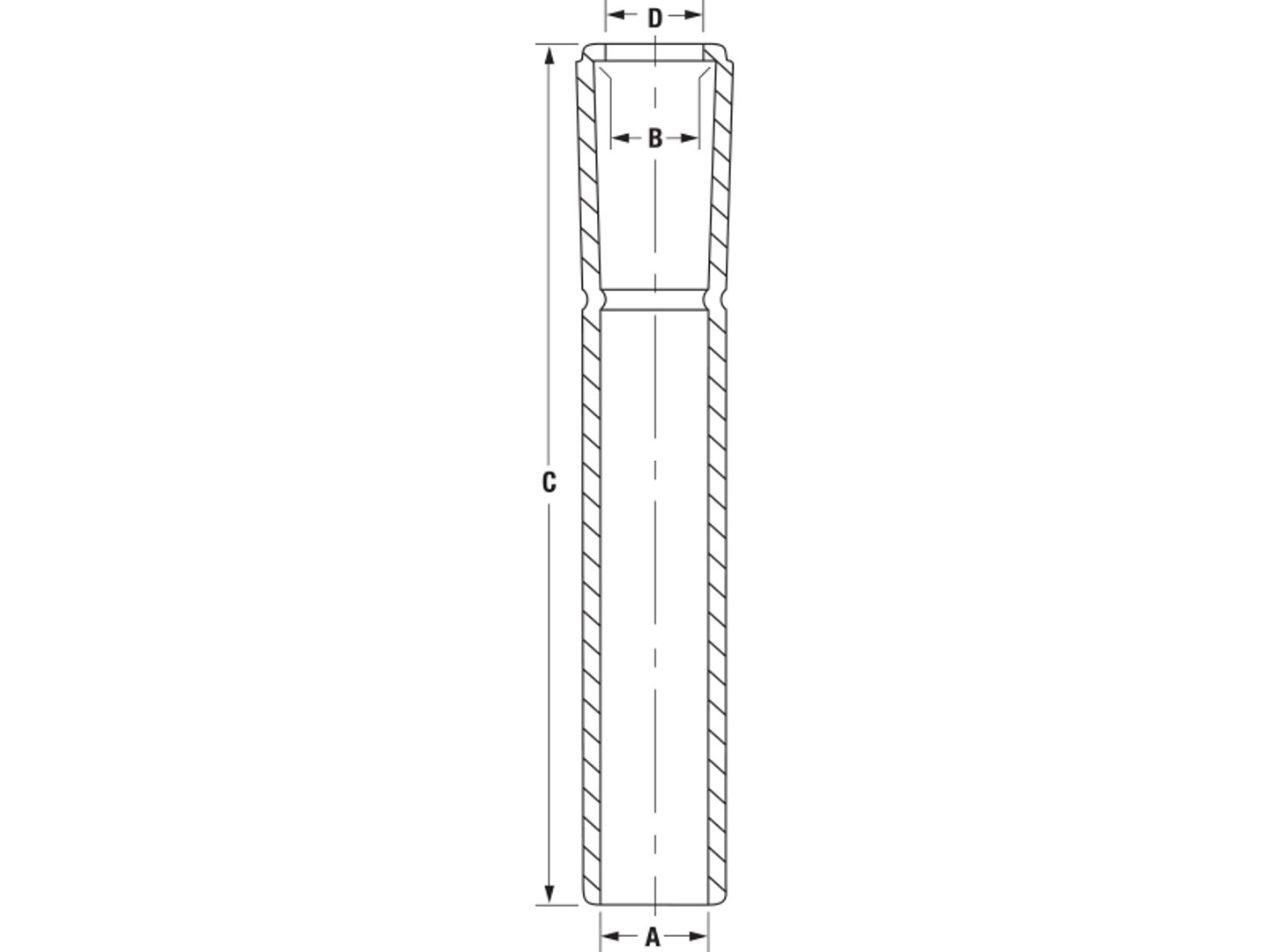

Part Sizes
| Item Number | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) |
|---|---|---|---|---|---|---|---|---|
| HB-20 | 0.616 | 0.699 | 5.29 | 0.625 | 15.65 | 17.75 | 134.37 | 15.88 |
| HB-40 | 0.668 | 0.758 | 5.74 | 0.678 | 16.97 | 19.25 | 145.80 | 17.22 |
| HB-60 | 0.750 | 0.852 | 6.67 | 0.761 | 19.05 | 21.64 | 169.42 | 19.33 |
| HB-80 | 0.815 | 0.926 | 6.98 | 0.827 | 20.70 | 23.52 | 177.29 | 21.01 |
| HB-100 | 0.871 | 0.995 | 7.76 | 0.885 | 22.12 | 25.27 | 197.10 | 22.48 |
