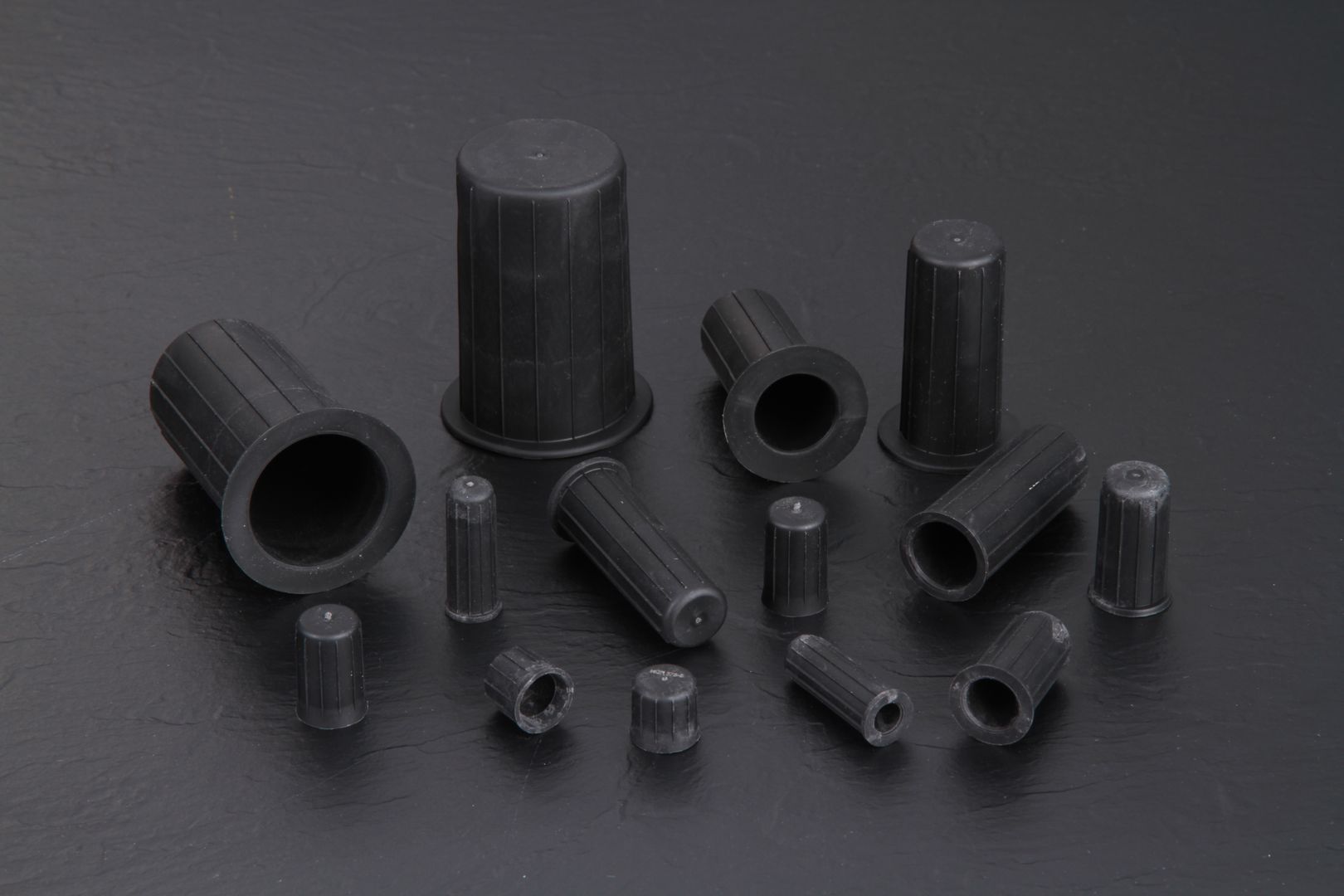

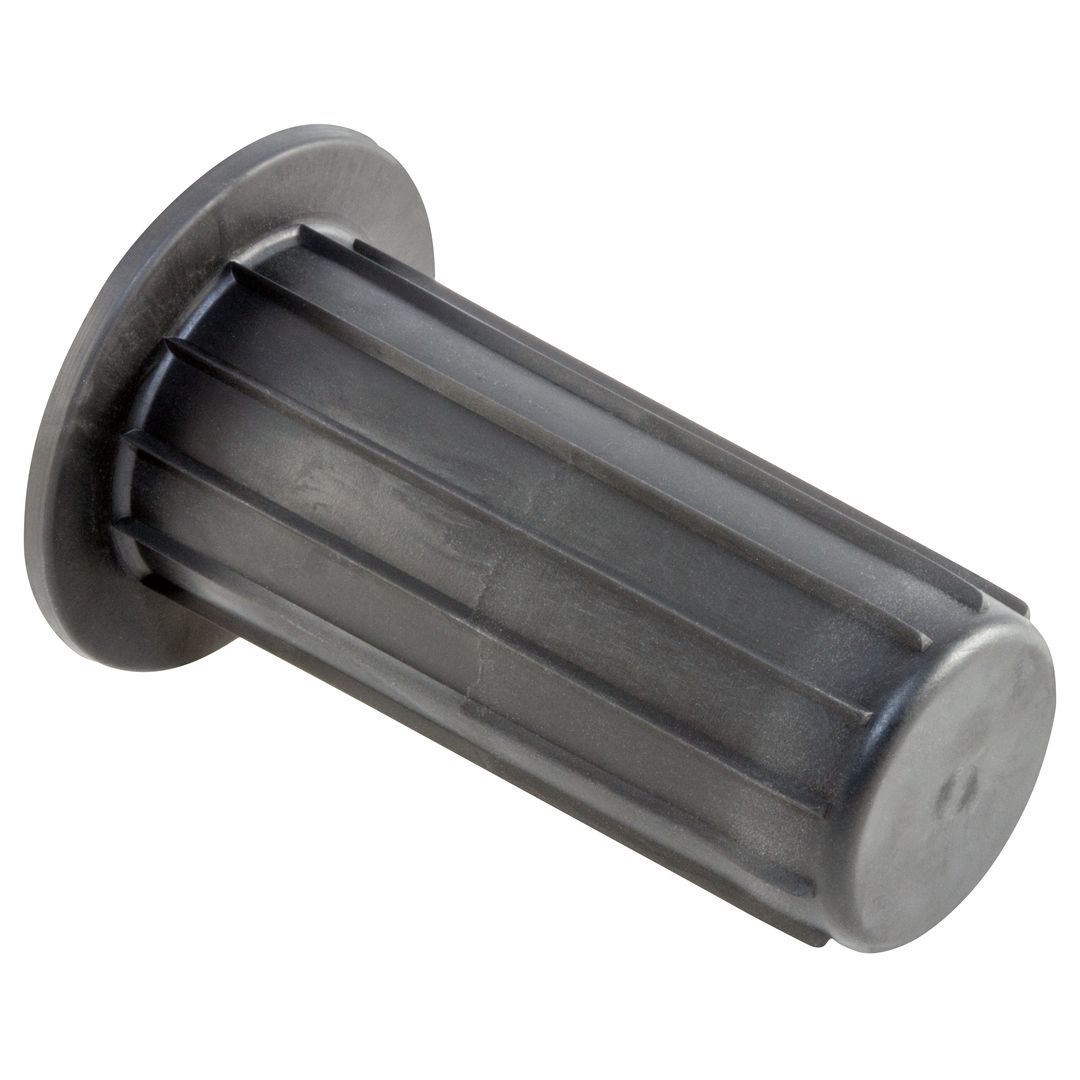

HCR Series

HCR Series caps are designed to mask and protect copper tubing during high-temperature masking processes.

  • Temperature-resistant protection up to and beyond 260°C
  • Withstands up to 260°C for intermittent use, 5 minutes or less
  • Withstands up to 150°C for continuous use, 10 minutes or less
  • Recommended for single use only
  • Exterior ribs aid installation and removal

For more information or to order this part, contact us at +61 7 3277 2300

Note: Micropack sizes have a minimum 3-day lead time.

Note: These parts should not be reused in high-temperature applications - single-use only.

Additional information

Material

Flex500™
Standard Colour

Black

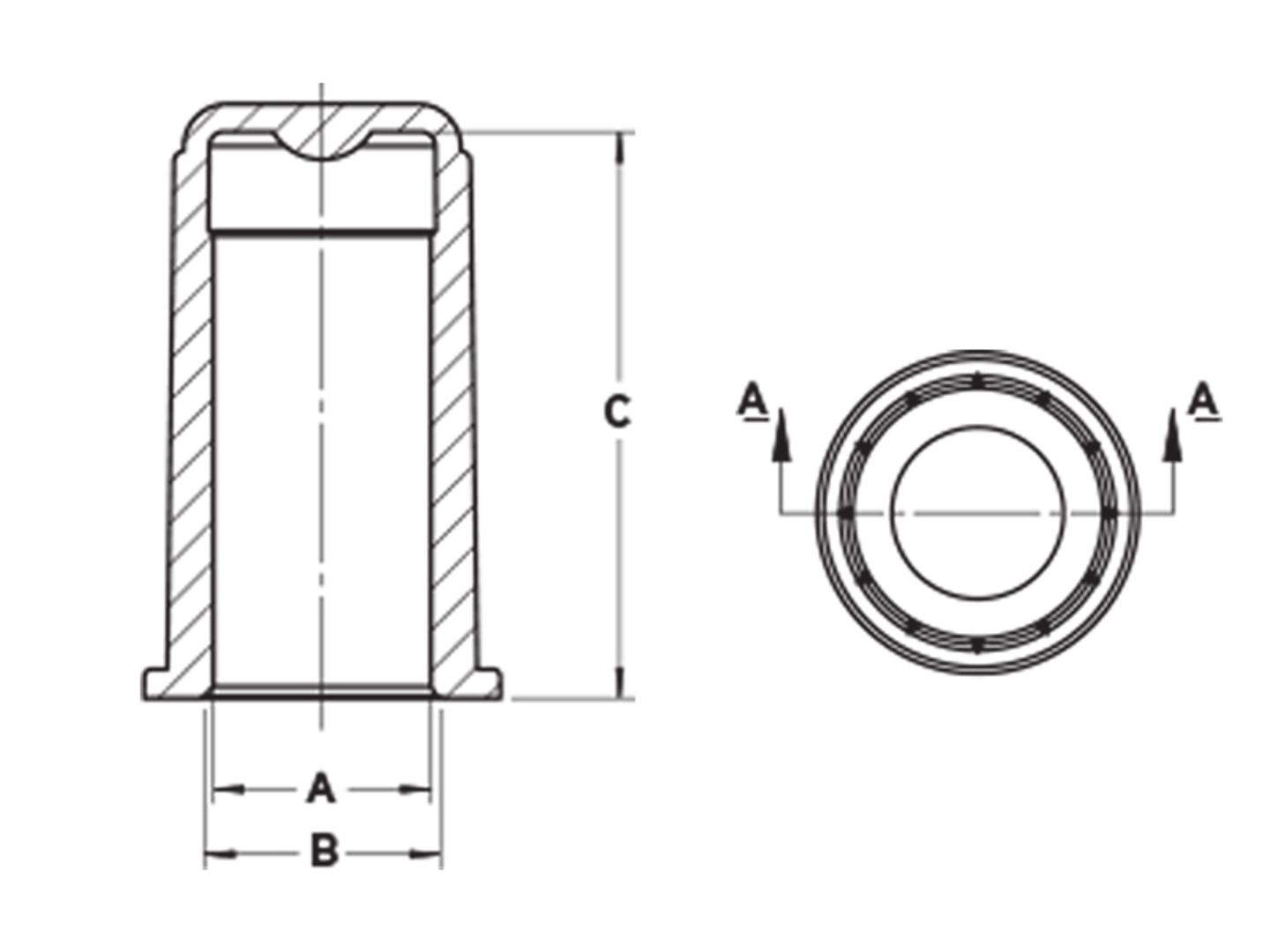

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

HCR-320-20
0.277
0.32
1.28
HCR-375-8
0.404
0.52
0.5
HCR-375-14
0.404
0.52
0.86
HCR-450-32
0.412
0.45
2.03
HCR-510-18
0.47
0.51
1.23
HCR-580-32
0.54
0.58
2.06
HCR-700-32
0.66
0.7
2.13
HCR-820-32
0.78
0.82
2.13
HCR-1060-44
1.015
1.06
2.81
HCR-1330-44
1.285
1.33
2.75
HCR-1510-44
1.484
1.51
2.75
