HTP Series

HTP Series plugs feature a distinct tapered design, making them ideal for plugging small holes from 0.07" to 0.343" in diameter.

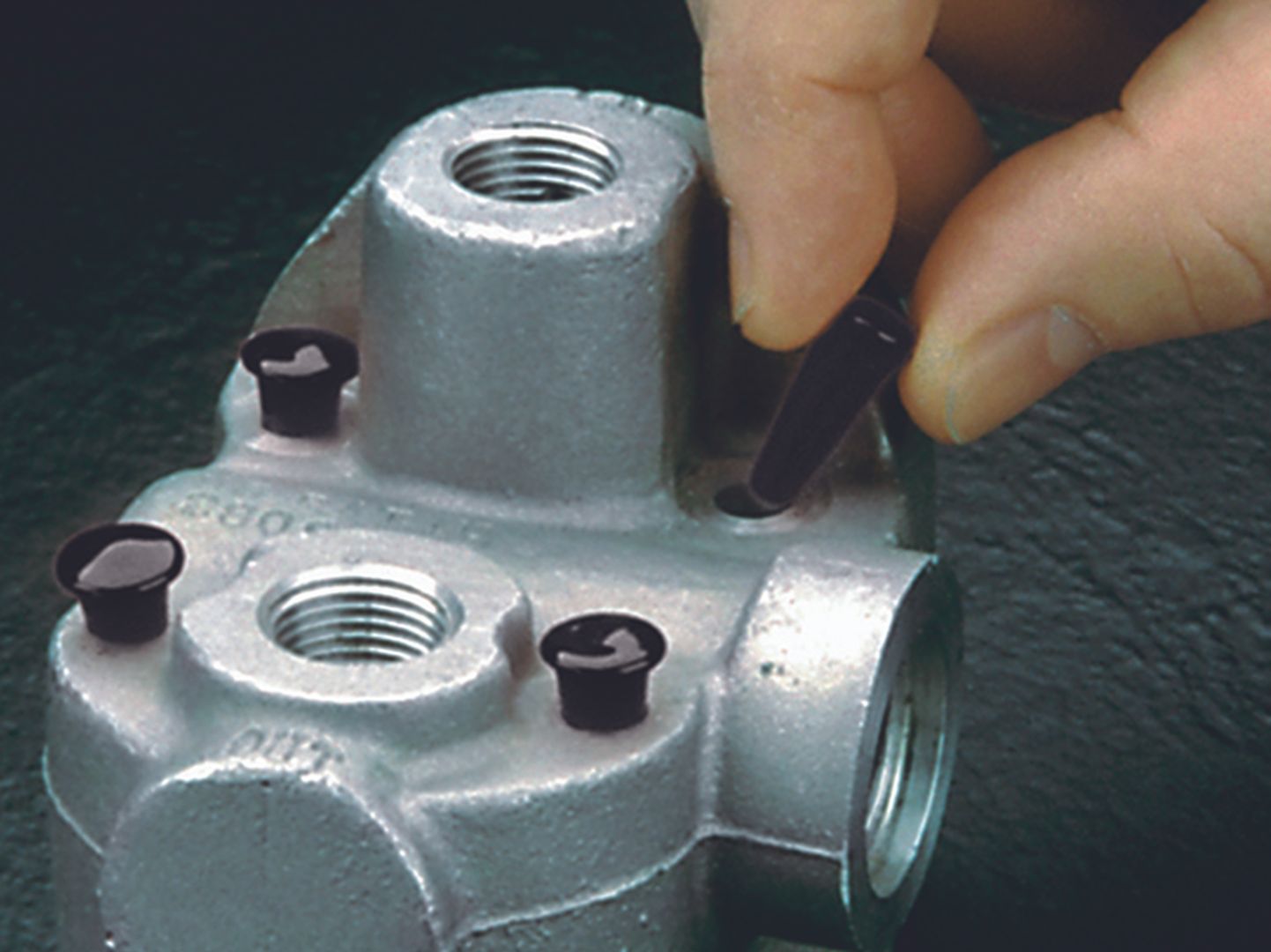

  • Ideal for masking during painting, plating and powder coating
  • Flexible vinyl allows for easy push-in installation and pull-out removal
  • Made from high-temperature vinyl
  • Withstands up to 260°C for intermittent use, 5 minutes or less
  • Withstands up to 150°C for continuous use, 10 minutes or less
  • Recommended for single use only
  • View material data chart for full specifications

For more information or to order this part, contact us at +61 7 3277 2300

* For low-temperature applications, please visit the TP Series.

Note: Micropack sizes have a minimum 3-day lead time.

Note: These parts should not be reused in high-temperature applications- single-use only.

Additional information

Material

Flex500™
Standard Colour

Black
Optional Colour

Yellow

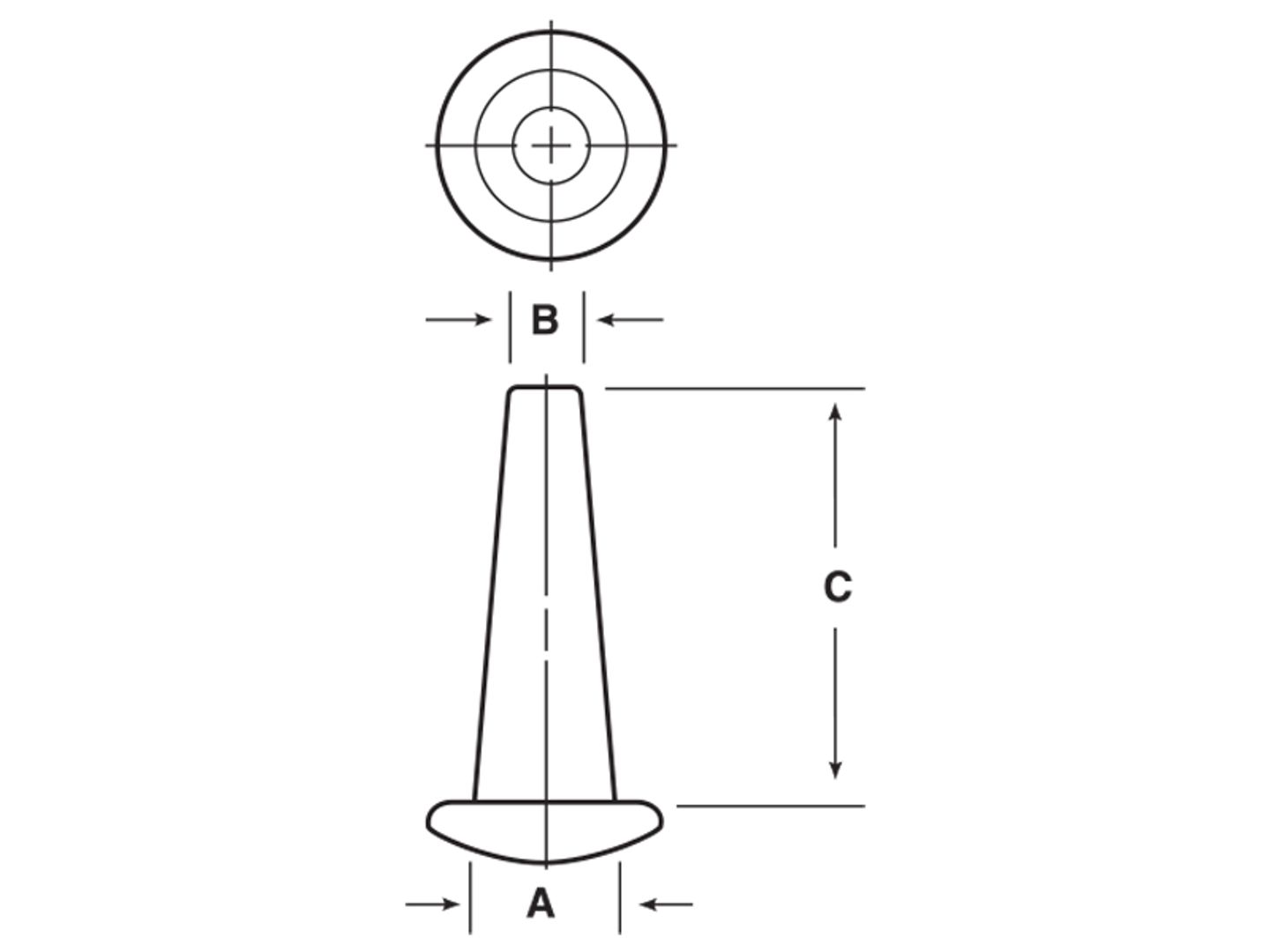

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

HTP-4
0.15
0.07
0.5
HTP-6
0.2
0.1
0.5
HTP-8
0.25
0.14
0.75
HTP-9
0.3
0.14
1
HTP-10
0.31
0.16
0.75
HTP-11
0.31
0.19
1
HTP-12
0.34
0.19
0.75
