HU Series

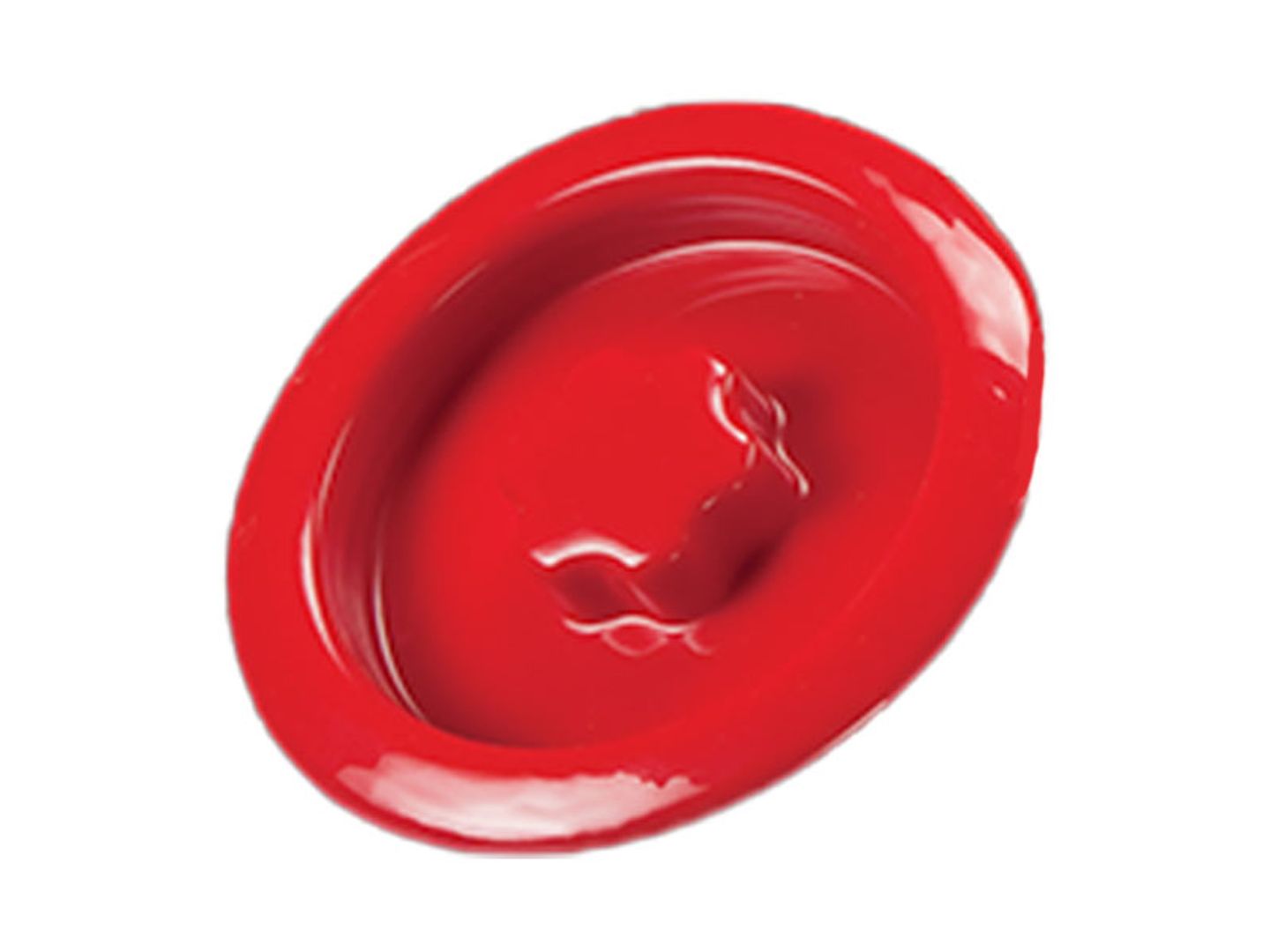

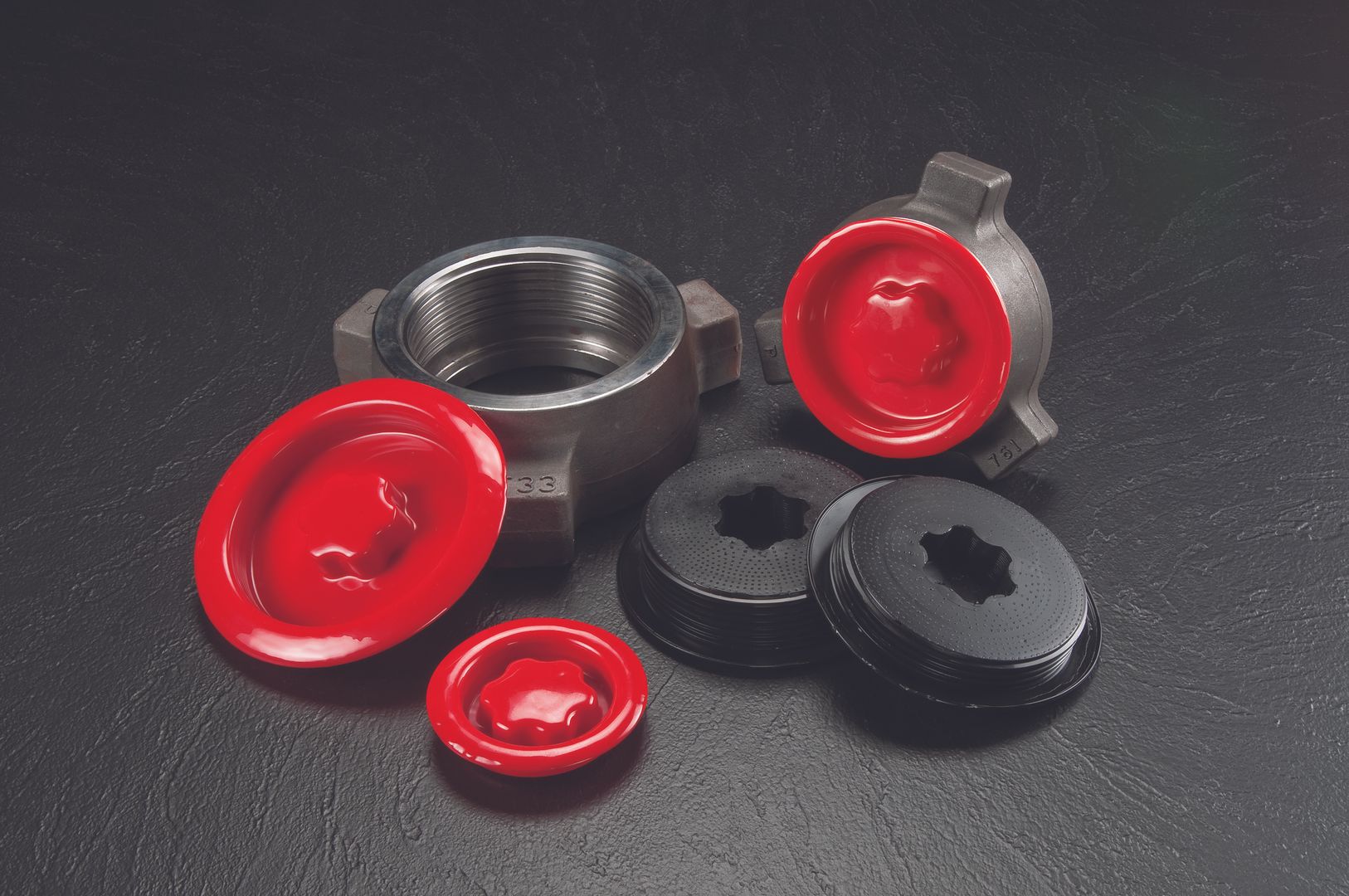

The HU Series vinyl plugs are designed to cover machined threads and sealing surfaces of hammer union joint connections.
- Features a unique ergonomic handle for easy handling
- Made from high-durometer vinyl for enhanced durability and impact resistance
- Colour-coded according to FIG number
- Cost-effective solution
For more information, or to order this part, contact us at: +61 7 3277 2300
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -32 – 176° C |
| Colours | Red, Black, Green, Yellow, Grey |
Part Sizes
Item Number | Figure | Nominal Pipe Size (In) | Working Pressure | Colour |
HU-100-2 | 100 | 2 | 1000 | Yellow |
HU-100-2.5 | 100 | 2-1/2 | 1000 | Yellow |
HU-100-3 | 100 | 3 | 1000 | Yellow |
HU-100-4 | 100 | 4 | 1000 | Yellow |
HU-100-5 | 100 | 5 | 1000 | Yellow |
HU-100-6 | 100 | 6 | 1000 | Yellow |
HU-206-2 | 200/206/207 | 2 | 2000 | Yellow |
HU-206-3 | 200/206/207 | 3 | 2000 | Yellow |
HU-206-4 | 200/206/207 | 4 | 2000 | Yellow |
HU-206-6 | 200/206/207 | 6 | 2000 | Yellow |
HU-206-8 | 200/206/207 | 8 | 2000 | Yellow |
HU-400-2 | 400 | 2 | 4000 | Red |
HU-400-3 | 400 | 3 | 4000 | Red |
HU-602-2 | 602 | 2 | 6000 | Grey |
HU-602-3 | 602 | 3 | 6000 | Grey |
HU-602-4 | 602 | 4 | 6000 | Grey |
HU-1002-4L | 1002 | 4 (Long) | 10000 | Black |
HU-1002-4S | 1002 | 4 (Short) | 10000 | Black |
HU-1002-5 | 1002 | 5 | 10000 | Black |
HU-1002-6 | 1002 | 6 | 10000 | Black |
HU-1003-3 | 1003 | 3 | 10000 | Green |
HU-1003-4/5 | 1003 | 4-5 | 10000 | Green |
HU-1502-1 | 1502 | 1 | 15000 | Red |
HU-1502-1 1/2 | 1502 | 1-1/2 | 15000 | Red |
HU-1502-2 | 1502 | 2 | 15000 | Red |
HU-1502-3 | 1502 | 3 | 15000 | Red |
HU-1502-3HD | 1502 | 3 (Heavy Duty) | 15000 | Red |
HU-1502-3HDS | 1502 | 3 (Heavy Duty Short) | 15000 | Red |
HU-1502-3XXL | 1502 | 3 | 15000 | Red |
HU-1502-4 | 1502 | 4 | 15000 | Red |
HU-1502-5 | 1502 | 5 | 15000 | Red |
HU-1502-6 | 1502 | 6 | 15000 | Red |
