HVC Series

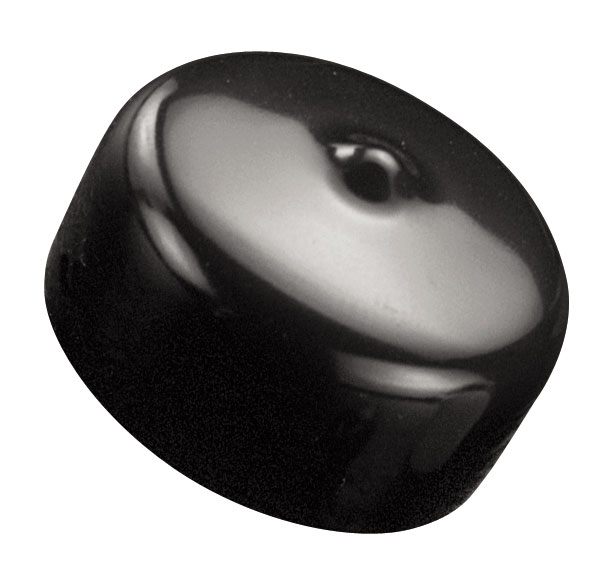

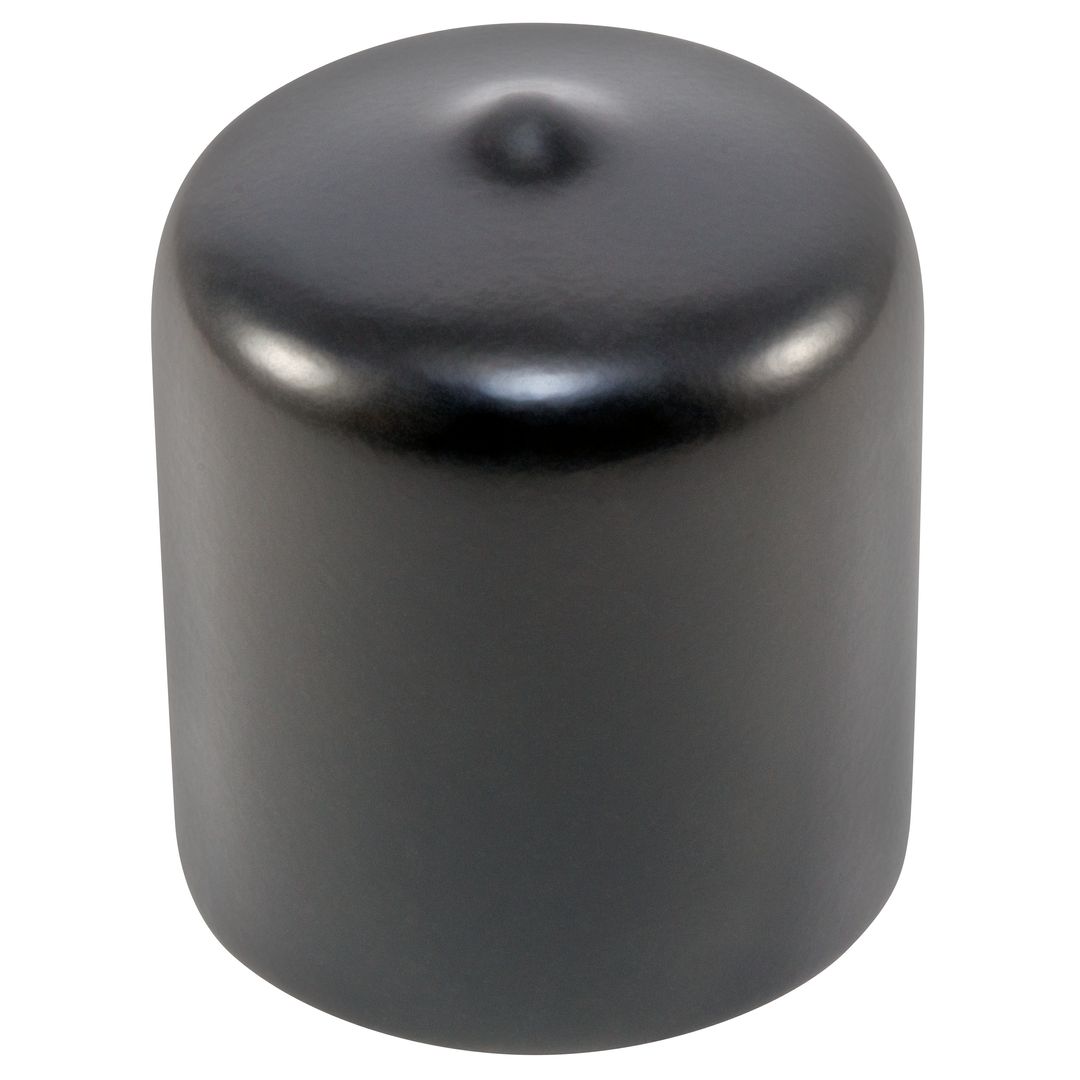

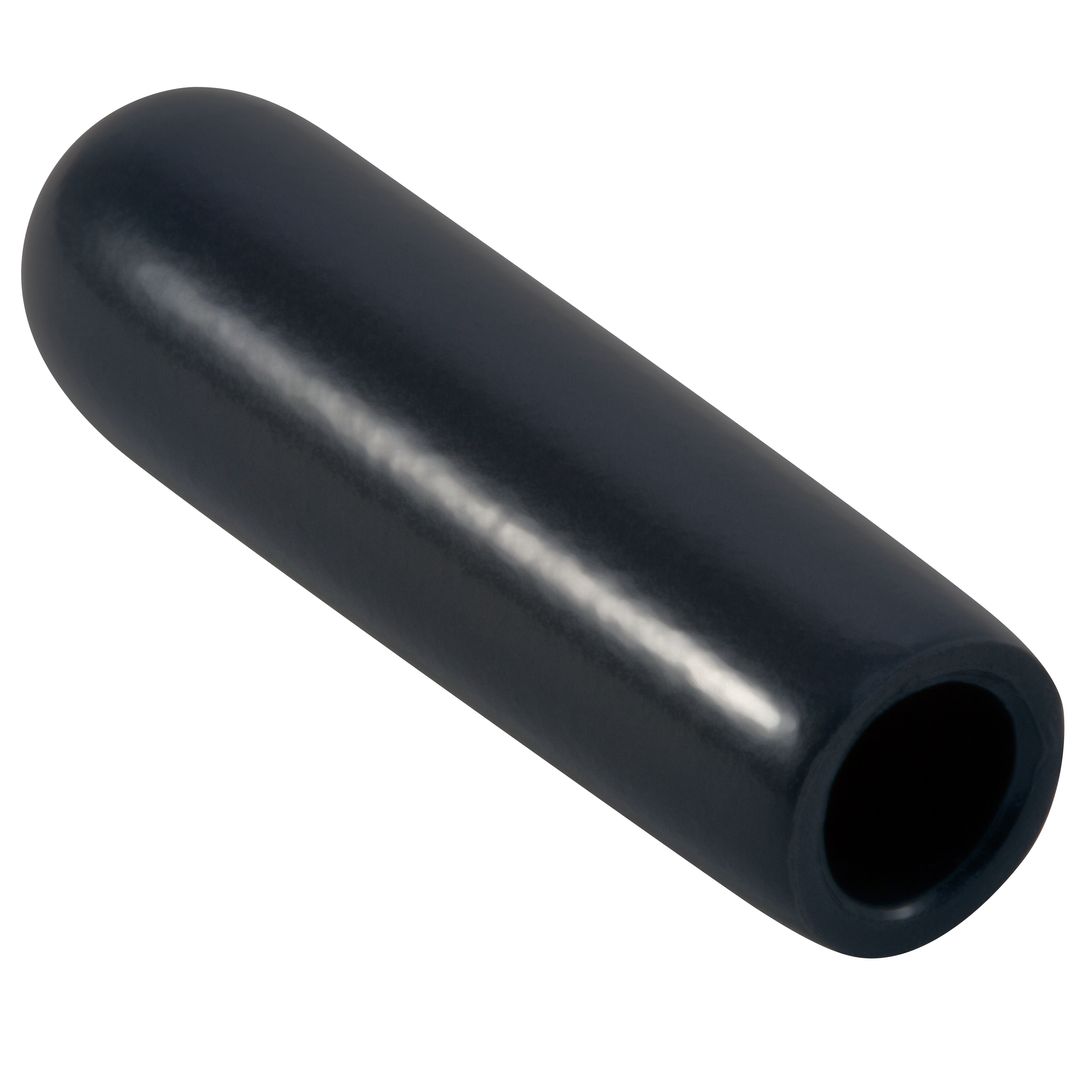

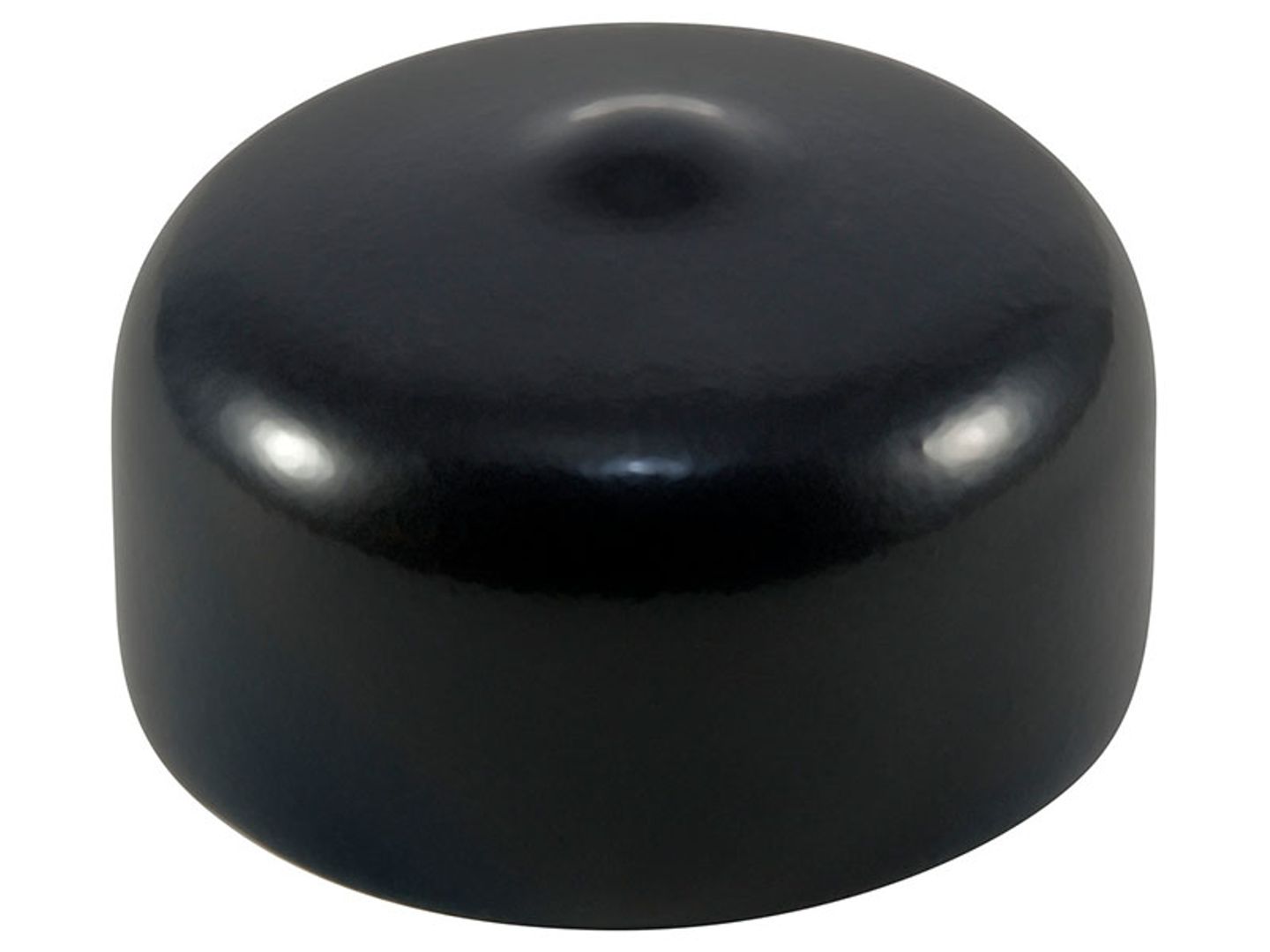

HVC Series Flex500™ vinyl caps are designed to withstand elevated temperatures, providing protection up to 500°F for intermittent use (5 minutes or less) and up to 300°F for continuous use (10 minutes or less).

  • Highly flexible and durable vinyl construction

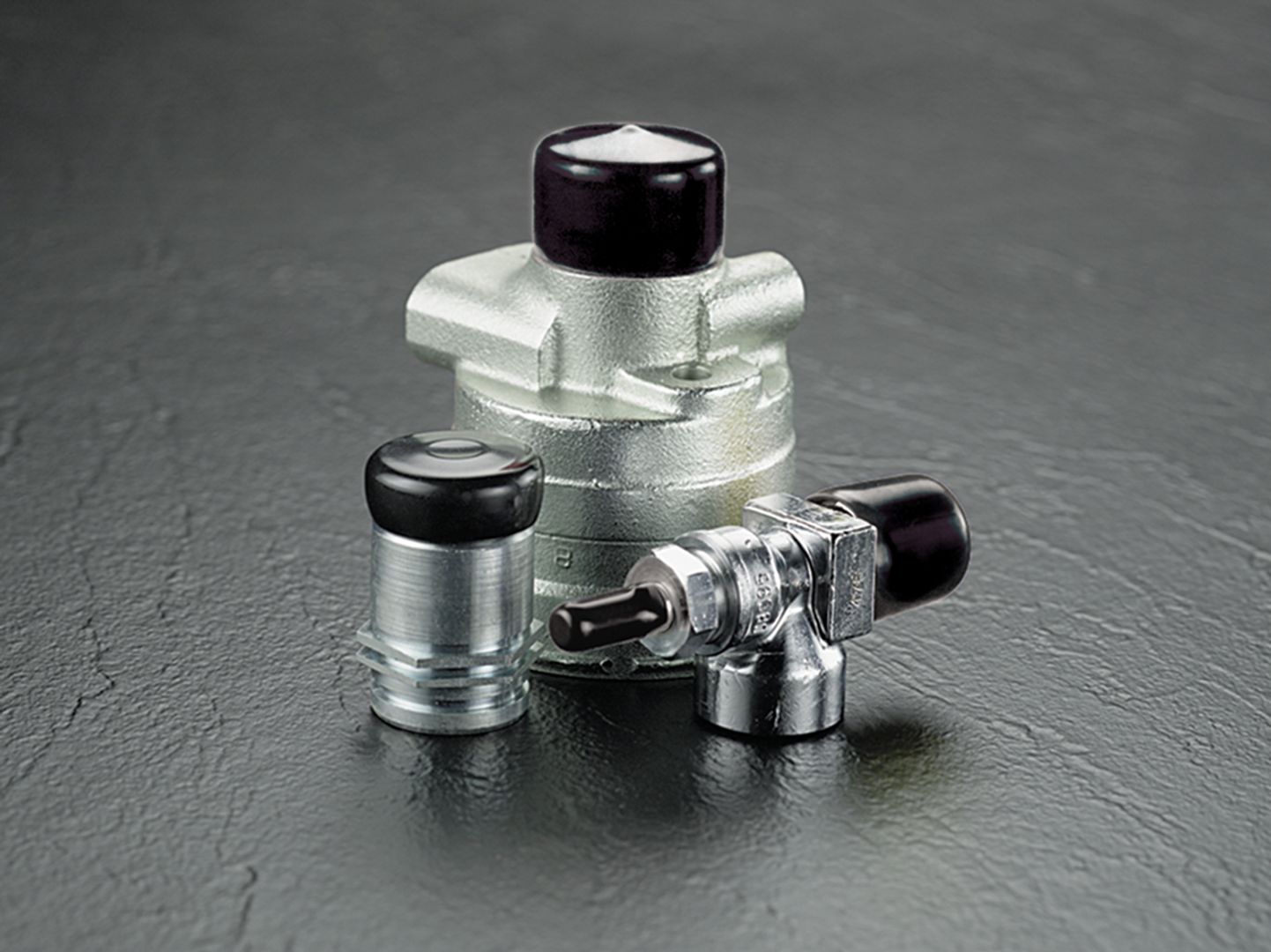

  • Suitable for use as thread protectors, dust and moisture seals, and masking caps during painting, plating and powder coating processes
  • Recommended for single-use applications

For more information, or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Flex500™
Standard Colour

Black
Optional Colour

Yellow

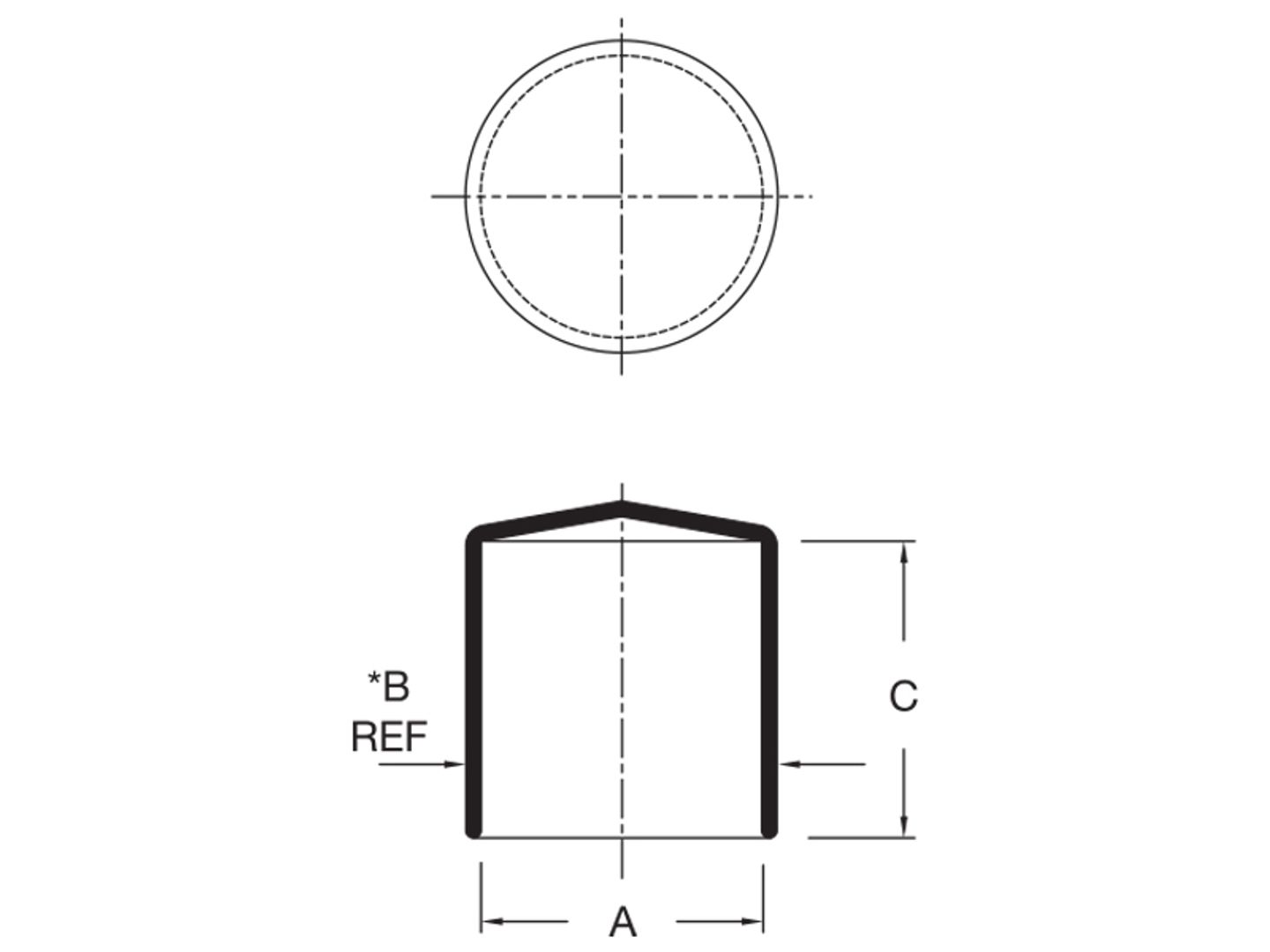

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

HVC-062-10
0.062
0.12
0.625
HVC-080-10
0.08
0.14
0.625
HVC-093-12
0.093
0.15
0.75
HVC-109-12
0.109
0.18
0.75
HVC-125-8
0.125
0.2
0.5
HVC-125-16
0.125
0.2
1
HVC-140-8
0.14
0.21
0.5
HVC-140-16
0.14
0.21
1
HVC-148-8
0.148
0.24
0.5
HVC-148-16
0.148
0.24
1
HVC-156-8
0.156
0.24
0.5
HVC-156-16
0.156
0.24
1
HVC-172-8
0.172
0.25
0.5
HVC-172-16
0.172
0.25
1
HVC-180-8
0.18
0.26
0.5
HVC-180-16
0.18
0.26
1
HVC-187-8
0.187
0.27
0.5
HVC-187-16
0.187
0.27
1
HVC-187-24
0.187
0.27
1.5
HVC-203-8
0.203
0.29
0.5
HVC-203-16
0.203
0.29
1
HVC-218-8
0.218
0.31
0.5
HVC-218-16
0.218
0.31
1
HVC-224-8
0.224
0.31
0.5
HVC-224-16
0.224
0.31
1
HVC-234-8
0.234
0.32
0.5
HVC-234-16
0.234
0.32
1
HVC-250-8
0.25
0.35
0.5
HVC-250-16
0.25
0.35
1
HVC-281-8
0.281
0.38
0.5
HVC-281-16
0.281
0.38
1
HVC-290-8
0.29
0.4
0.5
HVC-290-16
0.29
0.4
1
HVC-304-8
0.304
0.41
0.5
HVC-304-16
0.304
0.41
1
HVC-312-8
0.312
0.42
0.5
HVC-312-16
0.312
0.42
1
HVC-312-24
0.312
0.43
1.5
HVC-343-8
0.343
0.45
0.5
HVC-343-16
0.343
0.45
1
HVC-375-8
0.375
0.5
0.5
HVC-375-16
0.375
0.5
1
HVC-406-8
0.406
0.53
0.5
HVC-406-16
0.406
0.53
1
HVC-437-8
0.437
0.56
0.5
HVC-437-16
0.437
0.56
1
HVC-460-8
0.46
0.58
0.5
HVC-460-16
0.46
0.58
1
HVC-467-8
0.467
0.58
0.5
HVC-467-16
0.467
0.58
1
HVC-490-8
0.49
0.61
0.5
HVC-490-16
0.49
0.61
1
HVC-500-8
0.5
0.62
0.5
HVC-500-16
0.5
0.62
1
HVC-531-8
0.531
0.65
0.5
HVC-531-16
0.531
0.65
1
HVC-562-8
0.562
0.69
0.5
HVC-562-16
0.562
0.69
1
HVC-600-8
0.6
0.73
0.5
HVC-600-16
0.6
0.73
1
HVC-625-8
0.625
0.76
0.5
HVC-625-16
0.625
0.76
1
HVC-625-24
0.625
0.77
1.5
HVC-640-8
0.64
0.77
0.5
HVC-640-16
0.64
0.77
1
HVC-665-8
0.665
0.8
0.5
HVC-665-16
0.665
0.8
1
HVC-687-8
0.687
0.81
0.5
HVC-687-16
0.687
0.81
1
HVC-690-8
0.69
0.82
0.5
HVC-690-16
0.69
0.82
1
HVC-725-8
0.725
0.86
0.5
HVC-725-16
0.725
0.86
1
HVC-750-8
0.75
0.88
0.5
HVC-750-16
0.75
0.88
1
HVC-812-8
0.812
0.94
0.5
HVC-812-16
0.812
0.94
1
HVC-812-24
0.812
0.95
1.5
HVC-843-8
0.843
0.98
0.5
HVC-843-16
0.843
0.98
1
HVC-870-8
0.87
1.01
0.5
HVC-870-16
0.87
1.01
1
HVC-875-8
0.875
1.02
0.5
HVC-875-16
0.875
1.02
1
HVC-875-24
0.875
1.02
1.5
HVC-937-8
0.937
1.08
0.5
HVC-937-16
0.937
1.08
1
HVC-985-8
0.985
1.13
0.5
HVC-985-16
0.985
1.13
1
HVC-1000-8
1
1.14
0.5
HVC-1000-16
1
1.14
1
HVC-1000-24
1
1.14
1.5
HVC-1062-16
1.062
1.2
1
HVC-1125-16
1.125
1.27
1
HVC-1187-16
1.187
1.33
1
HVC-1250-16
1.25
1.39
1
HVC-1250-24
1.25
1.39
1.5
HVC-1312-16
1.312
1.45
1
HVC-1312-24
1.312
1.45
1.5
HVC-1375-16
1.375
1.52
1
HVC-1375-24
1.375
1.52
1.5
HVC-1437-16
1.437
1.58
1
HVC-1500-16
1.5
1.64
1
HVC-1500-24
1.5
1.64
1.5
HVC-1593-16
1.593
1.72
1
HVC-1625-16
1.625
1.77
1
HVC-1687-16
1.687
1.83
1
HVC-1750-16
1.75
1.89
1
HVC-1812-16
1.812
1.95
1
HVC-1875-16
1.875
2.02
1
HVC-1937-16
1.937
2.07
1
HVC-2000-16
2
2.14
1
HVC-2000-24
2
2.14
1.5
HVC-2125-16
2.125
2.27
1
HVC-2156-16
2.156
2.3
1
HVC-2250-16
2.25
2.4
1
HVC-2250-24
2.25
2.4
1.5
HVC-2375-16
2.375
2.52
1
HVC-2375-24
2.375
2.52
1.5
HVC-2460-16
2.46
2.61
1
HVC-2500-16
2.5
2.65
1
HVC-2500-24
2.5
2.65
1.5
HVC-2625-16
2.625
2.77
1
HVC-2625-24
2.625
2.77
1.5
HVC-2687-16
2.687
2.84
1
HVC-2750-16
2.75
2.91
1
HVC-2750-24
2.75
2.91
1.5
HVC-2875-16
2.875
3.03
1
HVC-3000-16
3
3.16
1
HVC-3000-24
3
3.16
1.5
HVC-3125-16
3.125
3.29
1
HVC-3125-24
3.125
3.29
1.5
HVC-3250-18
3.25
3.41
1.125
HVC-3375-18
3.375
3.54
1.125
HVC-3500-18
3.5
3.66
1.125
HVC-3500-24
3.5
3.66
1.5
HVC-3625-18
3.625
3.79
1.125
HVC-3750-18
3.75
3.91
1.125
HVC-3875-18
3.875
4.04
1.125
HVC-4000-20
4
4.16
1.25
HVC-4125-20
4.125
4.29
1.25
HVC-4187-20
4.187
4.35
1.25
HVC-4250-20
4.25
4.41
1.25
HVC-4375-20
4.375
4.54
1.25
HVC-4500-20
4.5
4.66
1.25
HVC-4750-20
4.75
4.91
1.25
HVC-5000-22
5
5.18
1.375
HVC-5187-22
5.187
5.37
1.375
HVC-5375-22
5.375
5.55
1.375
HVC-5500-22
5.5
5.68
1.375
HVC-5750-22
5.75
5.93
1.375
HVC-6000-24
6
6.18
1.5
HVC-6250-24
6.25
6.43
1.5
HVC-6500-24
6.5
6.68
1.5
HVC-6750-24
6.75
6.93
1.5
HVC-7000-24
7
7.18
1.5
HVC-7250-24
7.25
7.43
1.5
HVC-7500-24
7.5
7.68
1.5
HVC-7750-28
7.75
7.93
1.75
HVC-8000-28
8
8.18
1.75
HVC-8500-28
8.5
8.68
1.75
HVC-8750-28
8.75
8.93
1.75
HVC-9000-28
9
9.2
1.75
HVC-9250-28
9.25
9.45
1.75
HVC-9375-28
9.375
9.57
1.75
HVC-9500-28
9.5
9.7
1.75
HVC-9625-28
9.625
9.82
1.75
HVC-9875-28
9.875
10.07
1.75
HVC-10000-32
10
10.2
2
HVC-10312-32
10.312
10.51
2
HVC-10750-32
10.75
10.95
2
HVC-11000-32
11
11.2
2
HVC-11375-32
11.375
11.57
2
HVC-11750-32
11.75
11.95
2
HVC-12000-32
12
12.2
2
HVC-12250-32
12.25
12.45
2
HVC-12500-32
12.5
12.7
2
HVC-12625-32
12.625
12.82
2
HVC-12875-32
12.875
13.07
2
HVC-13250-32
13.25
13.47
2
HVC-13500-32
13.5
13.72
2
HVC-13600-32
13.6
13.82
2
HVC-14000-32
14
14.22
2
HVC-14250-32
14.25
14.47
2
HVC-14500-32
14.5
14.72
2
HVC-15000-32
15
15.22
2
HVC-15625-32
15.625
15.85
2
HVC-15875-32
15.875
16.11
2
HVC-16000-32
16
16.24
2
HVC-16500-32
16.5
16.74
2
HVC-17375-40
17.375
17.61
2.5
HVC-18000-40
18
18.24
2.5
HVC-19000-40
19
19.24
2.5
HVC-21000-40
21
21.24
2.5
