MDC Series

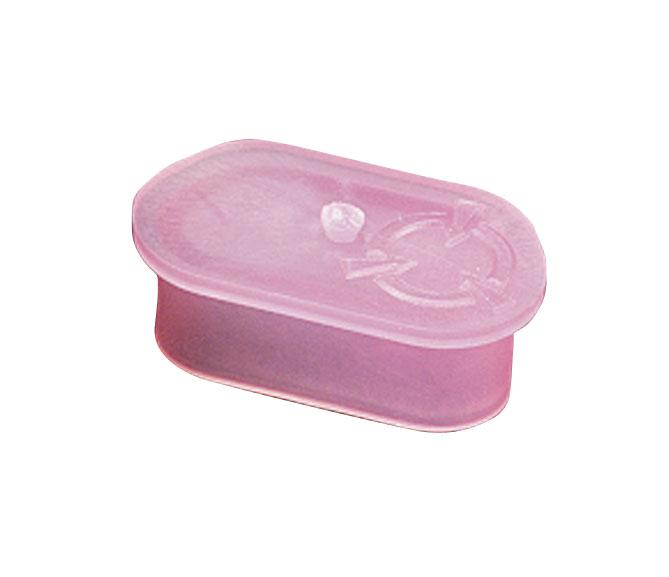

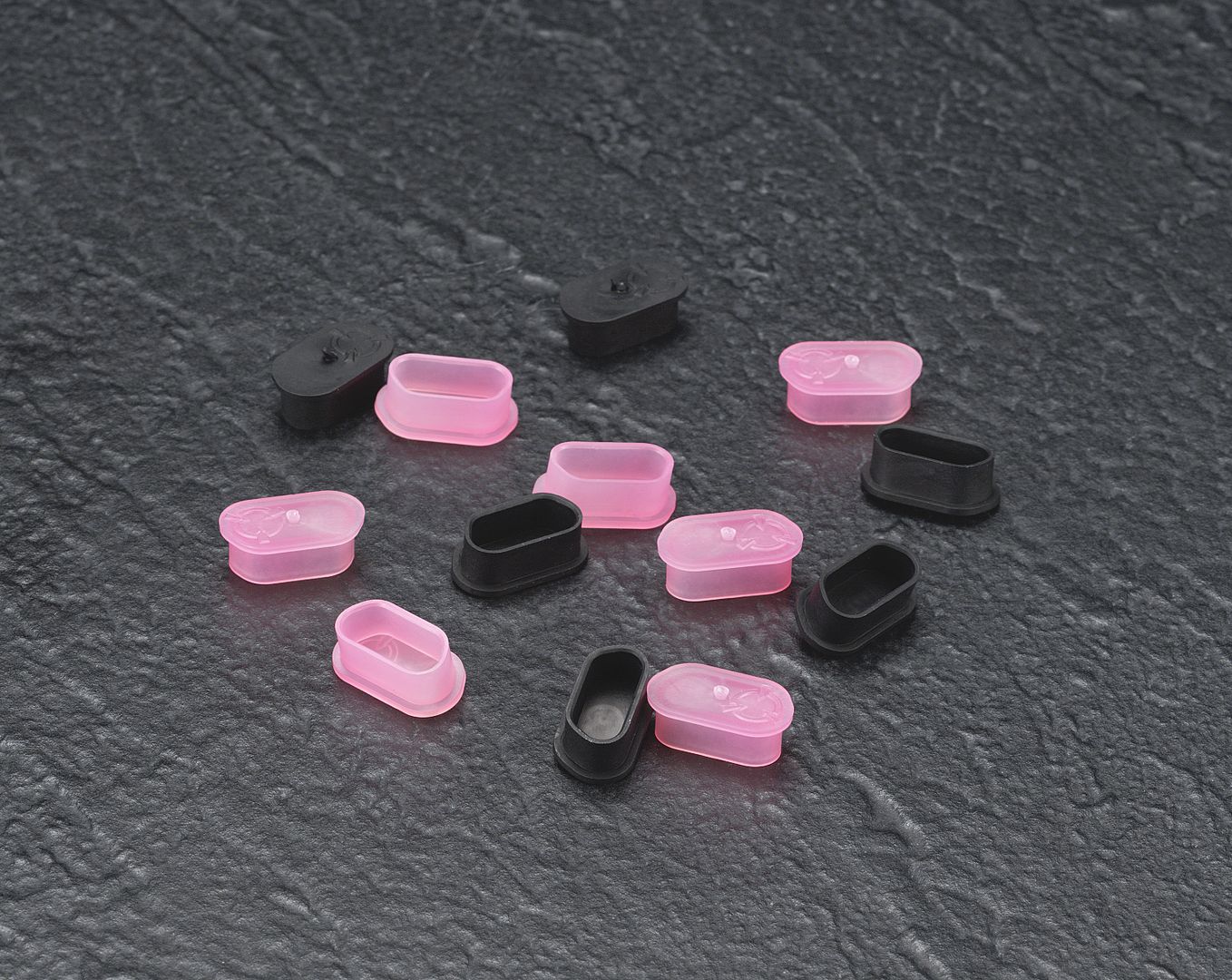

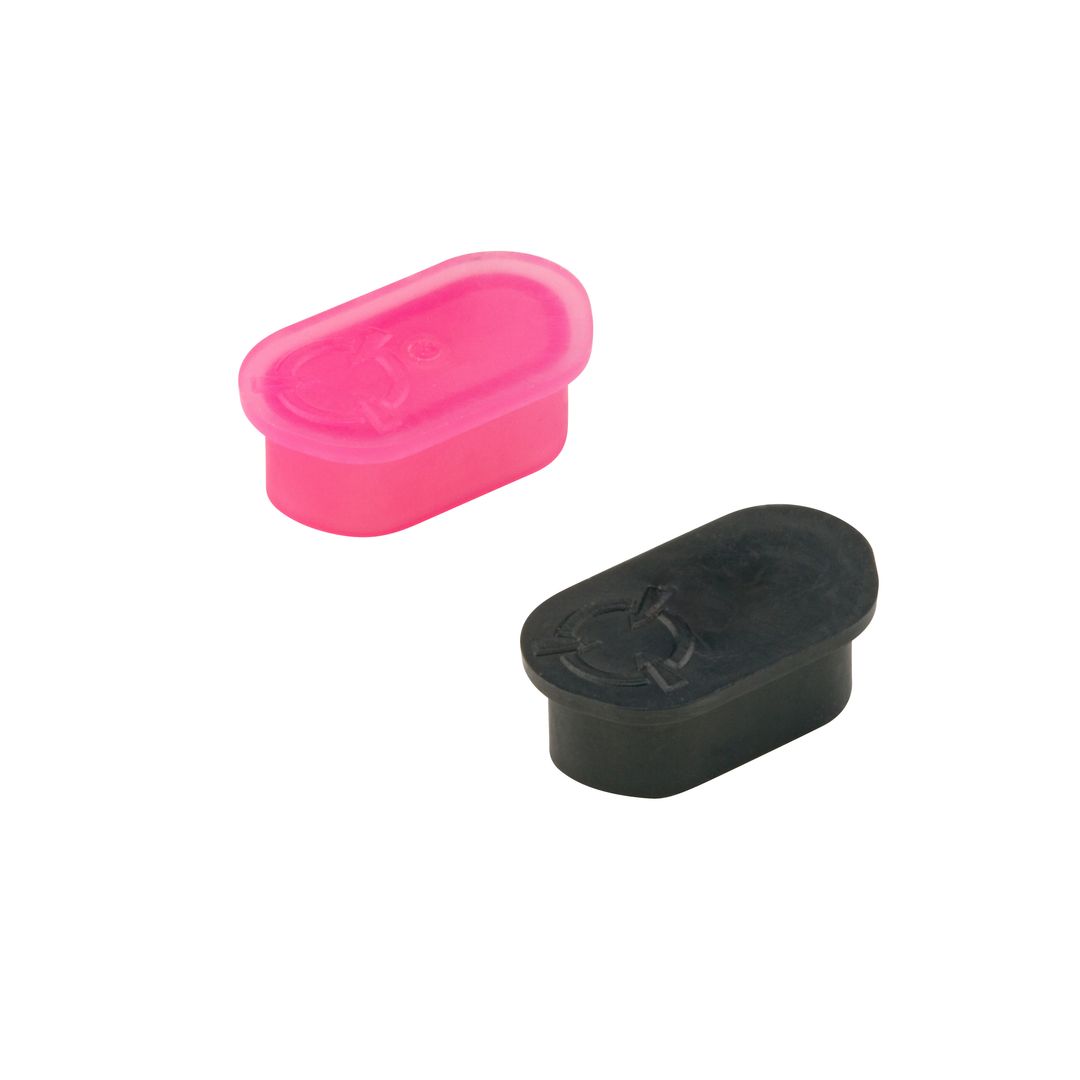

MDC Series protective caps are designed to fit Micro-D connectors and are available in two material options: black conductive polyethylene copolymer or pink static dissipative ethylene vinyl acetate (EVA).
The conductive material provides a surface resistivity of less than 1 x 10⁵ ohms/square in accordance with ASTM D-257-78 and meets the static decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046.
- Designed for Micro-D connectors
- Conductive material has a surface resistivity below 1 x 10⁵ ohms/square
- Meets specified static decay requirements
For more information or to order this part, contact us at +61 7 3277 2300
NOTE:

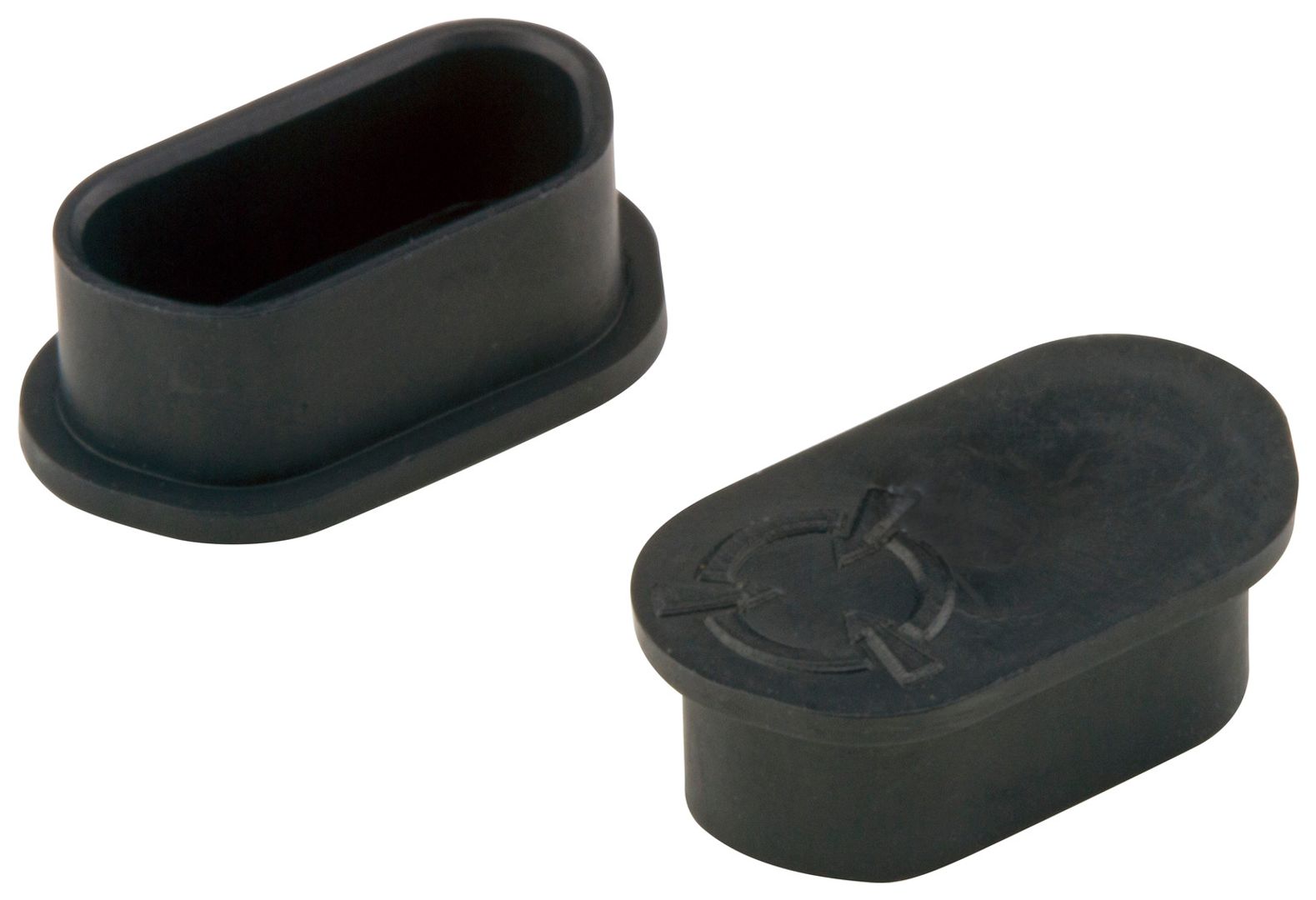

- Part numbers with "C" = Black, conductive polyethylene copolymer

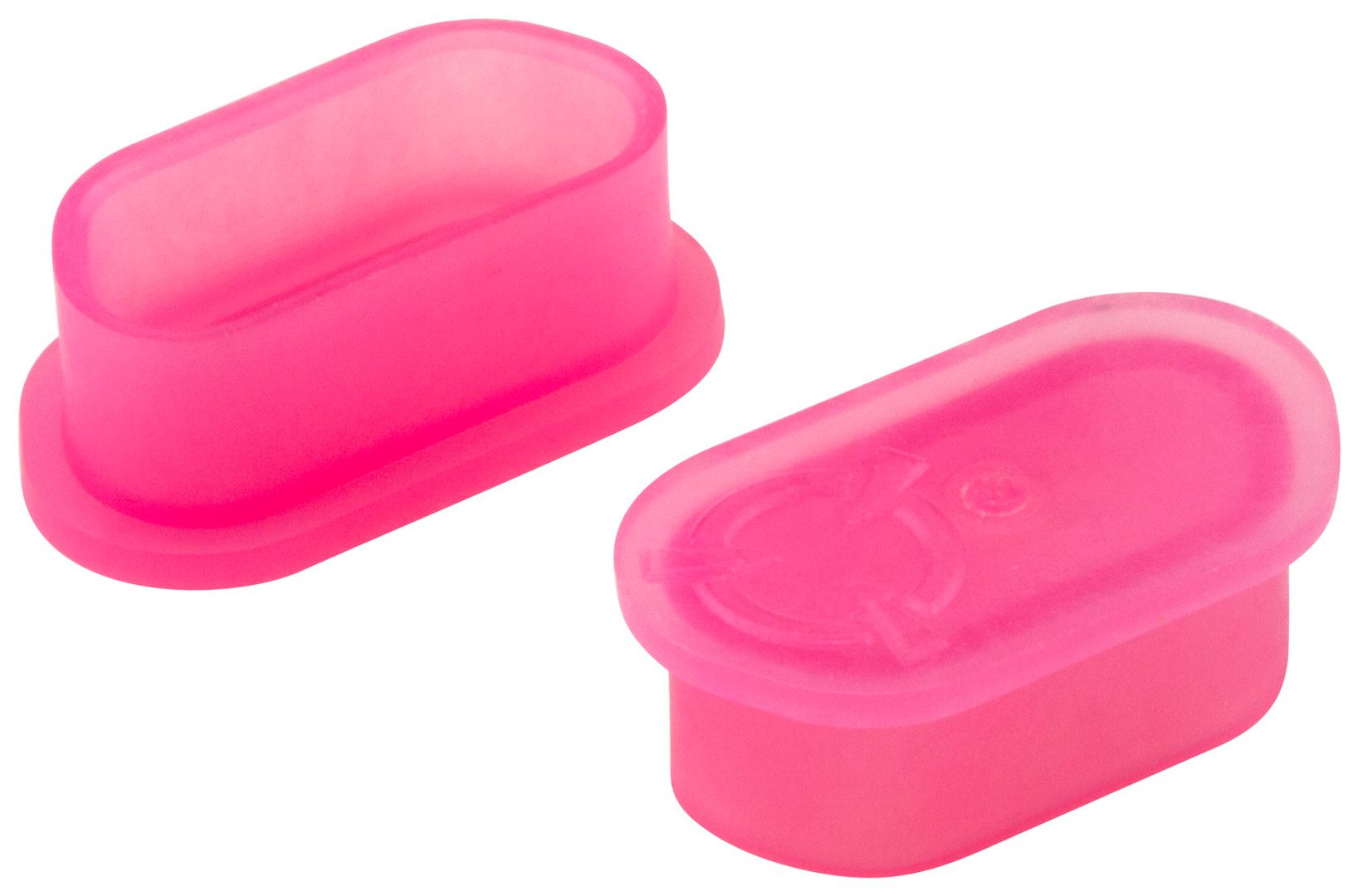

- Part numbers with "SD" = Pink, static dissipative ethylene vinyl acetate (EVA)
Additional information
| Material | Static dissipative ethylene vinyl acetate (EVA) or conductive polyethylene copolymer |
|---|---|
| Standard Colours | Pink, Black |
Part Sizes
Item Number | Contact Type | Material | Standard No. of Contacts |
MDC-15SD | Socket | Static Dissipative | 26 |
MDC-9PC | Pin | Conductive | 9 |
MDC-9PSD | Pin | Static Dissipative | 9 |
MDC-15C | Socket | Conductive | 26 |
