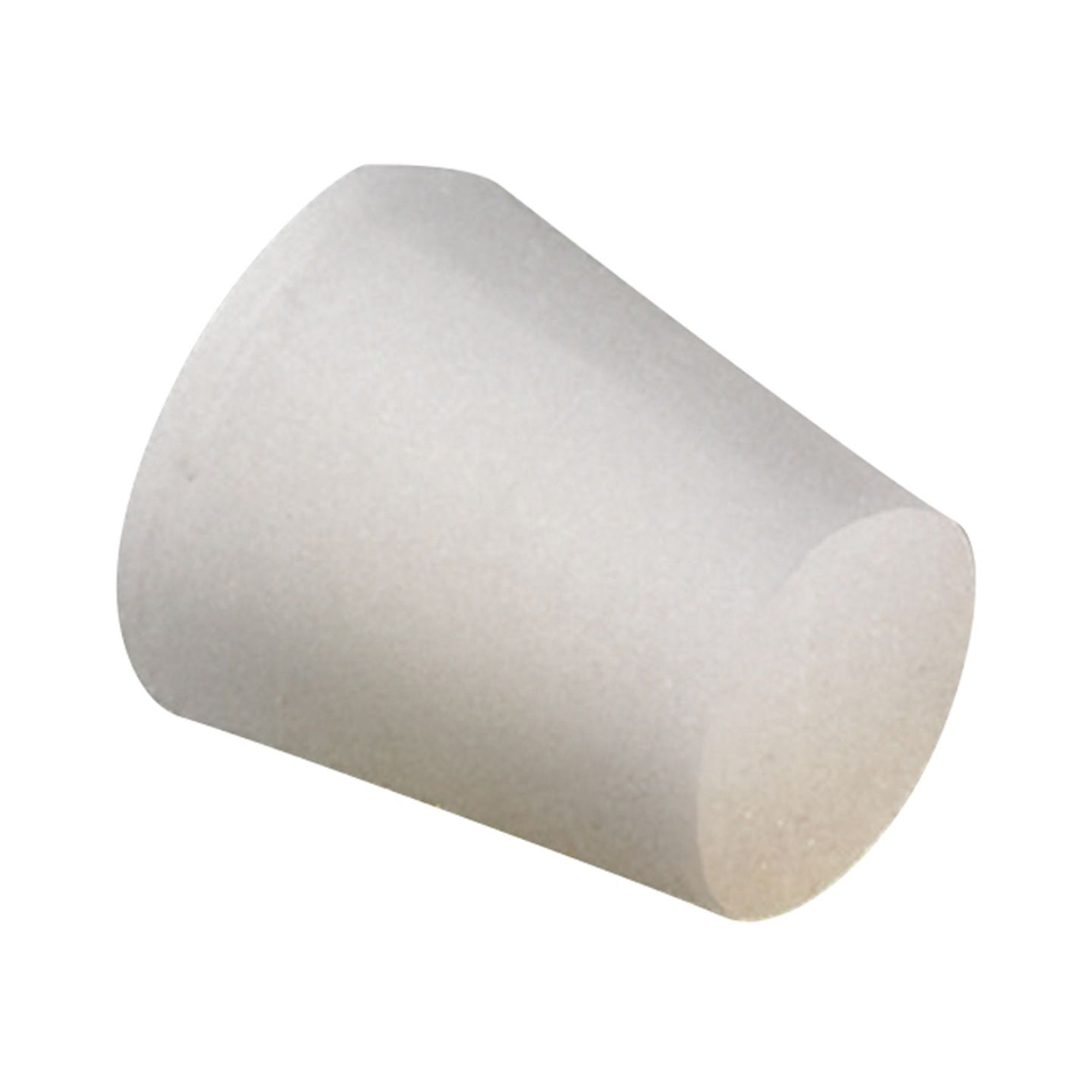

MPP-SH Series
MPP-SH Series plugs are designed to mask plain and threaded holes, allowing finishing processes to be applied up to the edge of the opening. The range includes multipurpose and micro plugs, with recommended operating temperatures varying by material.
- MPP products are multipurpose plugs
- SM and CM products are micro plugs
- Recommended temperature limits vary by material:
- 315°C (600°F): MPP-UB, MPP-SP, SM10 and SM30
- 177°C (350°F): MPP-GN
- 149°C (300°F): CM10 and CM30
- 65°C (150°F): MPP-BR
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Various |
|---|---|
| Standard Colour | Various (colour coded for sizing) |
| Optional Colours | Clear, White |
Part Sizes

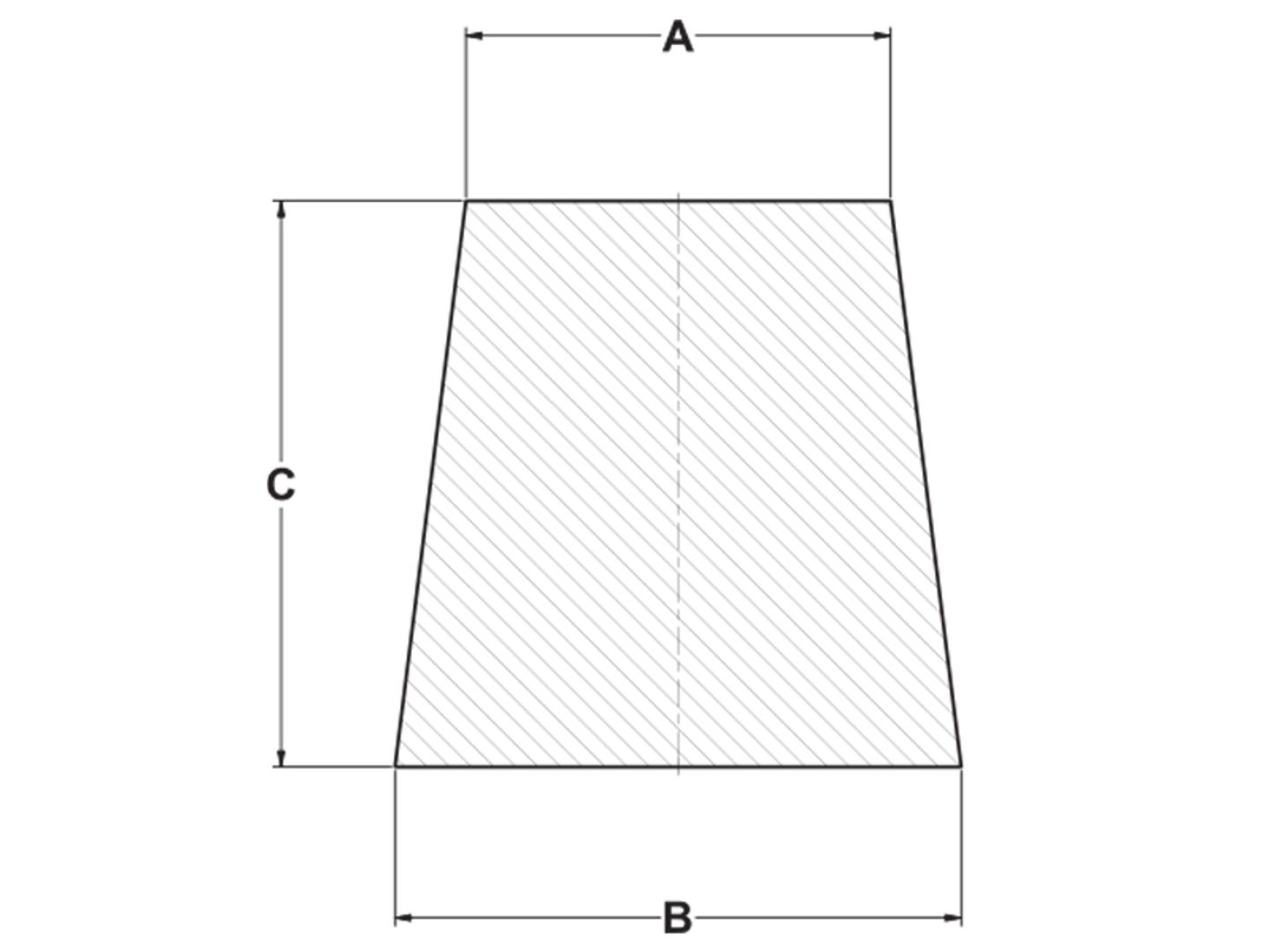

Item Number | Dim A (In) | Dim B (In) | Dim C (In) | Colour | Quantity Per Bag | Quantity Per Minipack |
MPP-UB | 0.125 | 0.375 | 1.25 | Clear | 500 | - |
MPP-BR | 0.125 | 0.375 | 1.25 | Red | 500 | - |
MPP-SP | 0.125 | 0.5 | 2 | Clear | 500 | - |
MPP-GN | 0.125 | 0.5 | 2 | Green | 500 | - |
SM10 | 0.016 | 0.062 | 0.625 | Clear | 500 | - |
CM10 | 0.016 | 0.062 | 0.625 | Yellow | 500 | - |
SM30 | 0.02 | 0.078 | 1 | Clear | 500 | - |
CM30 | 0.02 | 0.078 | 1 | Yellow | 500 | - |
