MSP-SH Series

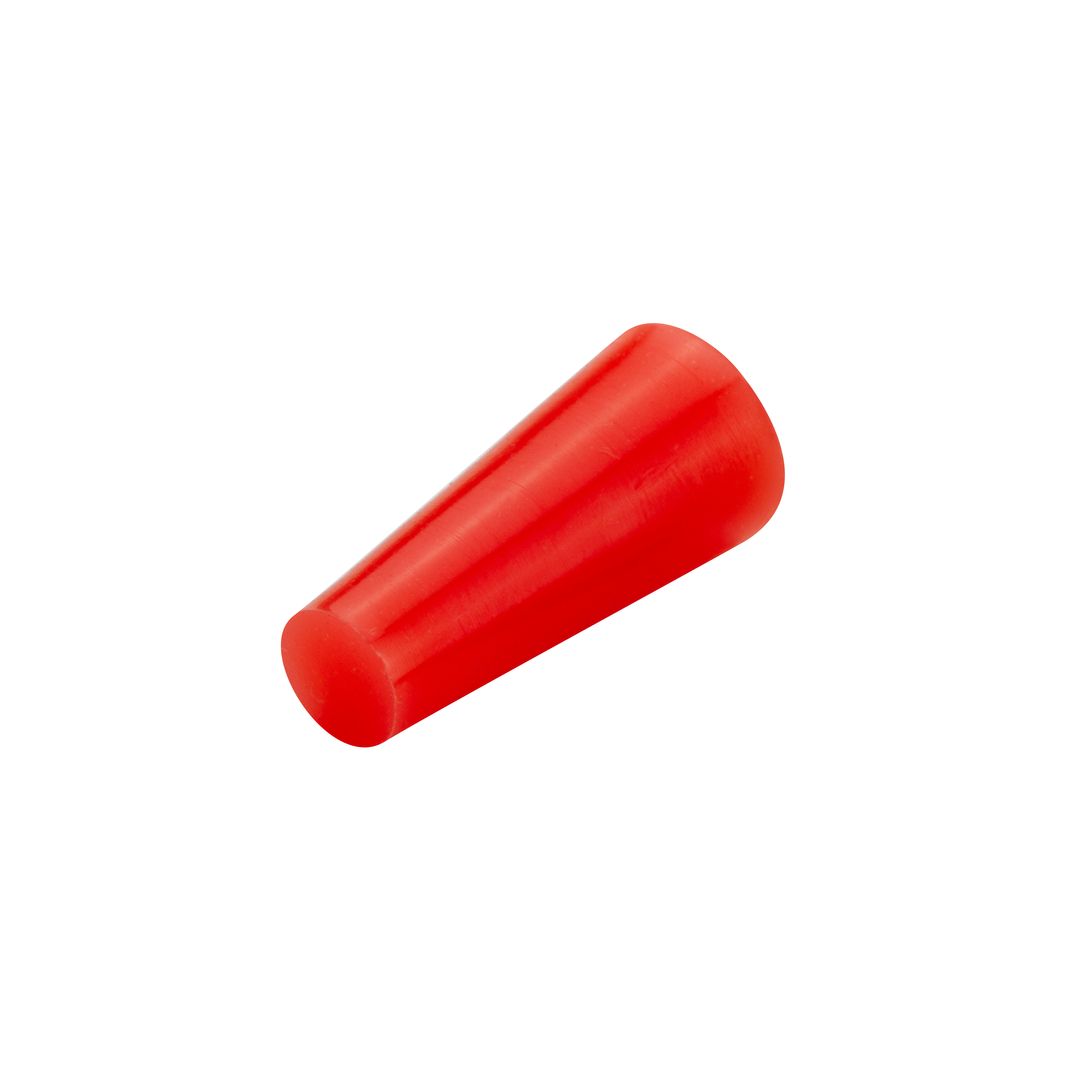

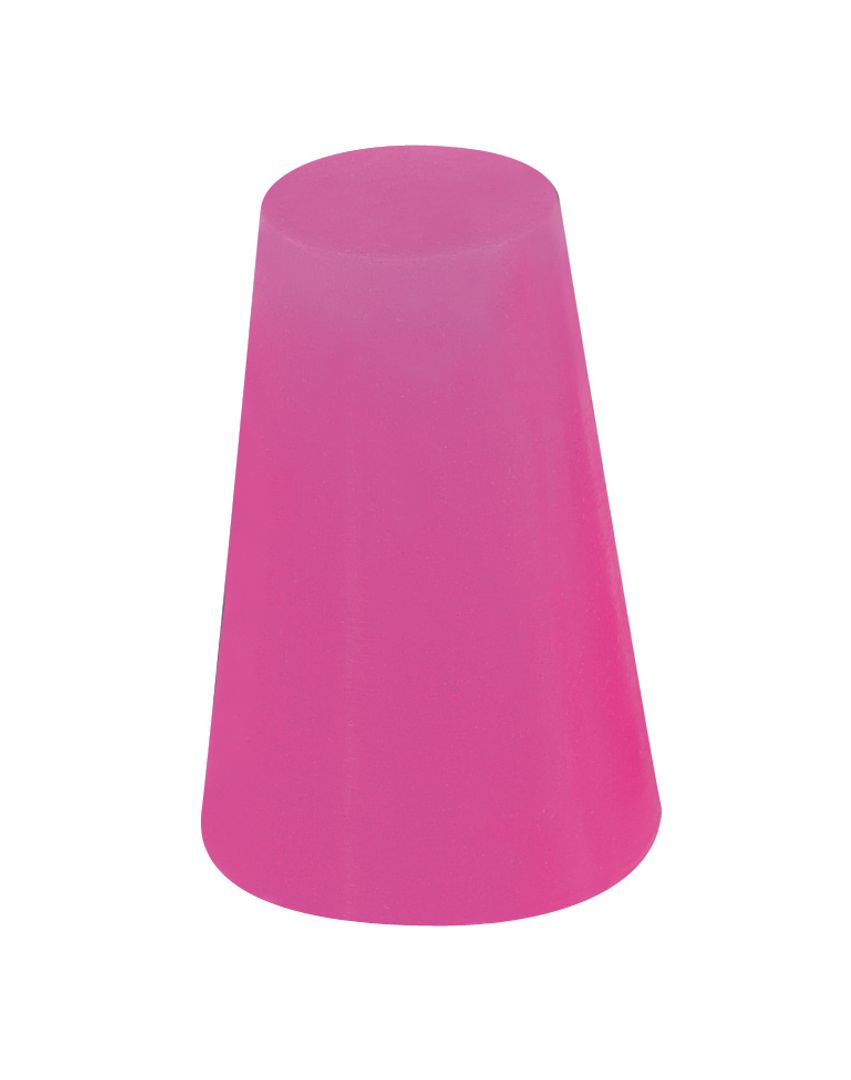

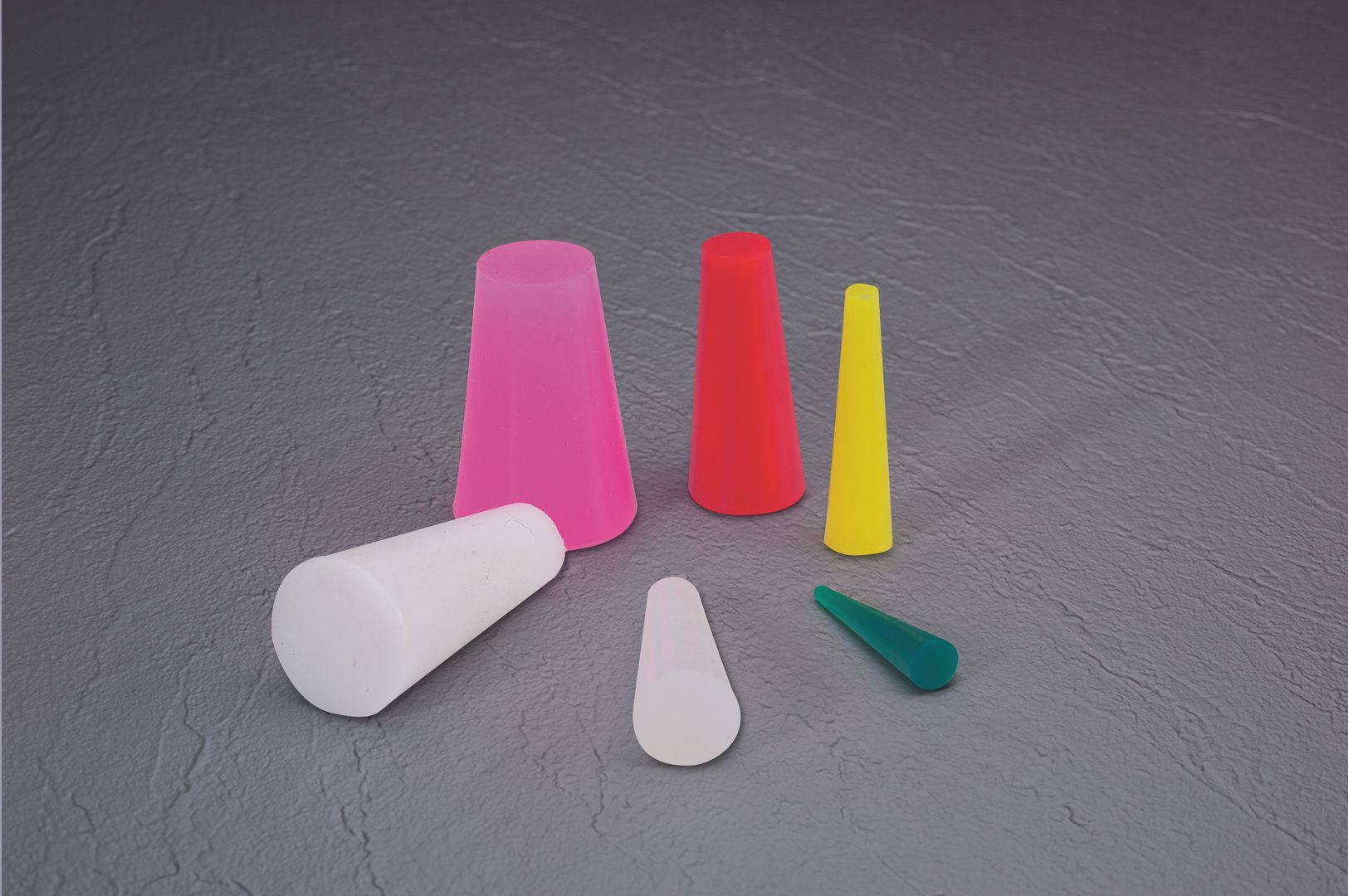

MSP-SH Series Ultrabake™ silicone plugs are designed to mask plain and threaded holes while allowing finishing processes to be applied up to the edge of the opening.
- Suitable for powder coating, e-coating, plating and anodizing
- Withstands recommended temperatures up to 315°C (600°F)
- Versatile design for a range of masking requirements
- Reusable for multiple applications
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Silicone |
|---|---|
| Standard Colour | Various (colour coded for sizing) |
| Optional Colours | Clear; White |
Part Sizes

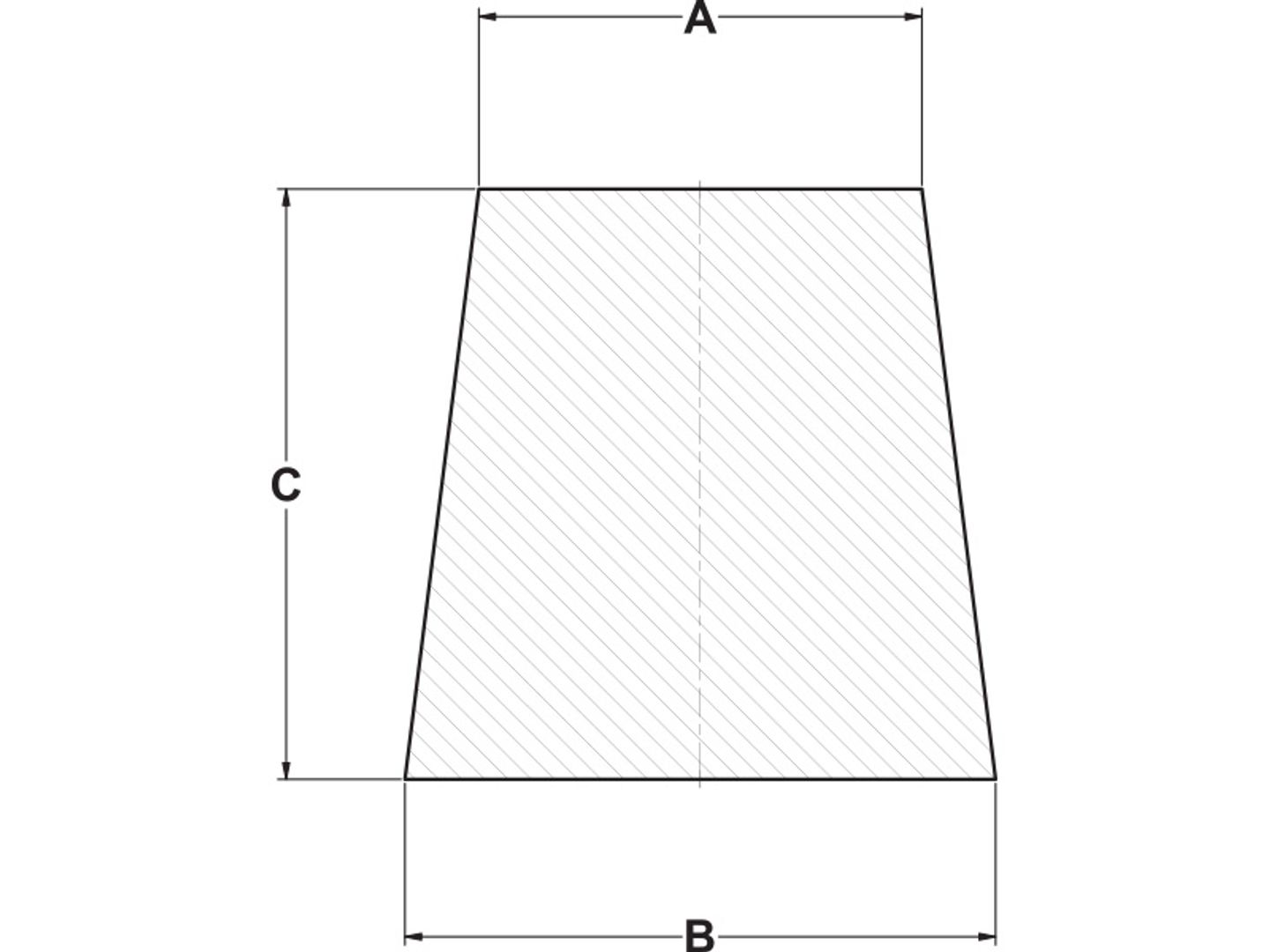

Item Number | Dim A (In) | Dim B (In) | Dim C (In) | Colour | Quantity Per Bag | Quantity Per Minipack |
MSP101L | 0.062 | 0.187 | 0.75 | Dark Green | 1000 | 40 |
MSP102L | 0.125 | 0.25 | 1 | Yellow | 1000 | 40 |
MSP103L | 0.187 | 0.343 | 1 | Clear | 1000 | 40 |
MSP104L | 0.25 | 0.437 | 1 | Red | 1000 | 40 |
MSP105L | 0.316 | 0.557 | 1 | White | 500 | 20 |
MSP106L | 0.437 | 0.687 | 1 | Pink | 500 | 20 |
MSP107L | 0.562 | 0.75 | 1 | Clear | 250 | 10 |
MSP108L | 0.625 | 0.8 | 1 | Clear | 250 | 10 |
MSP109L | 0.75 | 0.925 | 1 | Clear | 250 | 10 |
