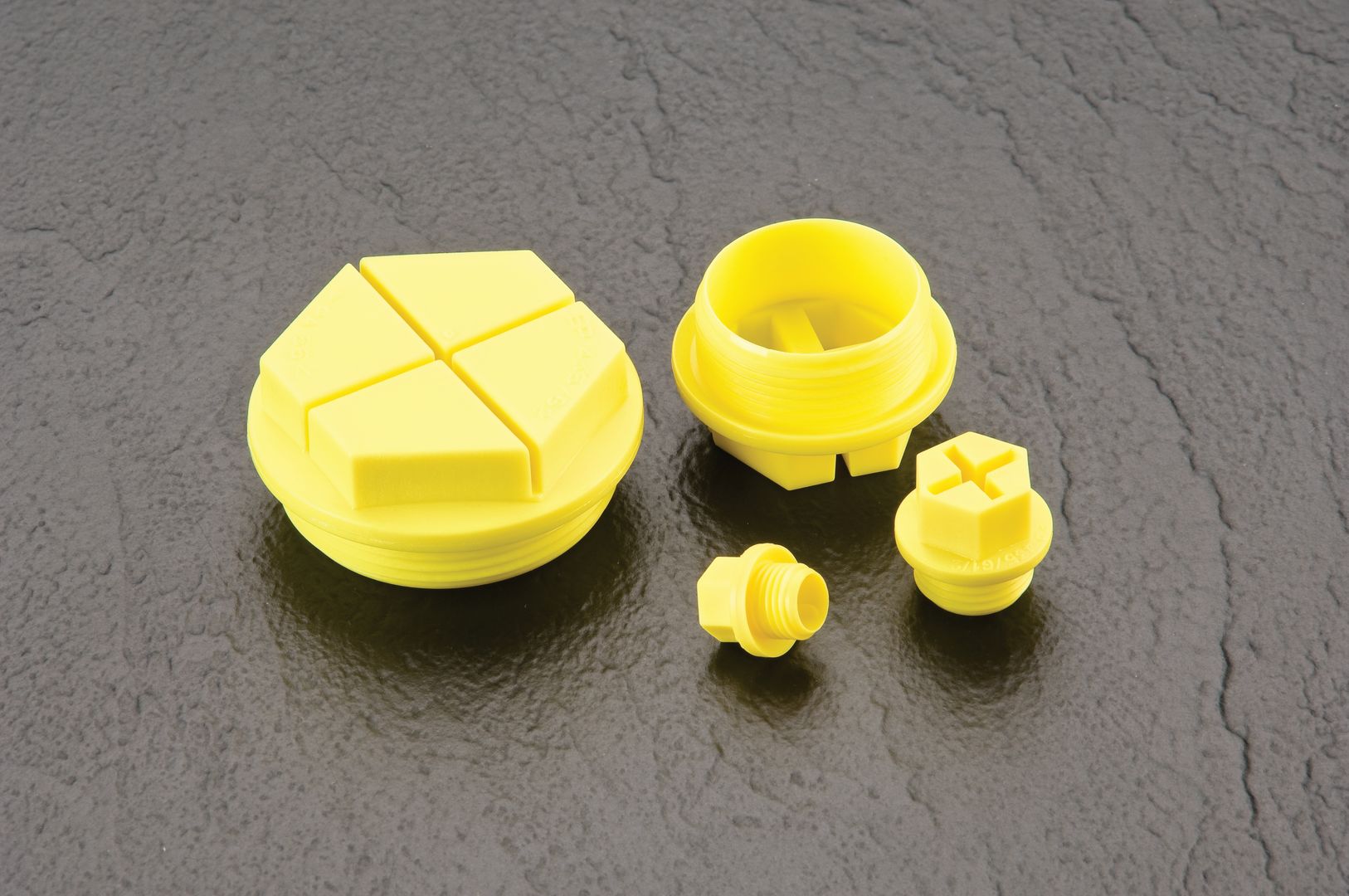

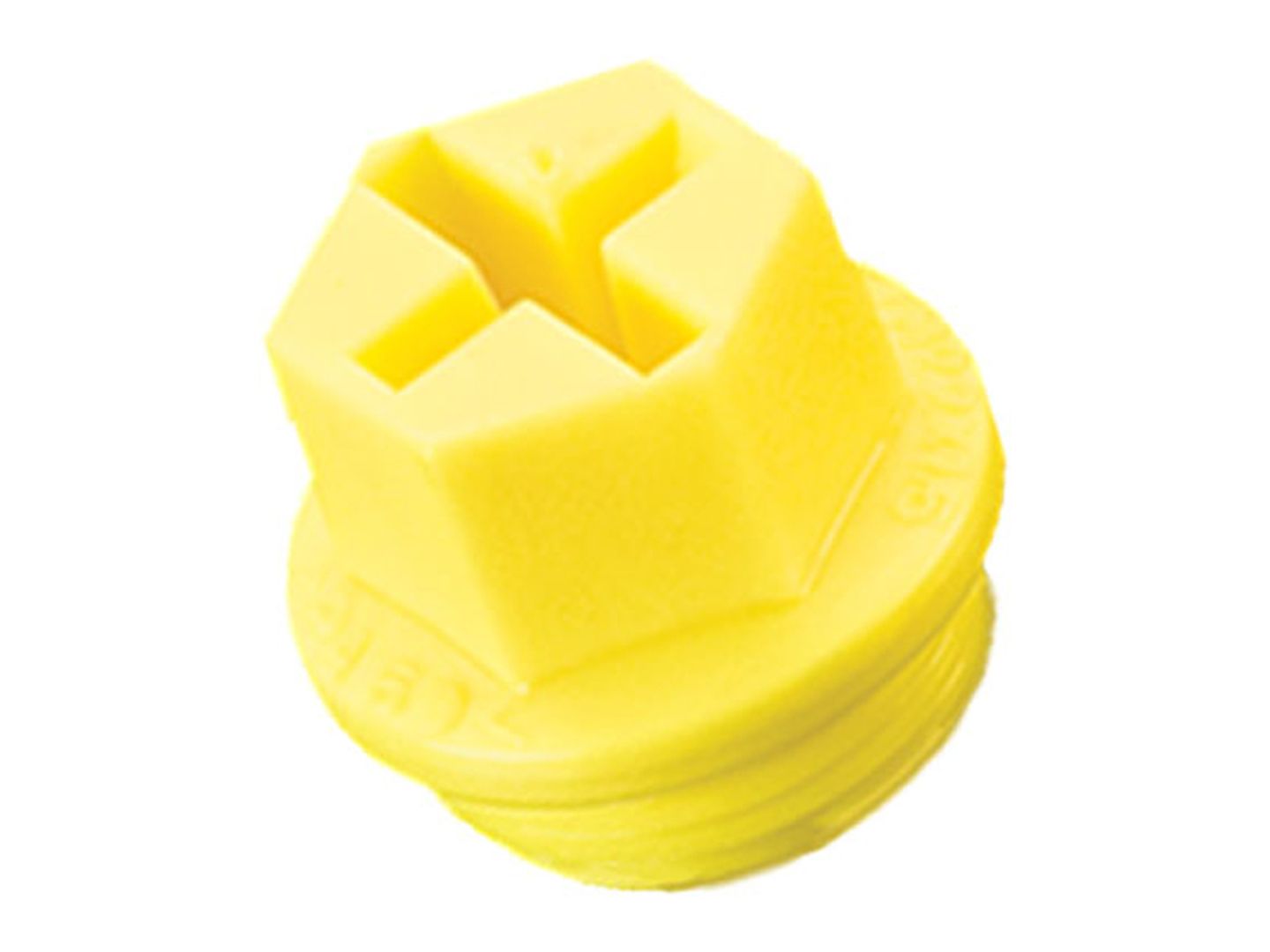

MT Series
Metric Sealing Plugs
MT Series plugs are designed to protect metric fittings with five complete threads, ensuring a tight fit and secure seal.
- Applied and removed manually with a screwdriver or a socket wrench
- Suitable for plugging metric threads
- Easy to install and remove
- Provides a reliable, tight seal
Additional information
| Material | Nylon 6 |
|---|---|
| Standard Colour | Yellow |
Part Sizes

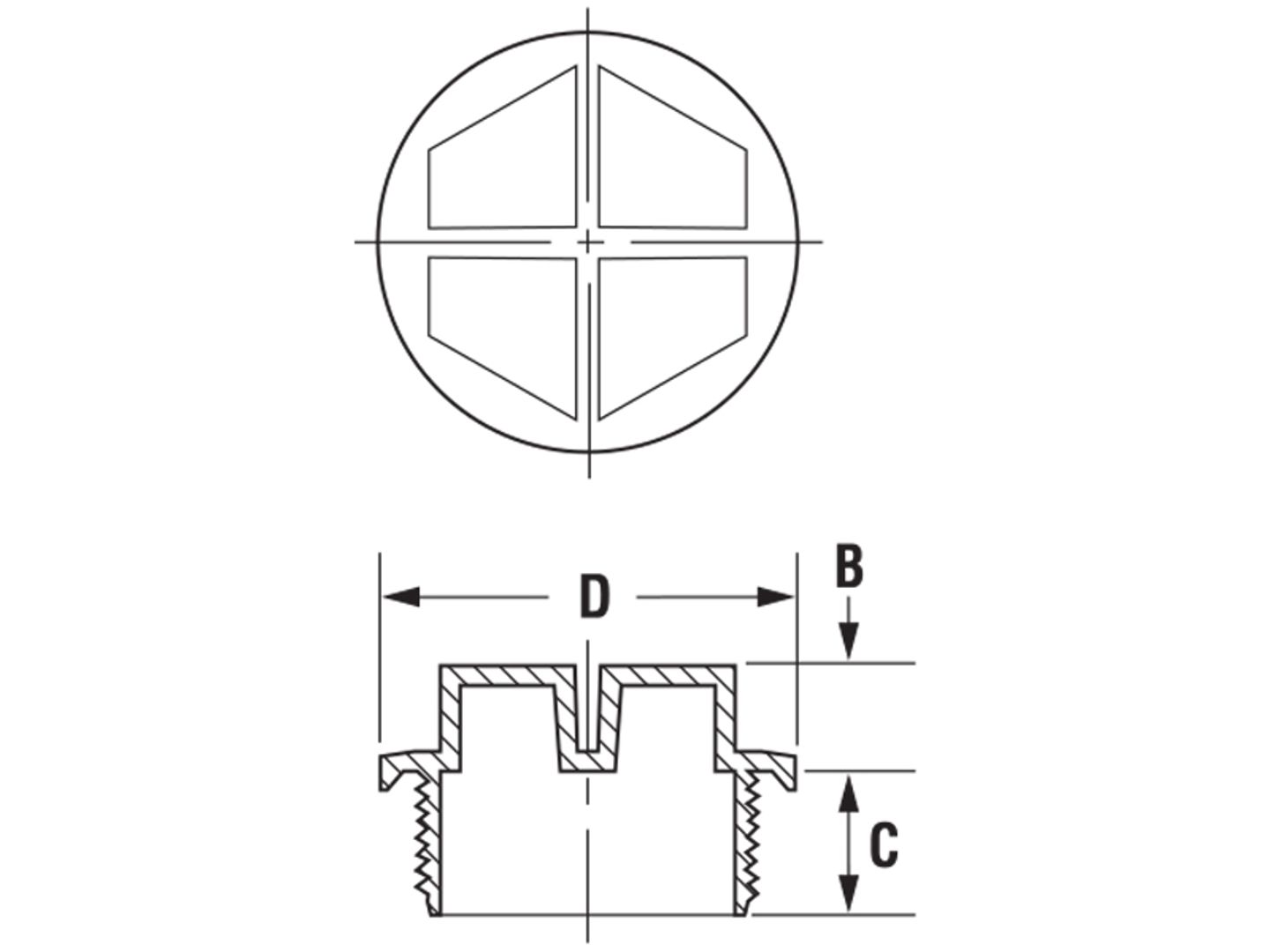

| Item Number | To Plug Metric Thread Size | Dim B (In) | Dim C (In) | Dim D (In) | Dim B (mm) | Dim C (mm) | Dim D (mm) |
|---|---|---|---|---|---|---|---|
| MT-10 | M10 x 1 | 0.390 | 0.280 | 0.560 | 9.91 | 7.11 | 14.22 |
| MT-12 | M12 x 1.5 | 0.390 | 0.390 | 0.680 | 9.91 | 9.91 | 17.27 |
| MT-14 | M14 x 1.5 | 0.390 | 0.390 | 0.760 | 9.91 | 9.91 | 19.30 |
| MT-16 | M16 x 1.5 | 0.390 | 0.390 | 0.870 | 9.91 | 9.91 | 22.10 |
| MT-18 | M18 x 1.5 | 0.430 | 0.390 | 0.940 | 10.92 | 9.91 | 23.88 |
| MT-20 | M20 x 1.5 | 0.550 | 0.390 | 1.020 | 13.97 | 9.91 | 25.91 |
| MT-22 | M22 x 1.5 | 0.550 | 0.390 | 1.070 | 13.97 | 9.91 | 27.18 |
| MT-24 | M24 x 1.5 | 0.550 | 0.472 | 1.240 | 13.97 | 12.00 | 31.50 |
| MT-26 | M26 x 1.5 | 0.550 | 0.390 | 1.299 | 13.97 | 9.91 | 32.00 |
| MT-27 | M27 x 2 | 0.550 | 0.510 | 1.270 | 13.97 | 12.95 | 32.26 |
| MT-33 | M33 x 2 | 0.550 | 0.510 | 1.590 | 13.97 | 12.95 | 40.39 |
| MT-42 | M42 x 2 | 0.591 | 0.512 | 1.969 | 15.00 | 13.00 | 50.00 |
