NightGlow Series

Pig's Tail NightGlow Spiral Wrap

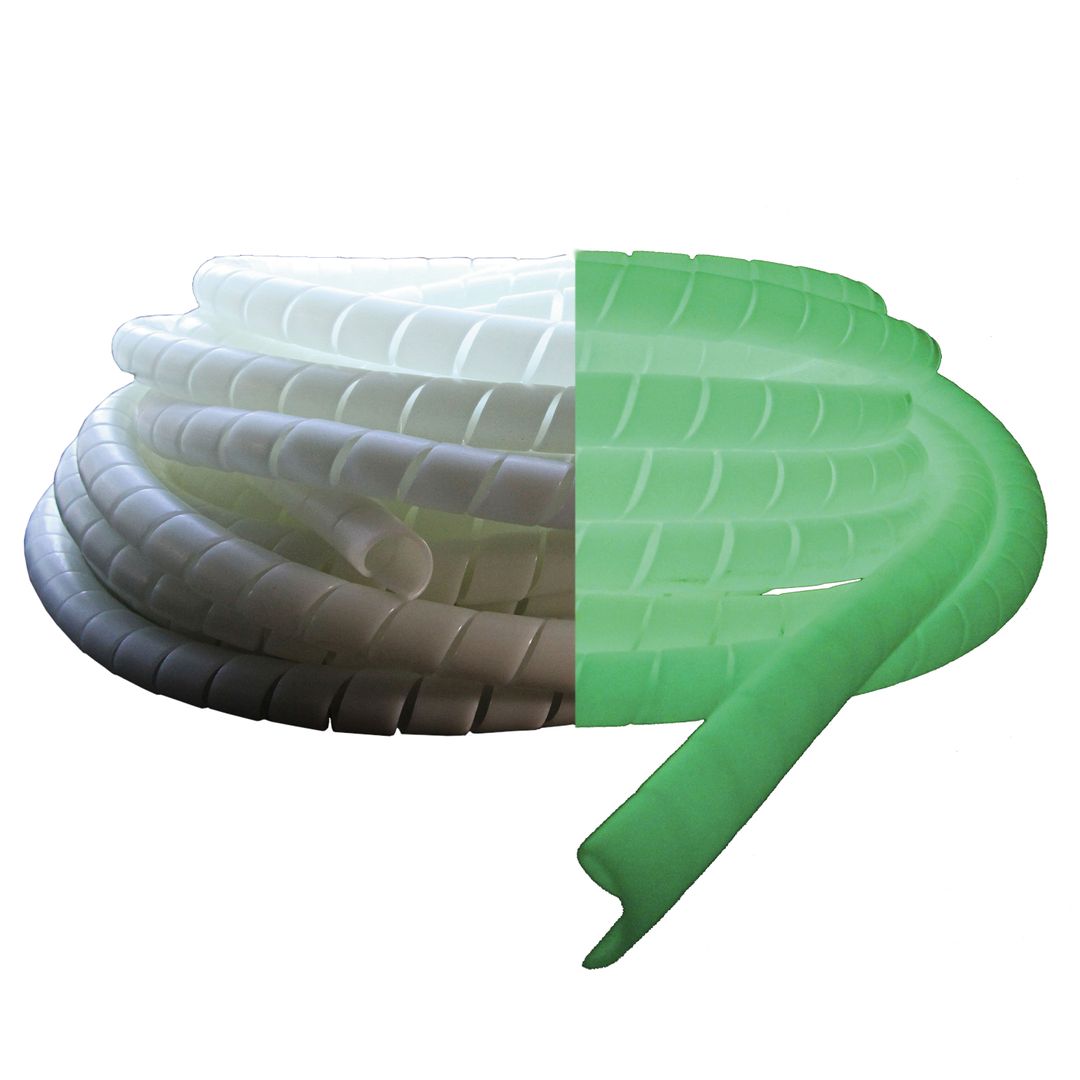

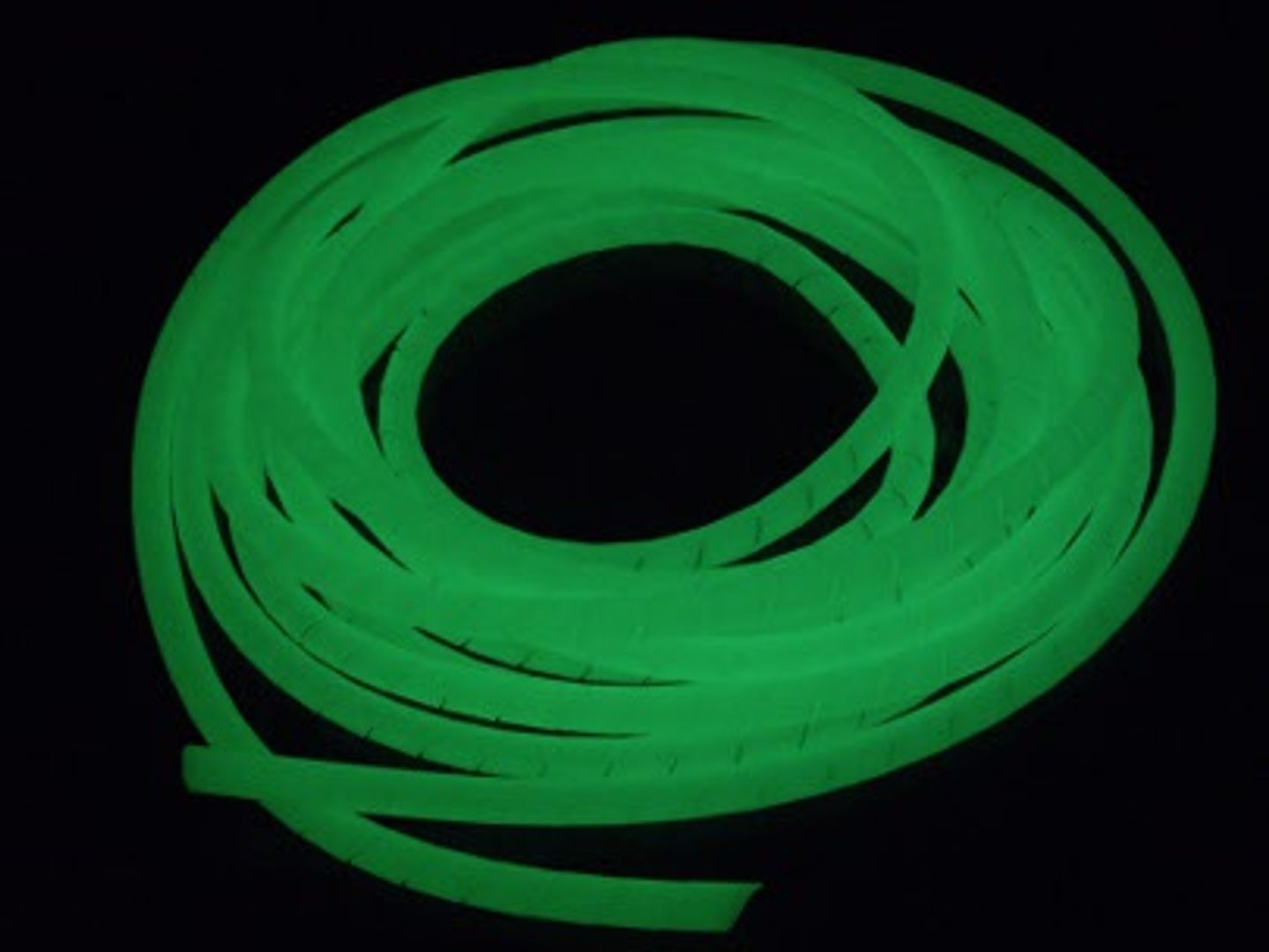

Australian MadeThe Pig’s Tail™ NightGlow (PTNG Series) of spiral wrap is designed to wrap and protect hydraulic hoses and cables. The wrap also provides for easy identification of ruptured hoses and cables in poor lighting or dark conditions, helping to prevent mishaps. The fluorescent feature glows in the dark up to 12 hours. The wrap provides protection from extreme temperature conditions (-40°F up to +280°F) and provides resistance to abrasions.

  • Wrap can be charged by any light source
  • Easy charging all day and glows at night
  • Unique and protective spiral wrap that ensures safety of hoses, cables and other hydraulic equipment even in low light or night time conditions

Additional information

Material

Photoluminescent high-density polyethylene
Service Temperature

-40 – 280° F (-40 – 137° C)
Standard Colour

Natural

Part Sizes

Item Number Hose OD Range (mm) Spiral Wrap ID (mm) Wall Thickness (In) Helix Band Width (In) To Fit Hydraulic Hose Size Metres per Carton Hose OD Range (In) Spiral Wrap ID (In)
N12SSG 9.91 - 16.76 10.16 0.06 0.4 3/8"" 50 0.39 - 0.66 0.40
N16SSG 11.94 - 21.84 11.43 0.06 0.48 1/2"" 20 0.47 - 0.86 0.45
N20SSG 15.75 - 26.92 13.97 0.07 0.57 5/8"" 20 0.62 - 1.06 0.55
N25SSG 21.84 - 34.80 20.32 0.08 0.82 15/16"" 20 0.86 - 1.37 0.80
N32SSG 26.92 - 42.93 25.40 0.09 0.94 1-1/8"" 20 1.06 - 1.69 1.00
N40SSG 33.02 - 55.12 32.00 0.09 1.18 1-3/8"" 20 1.30 - 2.17 1.26
N50SSG 41.91 - 64.01 38.10 0.12 1.38 1-3/4"" 20 1.65 - 2.52 1.50
N63SSG 52.07 - 74.93 50.80 0.14 1.57 2-1/4"" 20 2.05 - 2.95 2.00
N75SSG 65.02 - 96.52 60.96 0.15 1.6 2-5/8"" 20 2.56 - 3.80 2.40
N90SSG 80.01 - 124.46 71.88 0.18 1.78 3"" 20 3.15 - 4.90 2.83
N110SSG 96.52 - 149.86+ 87.12 0.22 2.18 3-7/8"" 12 3.80 - 5.90+ 3.43
