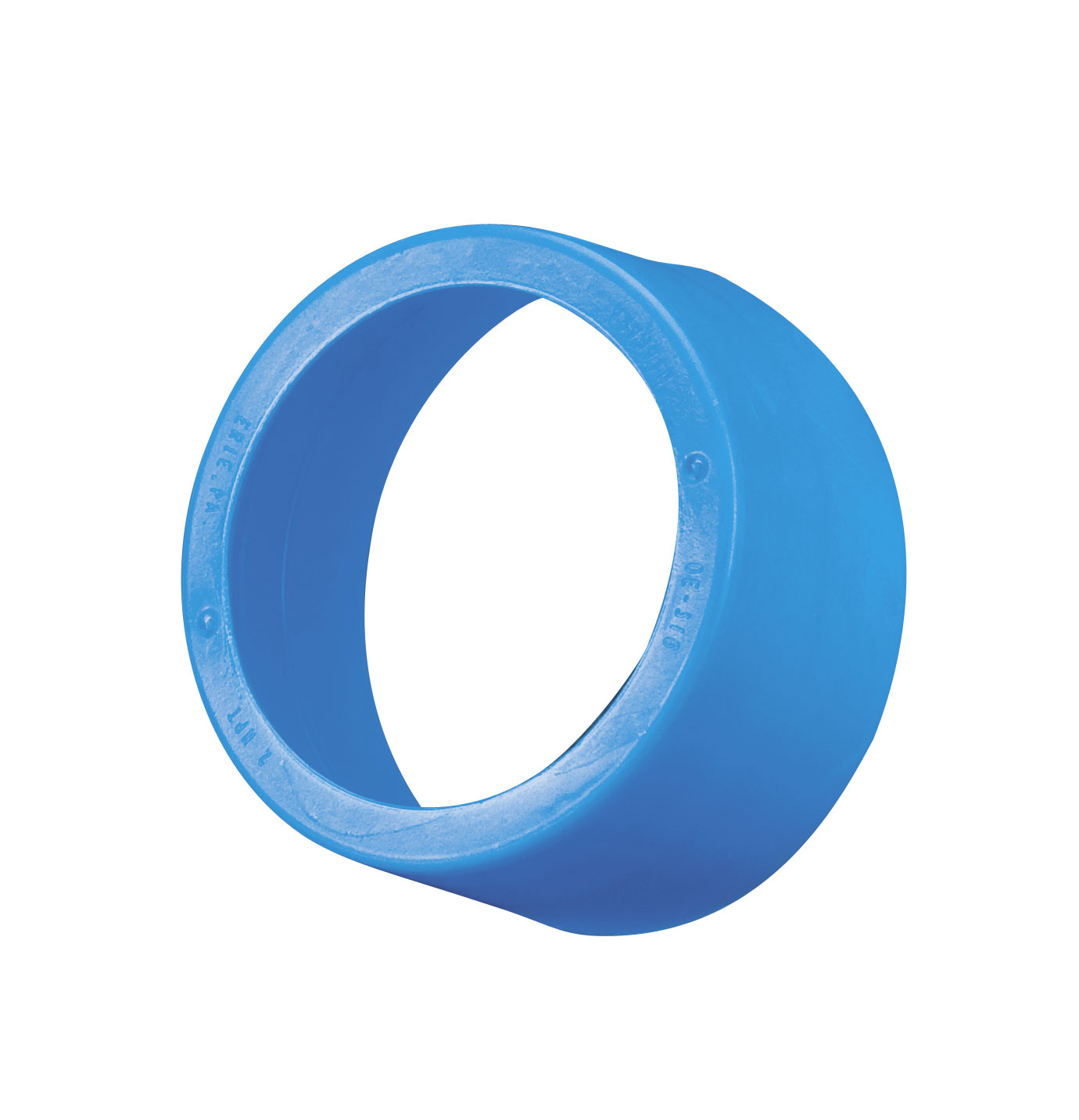

OE Series

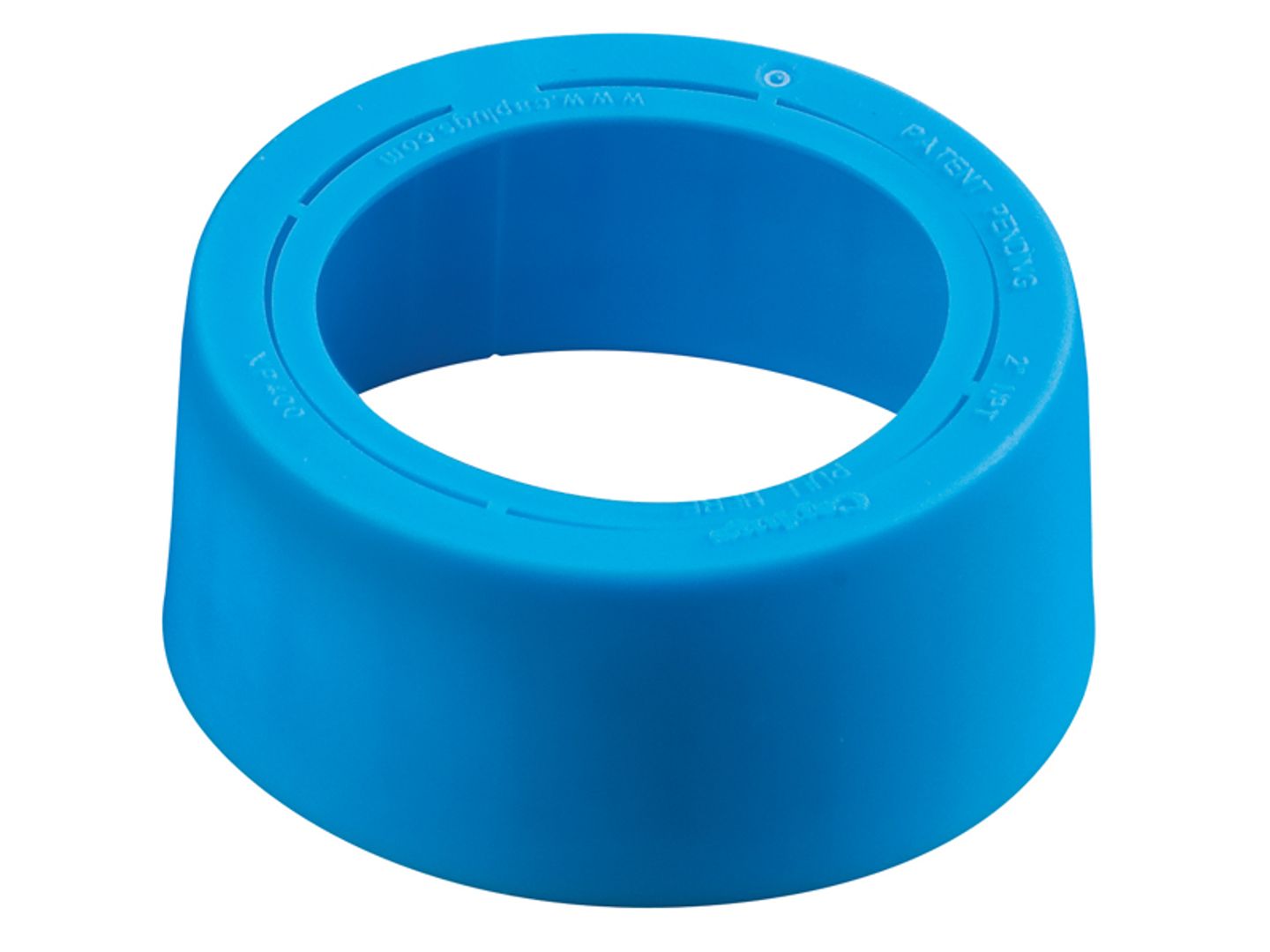

OE Series pipe caps are designed to protect threaded pipes and conduits during shipping, storage and transit. The range is available in two styles: a standard cap or a version featuring the patented Grip It & Rip It™ tear-ring design for easier removal.

The Grip It & Rip It™ version maintains the same overall geometry as the standard design while providing additional protective and handling features.

  • Internal tapered ribs support easier installation and improved impact protection
  • Internal bead at the open end helps prevent moisture entry

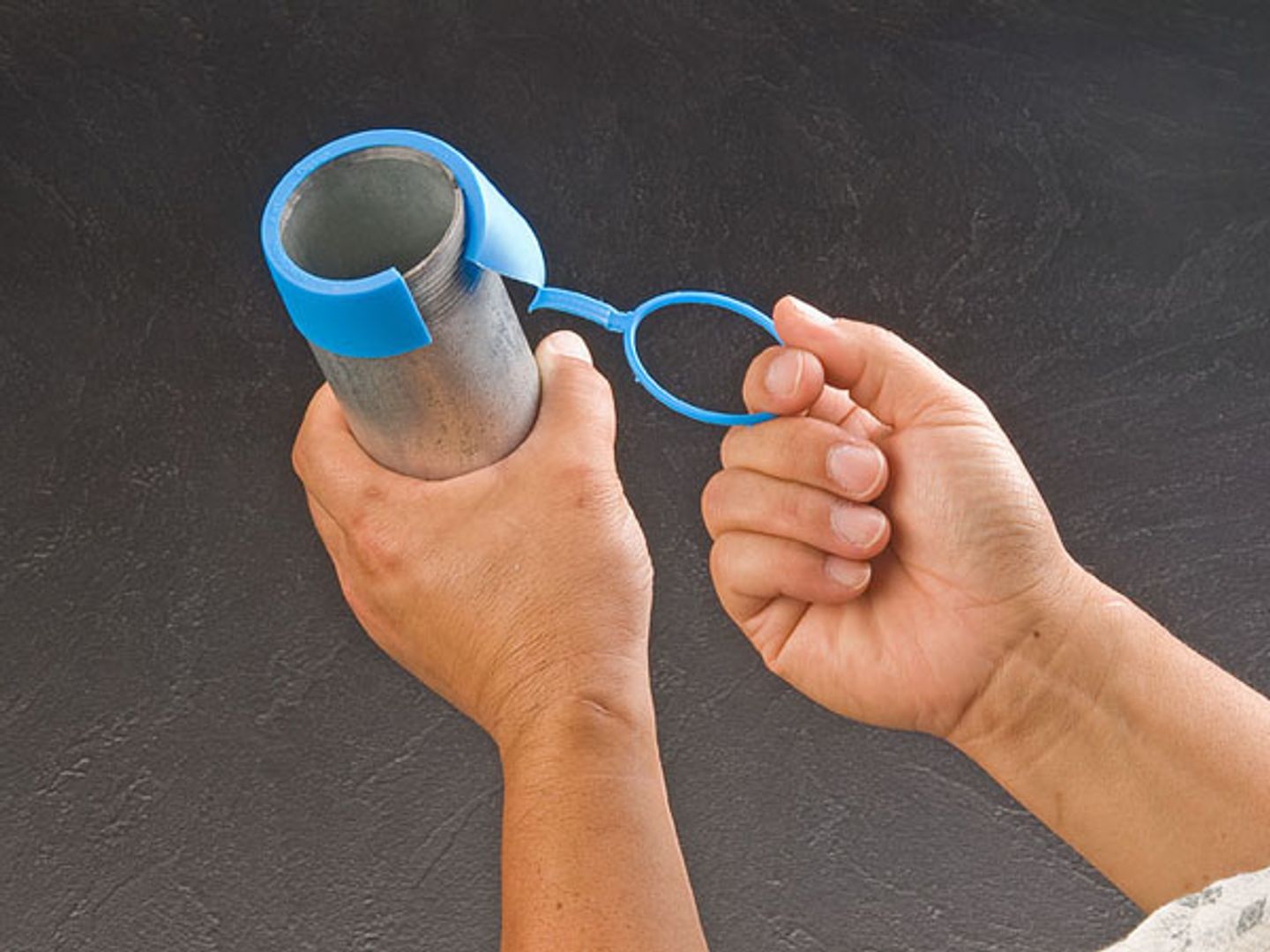

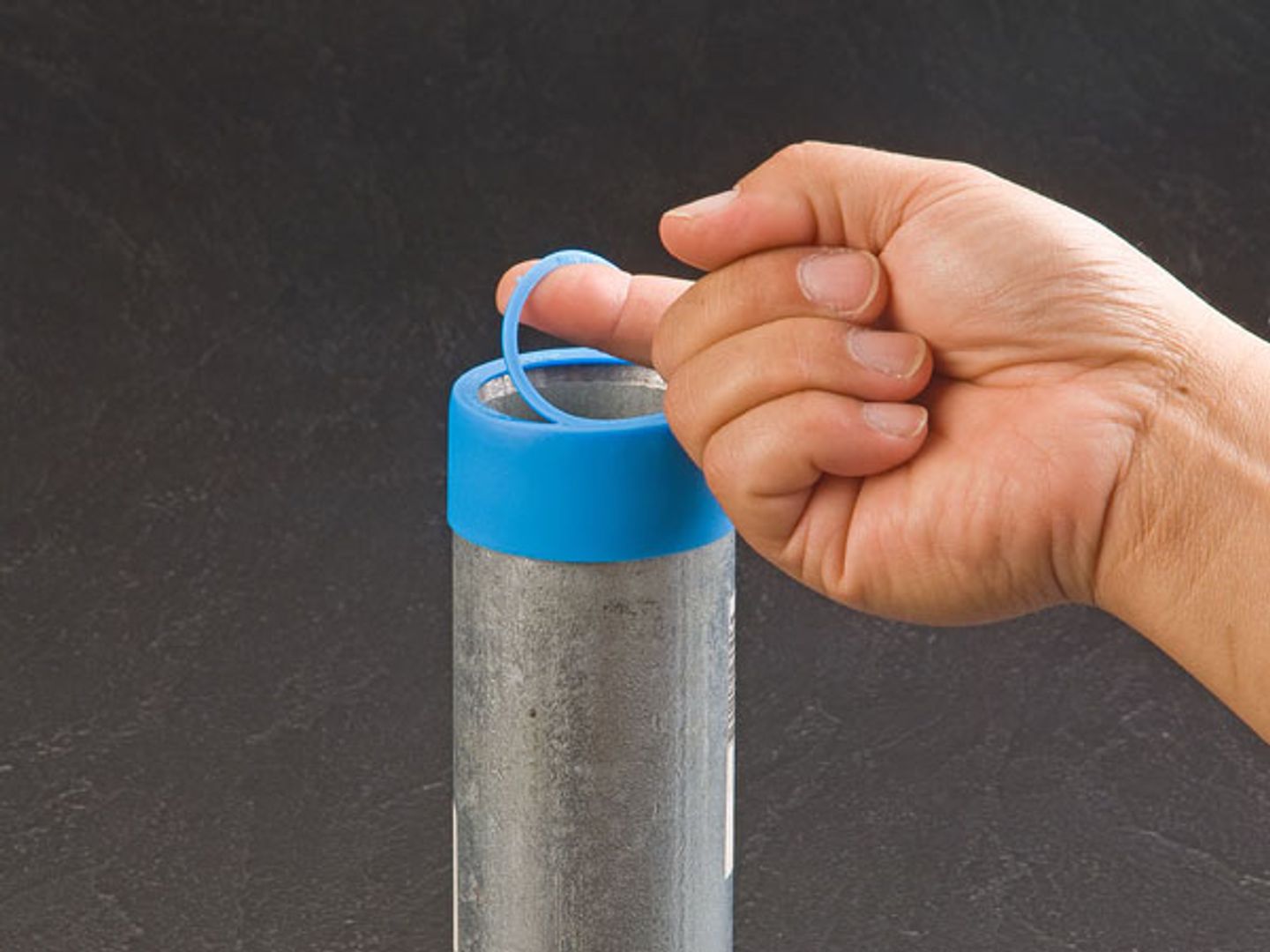

  • Tear-ring design allows removal without tools

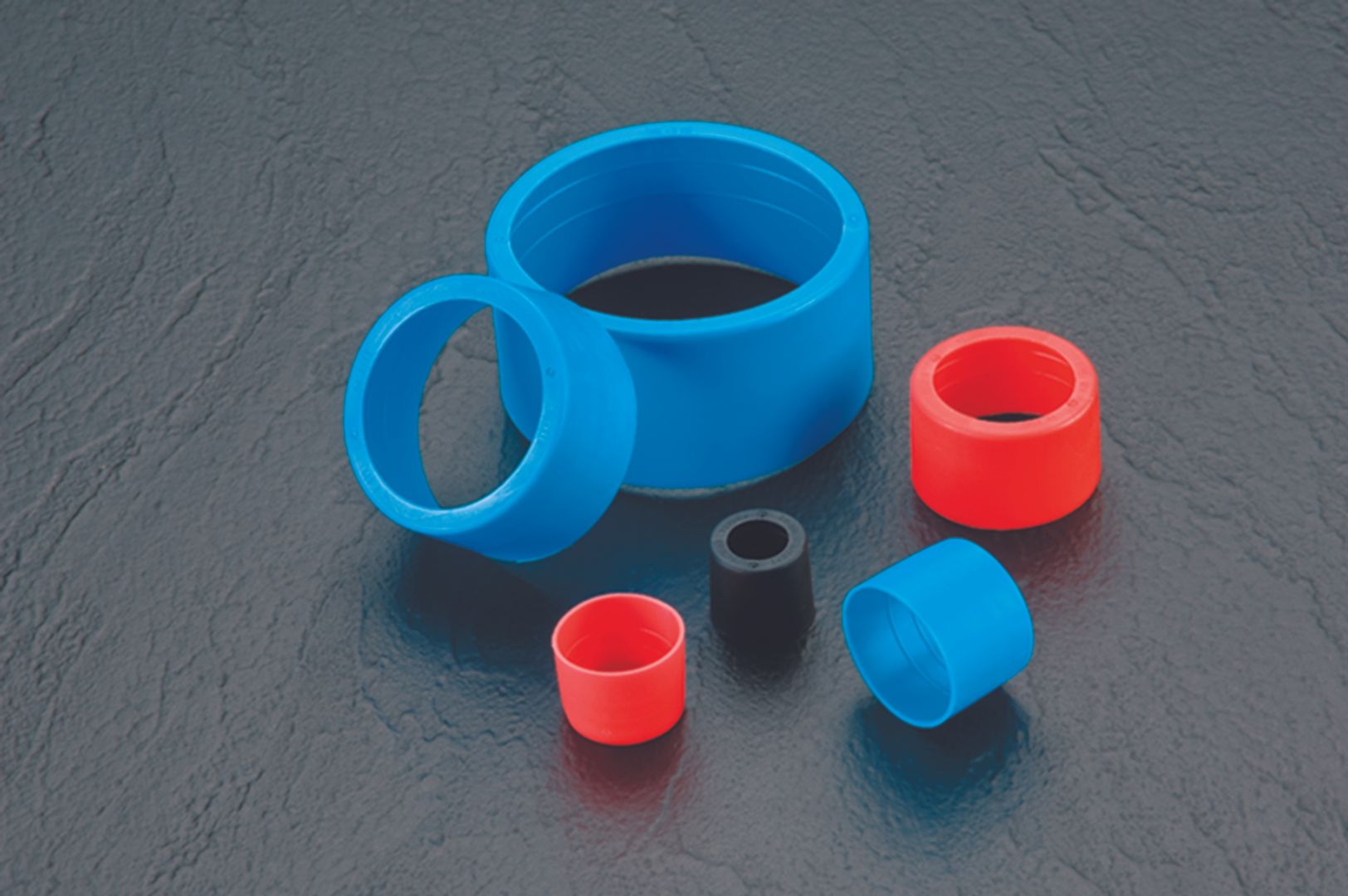

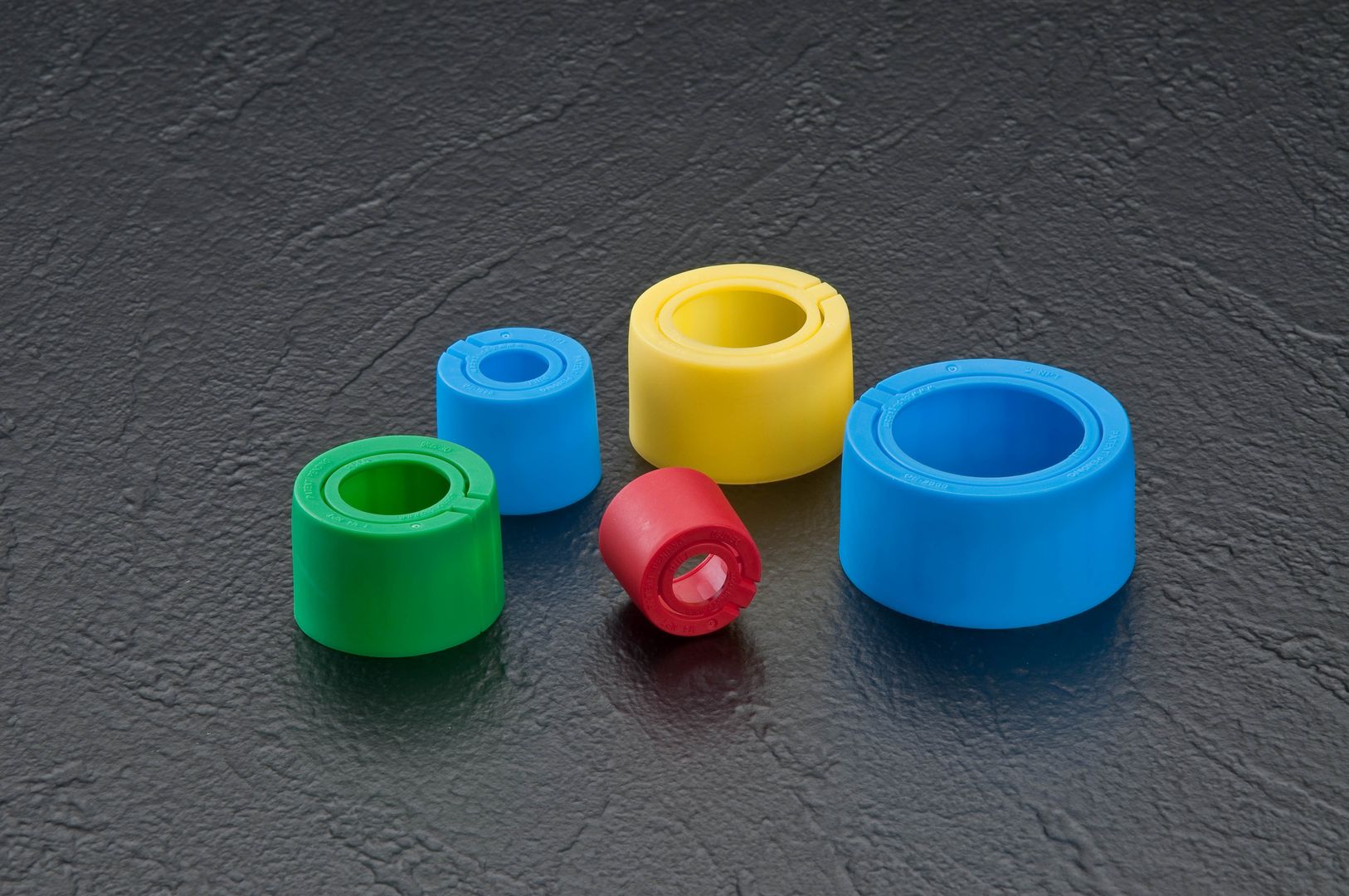

  • Colour-coded for easy identification
  • Extended length provides complete thread coverage

Grip It & Rip It™ design covered by U.S. patents D615,164 and D617,426.

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Various

Part Sizes

Item Number

Nominal Pipe Size (In)

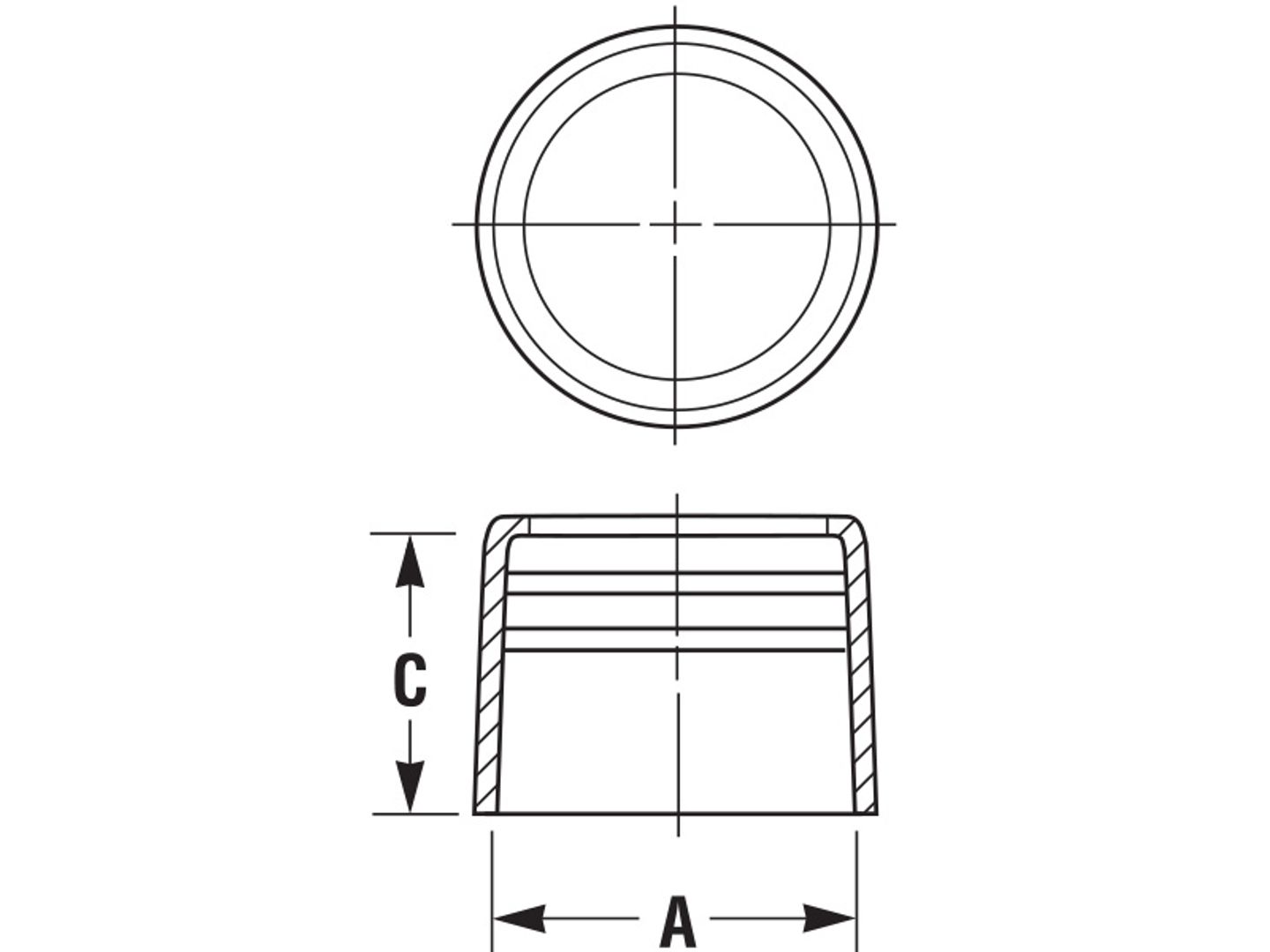

Dim A (In)

Dim C (In)

Grip It & Rip It Design

RMC Colour

IMC Colour

OE-311
1/2
0.84
0.78
-
Black
Yellow
OE-0500
1/2
0.823
0.83
Yes
Black
Yellow
OE-0750
3/4
1.03
0.84
Yes
Red
Green
OE-312
3/4
1.05
0.78
-
Red
Green
OE-1000
1
1.295
1
Yes
Blue
Orange
OE-313
1
1.315
0.97
-
Blue
Orange
OE-1250
1-1/4
1.64
1.03
Yes
Red
Green
OE-314
1-1/4
1.66
1
-
Red
Green
OE-1500
1-1/2
1.88
1.05
Yes
Black
Yellow
OE-315
1-1/2
1.9
1
-
Black
Yellow
OE-2000
2
2.355
1.18
Yes
Blue
Orange
OE-316
2
2.375
1.03
-
Blue
Orange
OE-2500
2-1/2
2.86
1.76
Yes
Black
Yellow
OE-317
2-1/2
2.875
1.56
-
Black
Yellow
OE-3000
3
3.478
1.82
Yes
Blue
Orange
OE-318
3
3.5
1.63
-
Blue
Orange
OE-3500
3-1/2
3.973
1.87
Yes
Black
Yellow
OE-319
3-1/2
4
1.66
-
Black
Yellow
OE-320
4
4.5
1.72
-
Blue
Orange
OE-4000
4
4.468
1.92
Yes
Blue
Orange
OE-5000
5
5.542
2.03
Yes
Blue
–
OE-321
5
5.563
1.81
-
Blue
–
OE-322
6
6.625
1.94
-
Blue
–
OE-6000
6
6.58
2.11
Yes
Blue
–
OE-10000
10
10.673
2.55
Yes
Black
–
