PCX-SH Series

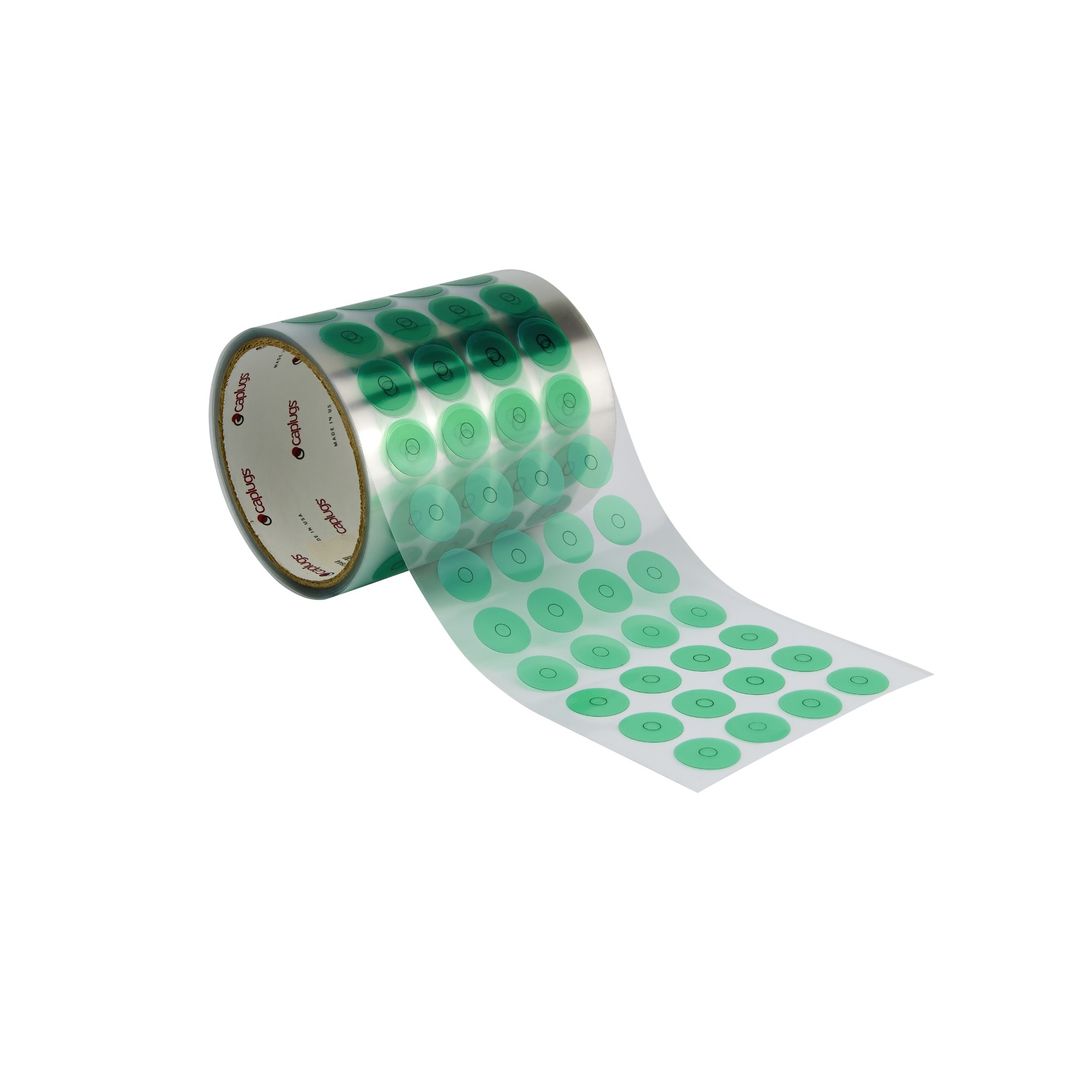

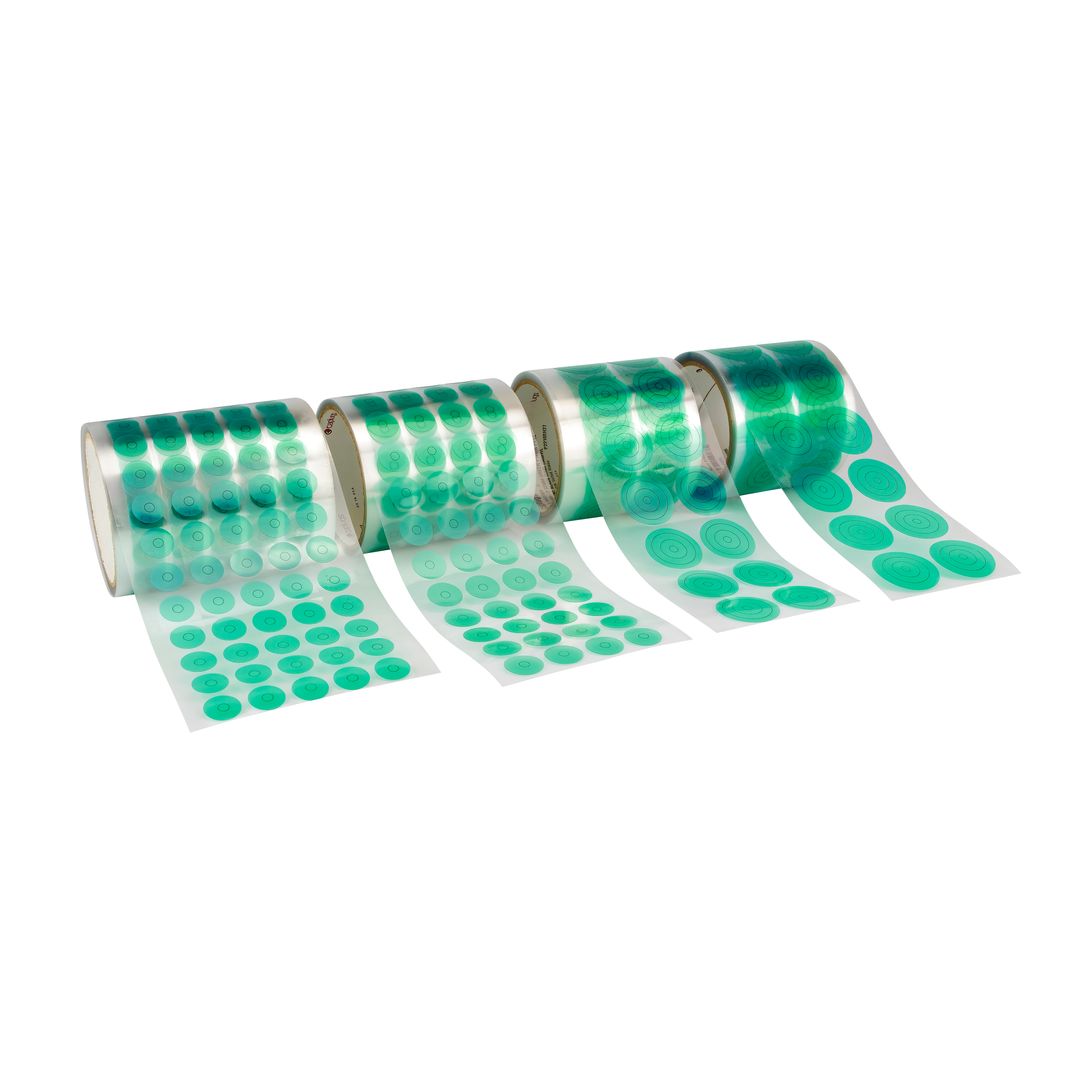

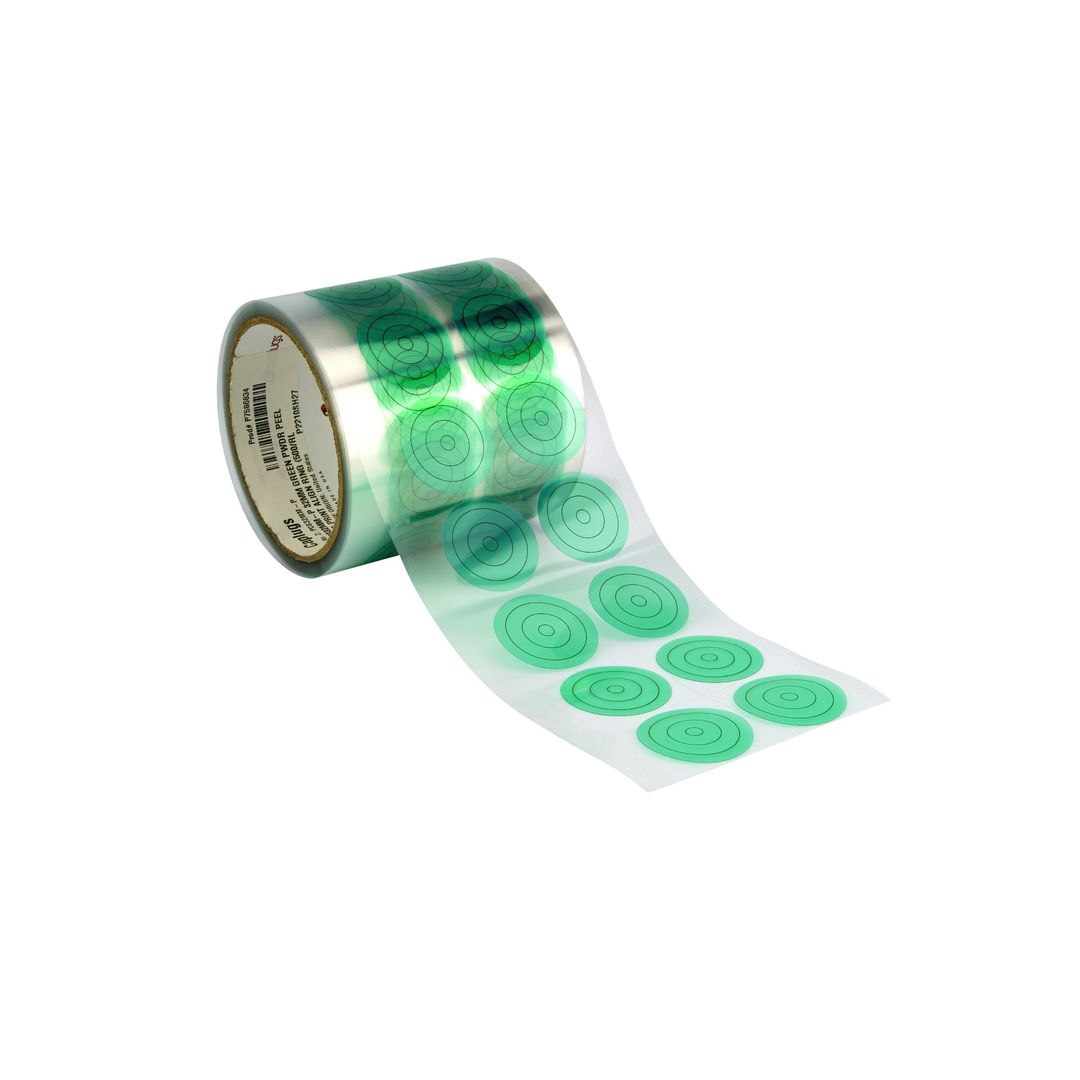

PCX-SH Series green powder peel discs feature printed alignment rings to help position each disc accurately over holes. They are designed for masking applications during powder coating, e-coating and anodising processes.

  • Printed target rings allow easy and accurate positioning
  • Available in standard imperial and metric sizes
  • Withstands temperatures up to 204°C (400°F)
  • Silicone adhesive removes cleanly without leaving residue
  • 2 mm polyester film with 1.5 mm silicone adhesive

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Polyester
Standard Colour

Green

Part Sizes

Item Number

Qty per Roll

Diameter (In)

PC007MM-P
2000
0.276
PC008MM-P
2000
0.315
PC010MM-P
2000
0.394
PC012MM-P
2000
0.472
PC014MM-P
2000
0.551
PC015MM-P
2000
0.591
PC016MM-P
2000
0.63
PC018MM-P
1000
0.709
PC020MM-P
1000
0.787
PC022MM-P
500
0.866
PC024MM-P
500
0.945
PC025MM-P
500
0.984
PC030MM-P
500
1.181
PC032MM-P
500
1.26
PC033MM-P
500
1.299
PC036MM-P
500
1.417
PC01500-P
500
1.5
PC040MM-P
250
1.575
PC050MM-P
250
1.969
PC02250-P
100
2.25
PC02500-P
100
2.5
