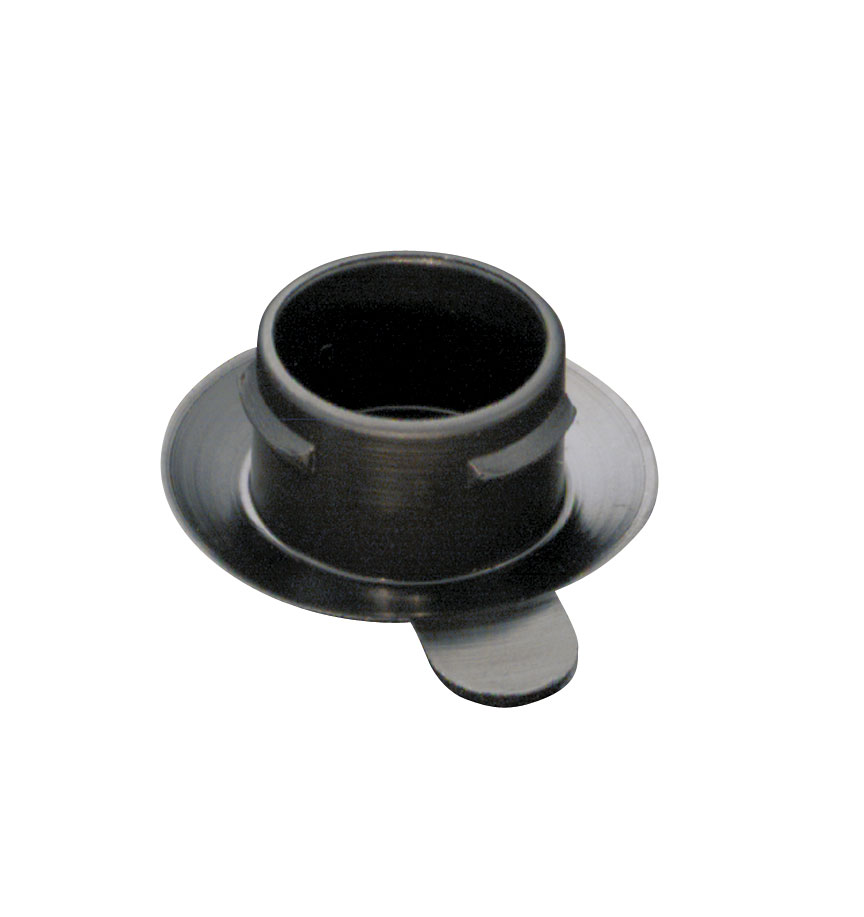

PIP-TAB Series

PIP-TAB Series push-in plugs with pull-tabs suit SAE thread sizes, combining easy push-in installation with the secure fit of a threaded plug.

  • Side pull-tab allows easy removal

  • Combines push-in convenience with the secure fit of a threaded plug

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Linear low-density polyethylene
Service Temperature

94 – 175° F (-70 – 66° C)
Standard Colour

Black

Part Sizes

Item Number

To Fit SAE Thread Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

PIP-3/8-TAB
3/8
0.317
0.24
0.59
PIP-7/16-TAB
7/16
0.37
0.27
0.64
PIP-1/2-TAB
1/2
0.444
0.27
0.72
PIP-9/16-TAB
9/16
0.5
0.29
0.81
PIP-5/8-TAB
5/8
0.558
0.29
0.96
PIP-3/4-TAB
3/4
0.681
0.29
0.95
PIP-7/8-TAB
7/8
0.797
0.29
1.15
PIP-1 5/8-TAB
1-5/8
1.525
0.46
2.03
PIP-1 7/8-TAB
1-7/8
1.775
0.5
2.28
