SAE Series

Push-in Flange Protectors for SAE Code 61 & 62

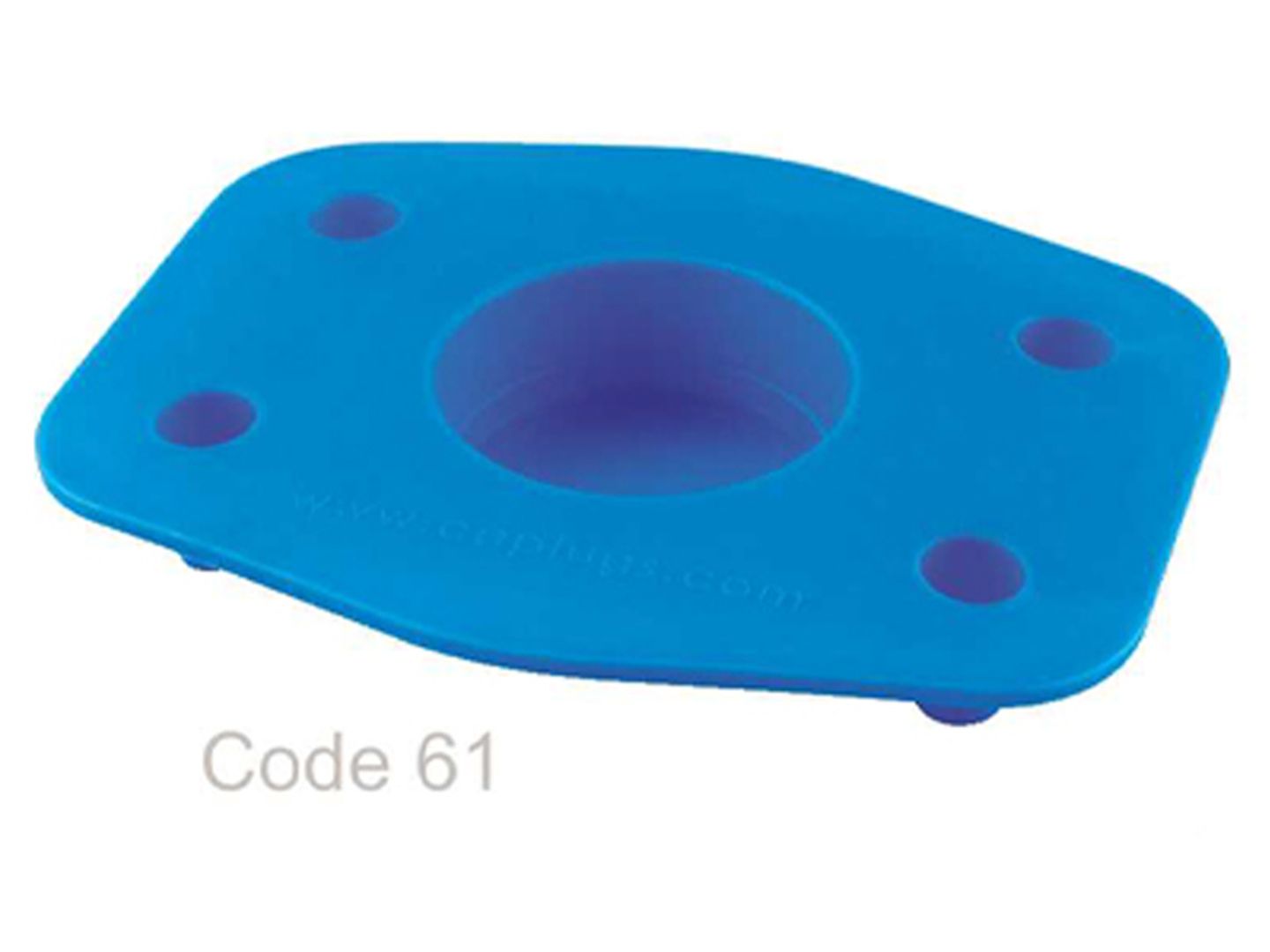

SAE Series flange protectors are designed for SAE Code 61 (3000 PSI) and Code 62 (6000 PSI) to provide full coverage. Simply insert the centre bore, and the lugs will align with the bolt hole pattern.

  • Made to fit the following hydraulic flanges: BSPP, NPTF, SAE threads and deep socket weld

Additional information

Material

Low-Density Polyethylene
Service Temperature

-94 – 175° F (-70 – 79° C)
Standard Colour

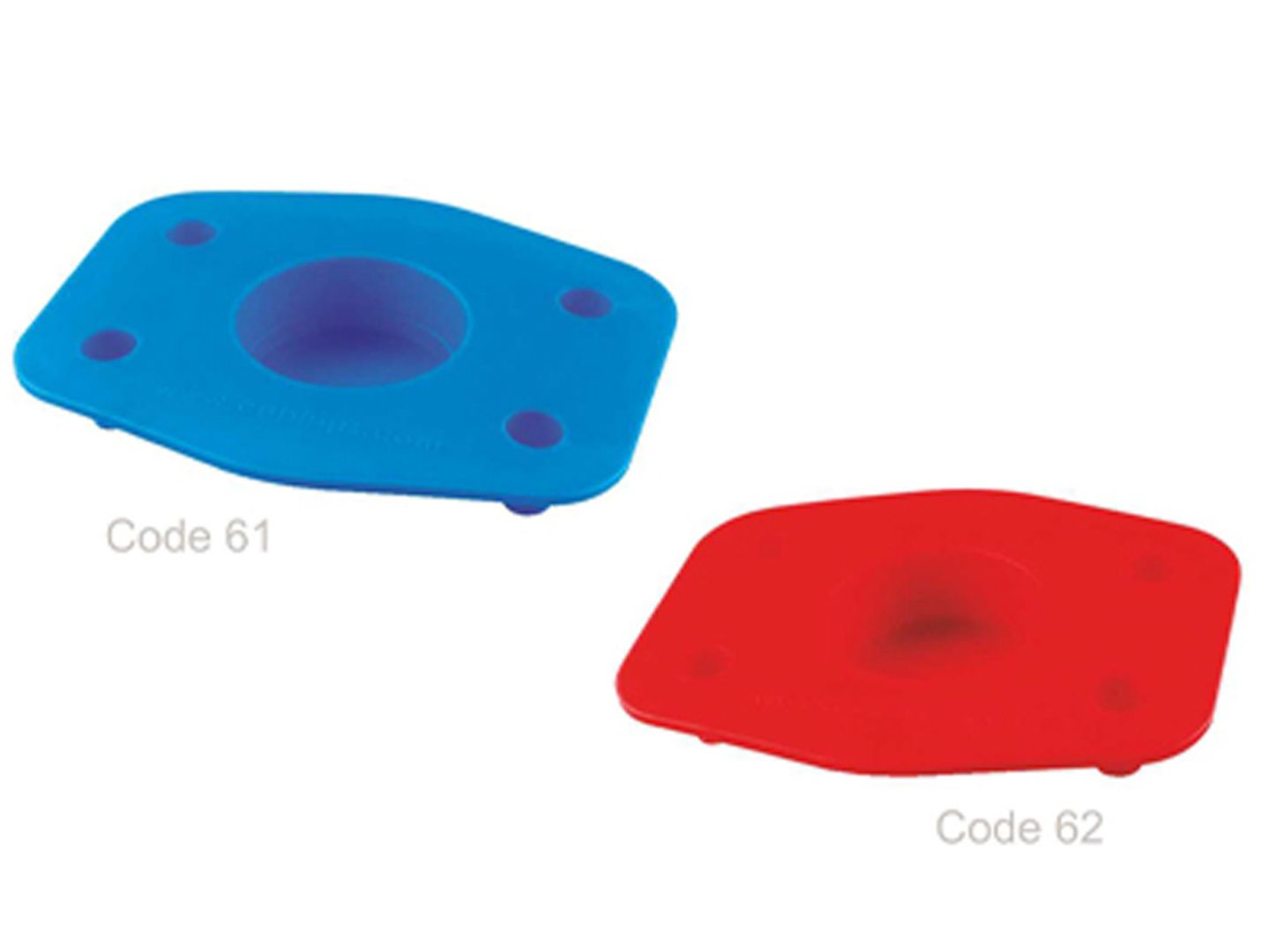

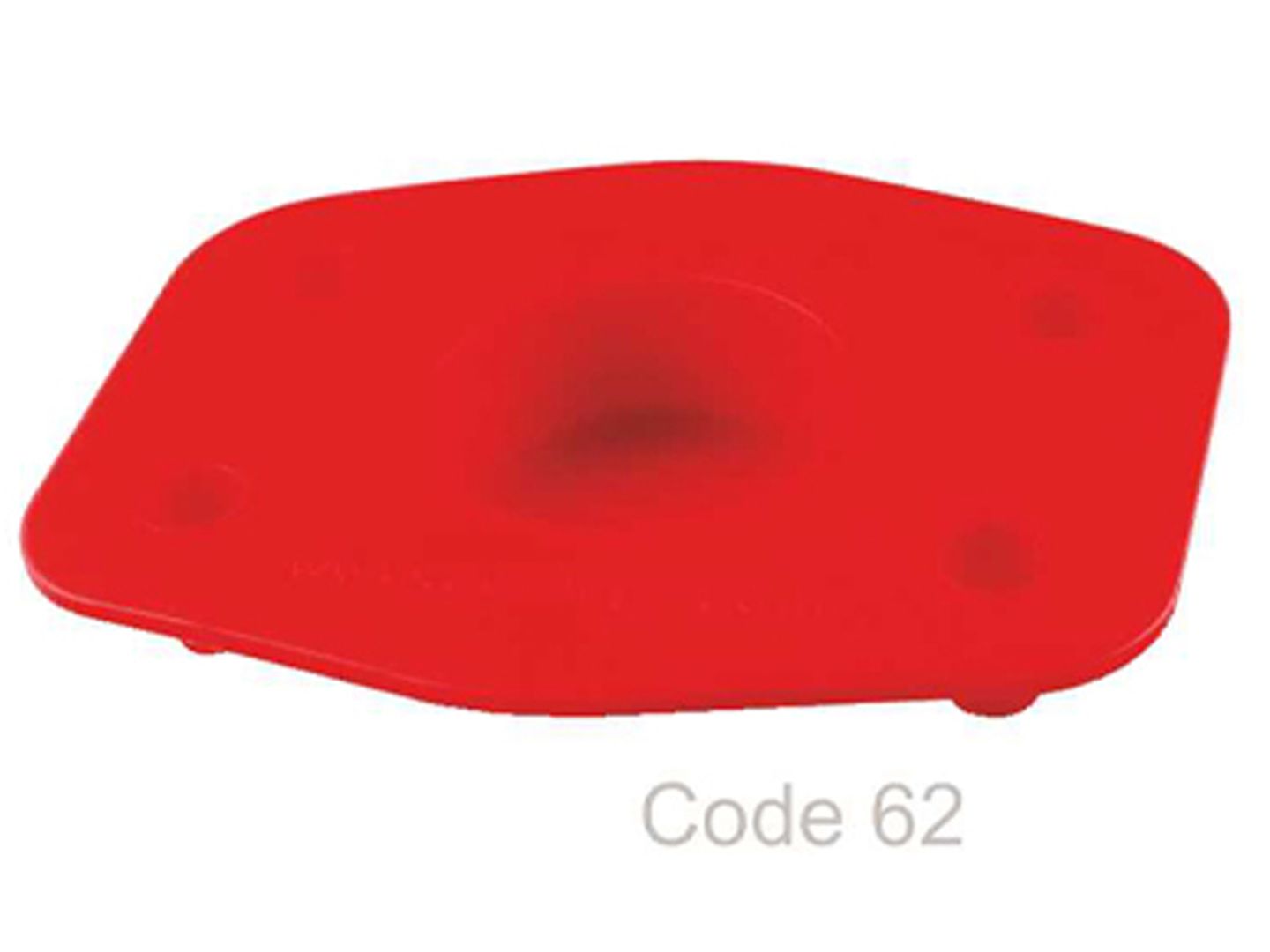

Code 61 – Blue, Code 62 – Red

Part Sizes

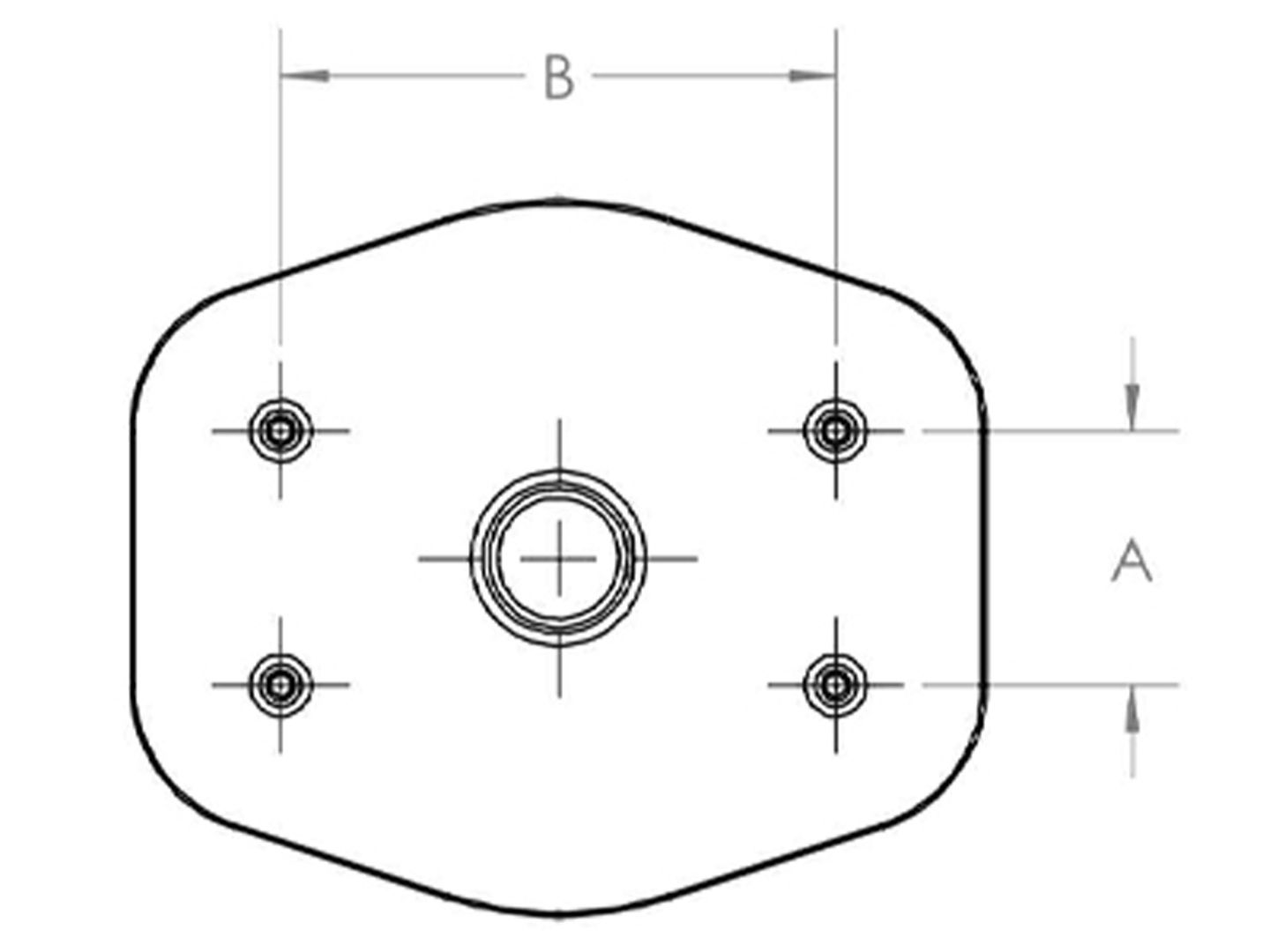

Item Number Description Flange Pressure Class (PSI) Nominal Flange Size (In) Dim A (In) Dim B (In) Flange OD (In) Flange OD (mm) Dim A (mm) Dim B (mm)
SAE61-0500 CODE 61 1/2"" 3000 1/2 0.69 1.50 1.888 47.96 17.53 38.10
QSAE61-0500Q1 CODE 61 1/2"" 0.69 1.50 17.53 38.10
SAE61-0500Q1 CODE 61 1/2"" 0.69 1.50 17.53 38.10
SAE61-0750 CODE 61 3/4"" 3000 3/4 0.88 1.88 1.500 38.10 22.35 47.75
QSAE61-0750Q1 CODE 61 3/4"" 0.88 1.88 22.35 47.75
SAE61-0750Q1 CODE 61 3/4"" 0.88 1.88 22.35 47.75
SAE61-1000 CODE 61 1"" 3000 1 1.03 2.06 1.750 44.45 26.16 52.32
QSAE61-1000Q1 CODE 61 1"" 1.03 2.06 26.16 52.32
SAE61-1000Q1 CODE 61 1"" 1.03 2.06 26.16 52.32
SAE61-1250 CODE 61 1-1/4"" 3000 1 1/4 1.19 2.31 2.000 50.80 30.23 58.67
QSAE61-1250Q1 CODE 61 1-1/4"" 1.19 2.31 30.23 58.67
SAE61-1250Q1 CODE 61 1-1/4"" 1.19 2.31 30.23 58.67
SAE61-1500 CODE 61 1-1/2"" 3000 1 1/2 1.41 2.75 2.375 60.33 35.81 69.85
QSAE61-1500Q1 CODE 61 1-1/2"" 1.41 2.75 35.81 69.85
SAE61-1500Q1 CODE 61 1-1/2"" 1.41 2.75 35.81 69.85
SAE61-2000 CODE 61 2"" 3000 2 1.69 3.06 2.812 71.42 42.93 77.72
QSAE61-2000Q1 CODE 61 2"" 1.69 3.06 42.93 77.72
SAE61-2000Q1 CODE 61 2"" 1.69 3.06 42.93 77.72
SAE62-0500 CODE 62 1/2"" 6000 1/2 0.72 1.59 1.250 31.75 18.29 40.39
QSAE62-0500Q1 CODE 62 1/2"" 0.72 1.59 18.29 40.39
SAE62-0500Q1 CODE 62 1/2"" 0.72 1.59 18.29 40.39
SAE62-0750 CODE 62 3/4"" 6000 3/4 0.94 2.00 1.625 41.28 23.88 50.80
QSAE62-0750Q1 CODE 62 3/4"" 0.94 2.00 23.88 50.80
SAE62-0750Q1 CODE 62 3/4"" 0.94 2.00 23.88 50.80
SAE62-1000 CODE 62 1"" 6000 1 1.09 2.25 1.875 47.63 27.69 57.15
QSAE62-1000Q1 CODE 62 1"" 1.09 2.25 27.69 57.15
SAE62-1000Q1 CODE 62 1"" 1.09 2.25 27.69 57.15
SAE62-1250 CODE 62 1-1/4"" 6000 1 1/4 1.25 2.63 2.125 53.98 31.75 66.80
QSAE62-1250Q1 CODE 62 1-1/4"" 1.25 2.63 31.75 66.80
SAE62-1250Q1 CODE 62 1-1/4"" 1.25 2.63 31.75 66.80
SAE62-1500 CODE 62 1-1/2"" 6000 1 1/2 1.44 3.13 2.500 63.50 36.58 79.50
QSAE62-1500Q1 CODE 62 1-1/2"" 1.44 3.13 36.58 79.50
SAE62-1500Q1 CODE 62 1-1/2"" 1.44 3.13 36.58 79.50
SAE62-2000 CODE 62 2"" 6000 2 1.75 3.81 3.125 79.38 44.45 96.77
QSAE62-2000Q1 CODE 62 2"" 1.75 3.81 44.45 96.77
SAE62-2000Q1 CODE 62 2"" 1.75 3.81 44.45 96.77
