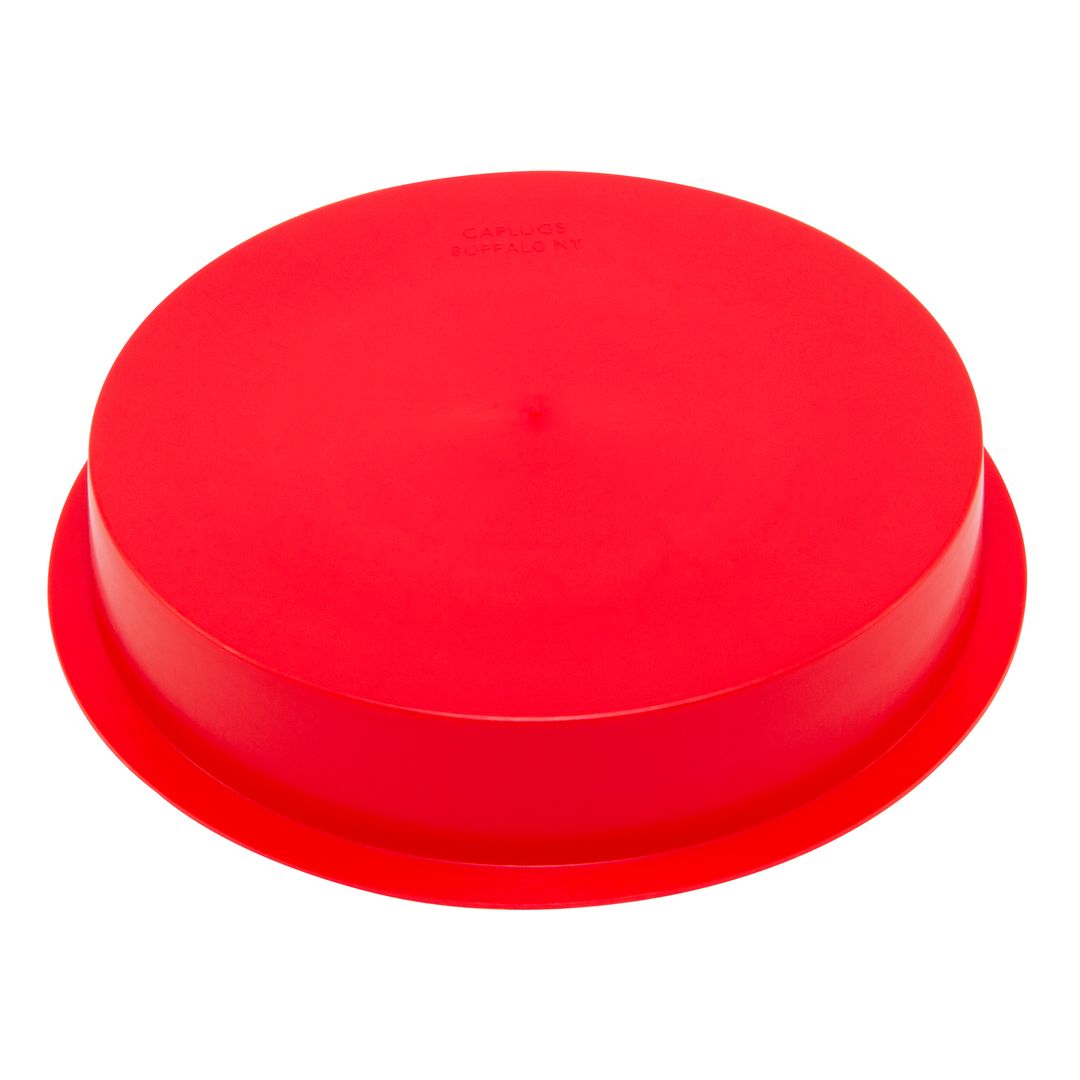

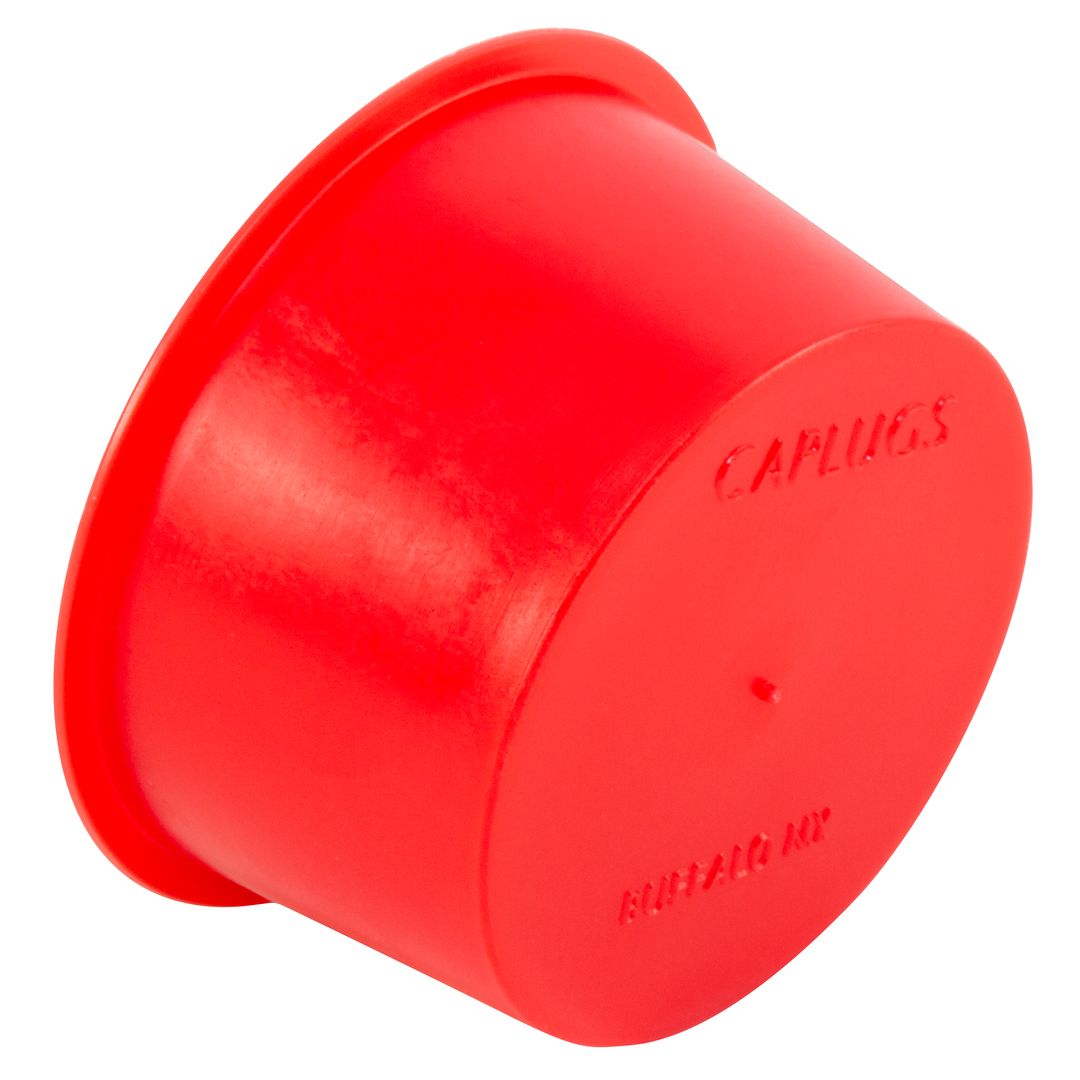

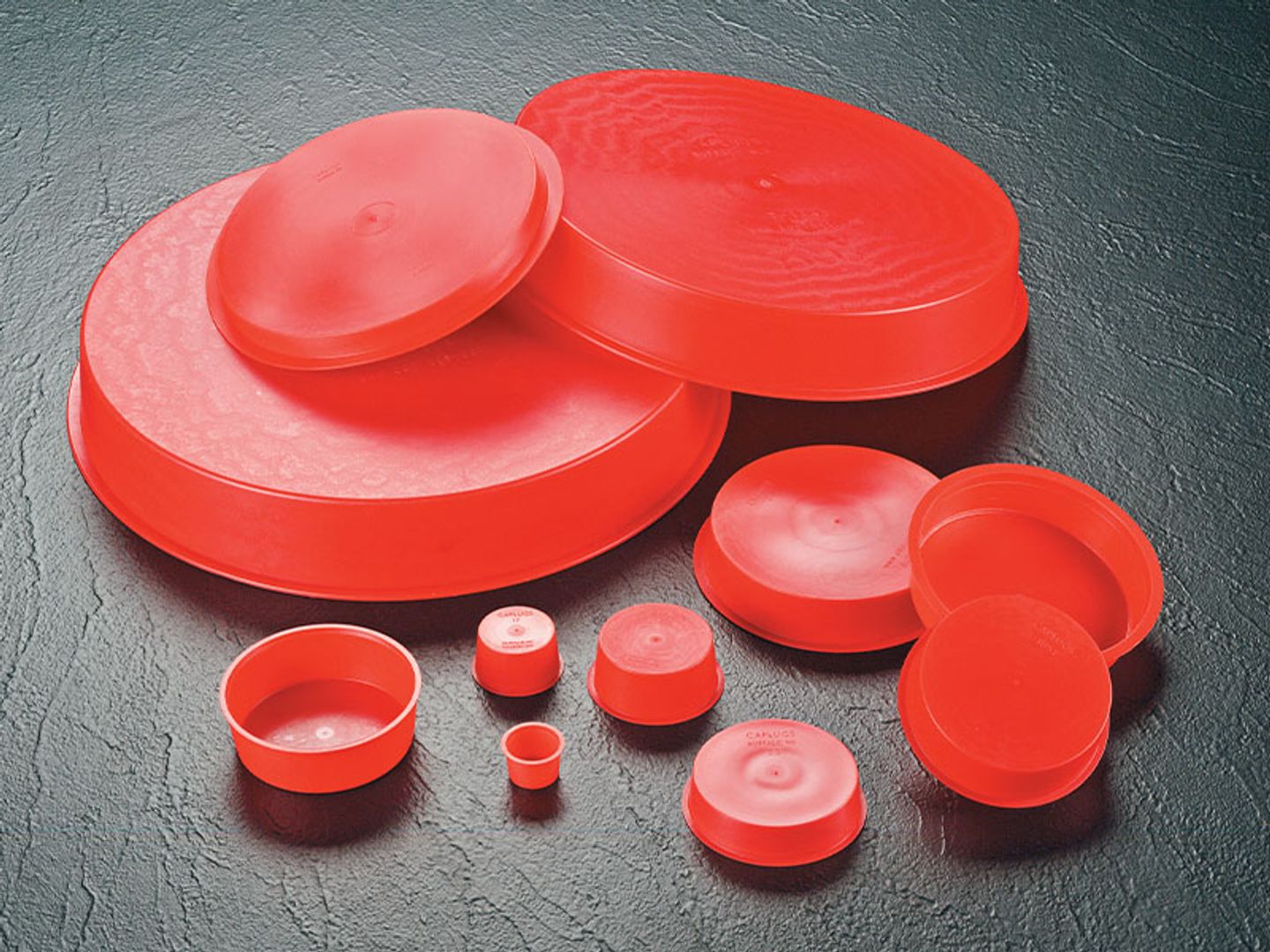

T Series

Tapered Caps and Plugs

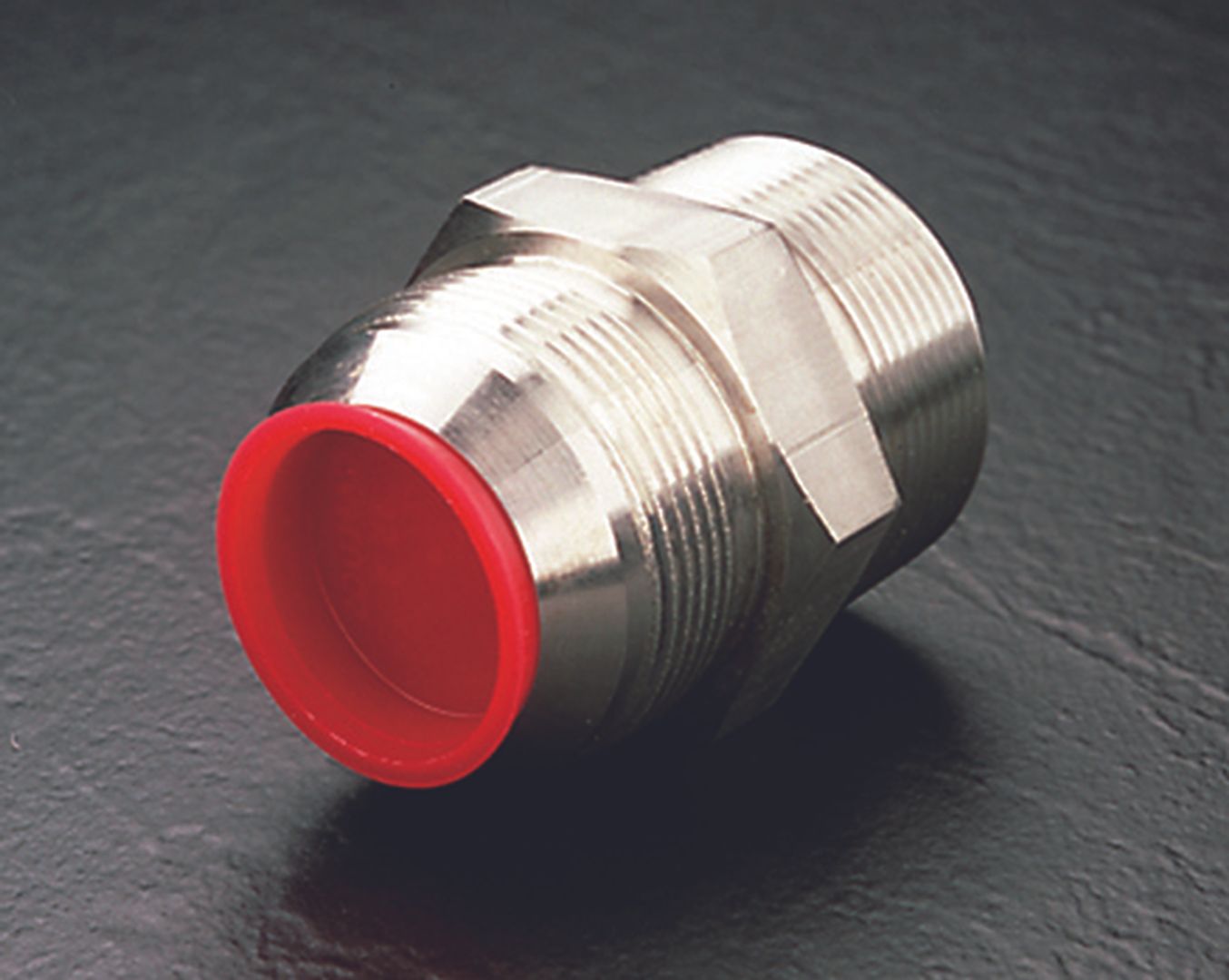

The T Series is designed for use as both a cap or plug, with a tapered shape to fit a wide range of applications, protecting against contaminants, foreign objects and debris. Suitable for MIL spec, SAE-type fittings, hydraulic and threaded or non-threaded fittings.

  • Tapered design

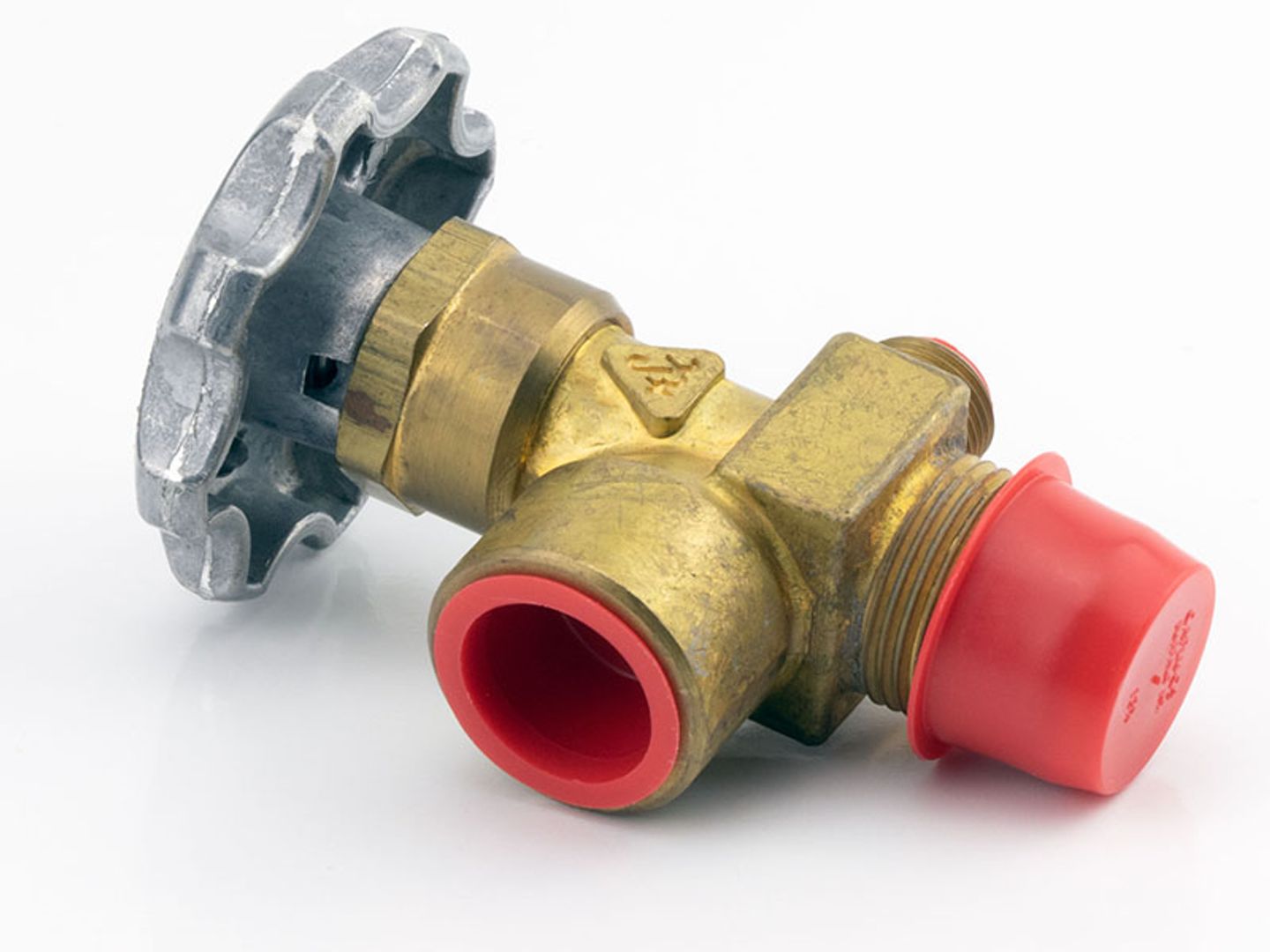

  • Suitable for a wide range of cap or plug applications
  • Easy installation and removal

Additional information

Material

Low-density polyethylene or FlexTemp (thermoplastic rubber)
Standard Colour

Red
Optional Colour

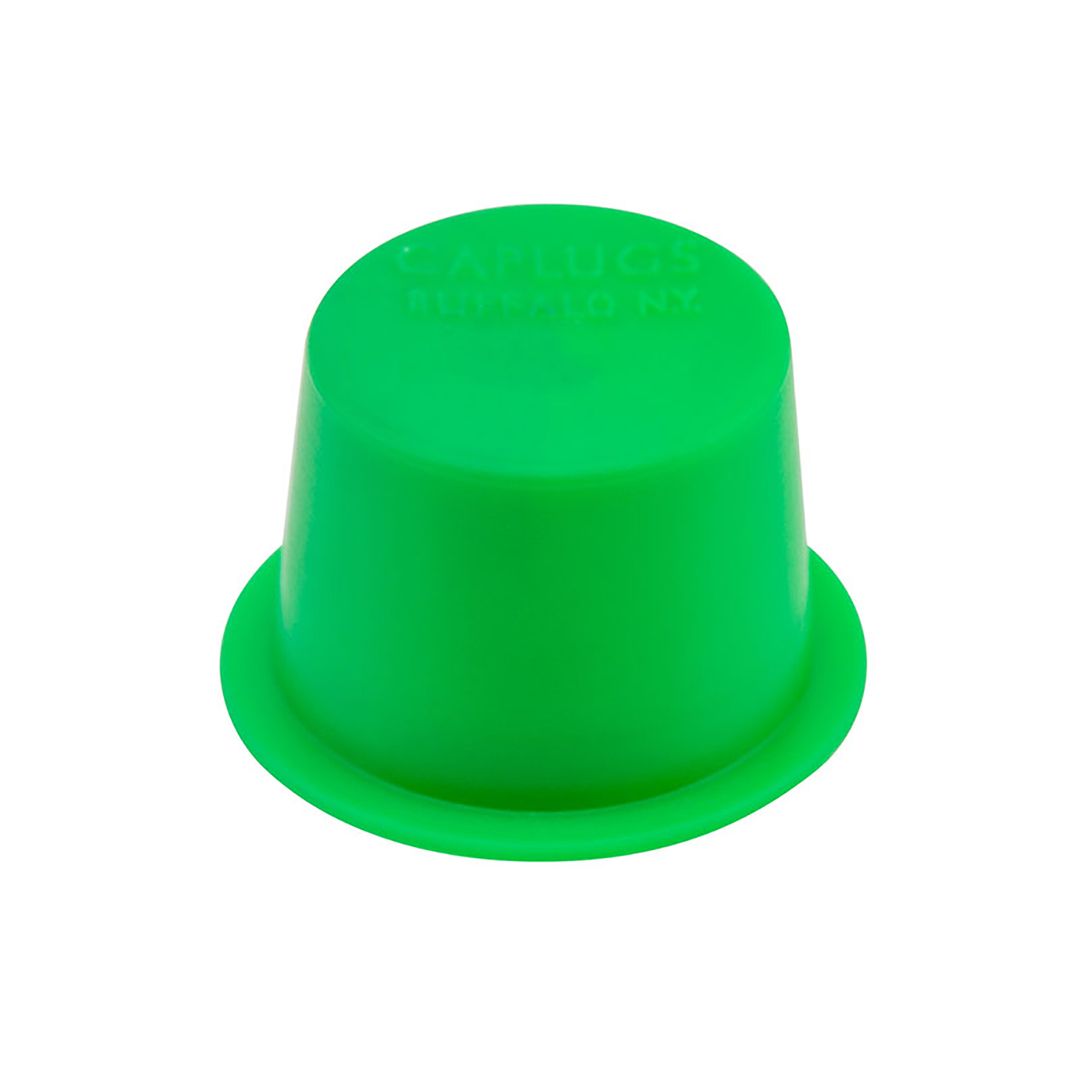

Green for FlexTemp
Applicable Specs

NAS 834

Part Sizes

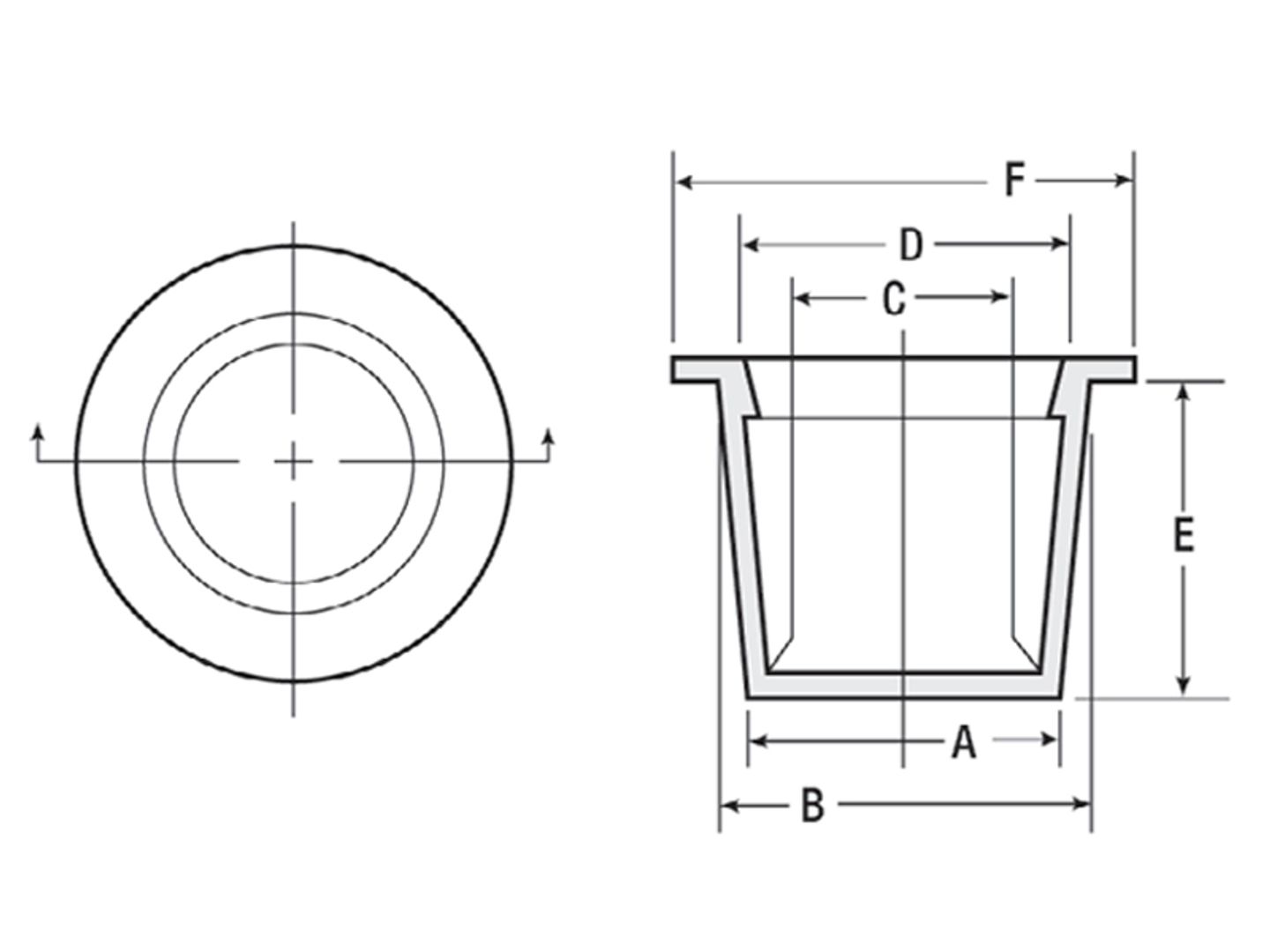

Item Number Dim A (In) Dim B (In) Dim C (In) Dim D (In) Dim E (In) Dim F (In) Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm) Dim F (mm)
T-00 0.116 0.182 0.053 0.120 0.38 0.31 2.95 4.62 1.35 3.05 9.65 7.87
T-00S 0.140 0.180 0.088 0.109 0.22 0.31 3.56 4.57 2.24 2.77 5.59 7.87
T-00X 0.145 0.205 0.079 0.150 0.38 0.41 3.68 5.21 2.01 3.81 9.65 10.41
T-0 0.173 0.240 0.111 0.177 0.38 0.38 4.39 6.10 2.82 4.50 9.65 9.65
T-0 0.173 0.240 0.111 0.177 0.38 0.38 4.39 6.10 2.82 4.50 9.65 9.65
T-0X 0.184 0.255 0.113 0.172 0.38 0.38 4.67 6.48 2.87 4.37 9.65 9.65
T-0X 0.184 0.255 0.113 0.172 0.38 0.38 4.67 6.48 2.87 4.37 9.65 9.65
T-235-V 0.209 0.269 0.150 0.210 0.340 0.380 5.30 6.83 3.81 5.33 8.63 9.65
T-254-S 0.210 0.275 0.146 0.211 0.31 0.45 5.33 6.99 3.71 5.36 7.87 11.43
T-1 0.236 0.302 0.174 0.240 0.38 0.44 5.99 7.67 4.42 6.10 9.65 11.18
T-1 0.236 0.302 0.174 0.240 0.38 0.44 5.99 7.67 4.42 6.10 9.65 11.18
T-1X 0.267 0.335 0.205 0.273 0.38 0.47 6.78 8.51 5.21 6.93 9.65 11.94
T-1X 0.267 0.335 0.205 0.273 0.38 0.47 6.78 8.51 5.21 6.93 9.65 11.94
T-2 0.299 0.365 0.235 0.302 0.38 0.50 7.59 9.27 5.97 7.67 9.65 12.70
T-2 (FLEX) 0.299 0.365 0.235 0.302 0.38 0.50 7.59 9.27 5.97 7.67 9.65 12.70
T-2S 0.325 0.367 0.263 0.305 0.19 0.50 8.26 9.32 6.68 7.75 4.83 12.70
T-2X 0.330 0.396 0.267 0.333 0.38 0.53 8.38 10.06 6.78 8.46 9.65 13.46
T-3 0.361 0.427 0.298 0.365 0.38 0.56 9.17 10.85 7.57 9.27 9.65 14.22
T-3 0.361 0.427 0.298 0.365 0.38 0.56 9.17 10.85 7.57 9.27 9.65 14.22
T-3X 0.390 0.456 0.327 0.394 0.38 0.59 9.91 11.58 8.31 10.01 9.65 14.99
T-3X (FLEX) 0.390 0.456 0.327 0.394 0.38 0.59 9.91 11.58 8.31 10.01 9.65 14.99
T-4 0.419 0.485 0.356 0.422 0.38 0.63 10.64 12.32 9.04 10.72 9.65 16.00
T-4 0.419 0.485 0.356 0.422 0.38 0.63 10.64 12.32 9.04 10.72 9.65 16.00
T-4X 0.447 0.513 0.385 0.451 0.38 0.66 11.35 13.03 9.78 11.46 9.65 16.76
T-4X 0.447 0.513 0.385 0.451 0.38 0.66 11.35 13.03 9.78 11.46 9.65 16.76
T-5 0.471 0.547 0.409 0.485 0.44 0.69 11.96 13.89 10.39 12.32 11.18 17.53
T-5 0.471 0.547 0.409 0.485 0.44 0.69 11.96 13.89 10.39 12.32 11.18 17.53
T-189-C 0.477 0.547 0.415 0.485 0.28 0.69 76.97 105.92 50.8 12.7 7.11 17.53
T-250-SW 0.477 0.547 0.415 0.485 0.28 0.69 12.12 13.89 10.54 12.32 7.11 17.53
T-5X 0.500 0.576 0.440 0.516 0.44 0.72 12.70 14.63 11.18 13.11 11.18 18.29
T-5X 0.500 0.576 0.440 0.516 0.44 0.72 12.70 14.63 11.18 13.11 11.18 18.29
T-6 0.532 0.608 0.468 0.545 0.44 0.75 13.51 15.44 11.89 13.84 11.18 19.05
T-6 0.532 0.608 0.468 0.545 0.44 0.75 13.51 15.44 11.89 13.84 11.18 19.05
T-5S 0.533 0.562 0.477 0.506 0.22 0.68 13.54 14.28 12.12 12.85 5.59 17.27
T-6X 0.550 0.631 0.487 0.568 0.47 0.75 13.97 16.03 12.37 14.43 11.94 19.05
T-6X 0.550 0.631 0.487 0.568 0.47 0.75 13.97 16.03 12.37 14.43 11.94 19.05
T-6S 0.554 0.612 0.490 0.551 0.31 0.75 14.07 15.55 12.45 14.00 7.87 19.05
T-7 0.580 0.667 0.518 0.605 0.50 0.81 14.73 16.94 13.16 15.37 12.70 20.57
T-7 0.580 0.667 0.518 0.605 0.50 0.81 14.73 16.94 13.16 15.37 12.70 20.57
T-7X 0.610 0.695 0.549 0.634 0.50 0.84 15.49 17.65 13.95 16.10 12.70 21.34
T-7X 0.610 0.695 0.549 0.634 0.50 0.84 15.49 17.65 13.95 16.10 12.70 21.34
T-8 0.640 0.727 0.578 0.664 0.50 0.88 16.26 18.47 14.68 16.87 12.70 22.35
T-8 0.640 0.727 0.578 0.664 0.50 0.88 16.26 18.47 14.68 16.87 12.70 22.35
T-8S 0.669 0.694 0.613 0.638 0.19 0.75 16.99 17.63 15.57 16.21 4.83 19.05
T-8X 0.675 0.755 0.613 0.693 0.50 0.88 17.15 19.18 15.57 17.60 12.70 22.35
T-8X 0.675 0.755 0.613 0.693 0.50 0.88 17.15 19.18 15.57 17.60 12.70 22.35
T-9 0.690 0.788 0.628 0.726 0.56 0.94 17.53 20.02 15.95 18.44 14.22 23.88
T-9 0.690 0.788 0.628 0.726 0.56 0.94 17.53 20.02 15.95 18.44 14.22 23.88
T-9X 0.725 0.823 0.663 0.761 0.56 0.97 18.42 20.91 16.84 19.33 14.22 24.64
T-9X 0.725 0.823 0.663 0.761 0.56 0.97 18.42 20.91 16.84 19.33 14.22 24.64
T-9S 0.740 0.765 0.678 0.703 0.19 0.88 18.80 19.43 17.22 17.86 4.83 22.35
T-10S 0.748 0.848 0.687 0.775 0.39 1.02 19.00 21.54 17.45 19.69 9.91 25.91
T-710 0.750 0.805 0.688 0.743 0.16 0.86 19.05 20.45 17.48 18.87 4.06 21.84
T-10 0.750 0.848 0.687 0.785 0.56 1.00 19.05 21.54 17.45 19.94 14.22 25.40
T-10 0.750 0.848 0.687 0.785 0.56 1.00 19.05 21.54 17.45 19.94 14.22 25.40
T-11 0.802 0.911 0.740 0.849 0.63 1.06 20.37 23.14 18.80 21.56 16.00 26.93
T-11 0.802 0.911 0.740 0.849 0.63 1.06 20.37 23.14 18.80 21.56 16.00 26.93
T-11X 0.815 0.930 0.753 0.868 0.63 1.09 20.70 23.62 19.13 22.05 16.00 27.69
T-11X 0.815 0.930 0.753 0.868 0.63 1.09 20.70 23.62 19.13 22.05 16.00 27.69
T-15A 0.836 1.305 0.777 1.247 1.06 1.43 21.24 33.15 19.74 31.68 26.93 36.32
T-11S 0.837 0.890 0.757 0.810 0.22 1.05 21.26 22.61 19.23 20.57 5.59 26.67
T-192-2-C 0.854 0.958 0.790 0.894 0.63 1.13 21.69 24.33 20.07 22.71 16.00 28.70
T-12 0.866 0.975 0.803 0.912 0.63 1.13 22.00 24.77 20.40 23.16 16.00 28.70
T-12 0.866 0.975 0.803 0.912 0.63 1.13 22.00 24.77 20.40 23.16 16.00 28.70
T-192-1 0.869 0.973 0.805 0.909 0.72 1.13 22.07 24.71 20.45 23.09 18.29 28.70
T-12X 0.915 1.040 0.855 0.980 0.69 1.16 23.24 26.42 21.72 24.89 17.53 29.47
T-12X 0.915 1.040 0.855 0.980 0.69 1.16 23.24 26.42 21.72 24.89 17.53 29.47
T-249-2 0.950 1.090 0.890 1.030 1.00 1.25 24.13 27.69 22.61 26.16 25.40 31.75
T-277 0.955 1.040 0.895 0.980 0.47 1.16 24.26 26.42 22.73 24.89 11.94 29.46
T-13A 0.960 1.047 0.900 0.987 0.50 1.19 24.38 26.59 22.86 25.07 12.70 30.23
T-13 0.964 1.090 0.901 1.027 0.75 1.25 24.49 27.69 22.89 26.09 19.05 31.75
T-13 0.964 1.090 0.901 1.027 0.75 1.25 24.49 27.69 22.89 26.09 19.05 31.75
T-249-W 0.975 1.104 0.918 1.047 0.72 1.44 24.77 28.04 23.32 26.59 18.29 36.58
T-13X 0.995 1.145 0.933 1.083 0.75 1.31 25.27 29.08 23.70 27.51 19.05 33.28
T-13X 0.995 1.145 0.933 1.083 0.75 1.31 25.27 29.08 23.70 27.51 19.05 33.28
T-709 1.020 1.040 0.940 0.960 0.84 1.31 25.91 26.42 23.88 24.38 21.34 33.27
T-14 1.094 1.215 1.031 1.152 0.75 1.41 27.79 30.86 26.19 29.26 19.05 35.82
T-14 1.094 1.215 1.031 1.152 0.75 1.41 27.79 30.86 26.19 29.26 19.05 35.82
T-16A 1.140 1.420 1.085 1.358 0.81 1.56 28.96 36.07 27.56 34.49 20.57 39.63
T-14X 1.175 1.284 1.113 1.222 0.63 1.44 29.85 32.61 28.27 31.04 16.00 36.58
T-14X 1.175 1.284 1.113 1.222 0.63 1.44 29.85 32.61 28.27 31.04 16.00 36.58
T-250-NIA 1.179 1.286 1.115 1.222 0.72 1.44 29.95 32.66 28.32 31.04 18.29 36.58
T-15 1.224 1.355 1.161 1.292 0.75 1.50 31.09 34.42 29.49 32.82 19.05 38.10
T-15 1.224 1.355 1.161 1.292 0.75 1.50 31.09 34.42 29.49 32.82 19.05 38.10
T-15X 1.235 1.360 1.173 1.298 0.81 1.50 31.37 34.55 29.80 32.97 20.57 38.10
T-15X 1.235 1.360 1.173 1.298 0.81 1.50 31.37 34.55 29.80 32.97 20.57 38.10
T-17A 1.239 1.507 1.169 1.437 0.75 1.63 31.47 38.28 29.69 36.50 19.05 41.40
T-1153 1.276 1.312 1.155 1.190 0.50 1.38 32.41 33.32 29.32 30.23 12.70 35.05
T-15S 1.285 1.346 1.227 1.288 0.38 1.47 32.64 34.19 31.17 32.72 9.65 37.34
T-252 1.292 1.356 1.231 1.295 0.72 1.50 32.82 34.44 31.27 32.89 18.29 38.10
T-253 1.312 1.465 1.248 1.401 0.72 1.62 33.32 37.21 31.70 35.59 18.29 41.15
T-16 1.312 1.465 1.249 1.402 0.88 1.63 33.33 37.21 31.72 35.61 22.35 41.40
T-16 1.312 1.465 1.249 1.402 0.88 1.63 33.33 37.21 31.72 35.61 22.35 41.40
T-253-2 1.344 1.507 1.282 1.445 0.91 1.77 34.14 38.28 32.56 36.70 23.11 44.96
T-253-S 1.350 1.465 1.286 1.401 0.50 1.62 34.29 37.21 32.66 35.59 12.70 41.15
T-16S 1.395 1.465 1.345 1.405 0.39 1.59 35.43 37.21 34.16 35.69 9.91 40.39
T-727 1.435 1.500 1.340 1.420 0.75 1.75 36.45 38.10 34.04 36.07 19.05 44.45
T-20A 1.440 1.895 1.378 1.833 1.28 2.06 36.58 48.13 35.00 46.56 32.51 52.33
T-17 1.447 1.600 1.384 1.537 0.88 1.75 36.76 40.64 35.15 39.04 22.35 44.45
T-17 1.447 1.600 1.384 1.537 0.88 1.75 36.76 40.64 35.15 39.04 22.35 44.45
T-254 1.451 1.601 1.387 1.537 0.72 1.75 36.86 40.67 35.23 39.04 18.29 44.45
T-17S 1.513 1.600 1.451 1.537 0.50 1.75 38.43 40.64 36.86 39.04 12.70 44.45
T-194 1.519 1.602 1.455 1.538 0.72 1.75 38.58 40.69 36.96 39.07 18.29 44.45
T-18 1.560 1.682 1.498 1.620 0.75 1.88 39.63 42.72 38.05 41.15 19.05 47.75
T-18 1.560 1.682 1.498 1.620 0.75 1.88 39.63 42.72 38.05 41.15 19.05 47.75
T-195-S 1.574 1.688 1.514 1.628 0.62 1.88 39.98 42.88 38.46 41.35 15.75 47.75
T-18X 1.630 1.750 1.568 1.688 0.75 1.94 41.40 44.45 39.83 42.88 19.05 49.28
T-18X 1.630 1.750 1.568 1.688 0.75 1.94 41.40 44.45 39.83 42.88 19.05 49.28
T-255 1.633 1.750 1.569 1.690 0.69 1.84 41.48 44.45 39.85 42.93 17.53 46.74
T-1972 1.720 1.850 1.664 1.794 0.72 2.03 43.69 46.99 42.27 45.57 18.29 51.56
T-21A 1.738 2.163 1.668 2.093 1.18 2.31 44.15 54.94 42.37 53.16 29.97 58.68
T-19 1.750 1.880 1.688 1.818 0.75 2.00 44.45 47.75 42.88 46.18 19.05 50.80
T-19 1.750 1.880 1.688 1.818 0.75 2.00 44.45 47.75 42.88 46.18 19.05 50.80
T-20 1.780 1.950 1.718 1.888 1.00 2.13 45.21 49.53 43.64 47.96 25.40 54.10
T-20 1.780 1.950 1.718 1.888 1.00 2.13 45.21 49.53 43.64 47.96 25.40 54.10
T-20S 1.781 1.805 1.722 1.746 0.38 2.00 45.24 45.85 43.74 44.35 9.65 50.80
T-206 1.807 1.938 1.743 1.874 0.97 2.16 45.90 49.23 44.27 47.60 24.64 54.86
T-210 1.844 2.000 1.781 1.938 1.00 2.13 46.84 50.80 45.24 49.23 25.40 54.10
T-911 1.865 1.975 1.785 1.895 0.63 2.38 47.37 50.17 45.34 48.13 16.00 60.45
T-21 1.900 2.076 1.837 2.013 1.00 2.25 48.26 52.73 46.66 51.13 25.40 57.15
T-22A 1.935 2.310 1.875 2.255 0.85 2.47 49.15 58.68 47.63 57.28 21.59 62.74
T-806 1.950 2.065 1.885 2.000 0.72 2.20 49.53 52.45 47.88 50.80 18.29 55.88
T-220 1.975 2.132 1.913 2.070 1.00 2.25 50.17 54.15 48.59 52.58 25.40 57.15
T-22S 2.015 2.147 1.953 2.085 0.75 2.31 51.18 54.54 49.61 52.96 19.05 58.68
T-258-S 2.020 2.100 2.060 2.140 0.38 2.59 51.31 53.34 52.32 54.36 9.65 65.79
T-221 2.067 2.243 2.005 2.181 1.00 2.44 52.50 56.97 50.93 55.40 25.40 61.98
T-25A 2.125 2.406 2.063 2.344 1.00 2.53 53.98 61.11 52.40 59.54 25.40 64.26
T-230 2.136 2.312 2.074 2.250 1.00 2.56 54.26 58.73 52.68 57.15 25.40 65.03
T-24S 2.230 2.260 2.168 2.198 0.50 2.50 56.64 57.41 55.07 55.83 12.70 63.50
T-1230 2.280 2.400 2.216 2.336 0.72 2.80 57.91 60.96 56.29 59.33 18.29 71.12
T-240 2.298 2.464 2.235 2.401 1.00 2.63 58.37 62.59 56.77 60.99 25.40 66.80
T-708 2.300 2.464 2.220 2.383 0.71 2.66 58.42 62.59 56.39 60.53 18.03 67.56
T-33A 2.307 2.650 2.245 2.588 1.25 2.78 58.60 67.31 57.03 65.74 31.75 70.61
T-265 2.311 2.650 2.247 2.586 0.96 2.78 58.70 67.31 57.07 65.68 24.38 70.61
T-250 2.395 2.602 2.333 2.540 1.03 2.81 60.84 66.09 59.26 64.52 26.16 71.38
T-263 2.396 2.604 2.332 2.540 1.13 2.81 60.86 66.14 59.23 64.52 28.70 71.37
T-43A 2.457 2.750 2.395 2.688 1.00 2.88 62.41 69.85 60.84 68.28 25.40 73.15
T-33A1 2.480 2.644 2.418 2.582 0.63 2.78 62.99 67.16 61.42 65.59 16.00 70.61
T-43X 2.555 2.690 2.493 2.628 0.63 2.88 64.90 68.33 63.32 66.75 16.00 73.15
T-267 2.561 2.690 2.497 2.626 0.72 2.88 65.05 68.33 63.42 66.70 18.29 73.15
T-44 2.641 2.790 2.579 2.728 0.75 2.94 67.08 70.87 65.51 69.29 19.05 74.68
T-2156 2.655 2.788 2.595 2.728 0.47 2.97 67.44 70.82 65.91 69.29 11.94 75.44
T-862 2.692 2.890 2.611 2.819 0.71 3.09 68.38 73.41 66.32 71.60 18.80 78.49
T-208 2.720 2.990 2.656 2.926 1.00 3.13 69.09 75.95 67.46 74.32 25.40 79.50
T-45A 2.760 2.990 2.685 2.947 1.00 3.13 70.11 75.95 68.20 74.86 25.40 79.51
T-500 2.849 2.980 2.787 2.918 0.75 3.25 72.37 75.69 70.79 74.12 19.05 82.55
T-53 2.975 3.103 2.915 3.041 0.75 3.34 75.57 78.82 74.04 77.24 19.05 84.84
T-55A 2.982 3.245 2.912 3.175 1.00 3.38 75.75 82.43 73.97 80.65 25.40 85.86
T-228 2.996 3.159 2.916 3.079 0.47 3.41 76.10 80.24 74.07 78.21 11.94 86.61
T-235-T 3.03 3.16 0.146 0.48 0.31 0.45 76.96 80.26 3.71 12.19 7.87 11.43
T-57B 3.070 3.211 3.019 3.156 0.79 3.50 77.98 81.56 76.68 80.16 20.07 88.90
T-57A 3.090 3.370 3.020 3.300 1.00 3.50 78.49 85.60 76.71 83.82 25.40 88.90
T-96A 3.270 3.562 3.200 3.492 1.13 3.69 83.06 90.48 81.28 88.70 28.70 93.73
T-501 3.325 3.457 3.245 3.377 0.75 3.63 84.46 87.81 82.43 85.78 19.05 92.21
T-1050 3.470 3.600 3.410 3.540 0.75 3.88 88.14 91.44 86.62 89.92 19.05 98.56
T-1051 3.550 3.730 3.480 3.660 1.00 4.00 90.17 94.75 88.40 92.97 25.40 101.60
T-1052 3.680 3.800 3.610 3.730 0.75 4.00 93.48 96.52 91.70 94.75 19.05 101.60
T-502 3.790 3.920 3.710 3.840 0.75 4.12 96.27 99.57 94.24 97.54 19.05 104.65
T-1063 3.930 4.070 3.860 4.000 0.75 4.38 99.83 103.38 98.05 101.60 19.05 111.26
T-1064 4.020 4.140 3.940 4.070 0.75 4.53 102.11 105.16 100.08 103.38 19.05 115.07
T-1067 4.090 4.320 4.010 4.240 1.25 4.62 103.89 109.73 101.85 107.70 31.75 117.35
T-406 4.214 4.459 4.134 4.379 0.96 4.94 107.04 113.26 105.00 111.23 24.38 125.48
T-1070 4.270 4.430 4.180 4.340 0.88 4.88 108.46 112.52 106.17 110.24 22.35 123.95
T-1072 4.370 4.620 4.290 4.540 1.00 5.00 111.00 117.35 108.97 115.32 25.40 127.01
T-1076 4.640 4.850 4.570 4.780 0.88 5.25 117.86 123.19 116.08 121.42 22.35 133.36
T-1078 4.790 4.970 4.710 4.890 1.00 5.38 121.67 126.24 119.63 124.21 25.40 136.66
T-1079 4.910 5.090 4.830 5.010 1.00 5.50 124.71 129.29 122.68 127.25 25.40 139.70
T-407 4.980 5.100 4.900 5.020 0.68 5.44 126.49 129.54 124.46 127.51 17.27 138.18
T-1080 4.990 5.200 4.920 5.100 1.00 5.63 126.75 132.09 124.97 129.55 25.40 143.01
T-1084 5.180 5.360 5.110 5.290 1.00 5.88 131.58 136.15 129.80 134.37 25.40 149.36
T-1086 5.330 5.490 5.210 5.370 0.88 5.88 135.39 139.45 132.34 136.40 22.35 149.36
T-1088 5.470 5.620 5.390 5.540 1.00 6.13 138.94 142.75 136.91 140.72 25.40 155.71
T-1090 5.570 5.750 5.490 5.670 1.00 6.19 141.48 146.06 139.45 144.02 25.40 157.23
T-1092 5.700 5.870 5.610 5.790 0.98 6.25 144.79 149.10 142.50 147.07 24.89 158.76
T-1097 6.010 6.180 5.920 6.100 1.00 6.62 152.66 156.98 150.37 154.95 25.40 168.15
T-1100 6.180 6.350 6.090 6.260 1.00 6.75 156.98 161.30 154.69 159.01 25.40 171.46
T-1103 6.400 6.560 6.330 6.490 0.87 6.94 162.57 166.63 160.79 164.85 22.10 176.28
T-1107 6.610 6.710 6.530 6.630 1.50 7.19 167.90 170.44 165.87 168.41 38.10 182.63
T-365 6.668 6.774 6.562 6.668 1.50 7.19 169.37 172.06 166.67 169.37 38.10 182.63
T-1108S 6.880 7.030 6.800 6.950 0.50 7.67 174.75 178.56 172.72 176.53 12.70 194.82
T-1108X 6.943 7.358 6.851 7.264 1.52 7.72 176.35 186.75 173.88 184.37 37.08 195.94
T-1109 7.050 7.120 6.970 7.060 1.00 7.63 179.08 180.86 177.04 179.33 25.40 193.81
T-1110 7.340 7.650 7.260 7.560 1.00 7.94 186.44 194.32 184.41 192.03 25.40 201.68
T-1120 7.660 7.840 7.580 7.760 1.00 8.12 194.57 199.14 192.54 197.11 25.40 206.26
T-1128 7.970 8.140 7.880 8.050 1.00 8.38 202.45 206.76 200.16 204.48 25.40 212.86
T-1133 8.150 8.350 8.050 8.250 1.38 8.75 207.01 212.09 204.47 209.55 35.05 222.25
T-1137 8.400 8.600 8.300 8.500 1.38 9.00 213.36 218.44 210.82 215.90 35.05 228.60
T-1139 8.670 8.730 8.550 8.600 1.50 9.13 220.23 221.75 217.18 218.45 38.10 231.91
T-1142 9.060 9.364 8.890 9.240 1.75 9.86 230.12 237.85 225.81 234.70 44.45 250.44
T-390X 9.950 10.290 9.770 10.170 1.50 10.56 252.73 261.37 248.16 258.32 38.10 268.22
T-390 9.970 10.220 9.820 10.080 0.97 10.56 253.24 259.59 249.43 256.03 24.64 268.22
T-1143 10.790 11.098 10.620 10.910 1.75 11.60 274.07 281.89 269.75 277.11 44.45 294.64
T-1146 11.110 11.455 10.779 11.366 2.00 11.96 282.19 290.96 273.79 288.70 50.80 303.78
T-1314 12.790 13.138 12.480 12.923 2.00 13.64 324.87 333.71 316.99 328.24 50.80 346.46
T-1360 13.250 13.597 12.960 13.177 2.00 14.10 336.55 345.36 329.18 334.70 50.80 358.14

Related products
