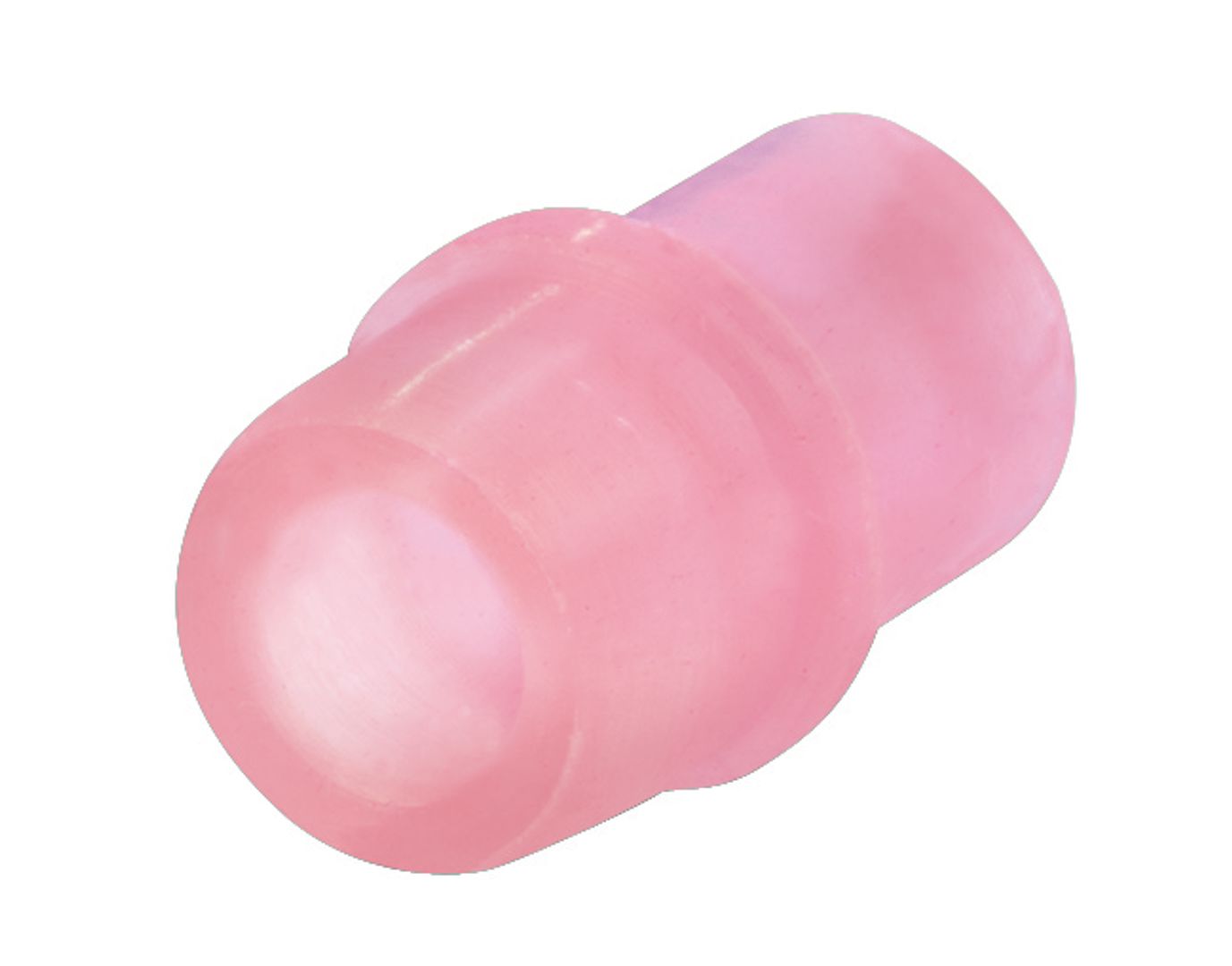

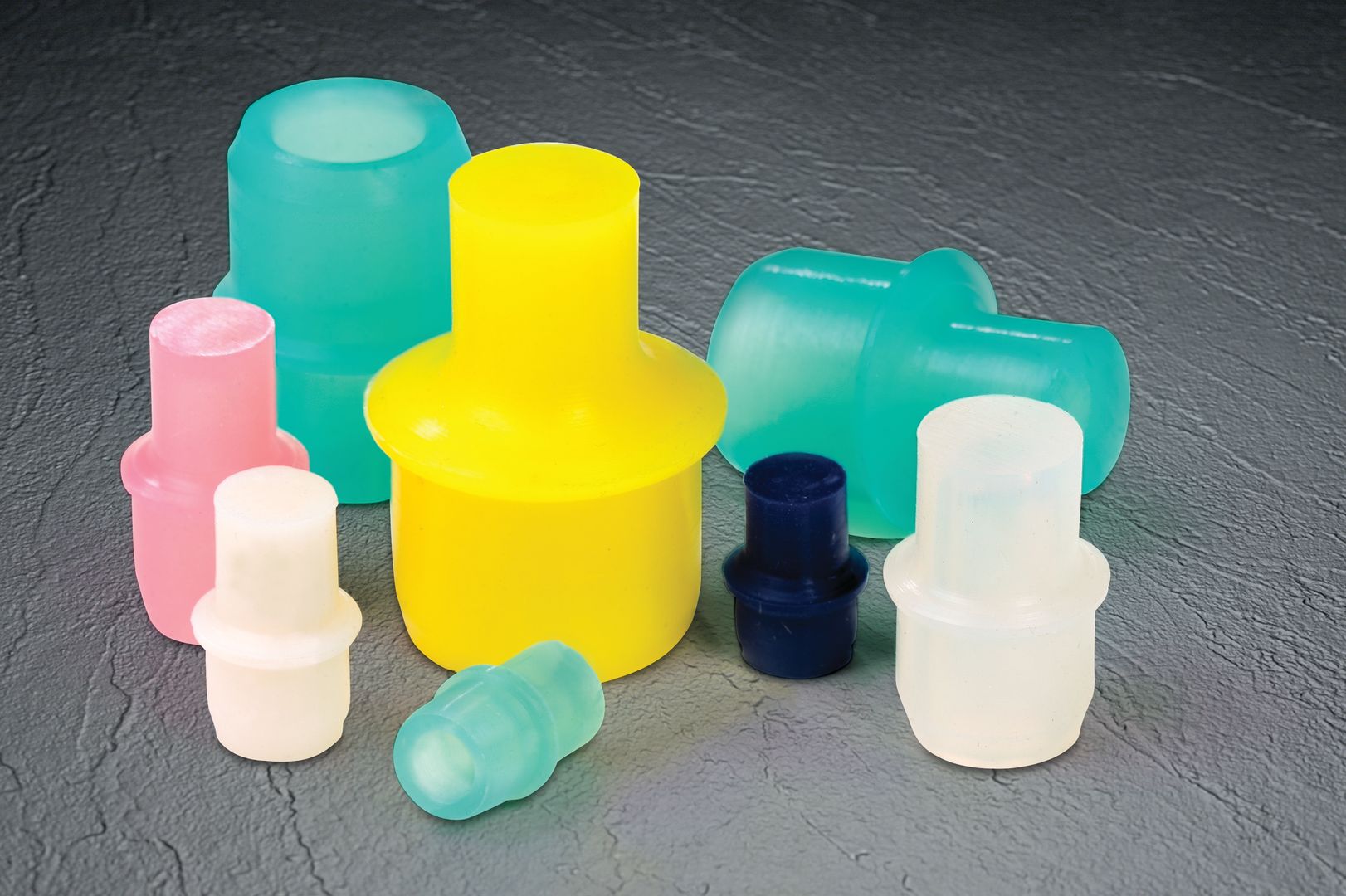

UTM-SH Series

Ultrabake Thread Mask

The UTM-SH Series Ultrabake™ silicone thread masks are designed to mask threaded holes, effectively masking the hole and the first thread.

  • Ideal for powder coating, e-coating, plating and anodising
  • Tolerates temperatures up to 600°F (315°C)
  • Comes in a standard shallow design for blind holes, as well as a long series for extended sealing areas
  • Reusable

Additional information

Material

Silicone
Standard Colour

Various (colour coded for sizing)
Optional Colours

Clear, White

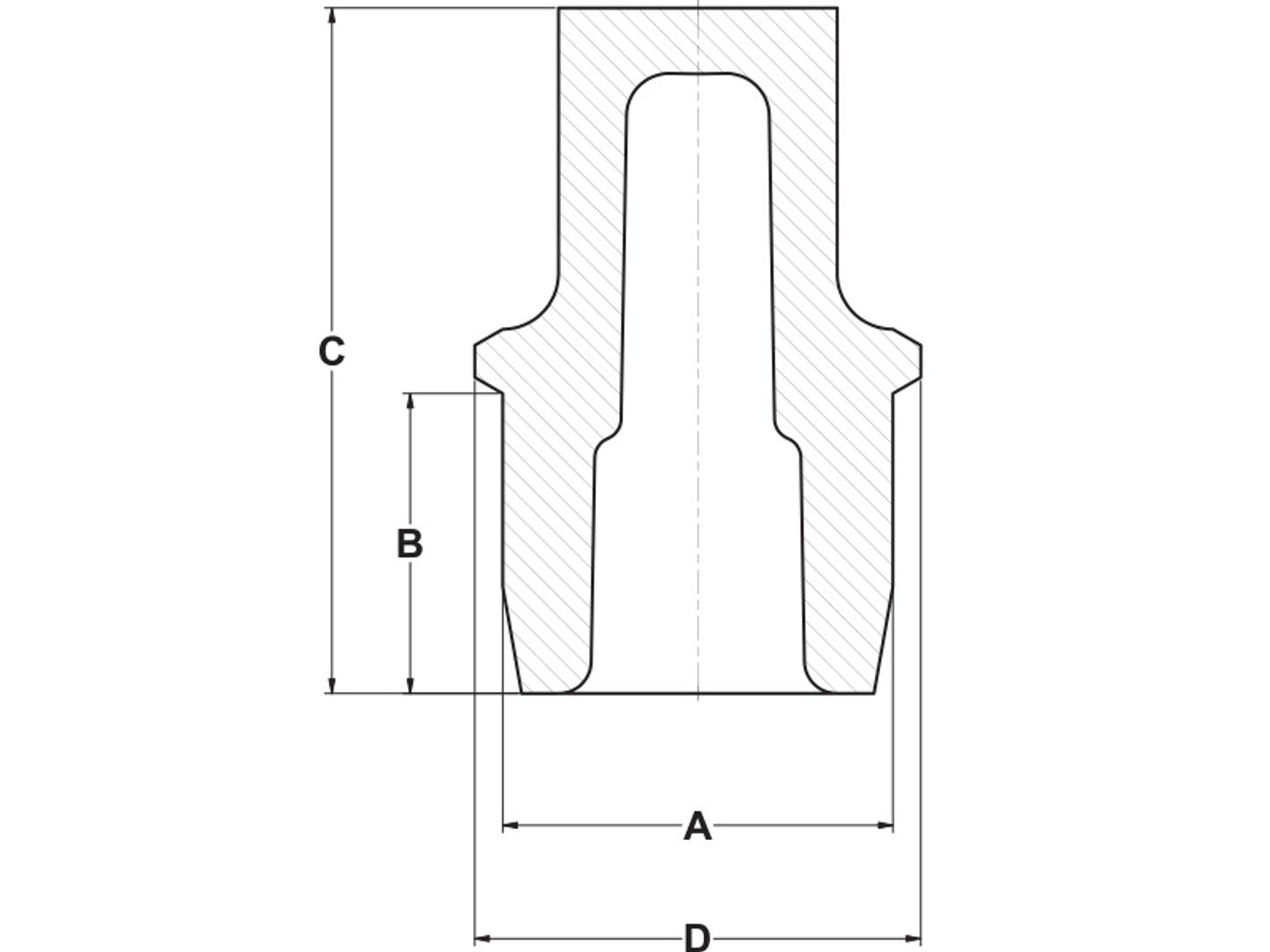

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Color

Quantity Per Bag

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

UTM-1/2-13
0.451
0.350
0.750
0.510
Clear
250
11.46
8.89
19.05
12.95
UTM-1/4-20
0.218
0.200
0.450
0.260
Yellow
500
5.54
5.08
11.43
6.60
UTM-1/4-20LS
0.218
0.279
0.922
0.260
Yellow
500
5.54
7.09
23.42
6.60
UTM-1/4-36LS
0.232
0.270
0.922
0.260
Dark Blue
500
5.54
6.86
23.42
6.60
UTM-3/8-16
0.336
0.250
0.600
0.385
White
500
8.53
6.35
15.24
9.78
UTM-3/8-16LS
0.336
0.329
0.994
0.385
White
250
8.53
8.36
25.25
9.78
UTM-3/8-36LS
0.357
0.329
0.994
0.385
Yellow
250
8.53
8.36
25.25
9.78
UTM-5/16-18
0.278
0.200
0.500
0.320
Light Green
500
7.06
5.08
12.70
8.13
UTM-5/16-18LS
0.278
0.279
0.894
0.320
Light Green
500
7.06
7.09
22.71
8.13
UTM-5/16-40LS
0.296
0.279
0.894
0.320
Rusty Red
250
7.06
7.09
22.71
8.13
UTM-7/16-14
0.392
0.350
0.750
0.440
Pink
250
11.46
8.89
19.05
12.95
UTM-M10*1.5
0.358
0.276
0.630
0.409
Pink
250
9.09
7.01
16.00
10.39
UTM-M10*1.5LS
0.358
0.276
0.945
0.409
Pink
250
9.09
7.01
24.00
10.39
UTM-M12*1.75
0.426
0.346
0.792
0.489
Rusty Red
250
10.82
8.79
20.12
12.42
UTM-M16*2
0.583
0.433
0.906
0.654
Light Green
100
14.81
11.00
23.01
16.61
UTM-M20*2.5
0.724
0.512
1.122
0.811
Yellow
100
18.39
13.00
28.50
20.60
UTM-M24*2LS
0.896
0.630
1.490
0.947
Grey
50
22.76
16.00
37.85
24.05
UTM-M3*0.5LS
0.107
0.210
0.820
0.138
Red
1000
2.72
5.33
20.83
3.51
UTM-M4*0.7LS
0.141
0.230
0.860
0.161
Pink
1000
3.59
5.84
21.84
4.09
UTM-M5*0.8LS
0.178
0.220
0.820
0.207
Purple
500
4.52
5.59
20.83
5.26
UTM-M6*1
0.208
0.197
0.551
0.248
Clear
500
5.28
5.00
14.00
6.30
UTM-M6*1LS
0.208
0.295
0.964
0.248
Clear
500
5.28
7.49
24.49
6.30
UTM-M8*1.25
0.283
0.197
0.482
0.331
Dark Blue
500
7.19
5.00
12.24
8.41
UTM-M8*1.25LS
0.283
0.295
0.896
0.331
Dark Blue
500
7.19
7.49
22.76
8.41
