UWPP-SH Series

Ultrabake Washer Pull Plugs

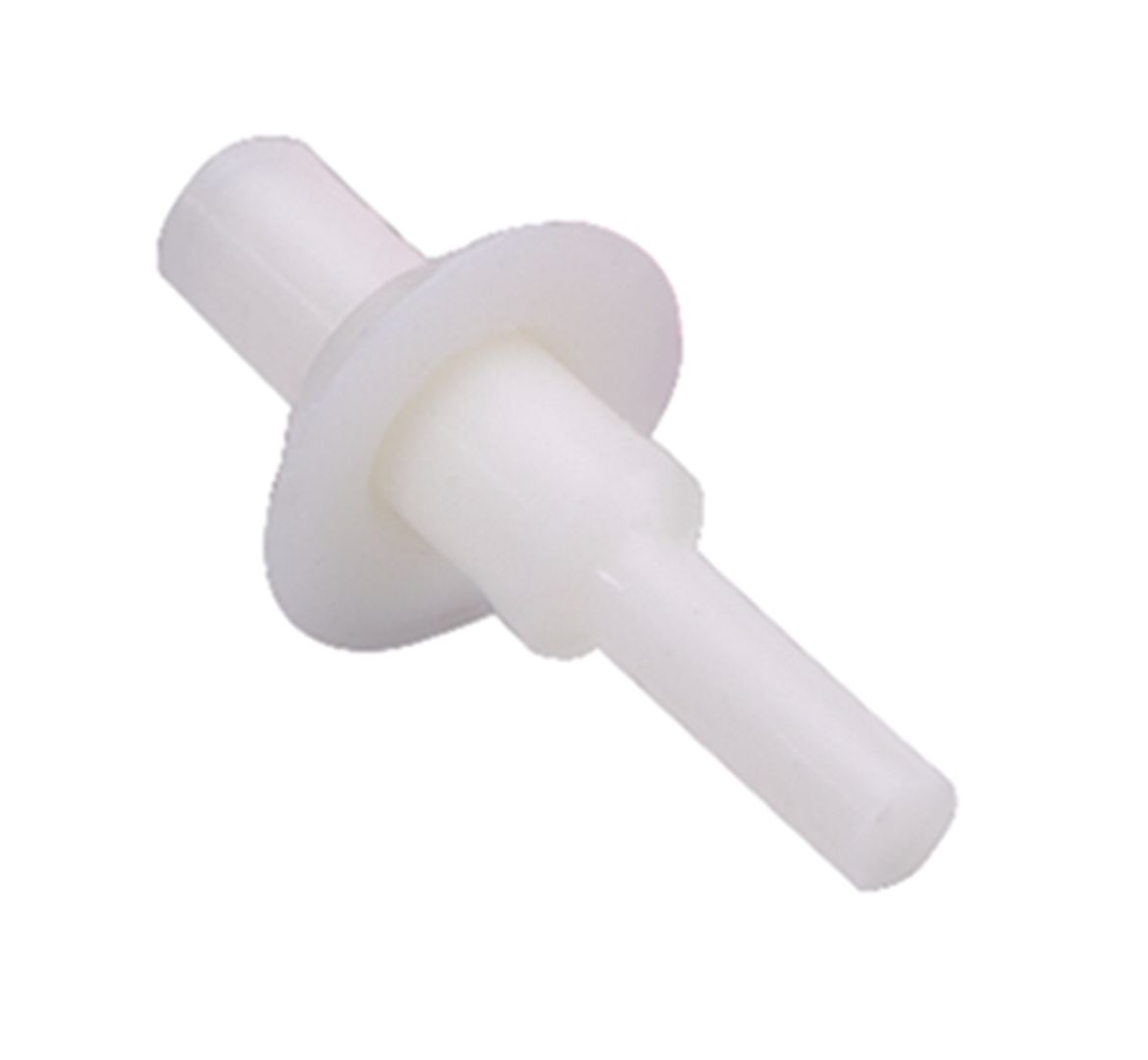

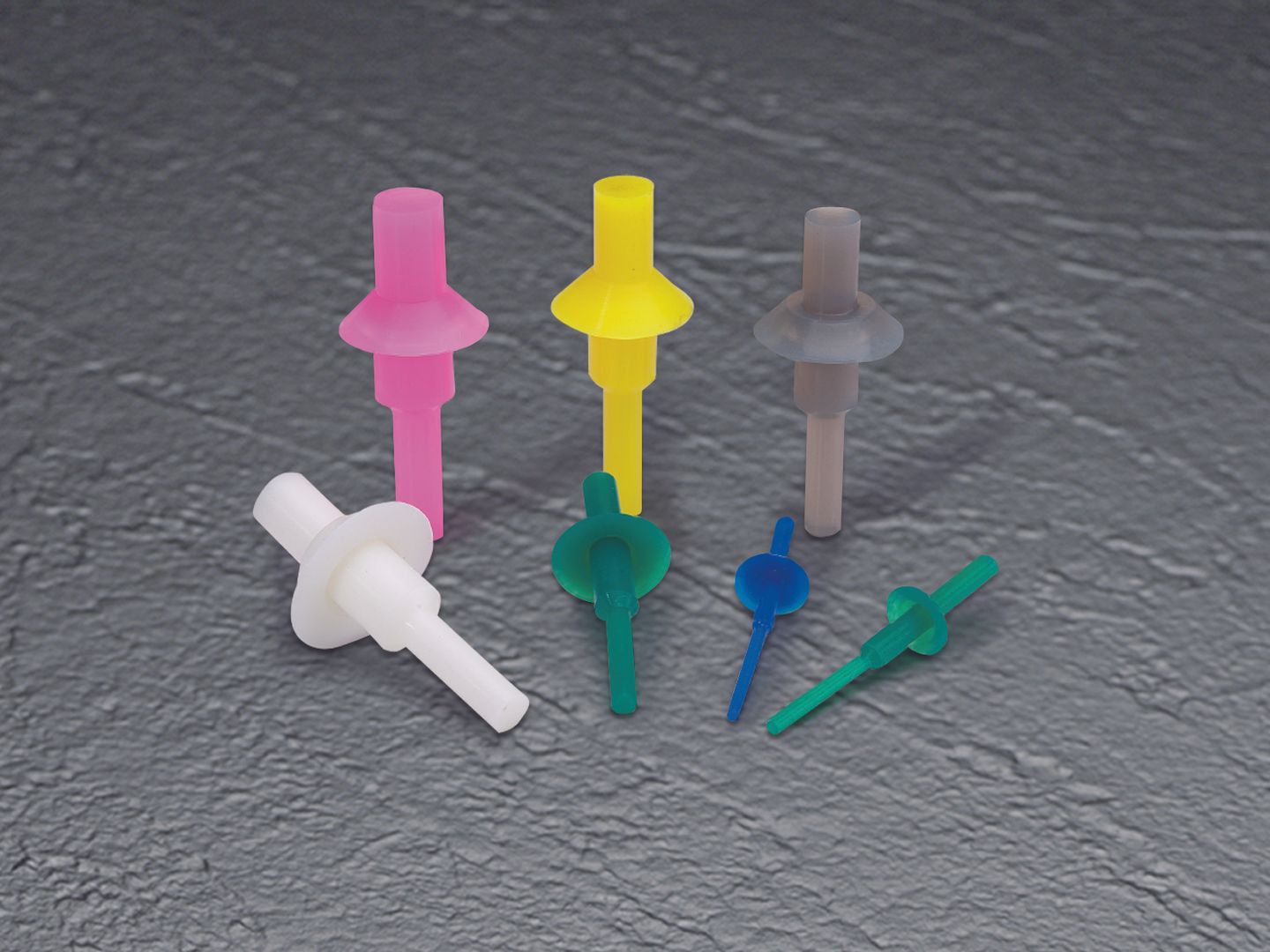

UWPP-SH Series of Ultrabake™ silicone pull plugs are designed to mask plain and threaded holes. Available with the UWM-SH Series washer (washer sold separately).

  • High-temperature processes up to 600°F (315°C)
  • Masks the hole and leaves a circular grounding or earthing area around it
  • Washer design eliminates the need for two-stage masking
  • Dual-purpose washer can be used with countersunk holes to mask the faces of the countersink
  • Ideal for powder coating, e-coating, plating and anodising
  • Long series available for hard-to-reach areas (UWPPLS-SH Series)
  • Reusable

Additional information

Material

Silicone
Standard Colour

Various (colour coded for sizing)
Optional Colour

Clear, White

Part Sizes

Item Number

To Fit Thread Size

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Dim E (In)

Dim F (In)

Dim G (In)

Color

Quantity Per Bag

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

Dim E (mm)

Dim F (mm)

Dim G (mm)

UWPP-M12
M12
0.787
0.428
0.210
0.390
0.244
0.360
0.422
Pink
100
19.99
10.87
5.33
9.91
6.20
9.14
10.72
UWPP-M10
M10
0.760
0.379
0.218
0.390
0.210
0.317
0.362
Yellow
100
19.99
9.53
5.33
9.91
5.44
8.13
9.19
UWPP-M8
M8
0.591
0.283
0.165
0.390
0.161
0.240
0.264
Grey
250
15.01
7.19
4.19
9.91
4.09
6.10
6.71
UWPP-M6
M6
0.591
0.211
0.165
0.390
0.120
0.180
0.272
White
250
15.01
5.36
4.19
9.91
3.05
4.57
6.91
UWPP-M5
M5
0.394
0.176
0.107
0.390
0.100
0.150
0.169
Clear
250
10.00
4.47
2.72
9.91
2.54
3.81
4.29
UWPP-M4
M4
0.394
0.140
0.107
0.390
0.080
0.120
0.189
Dark Green
250
10.00
3.56
2.72
9.91
2.03
3.05
4.80
UWPP-M3
M3
0.394
0.105
0.107
0.390
0.060
0.090
0.189
Dark Blue
250
10.00
2.67
2.72
9.91
1.52
2.29
4.80
UWPP-922
7/16-14
0.922
0.400
0.210
0.390
0.228
0.340
0.520
White
100
23.42
10.16
5.33
9.91
5.79
8.64
13.21
UWPP-812
3/8-16
0.803
0.338
0.179
0.390
0.194
0.288
0.455
Grey
100
20.62
8.69
4.19
9.91
4.95
7.37
11.56
UWPP-688
5/16-18
0.688
0.284
0.165
0.390
0.162
0.240
0.370
Clear
250
17.48
7.21
4.19
9.91
4.11
6.10
9.40
UWPP-625
1/4-20
0.625
0.225
0.107
0.390
0.128
0.190
0.389
Green
250
15.88
5.72
2.72
9.91
3.25
4.83
9.88
UWPP-562
12-24
0.562
0.193
0.107
0.390
0.110
0.160
0.331
Yellow
250
14.27
4.90
2.72
9.91
2.79
4.06
8.41
UWPP-500
10-24
0.500
0.167
0.107
0.390
0.095
0.140
0.264
Pink
250
12.70
4.24
2.72
9.91
2.41
3.56
6.71
UWPP-1060
1/2-13
1.060
0.459
0.210
0.390
0.262
0.390
0.661
Dark Blue
100
26.92
11.66
5.33
9.91
6.65
9.91
16.79
