WC-SH Series
Ultrabake Washer Caps

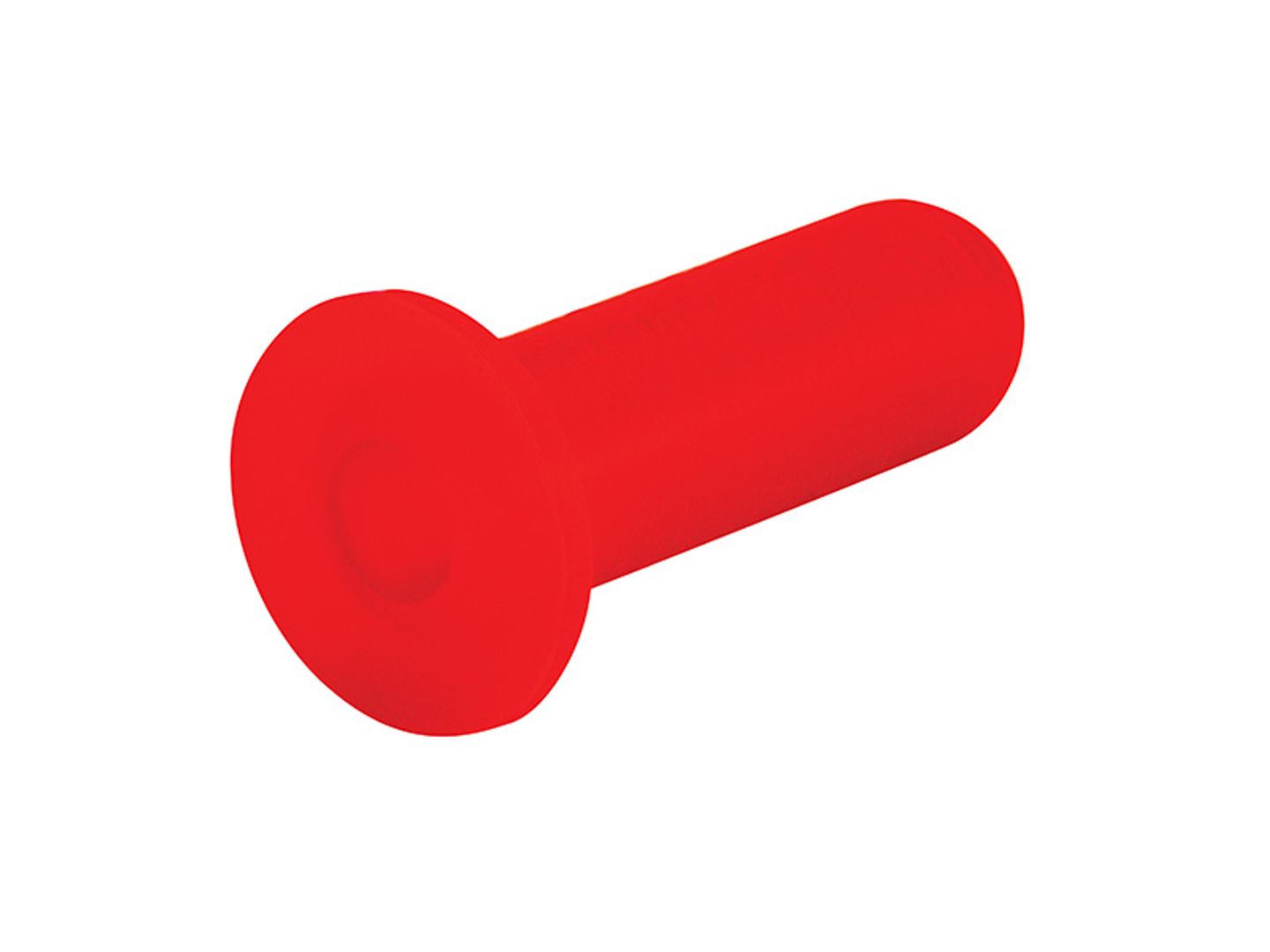

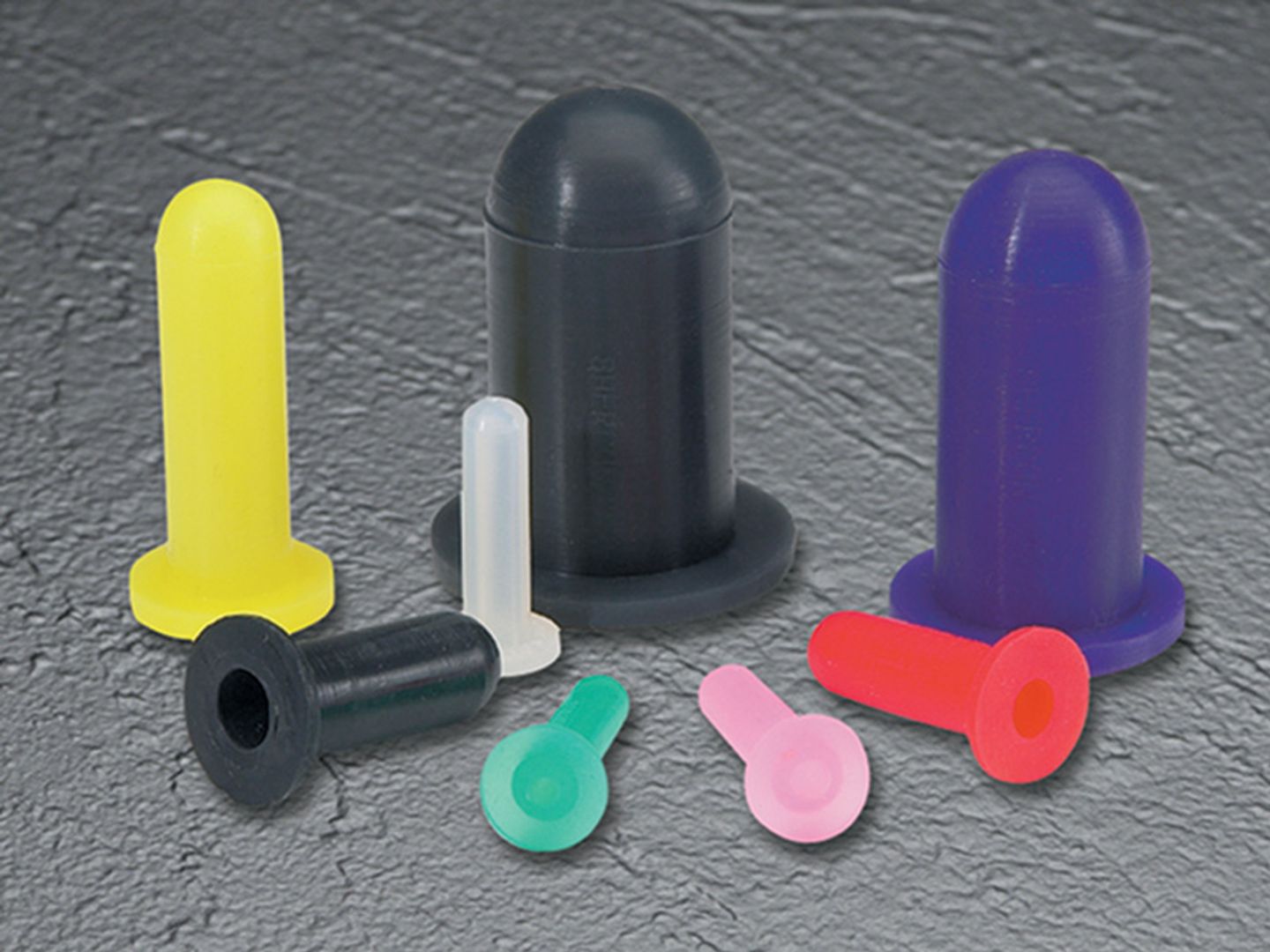

Ultrabake™ silicone washer caps are designed to cover threaded studs and plug plain and threaded holes. They mask off the stud or hole and leave a circular grounding or earthing area around it.
- Ideal for powder coating, e-coating, plating and anodising
- Tolerates temperatures up to 600°F (315°C)
- Covers studs and plugs holes
- Washer design eliminates the need for two-stage masking
- Reusable
Additional information
| Material | Silicone |
|---|---|
| Standard Colour | Various (colour coded for sizing) |
| Optional Colour | Clear, White |
Part Sizes

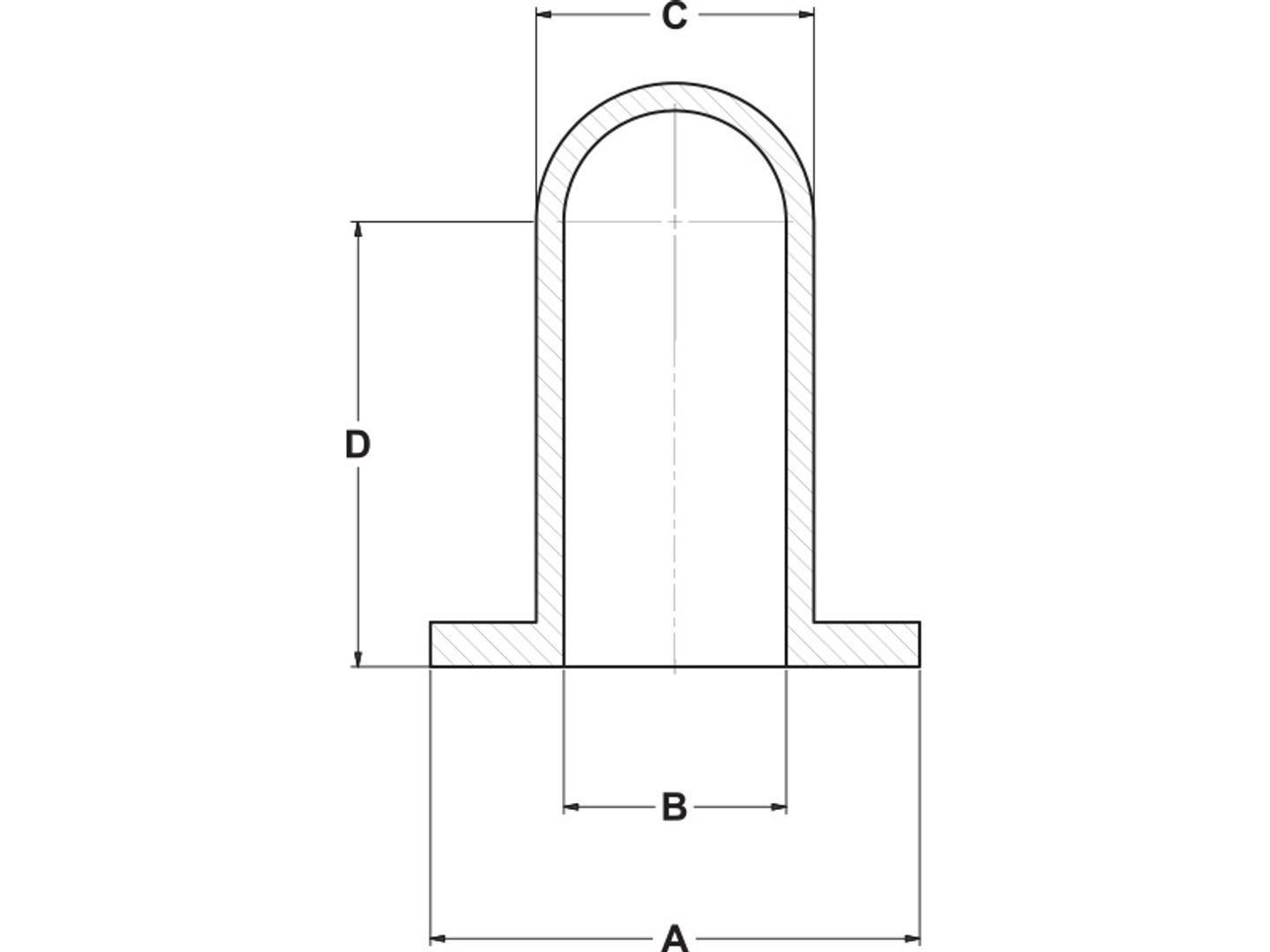

| Item Number | To Fit Thread Size | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Color | Quantity Per Bag | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WC027-012 | M3 | 0.472 | 0.106 | 0.244 | 1.000 | Light Green | 500 | 12.00 | 2.69 | 6.20 | 25.4 |
| WC037-012 | M4 | 0.472 | 0.146 | 0.264 | 1.000 | Pink | 500 | 12.00 | 3.70 | 6.70 | 25.4 |
| WC125-0500 | – | 0.500 | 0.125 | 0.260 | 1.000 | Clear | 500 | 12.70 | 3.18 | 6.60 | 25.4 |
| WC156-0500 | – | 0.500 | 0.156 | 0.320 | 1.000 | Clear | 500 | 12.70 | 3.96 | 8.13 | 25.4 |
| WC172-0500 | – | 0.500 | 0.172 | 0.385 | 1.000 | Clear | 500 | 12.70 | 4.37 | 9.78 | 25.4 |
| WC046-015 | M5 | 0.591 | 0.181 | 0.323 | 1.000 | Clear | 500 | 15.00 | 4.60 | 8.20 | 25.4 |
| WC056-015 | M6 | 0.591 | 0.220 | 0.343 | 1.000 | Red | 500 | 15.00 | 5.59 | 8.71 | 25.4 |
| WC075-018 | M8 | 0.709 | 0.295 | 0.421 | 1.000 | Black | 250 | 18.00 | 7.50 | 10.70 | 25.4 |
| WC095-018 | M10 | 0.820 | 0.374 | 0.500 | 1.500 | Yellow | 250 | 20.83 | 9.50 | 12.70 | 38.1 |
| WC115-025 | M12 | 0.989 | 0.453 | 0.657 | 1.500 | Clear | 250 | 25.12 | 11.50 | 16.69 | 38.1 |
| WC155-031 | M16 | 1.220 | 0.610 | 0.815 | 1.500 | Purple | 250 | 31.00 | 15.50 | 20.70 | 38.1 |
| WC195-038 | M20 | 1.496 | 0.768 | 0.972 | 1.500 | Grey | 250 | 38.00 | 19.50 | 24.69 | 38.1 |
