AN Series

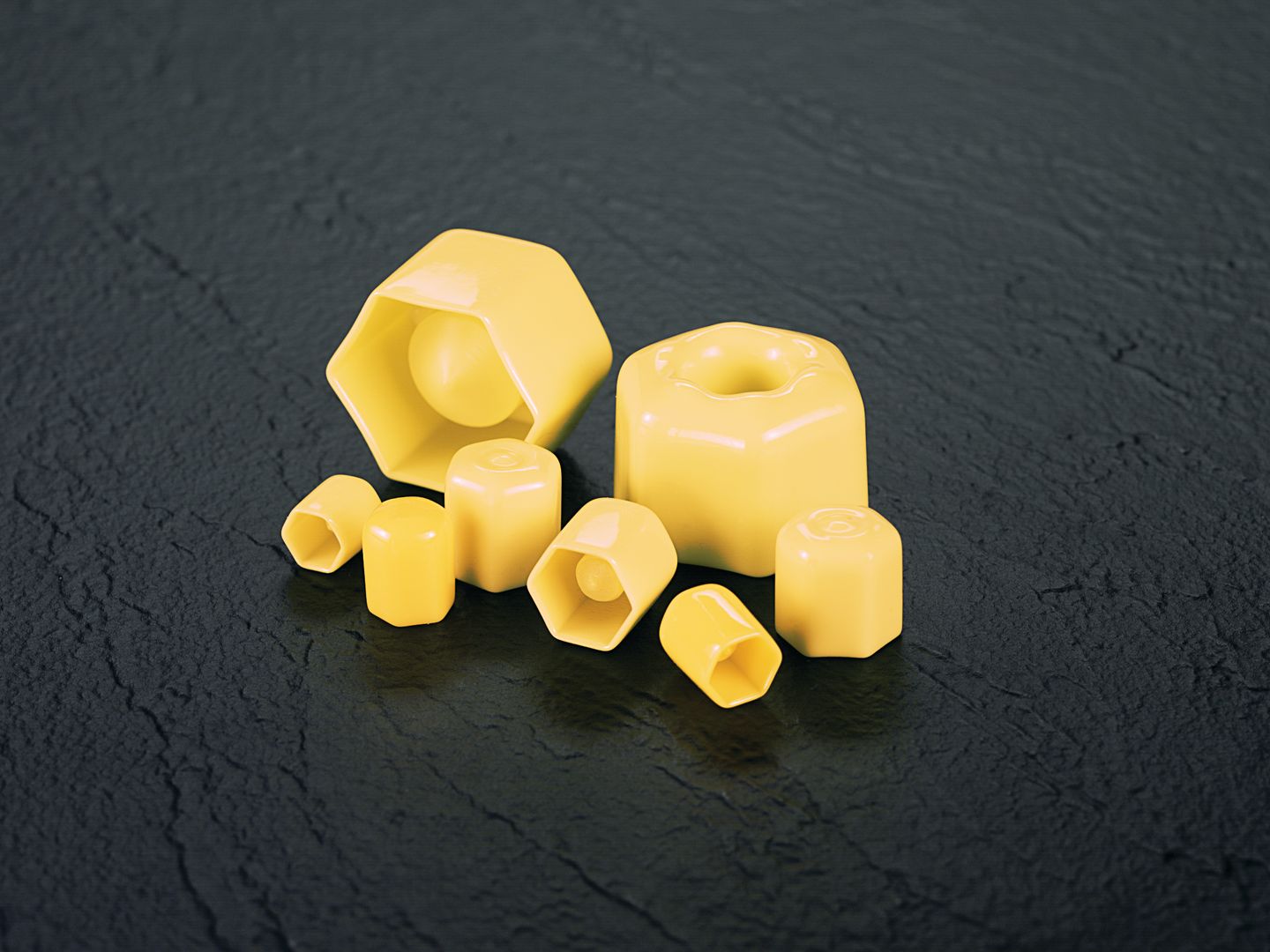

AN Series vinyl hex caps to fit AN-style fittings. Easy to install and remove.
- Fits all common hydraulic nut sizes
- No installation tools required
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -32 – 176° C |
| Standard Colours | Yellow |
| Optional Colours | White, Black, Brown, Orange, Red, Green, Gray, Blue |
Part Sizes

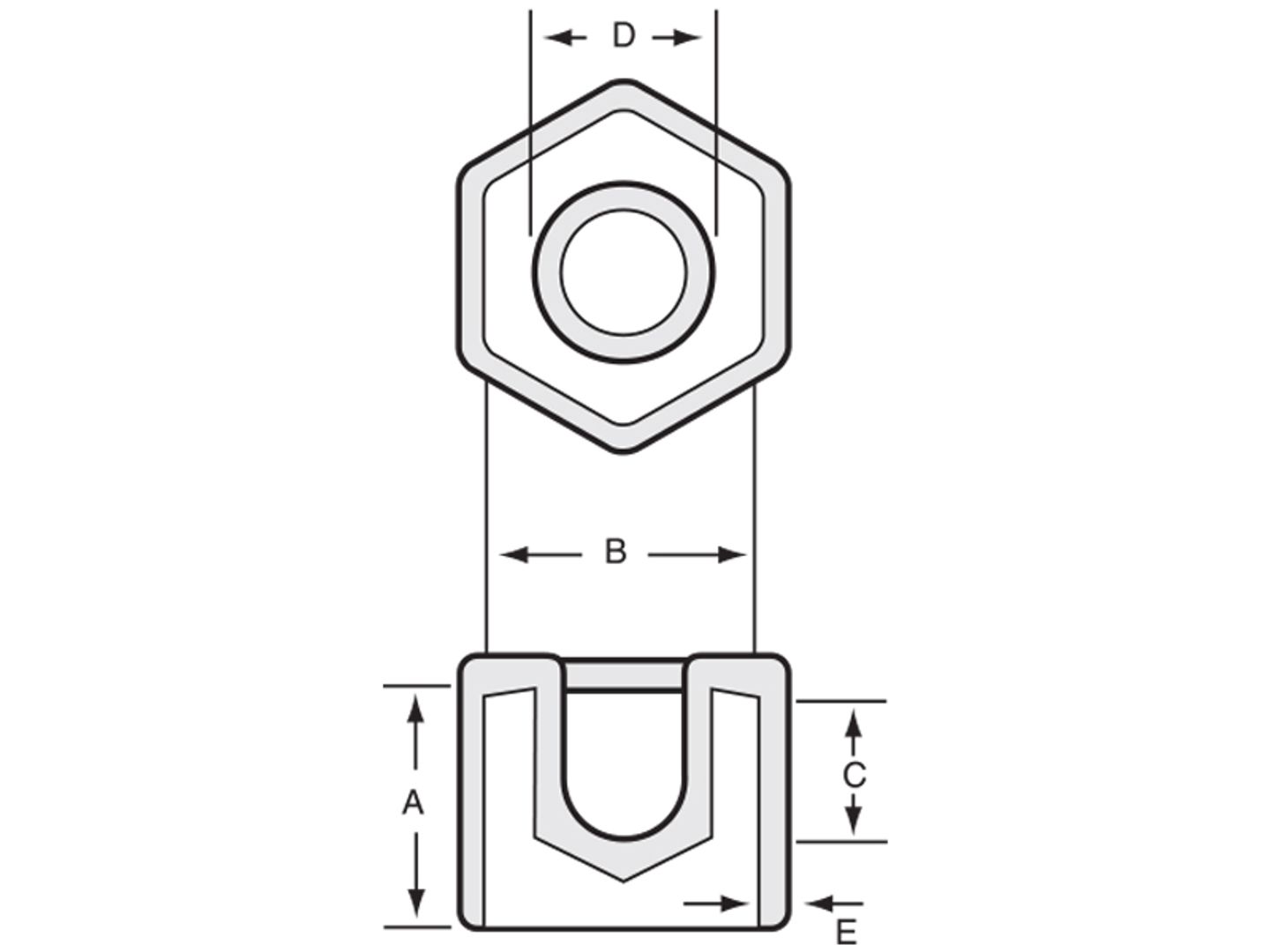

Item Number | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Dim E (In) |
AN-2 | 0.55 | 0.375 | 0.25 | 0.195 | 0.055 |
AN-3 | 0.625 | 0.44 | 0.37 | 0.24 | 0.06 |
AN-4 | 0.645 | 0.56 | 0.435 | 0.3 | 0.06 |
AN-5 | 0.69 | 0.625 | 0.475 | 0.335 | 0.06 |
AN-6 | 0.725 | 0.685 | 0.5 | 0.375 | 0.065 |
AN-8 | 0.875 | 0.875 | 0.563 | 0.49 | 0.065 |
AN-10 | 1 | 1 | 0.7 | 0.625 | 0.065 |
AN-12 | 1 | 1.25 | 0.7 | 0.75 | 0.065 |
AN-14 | 1.1 | 1.375 | 0.7 | 0.86 | 0.065 |
AN-16 | 1.1 | 1.5 | 0.75 | 0.98 | 0.065 |
AN-20 | 1.25 | 1.815 | 0.95 | 1.195 | 0.065 |
AN-24 | 1.5 | 2.25 | - | - | 0.075 |
