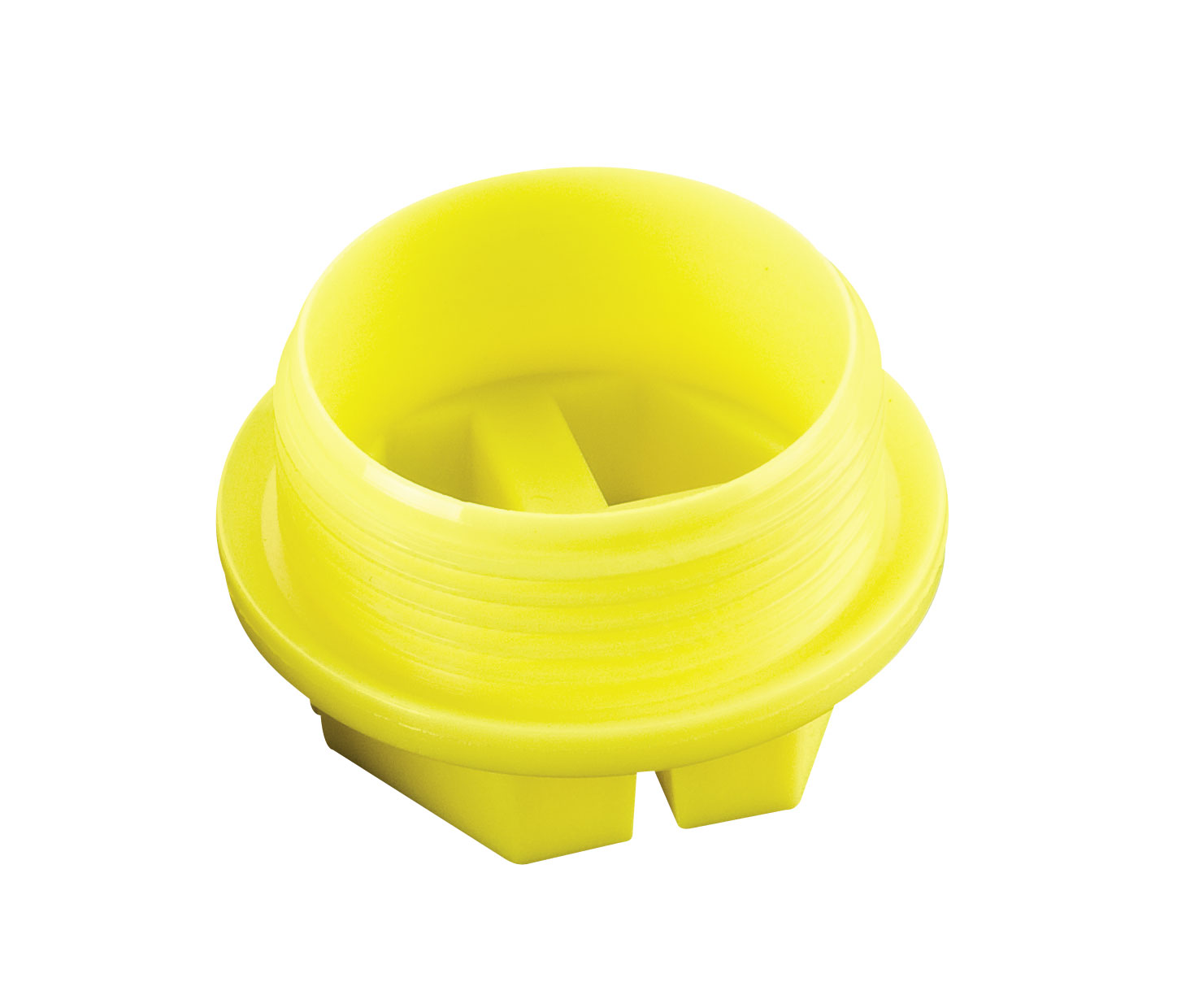

BT Series

Sealing Plugs for British Standard Pipe Fittings
BT Series sealing plugs are designed to protect British Standard Pipe fittings. These plugs are engineered with five complete threads to ensure a snug fit. Additionally, the “sealing lip” on each plug provides a reliable and secure seal.

  • Can be installed using a screwdriver, socket wrench, power tool, or manually

Additional information

Material

Nylon
Standard Colour

Yellow

Part Sizes

Item Number To Plug BSP Thread Size (In) Dim B (In) Dim C (In) Dim D (In) Dim B (mm) Dim C (mm) Dim D (mm)
BT-0250 G 1/4 0.39 0.35 0.76 9.91 8.89 19.30
BT-0375 G 3/8 0.43 0.35 0.87 10.92 8.89 22.10
BT-0500 G 1/2 0.51 0.47 1.07 12.95 11.94 27.18
BT-0750 G 3/4 0.51 0.47 1.27 12.95 11.94 32.26
BT-1000 G 1 0.55 0.59 1.57 13.97 14.99 39.88
BT-1250 G 1-1/4 0.59 0.59 1.98 14.99 14.99 50.29
BT-1500 G 1-1/2 0.59 0.59 2.18 14.99 14.99 55.37
BT-2000 G 2 0.59 0.59 2.69 14.99 14.99 68.33
