BWNP-SH Series

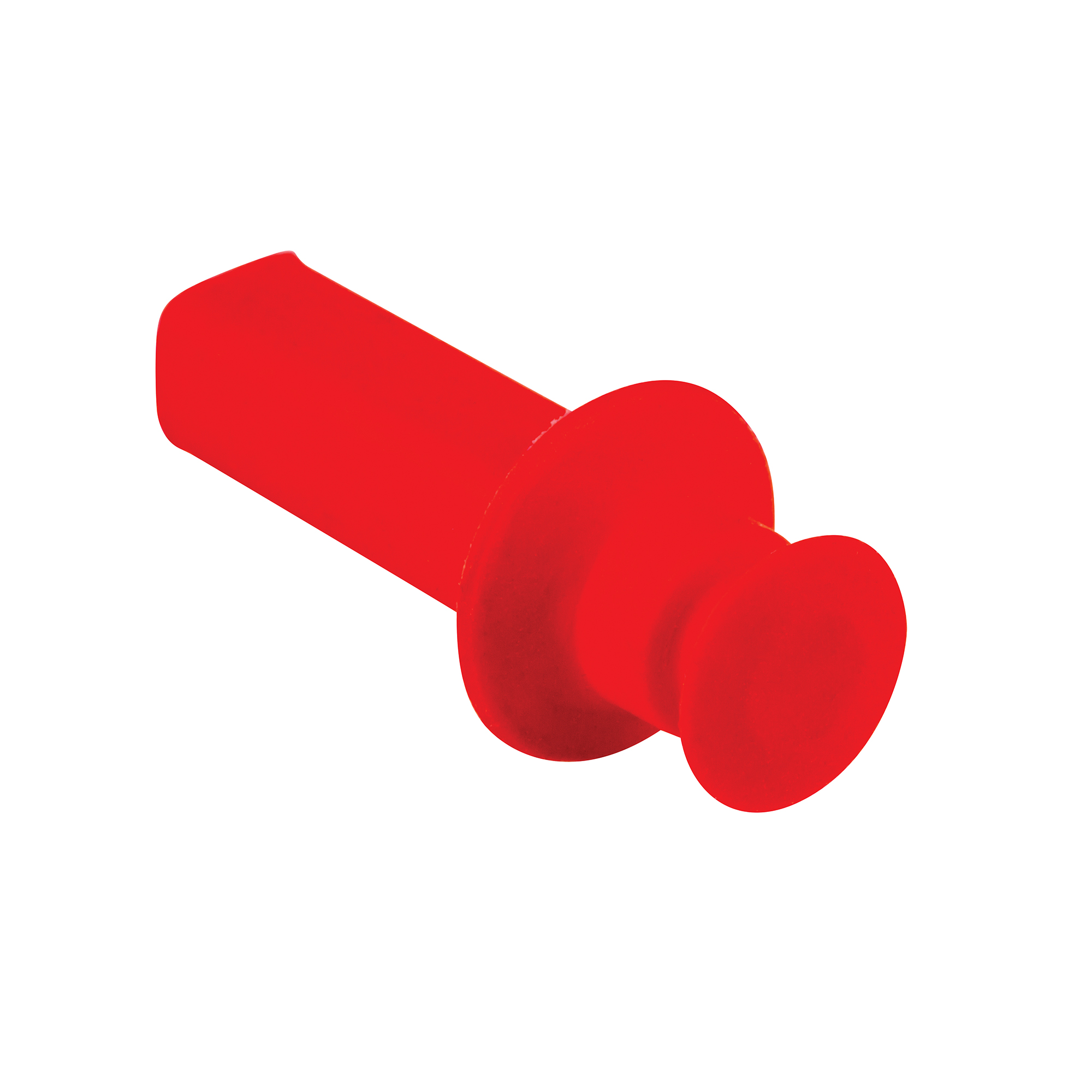

BWNP Series silicone plugs are designed to mask blind weld nuts when a mask cannot be threaded through the weld nut, or when one-sided installation is preferred. Manufactured from Caplugs Ultrabake™ material, these reusable plugs are suited to high temperature finishing processes including powder coating, e-coating, plating and anodising.
- Masks blind weld nuts from one side
- Suitable where threading a mask through the weld nut is not possible
- Manufactured from Ultrabake™ silicone material
- Ideal for high-temperature finishing processes
- Suitable for powder coating, e-coating, plating and anodising
- Reusable for multiple applications
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Silicone |
|---|---|
| Standard Colour | Colour coded by size |
Part Sizes
Item Number | Hole Size (In) | Dim A (In) | Dim B (In) | Dim C (In) | Dim D (In) | Colour | Quantity Per Bag | Quantity Per Minipack |
BWNP-M6 | M6 | 0.343 | 0.236 | 0.194 | 0.182 | Blue | 500 | - |
BWNP-M8 | M8 | 0.42 | 0.315 | 0.242 | 0.25 | Red | 500 | - |
BWNP-M10 | M10 | 0.48 | 0.403 | 0.303 | 0.315 | Green | 250 | - |
BWNP-M12 | M12 | 0.575 | 0.487 | 0.367 | 0.367 | Yellow | 250 | - |
BWNP-M16 | M16 | 0.775 | 0.642 | 0.486 | 0.535 | Orange | 250 | - |
