CD Series

Threaded Plastic Caps for Flared JIC Fittings

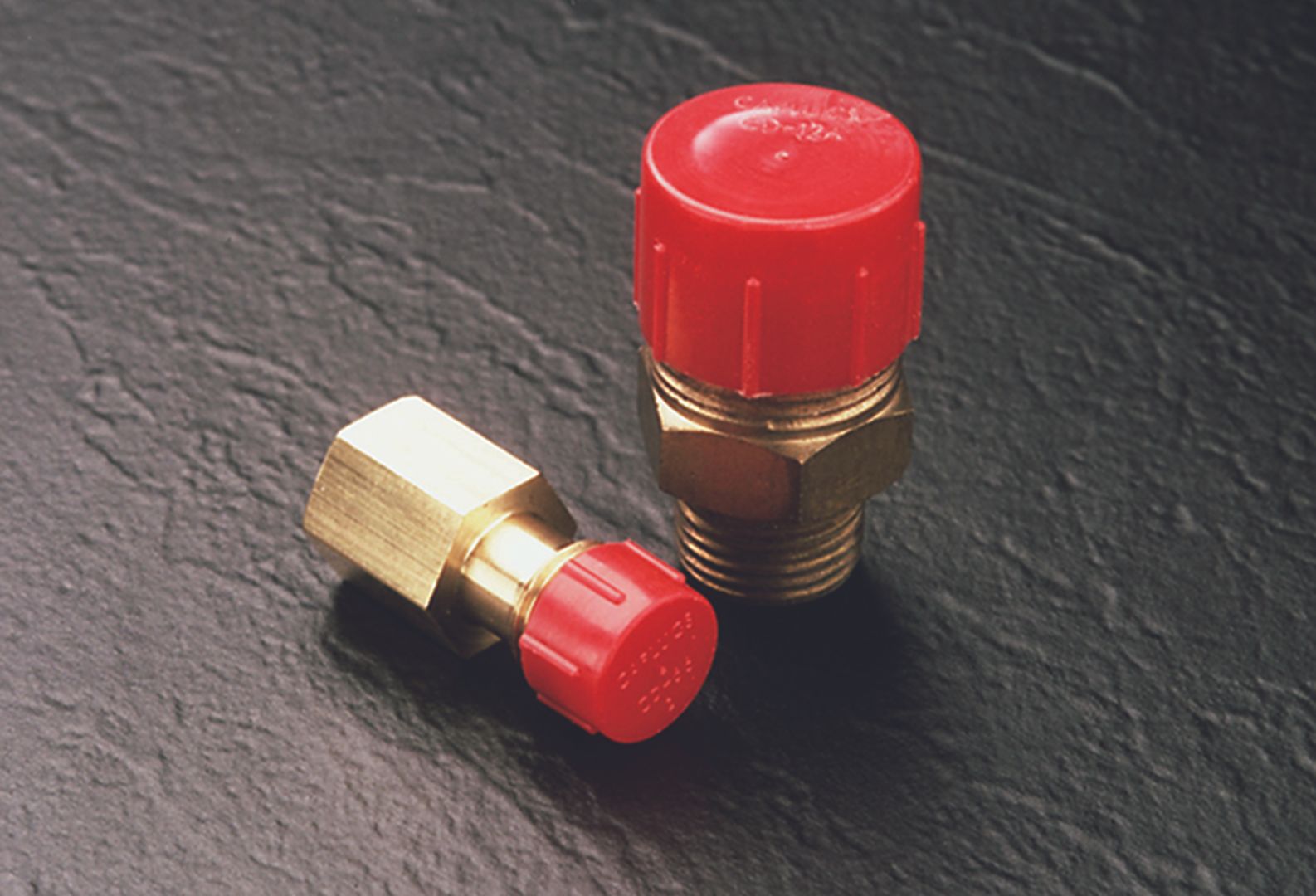

The CD Series threaded plastic caps provide excellent sealing for flared JIC fittings, protecting against dirt and moisture.

  • Used as masking during painting and plating
  • Knurled design allows for easy application

Additional information

Material

Low-Density Polyethylene
Service Temperature

-94 – 175° F (-70 – 79° C)
Standard Colour

Red

Part Sizes

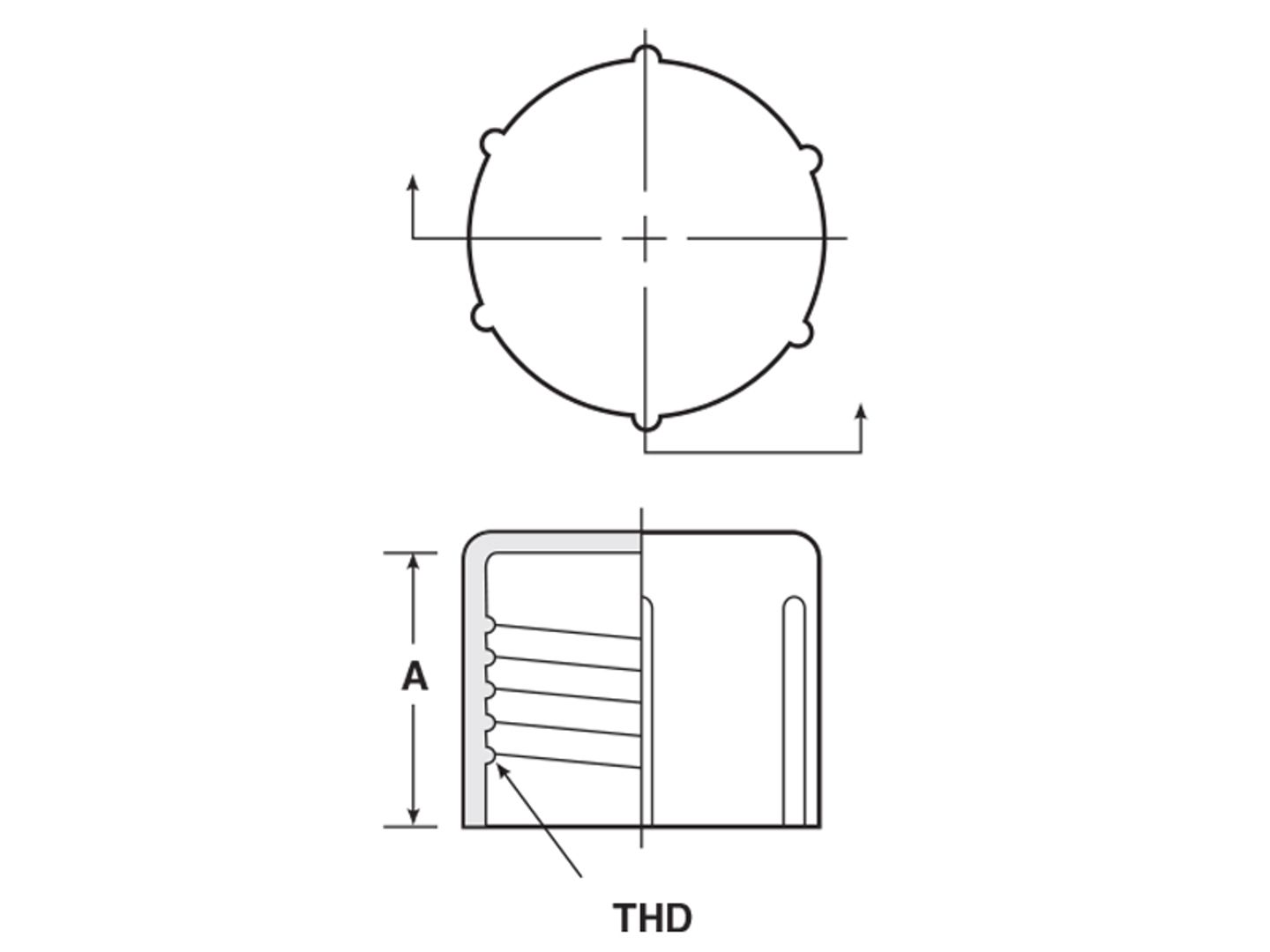

Item Number To Fit Nominal Tubing Size (In) To Fit Thread Size (In) Dim A (In) No of Knurls Dim A (mm)
CD-2 – 1/4 – 36 0.22 4 5.55
CD-41 1/4 7/16 – 24 0.30 4 7.62
CD-TC-40 5/16 1/2 – 20 0.31 6 7.87
CD-67 – 5/8 – 24 0.41 6 10.41
CD-101 5/8 7/8 – 18 0.44 6 11.18
CD-TC-15 – 1-1/8 – 18 0.47 8 11.94
CD-TC-17 – 1-1/4 – 18 0.47 8 11.94
CD-TC-19 – 1-3/8 – 18 0.47 8 11.94
CD-TC-6 3/8 5/8 – 18 0.47 6 11.94
CD-3 3/16 3/8 – 24 0.47 4 11.94
CD-4 1/4 7/16 – 20 0.47 4 11.94
CD-5 5/16 1/2 – 20 0.47 6 11.94
CD-TC-9 – 3/4 – 20 0.50 6 12.70
CD-6 3/8 9/16 – 18 0.53 6 13.46
CD-6A 3/8 5/8 – 18 0.53 6 13.46
CD-8 1/2 3/4 – 16 0.57 6 14.48
CD-TC-8-R 1/2 3/4 – 16 0.63 6 16.00
CD-10 5/8 7/8 – 14 0.68 6 17.27
CD-TC-82 – 3/4 – 18 0.69 6 17.53
CD-TC-100 5/8 7/8 – 20 0.72 6 18.29
CD-TC-14 3/4 1-1/16 – 14 0.75 8 19.05
CD-TC-63 3/8 5/8 – 18 0.75 6 19.05
CD-12 3/4 1-1/16 – 12 0.75 8 19.05
CD-18 – 1-1/2 – 12 0.75 8 19.05
CD-TC-111 5/8 7/8 – 18 0.78 6 19.81
CD-11 – 1 – 14 0.78 8 19.81
CD-TC-120 – 1 – 20 0.81 8 20.57
CD-16 1 1-5/16 – 12 0.84 8 21.34
CD-TC-18 – 1-5/16 – 12 0.88 8 22.35
CD-TC-42 5/16 1/2 – 20 0.88 6 22.35
CD-TC-20 1-1/4 1-5/8 – 12 0.91 8 23.11
CD-14 7/8 1-3/16 – 12 0.94 6 23.88
CD-22 – 1-3/4 – 12 0.94 8 23.88
CD-TC-21 1-1/2 1-7/8 – 12 1.00 8 25.40
CD-400 – 3 – 12 1.16 12 29.47
