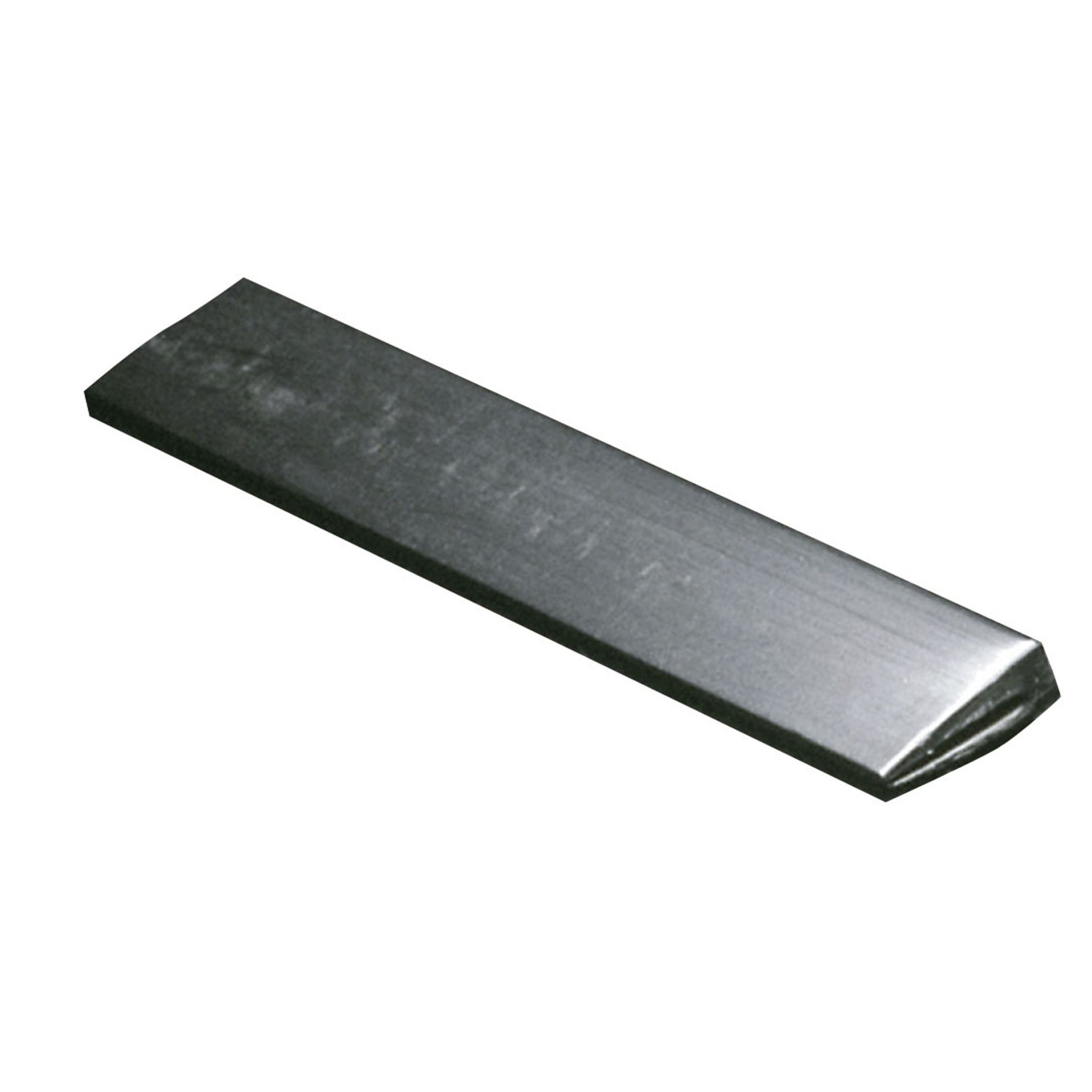

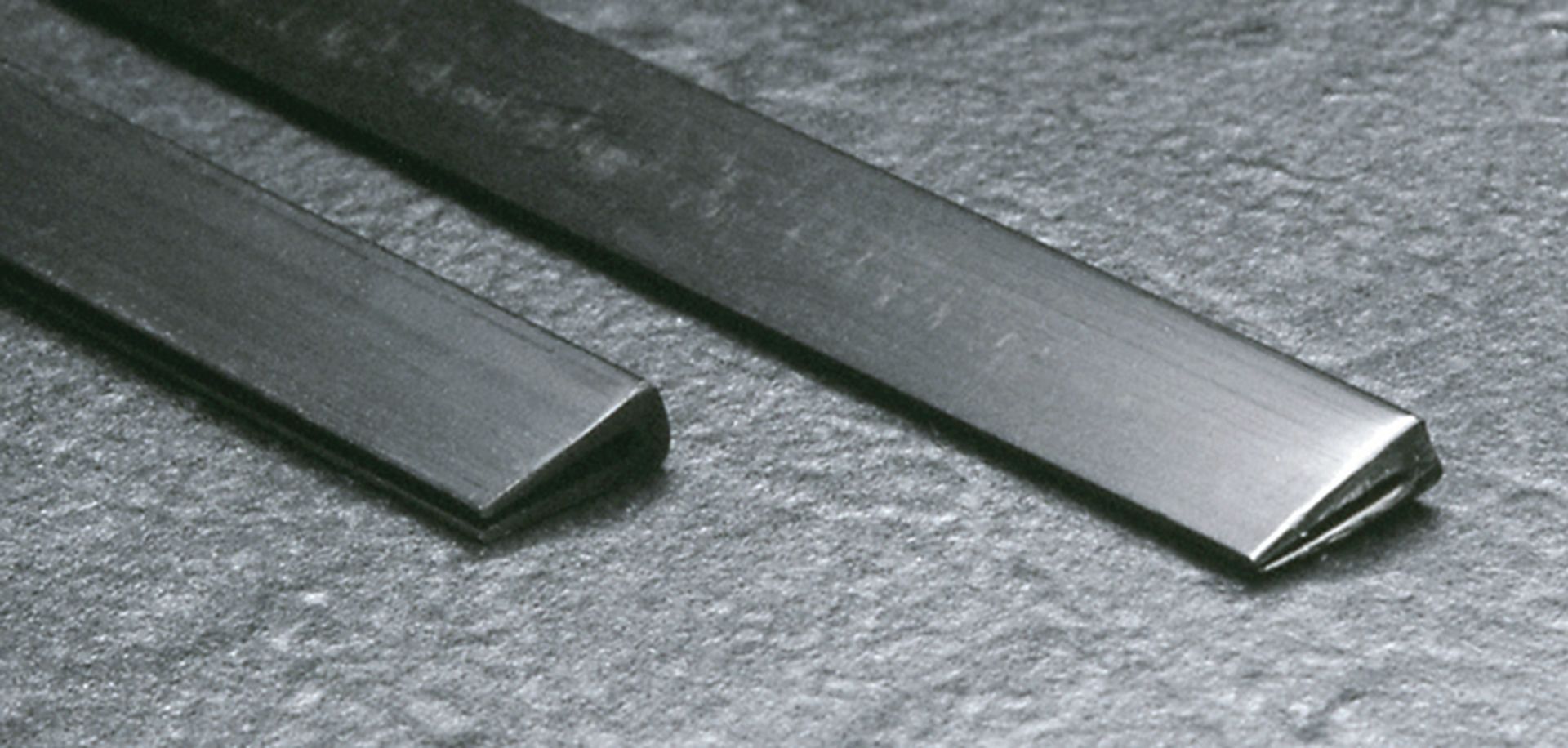

CEG Series

Conductive edge liners grip each contact of edgeboard connectors and can also be used with single in-line devices, providing cost-effective ESD and physical protection for circuit boards and subassemblies.

  • Extruded conductive design for reliable connector protection
  • Helps protect circuit boards and subassemblies from ESD and physical damage
  • Suitable for edgeboard connectors and single in-line devices
  • Surface resistivity of less than 1 x 10⁵ ohms/square, in accordance with ASTM D-257-78
  • Meets Static Decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046

For other material and colour options or to order this part, contact us at +61 7 3277 2300

Note: Micropack sizes have a 3-day lead time.



Additional information

Material

Conductive Polyethylene Copolymer (EVA)
Standard Colour

Black

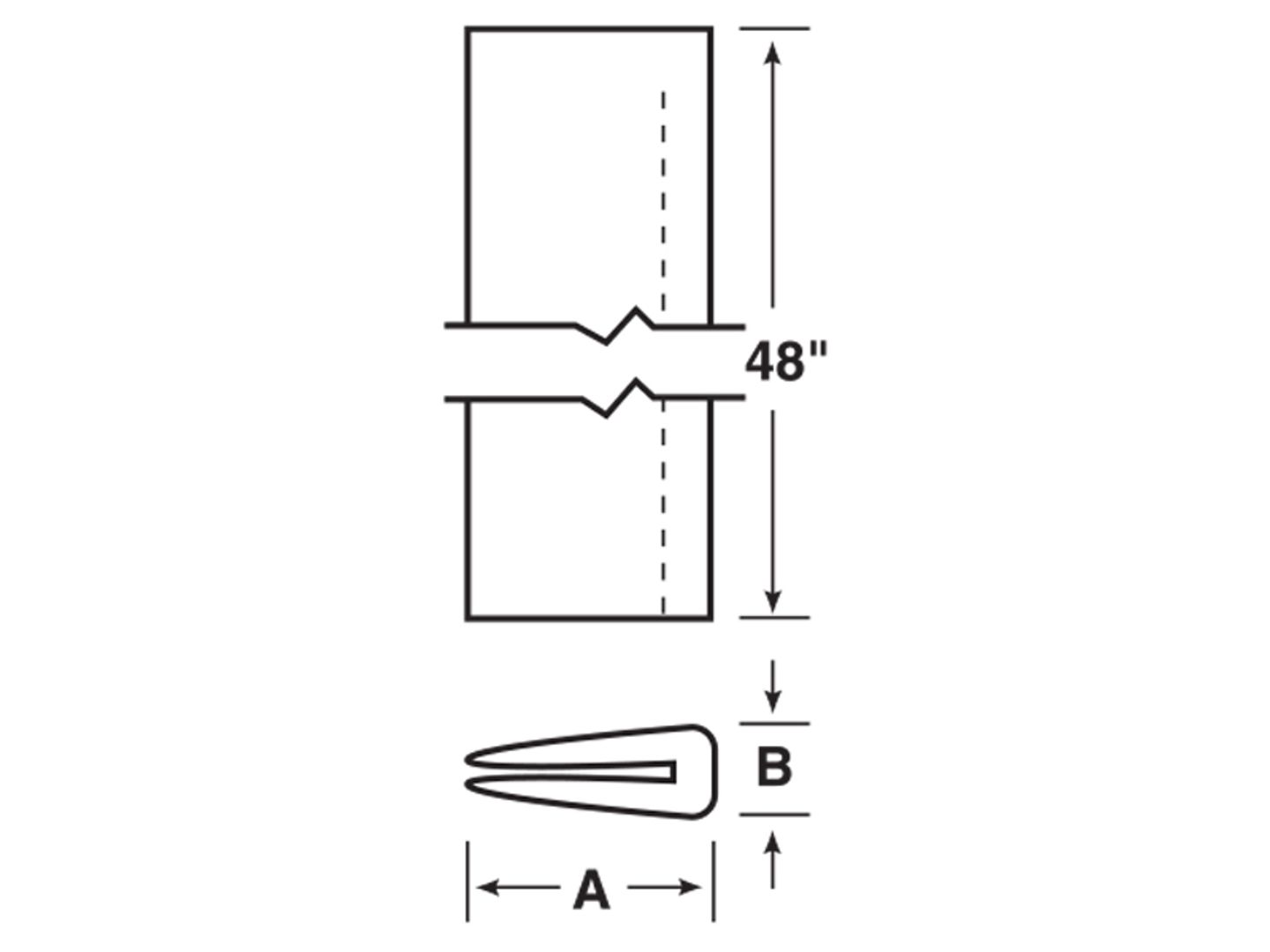

Part Sizes

Item Number

Metal Thickness (In)

Dim A (In)

Dim B (In)

CEG-23-1 CUT 48
0.03
0.48
0.17
CEG-23-1.5 CUT 48
0.04
0.49
0.19
CEG-23-2 CUT 48
0.06
0.48
0.2
CEG-23-2N CUT 48
0.06
0.28
0.2
