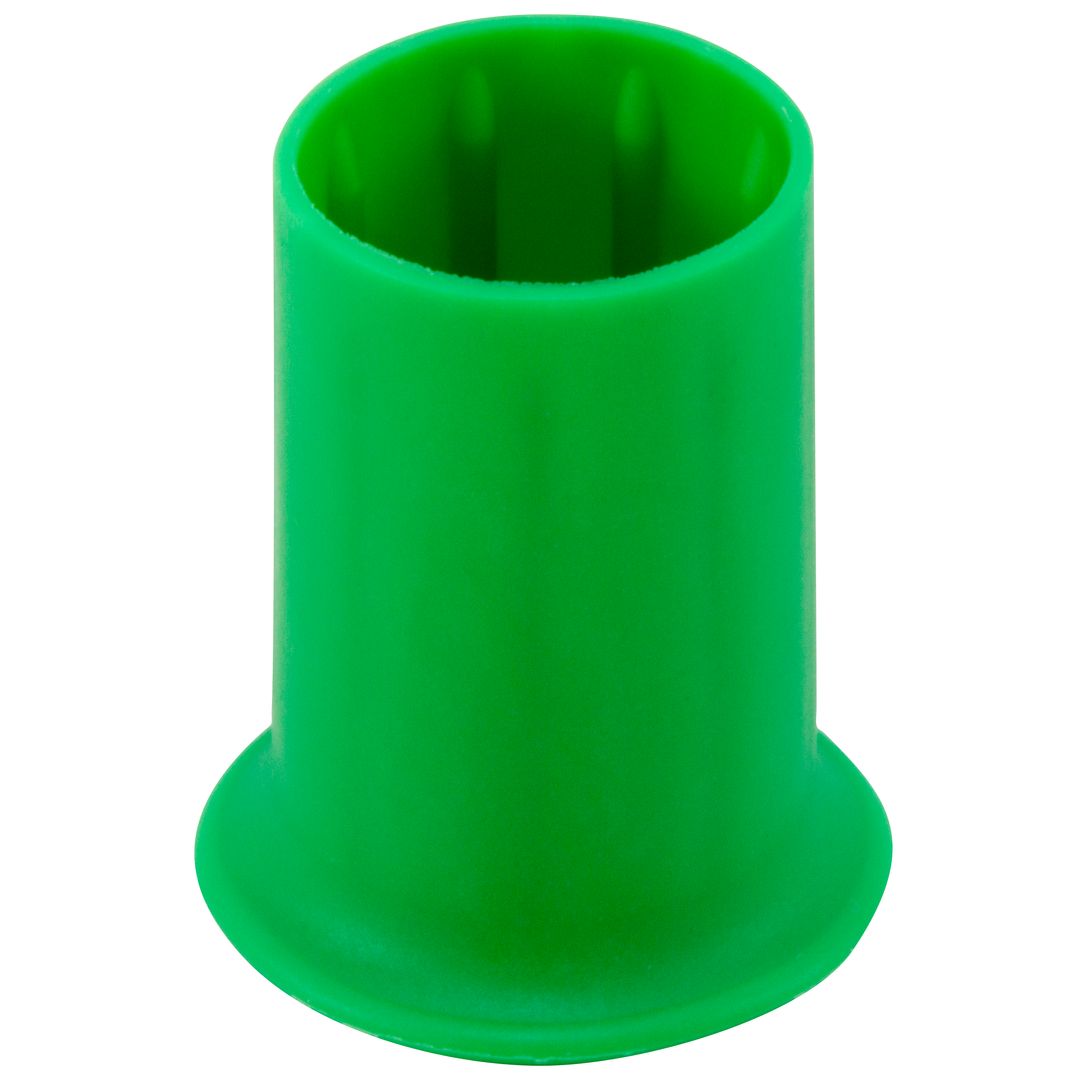

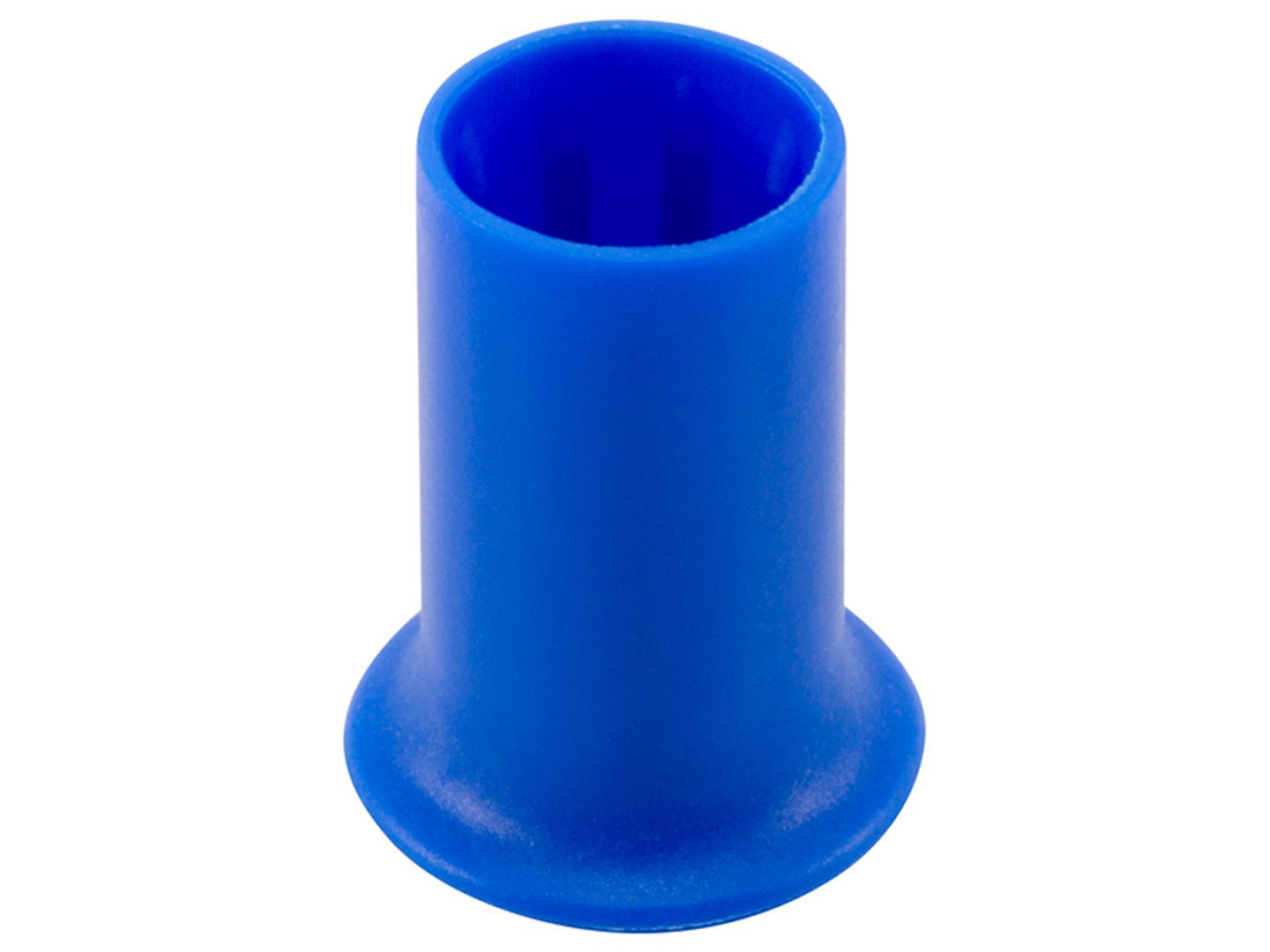

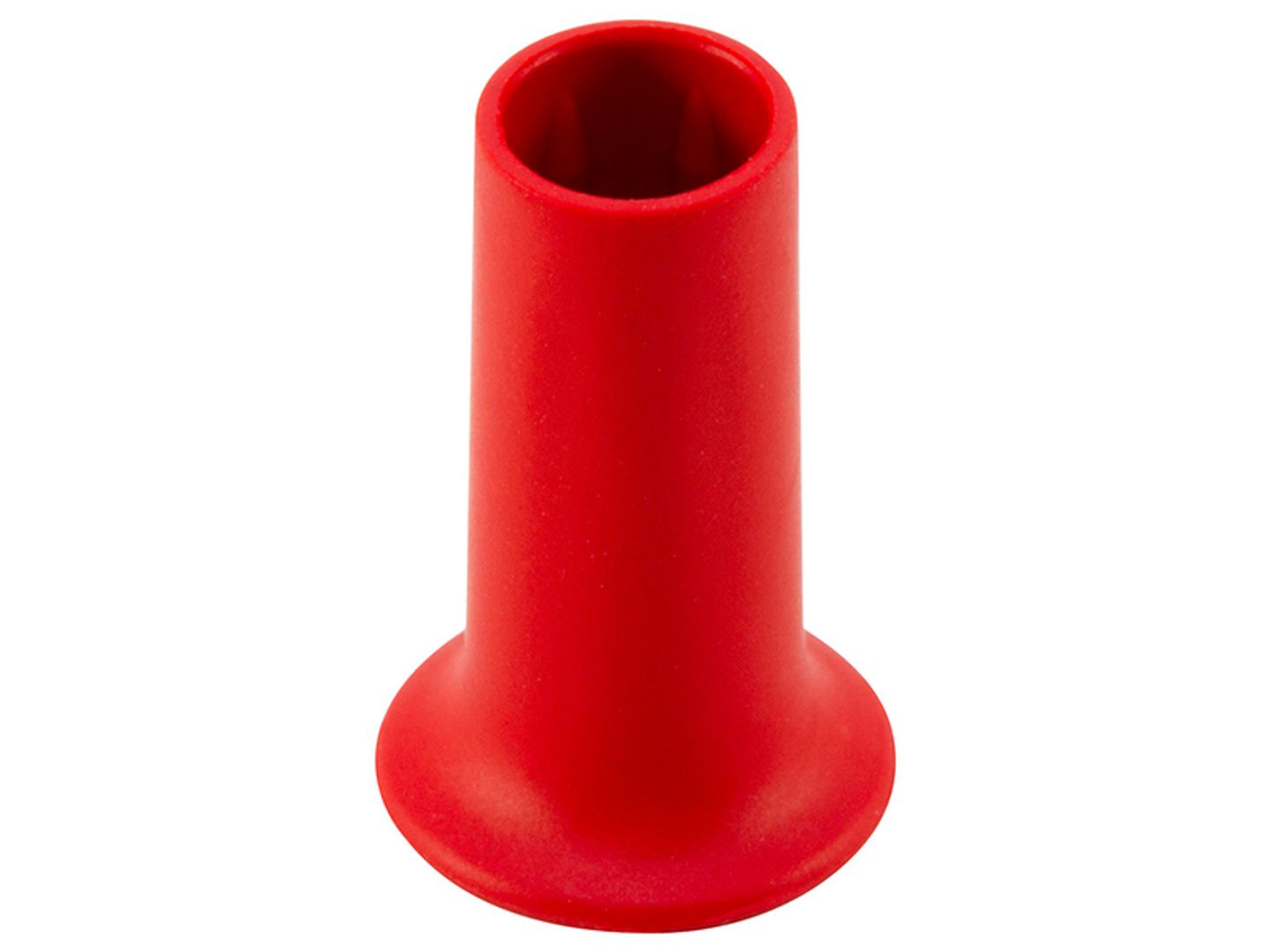

EVC Series

EVC Series Caps are designed to protect medical tubing and fittings from contamination, impact damage and pressure build-up. Made from a medical grade elastomer, these soft caps feature internal ribs for natural ventilation and cushioning, with an ergonomic design that supports easy installation and removal.

  • Protects delicate medical tubing and fittings from contamination and impact damage
  • Internal ribs allow natural ventilation to help prevent pressure build-up
  • Ribbed design helps reduce the risk of accidental pop-up
  • Soft medical-grade elastomer cushions sensitive fittings
  • Ergonomic shape supports simple installation and removal
  • Also available in low-density polyethylene for industrial metal tubing and fittings

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

Medical grade elastomer

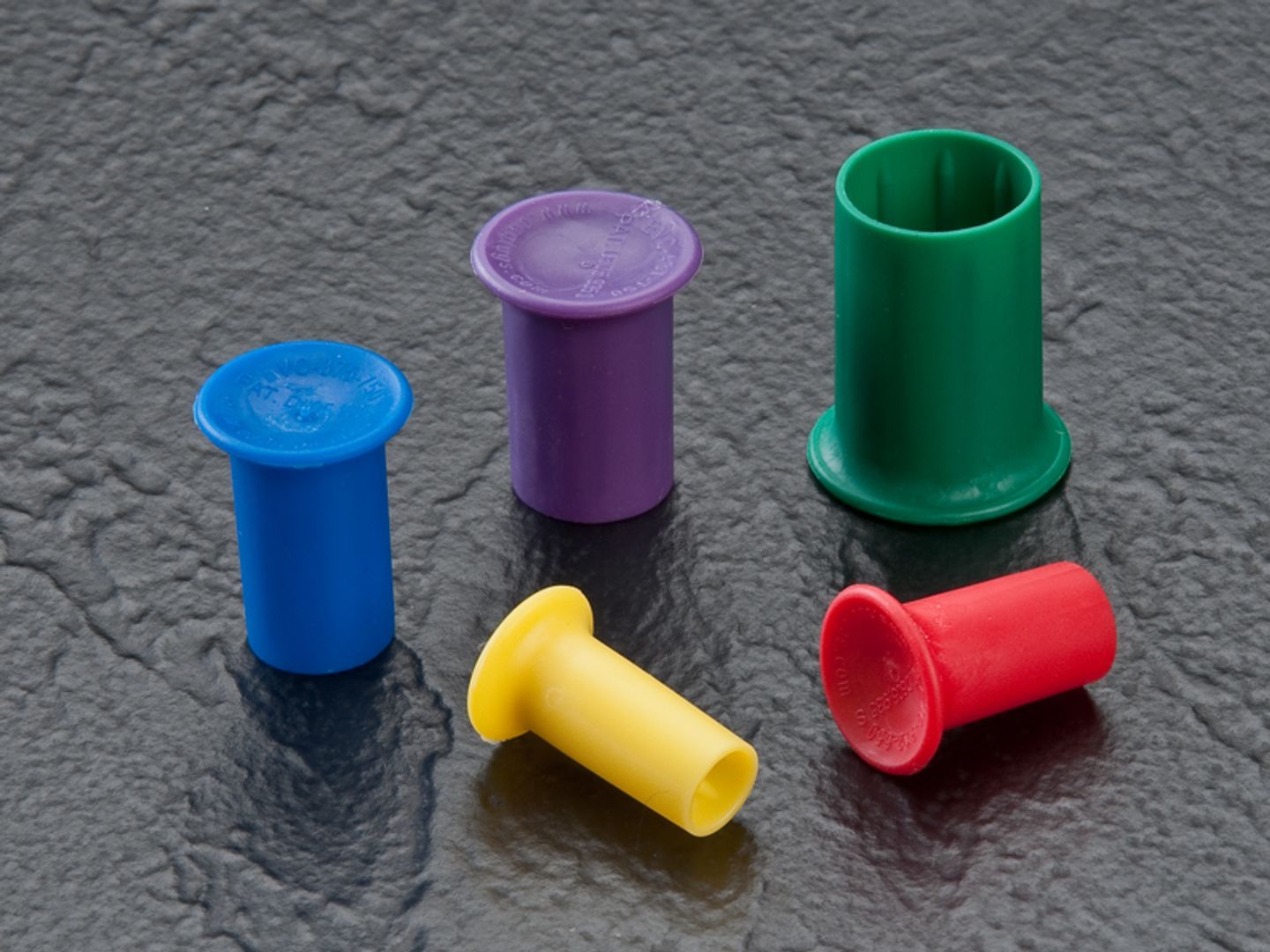

Standard Colours

Red, Green, Yellow, Blue, Purple

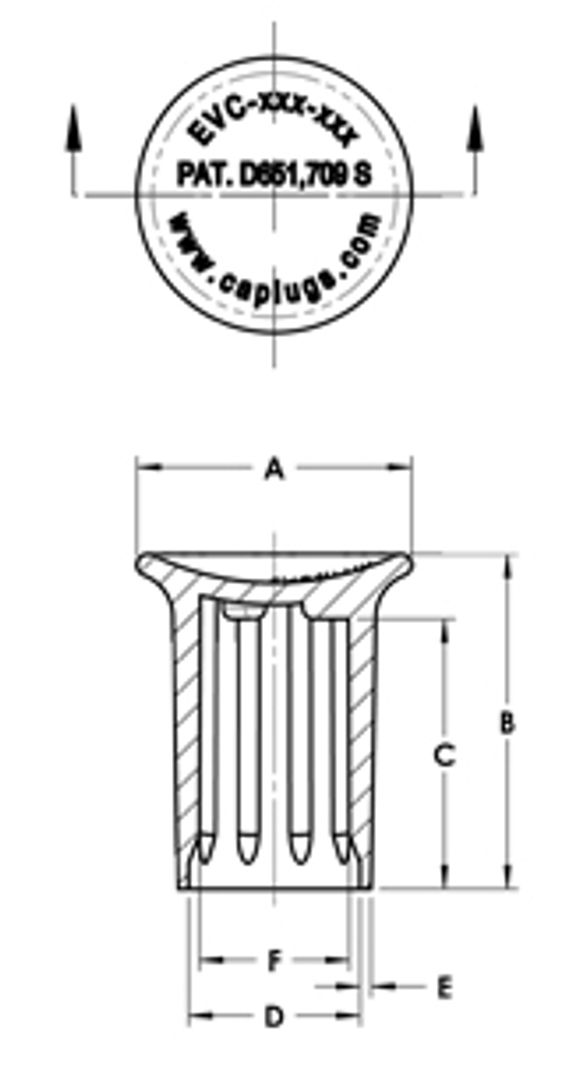

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Dim E (In)

Dim F (In)

EVC-250-700
0.57
0.88
0.687
0.279
0.032
0.231
EVC-312-650
0.62
0.83
0.648
0.341
0.031
0.295
EVC-375-750
0.69
0.93
0.747
0.415
0.03
0.357
EVC-437-750
0.75
0.93
0.743
0.474
0.031
0.417
EVC-562-900
0.88
1.08
0.903
0.603
0.03
0.541
