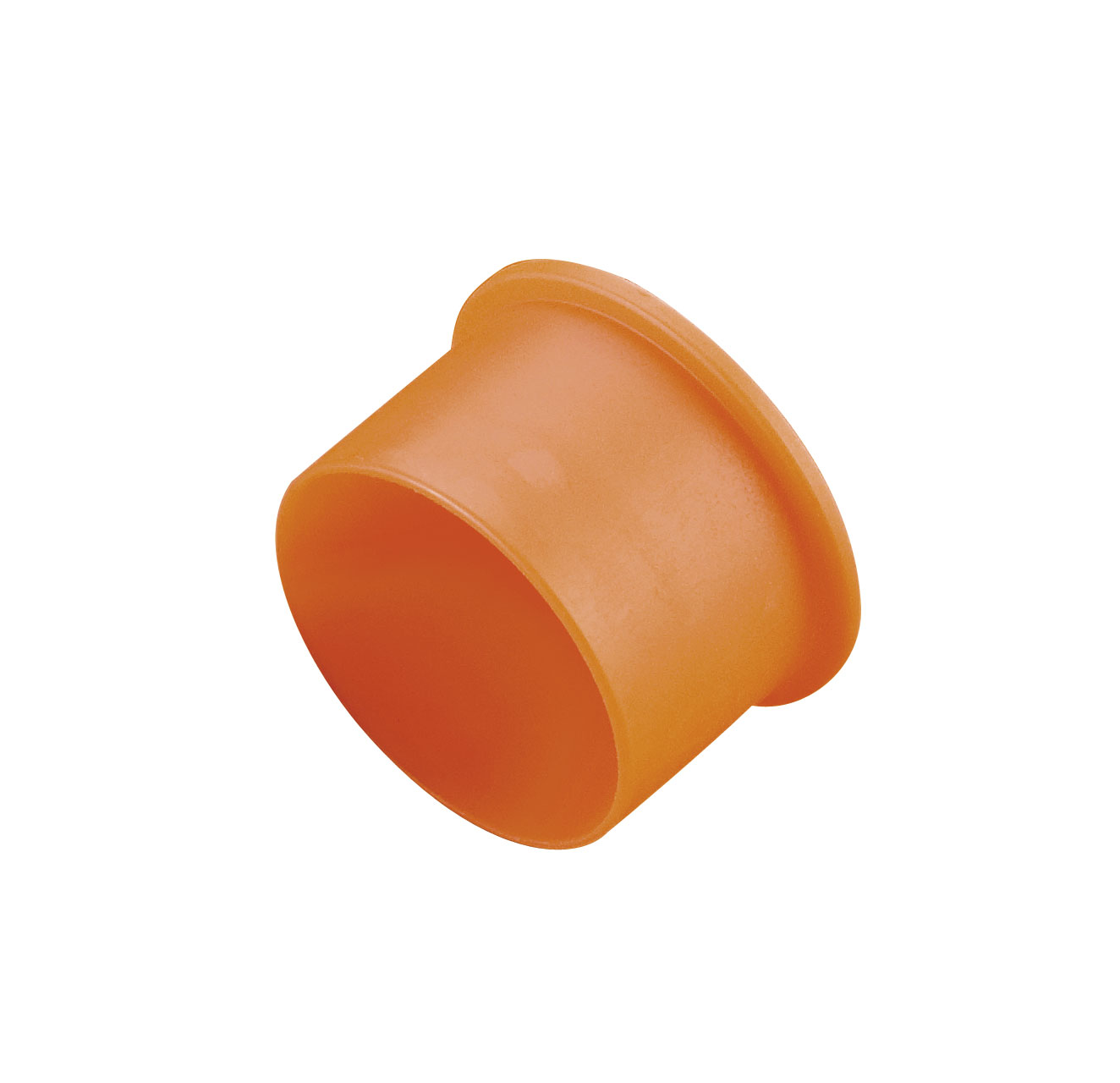

EZC Series

EZC Series Caps are heavy-duty tapered caps designed to cover NPT fittings and protect a range of other items. Their multi-use design provides practical protection, while the integrated flange helps make installation and removal easier during handling, storage or processing.

  • NPT tapered design
  • Flanged for easy installation and removal

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature:

-70 – 79° C
Standard Colour:

Orange

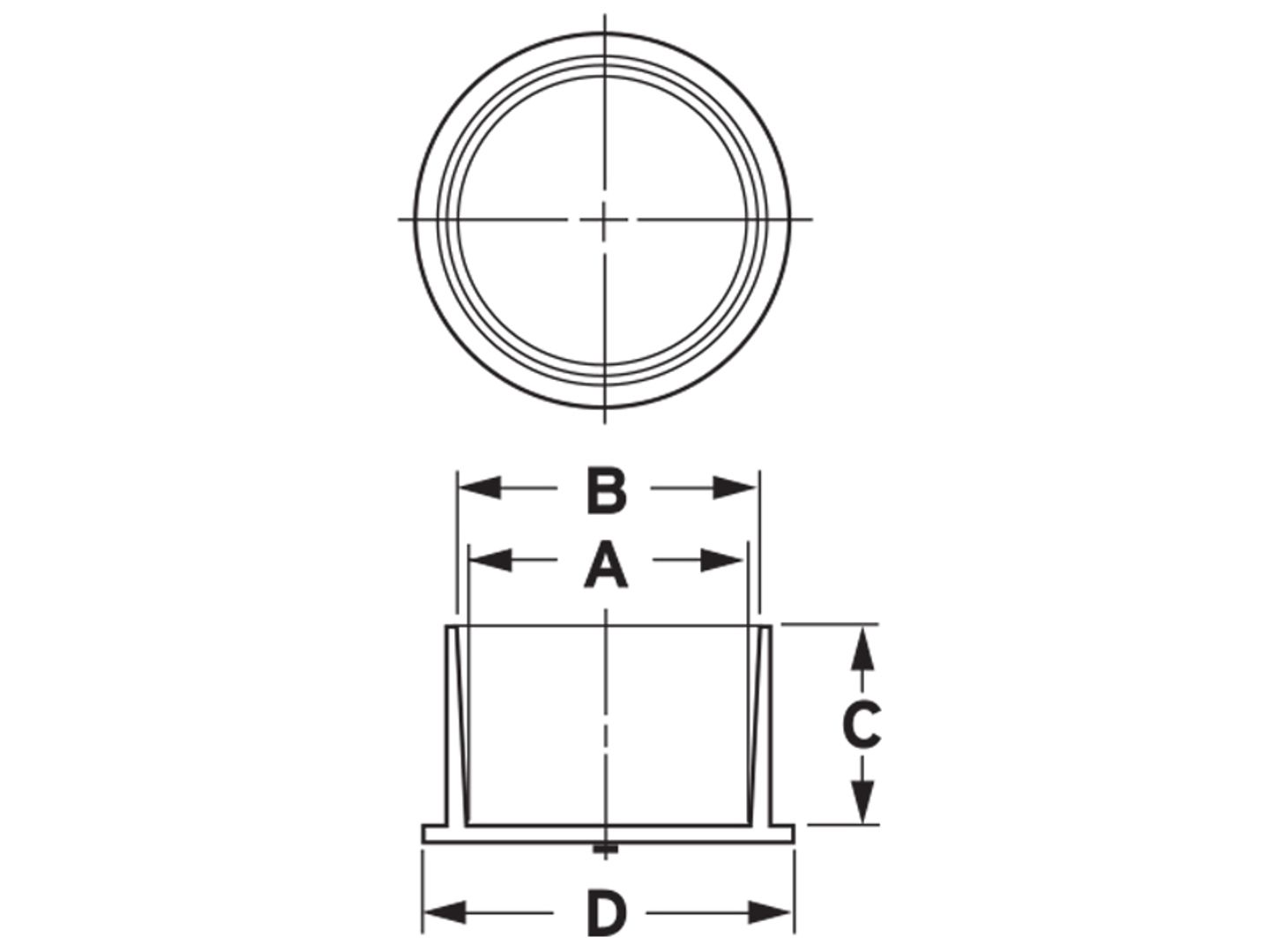

Part Sizes

Item Number

To Cap NPT Size

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

EZC-2
1/8
0.363
0.385
0.37
0.59
EZC-4
1/4
0.493
0.523
0.42
0.73
EZC-6
3/8
0.585
0.662
0.62
0.89
EZC-8
1/2
0.725
0.856
0.59
1.06
EZC-12
3/4
0.99
1.04
0.69
1.25
EZC-16
1
1.257
1.305
0.69
1.52
EZC-24
1-1/2
1.842
1.898
0.75
2.11
EZC-26
–
1.962
1.972
1.29
2.25
