FF Series

FF Series caps are designed for use with a variety of flanged and flange-mounted fittings.

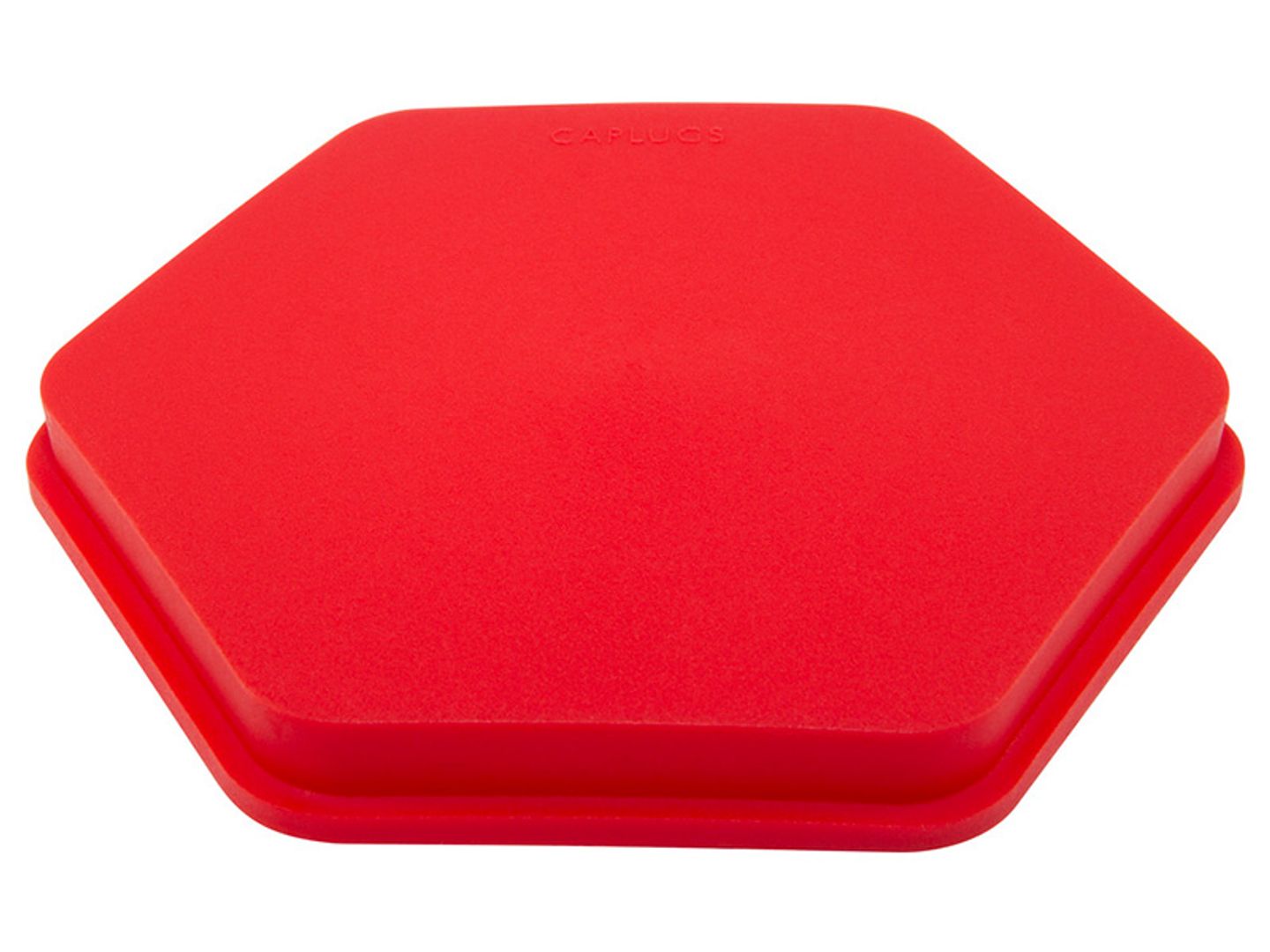

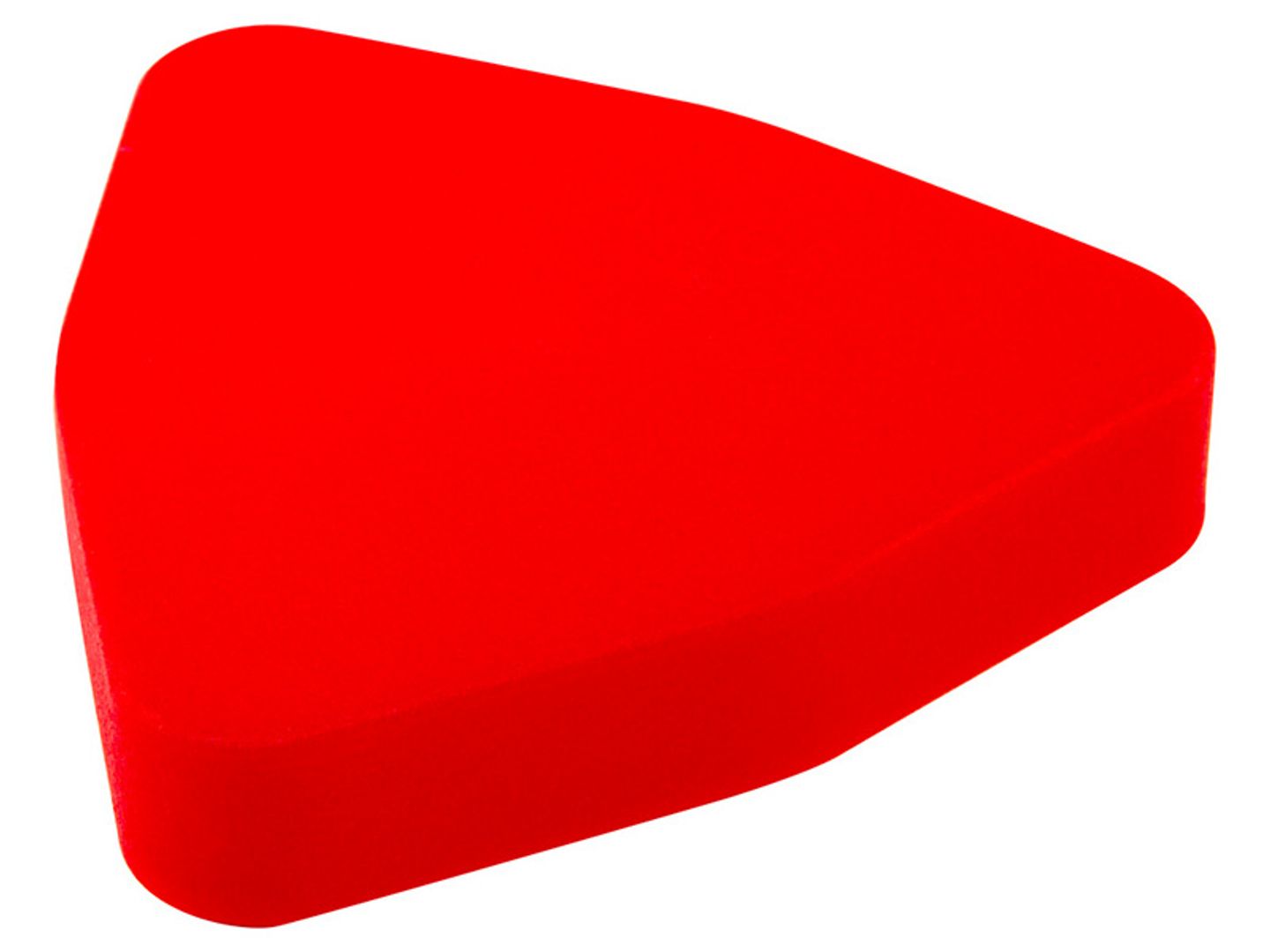

  • Available in square, hexagonal and triangular shapes
  • Effectively seal dirt out of the fitting
  • Protect the flange surface against nicks and scratches

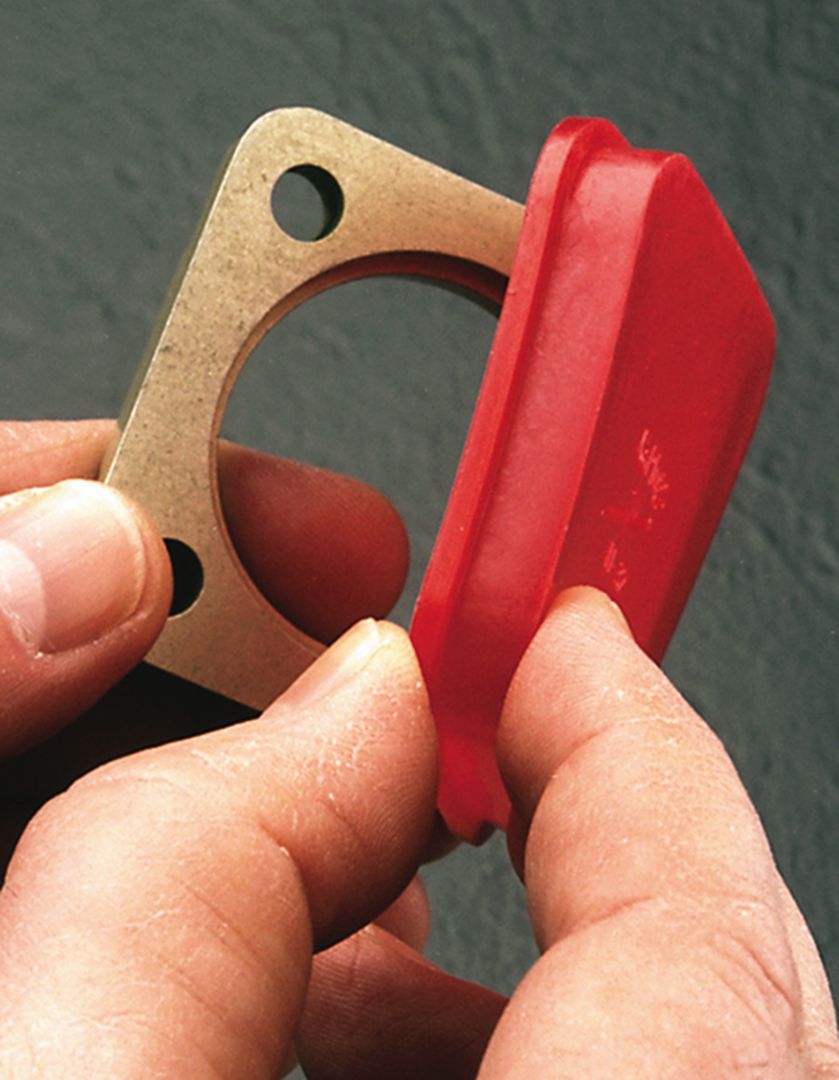

  • When fittings are provided with slip-on flanges, FF caps keep assemblies intact during handling and shipping

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Red

Part Sizes

Item Number

Shape

To Fit

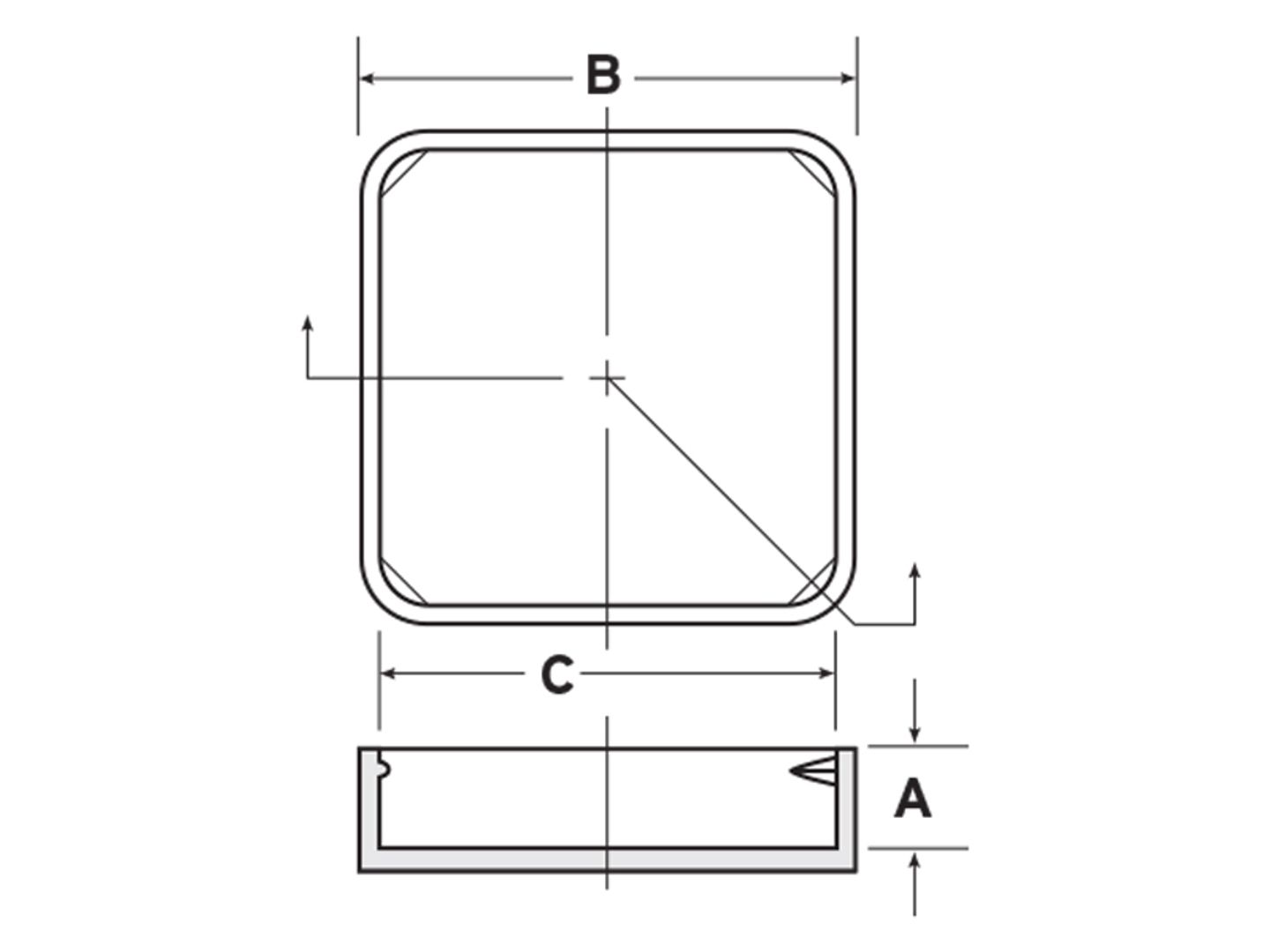

Dim A (In)

Dim B (In)

Dim C (In)

FF-26
Square
AN-756-12
0.37
1.68
1.62
FF-28
Square
AN-756-16
0.36
1.84
1.78
FF-32
Square
–
0.34
2.11
2.05
FF-35
Square
AN-756-20
0.37
2.28
2.22
FF-38
Square
AN-756-24
0.41
2.49
2.4
FF-41
Square
MS-9244-32
0.44
2.65
2.59
FF-48
Square
AN-756-32
0.42
3.09
3.03
FF-39
Triangle
MS-9233-24
0.44
-
-
FF-64
Hex
AN-756-40
0.43
-
-
FF-72
Hex
AN-756-48
0.43
-
-
