OF Series

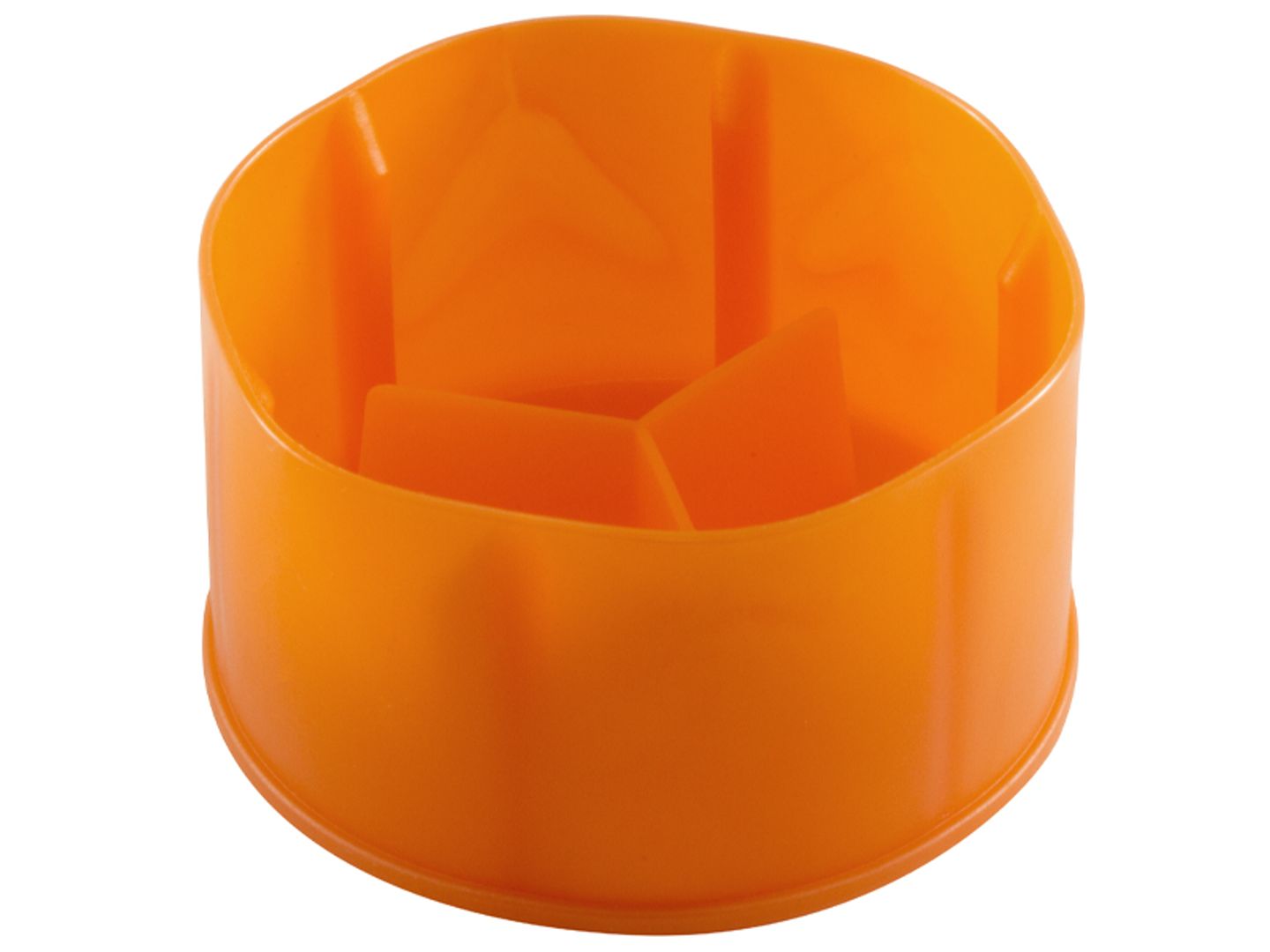

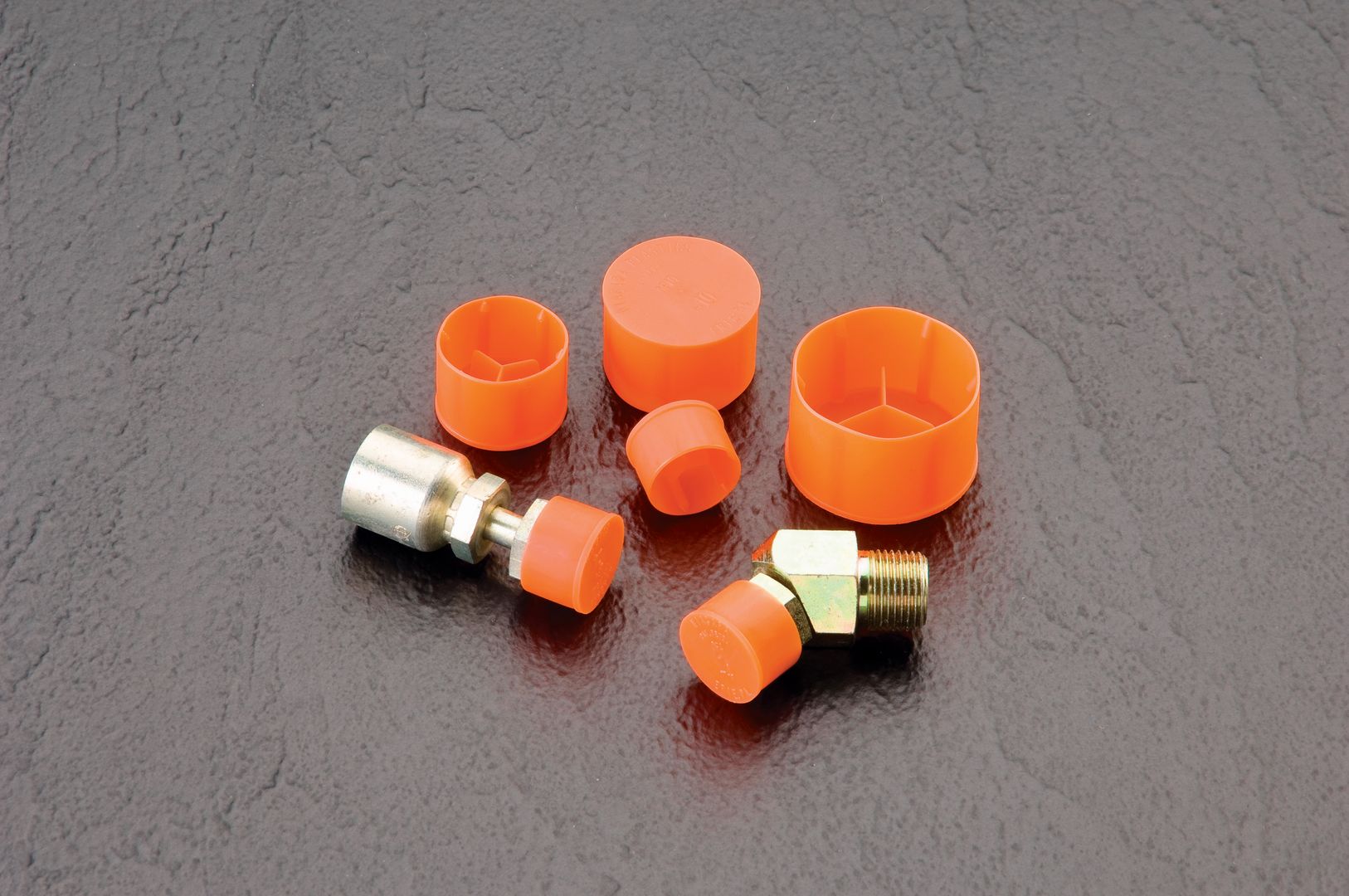

OF Series caps are designed with six internal ribs to securely grip the outside of the fitting nut. Three built-in webs help position the cap and keep it in place, reducing the risk of contamination or damage to the fitting throughout the installation process.

  • Available to suit a range of thread sizes
  • Bright orange colour for easy identification

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Orange

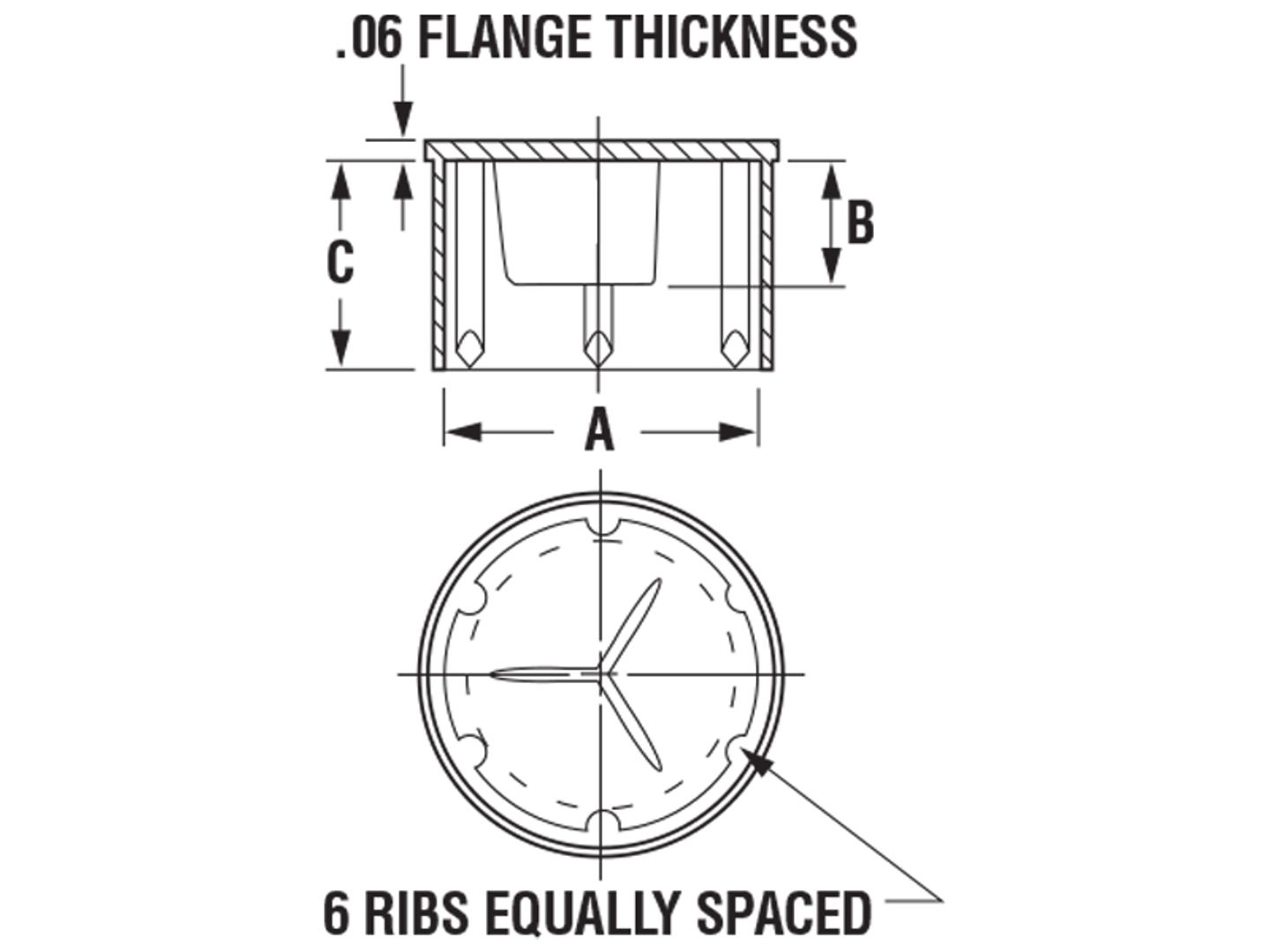

Part Sizes

Item Number

To Cap Thread Size

Fitting Size

Dim A (In)

Dim B (In)

Dim C (In)

OF-4
9/16
-4
0.675
0.32
0.49
OF-6
11/16
-6
0.79
0.37
0.57
OF-8
13/16
-8
0.916
0.43
0.73
OF-10
1
-10
1.108
0.53
0.83
OF-12
1 - 3/16
-12
1.36
0.57
0.93
OF-16-S
1-7/16
-16
1.58
0.58
1
OF-16
1-7/16
-16
1.61
0.58
1
OF-20
1-11/16
-20
1.86
0.58
1
OF-24
2
-24
2.23
0.58
1
